StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps, USB-C PCI Express Expansion Card, 4x Independent USB Controllers, Windows/Linux/macOS, TAA-Compliant
Regular price
$587.10
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 3 items left in stock.
Add four 10Gbps USB Type-C ports to a server or desktop computer through PCI Express

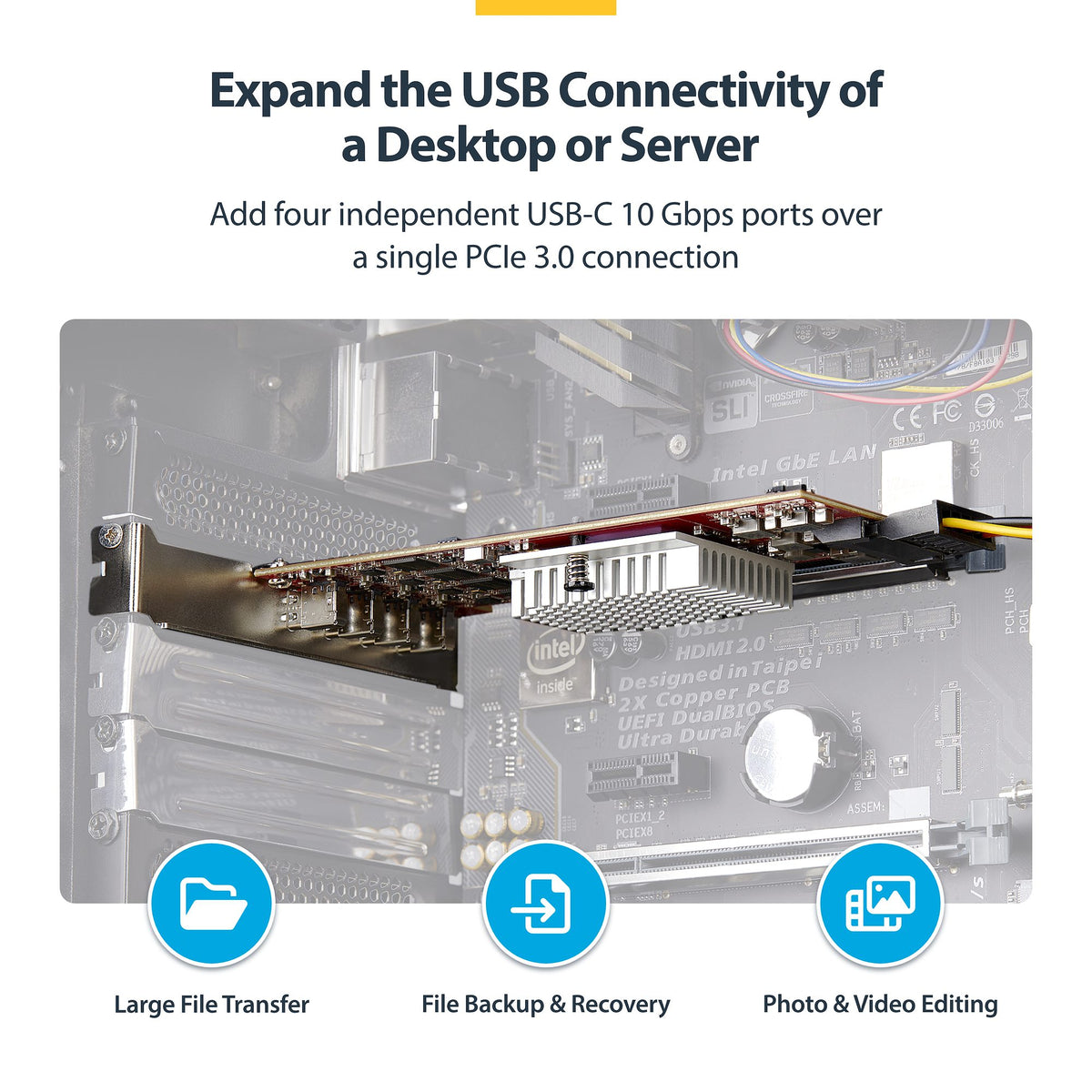

Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.

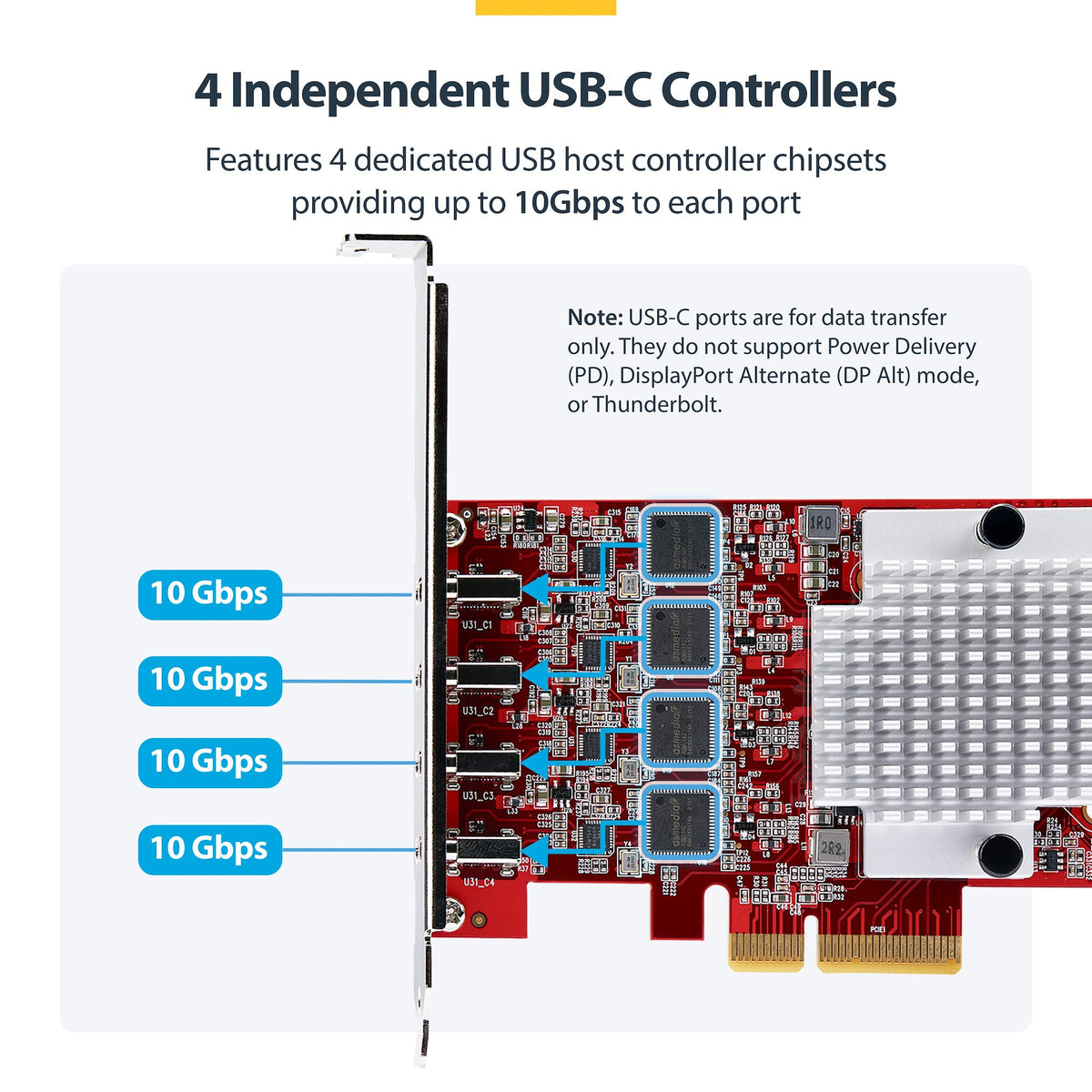

Dedicated USB Controllers
Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.
Charge and Sync USB Devices

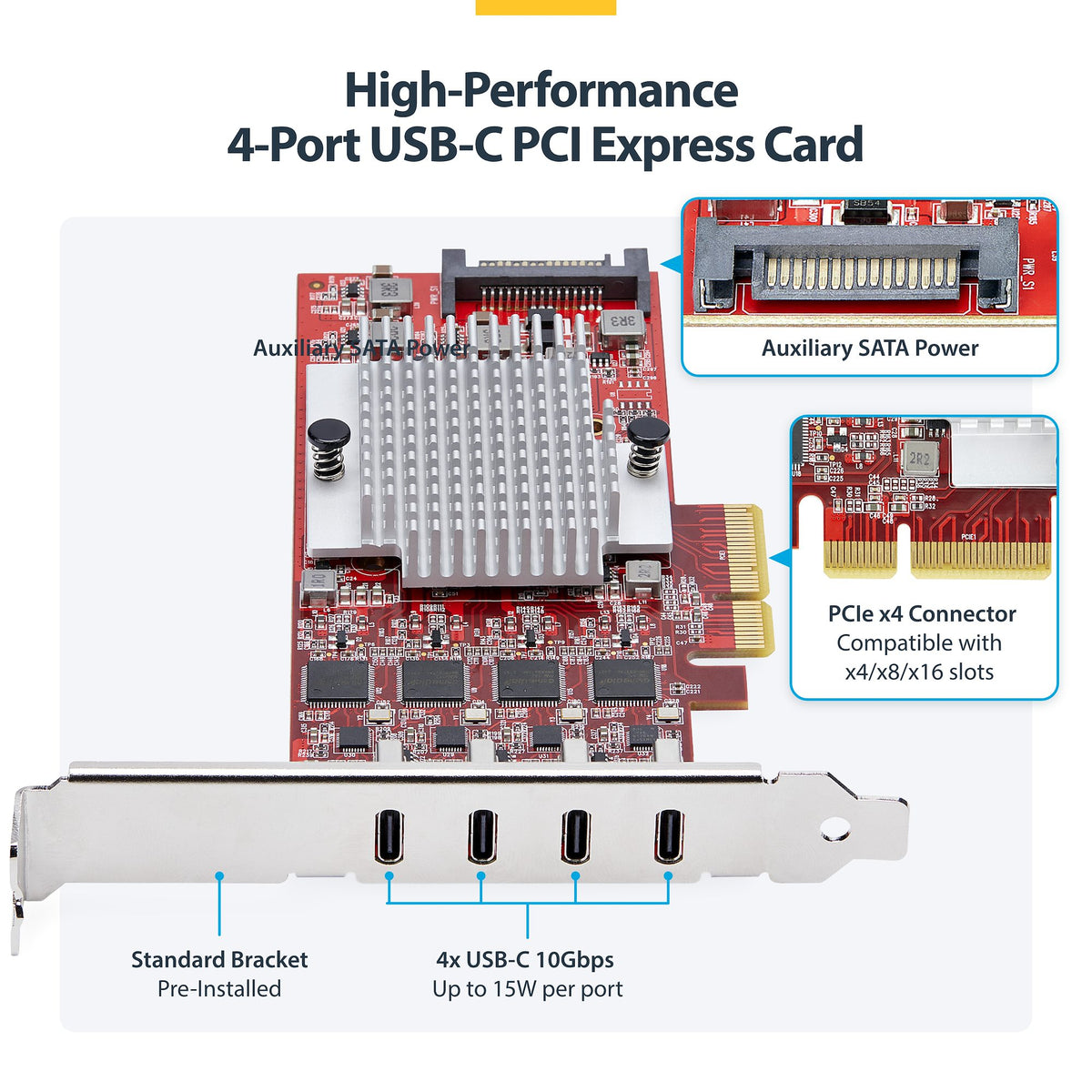

This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.
Compatibility

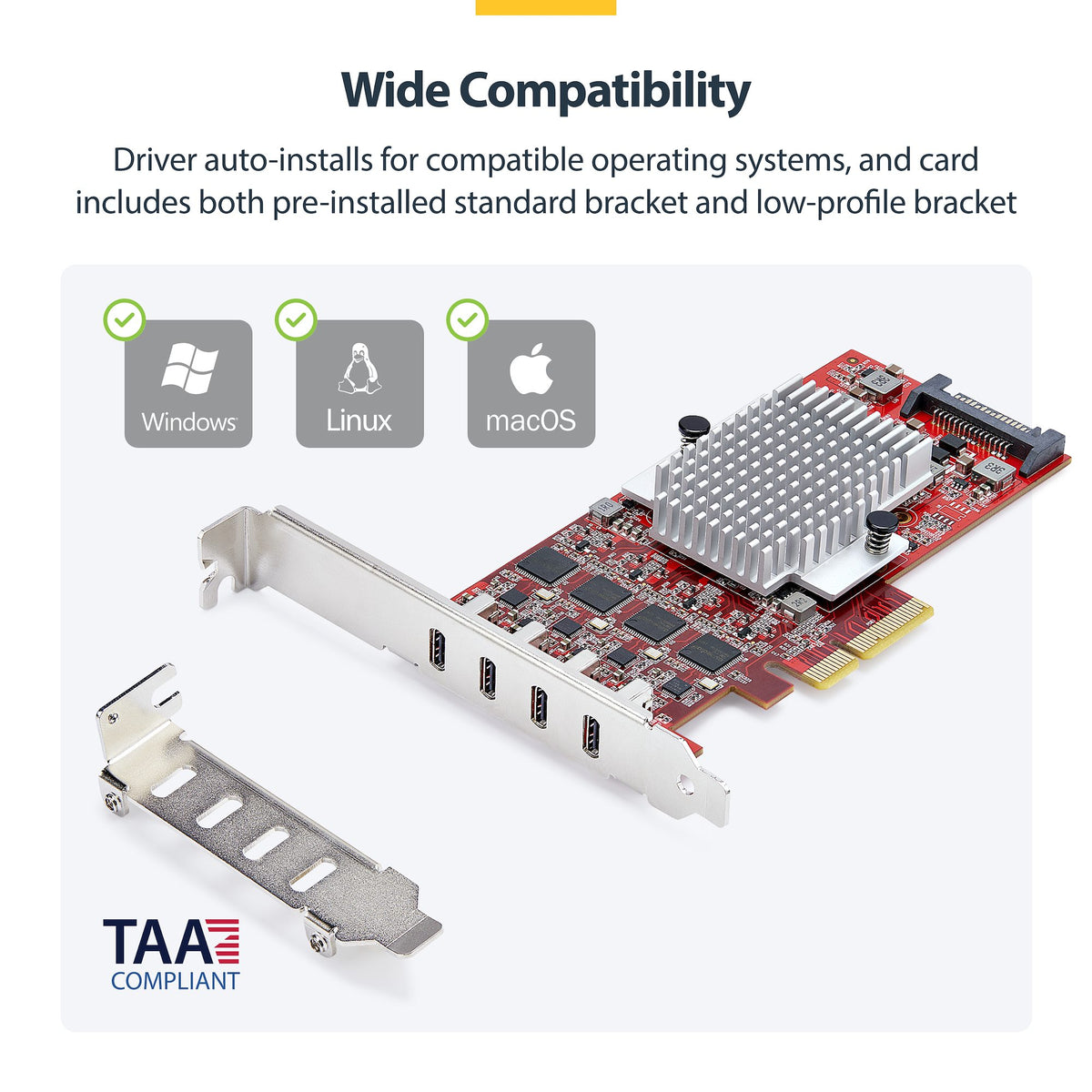

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed standard profile bracket and includes a low-profile bracket for maximum compatibility.
Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.
Dedicated USB Controllers
Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance
The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.
Charge and Sync USB Devices
This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.
Compatibility
The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed standard profile bracket and includes a low-profile bracket for maximum compatibility.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Red
- Internal: Yes
- Output interface: USB Type-C
- Host interface: PCIe
- Operating temperature (T-T): 0 - 85 °C
- Products per master (outer) case: 60 pc(s)
- Master (outer) case height: 50 cm
- Master (outer) case length: 31 cm
- Master (outer) case width: 38 cm
- Operating relative humidity (H-H): 20 - 80%
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
- Chipset: ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X
- Data transfer rate (max): 10 Gbit/s
- Server operating systems supported: Windows Server 2019, Windows Server 2022
- Linux operating systems supported: Yes
- Expansion card standard: PCI 3.0
- Quick installation guide: Yes
- Internal SATA ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 4
Operational conditions
- Storage temperature (T-T)
- -25 - 85 °C
Packaging data
- Mounting brackets included
- Yes
- Package depth
- 17 cm
- Package height
- 3 cm
- Package weight
- 0.16 kg
- Package width
- 14.2 cm
Weight & dimensions
- Depth
- 14 cm
- Height
- 11.99 cm
- Weight
- 0.12 kg
- Width
- 5.62 cm
Mounting brackets included
