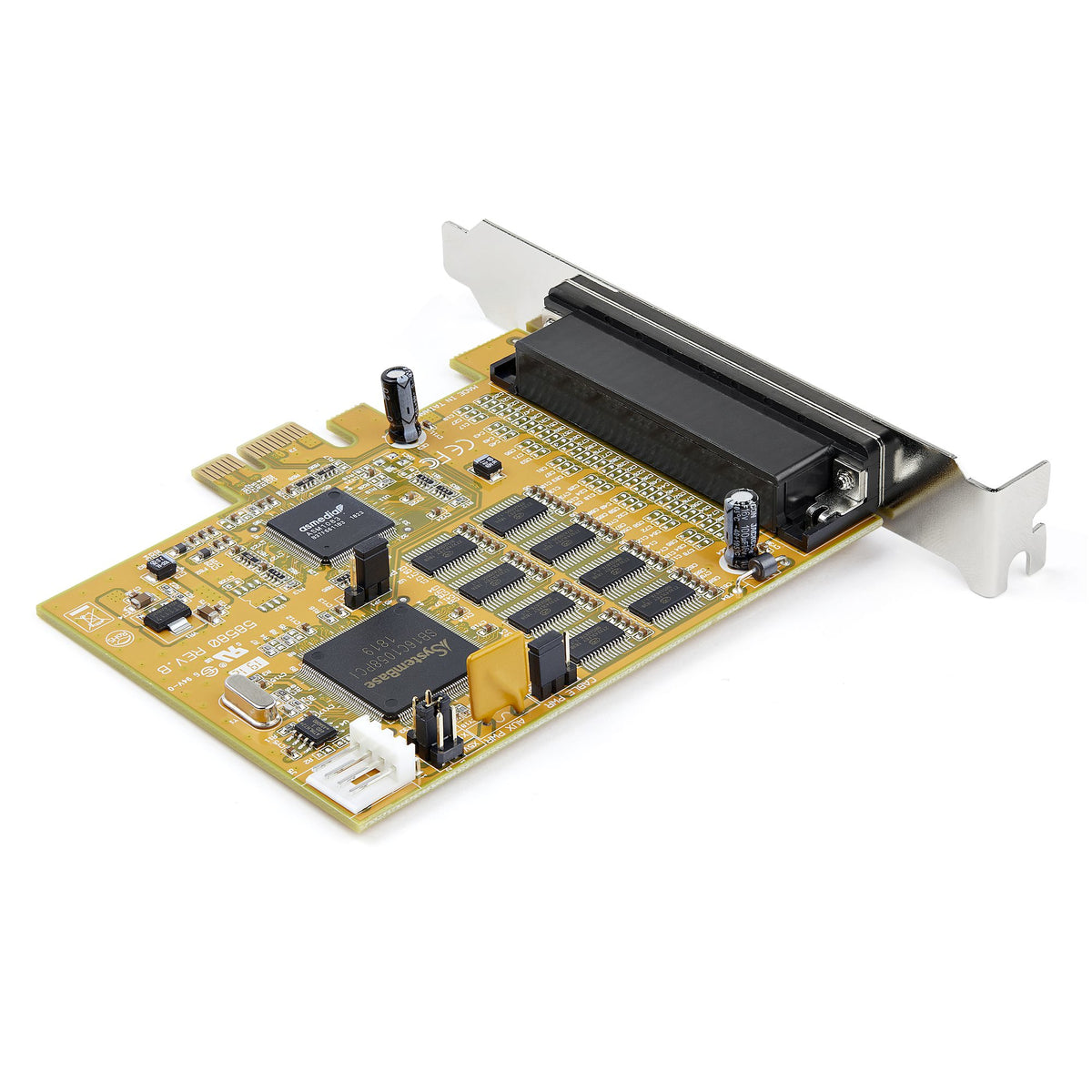

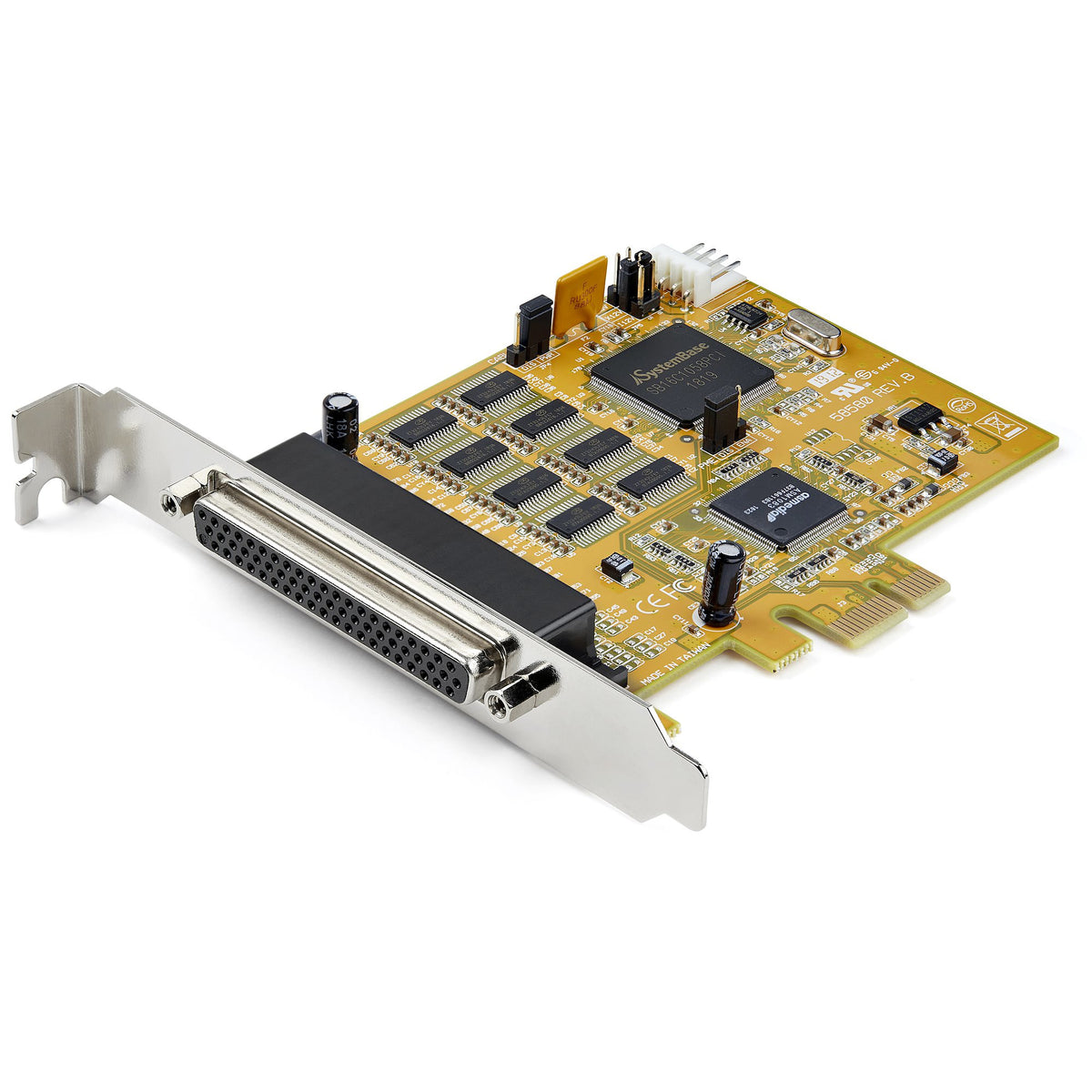

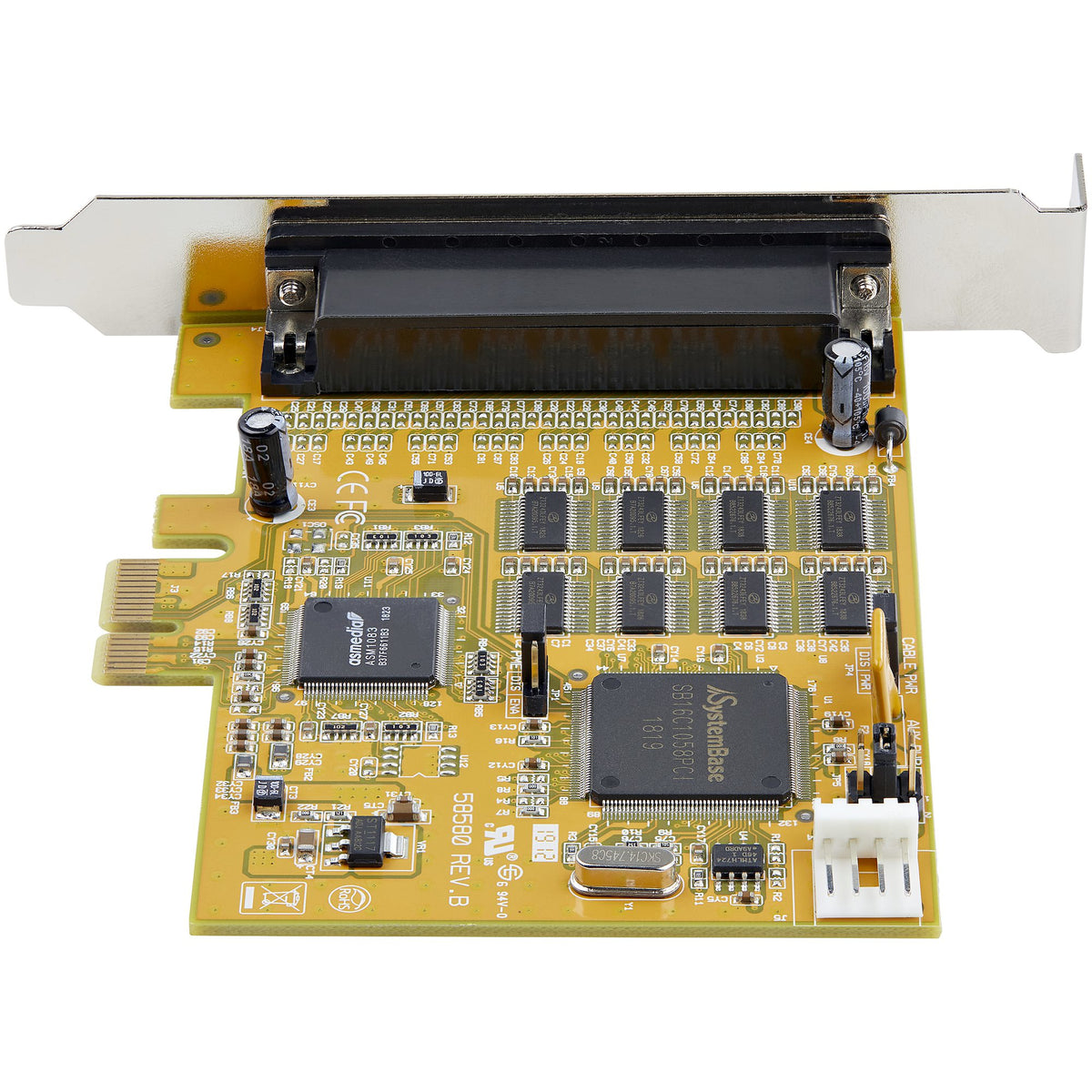

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows Only - TAA
Regular price
$419.16
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 2 items left in stock.
Add eight RS-232 capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card - Full Profile Serial Card
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports

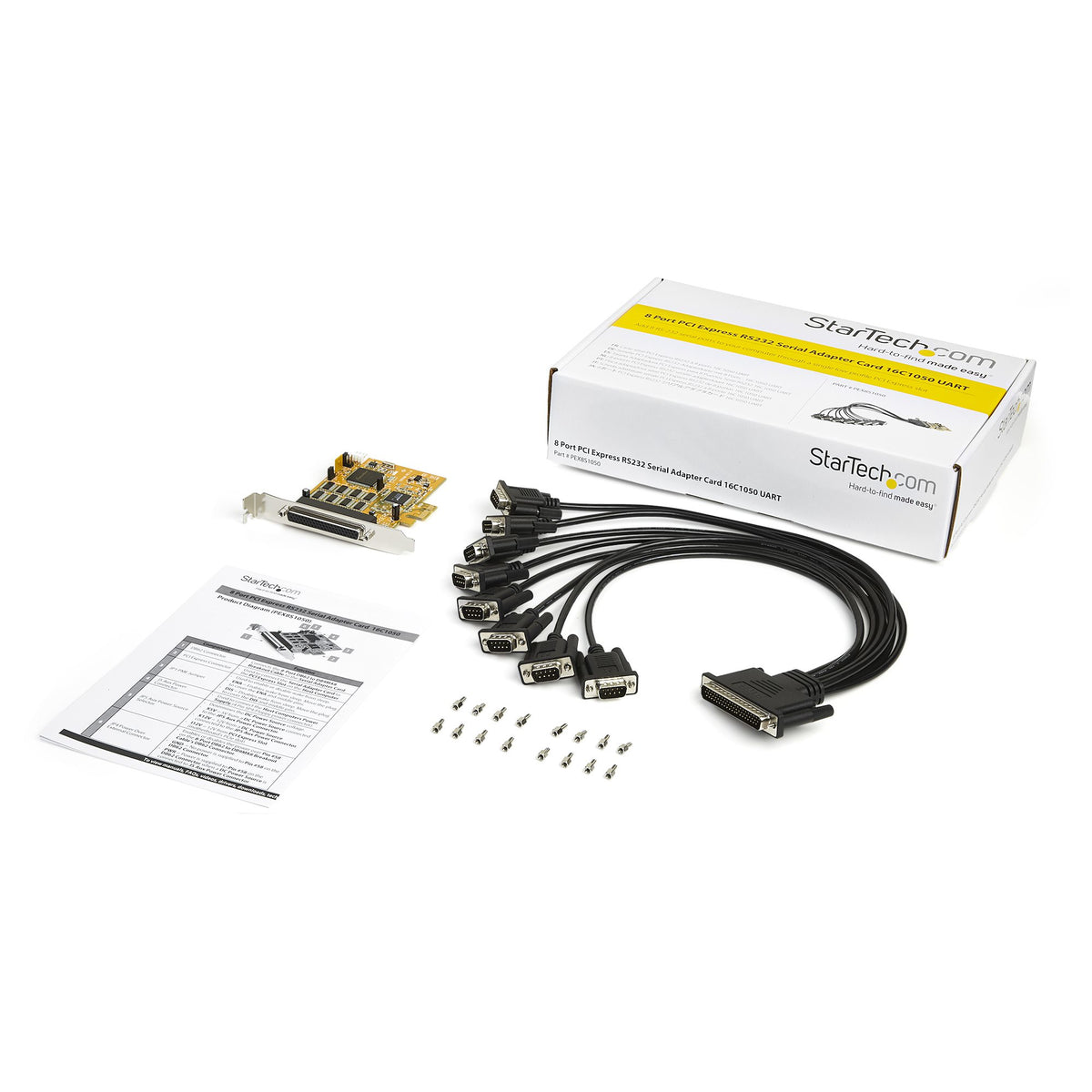

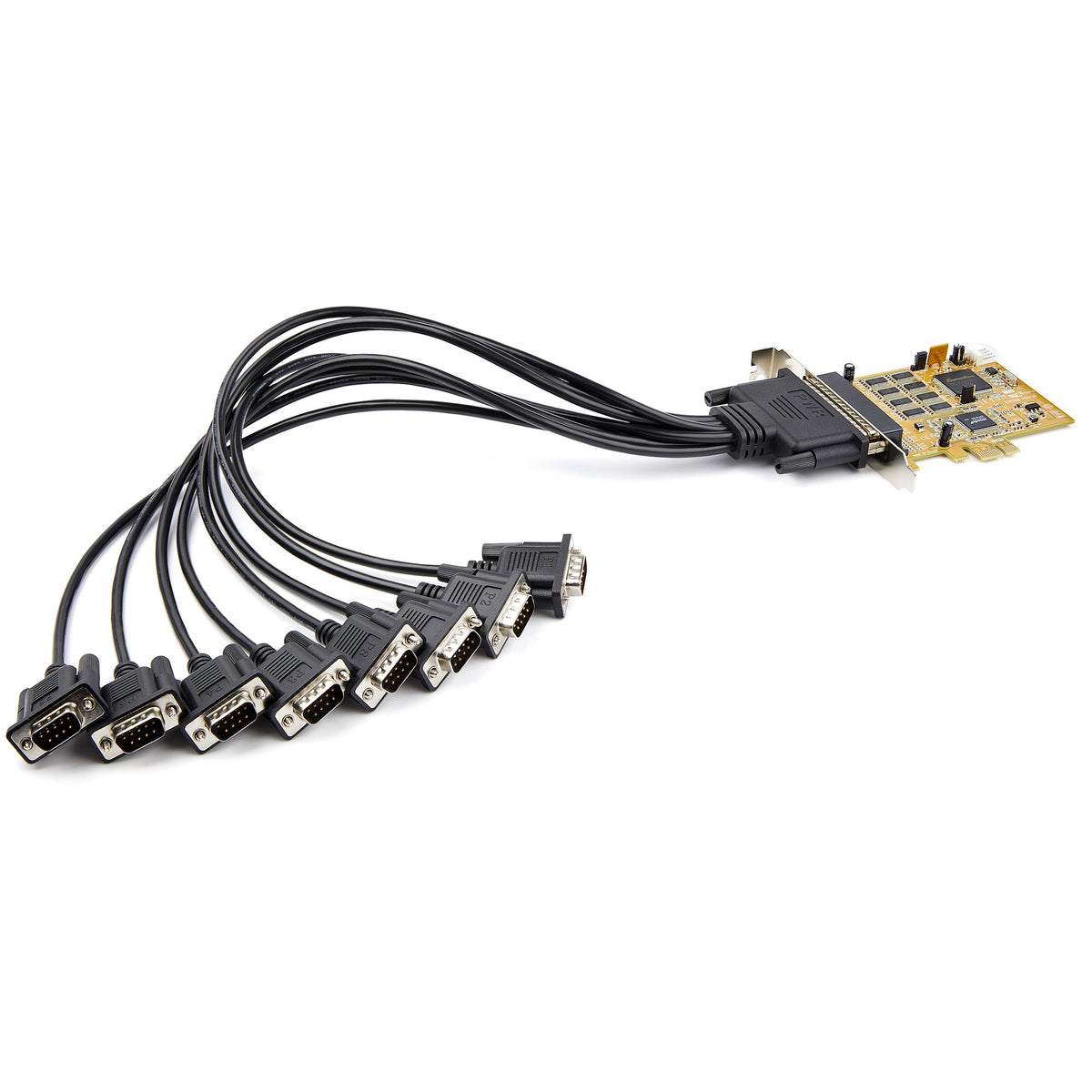

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
Windows Only
This PCI Express card is only compatible with Windows and Windows server.
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
Windows Only
This PCI Express card is only compatible with Windows and Windows server.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Yellow
- Internal: Yes
- Output interface: Serial
- Host interface: PCIe
- Harmonized System (HS) code: 84733020
- Operating temperature (T-T): 0 - 55 °C
- Products per master (outer) case: 16 pc(s)
- Master (outer) case height: 33 cm
- Master (outer) case length: 40.4 cm
- Master (outer) case width: 51.9 cm
- Operating relative humidity (H-H): 5 - 95%
- Compliance certificates: RoHS
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Chipset: ASMedia - ASM1083, System Base - SB16C1058PCI
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019
- Linux operating systems supported: Yes
- Quick installation guide: Yes
- Mean time between failures (MTBF): 160013 h
- Serial ports quantity: 8
- Cables included: Serial
Design
- Maximum cable length
- 0.5 m
Features
- Baud rate
- 921.6 Kbit/s
- Data bits
- 5, 6, 7, 8
- FIFO (First In, First Out)
- 256 B
- Flow Control type
- RTS/CTS, XON/XOFF
- Parity bit
- Even, No, Odd
- Stop bits
- 1, 1.5, 2
Operational conditions
- Storage temperature (T-T)
- -40 - 75 °C
Other features
- Compliance industry standards
- 16C1050 UART
Packaging data
- Package depth
- 29.4 cm
- Package height
- 7 cm
- Package weight
- 0.67 kg
- Package width
- 19.2 cm
Ports & interfaces
- Serial interface type
- RS-232
Weight & dimensions
- Depth
- 10.5 cm
- Height
- 12 cm
- Weight
- 0.07 kg
- Width
- 1.6 cm
Cables included: Serial
Materials
