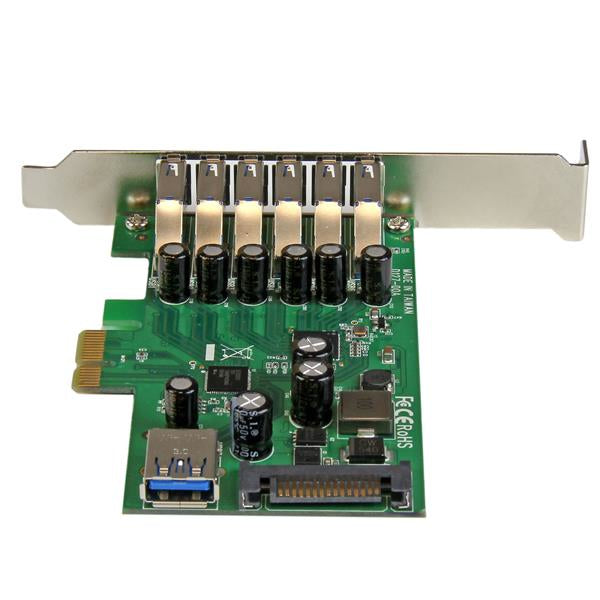

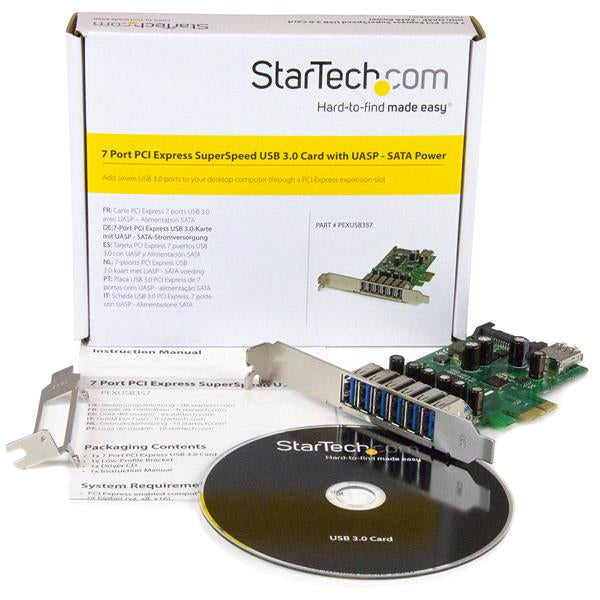

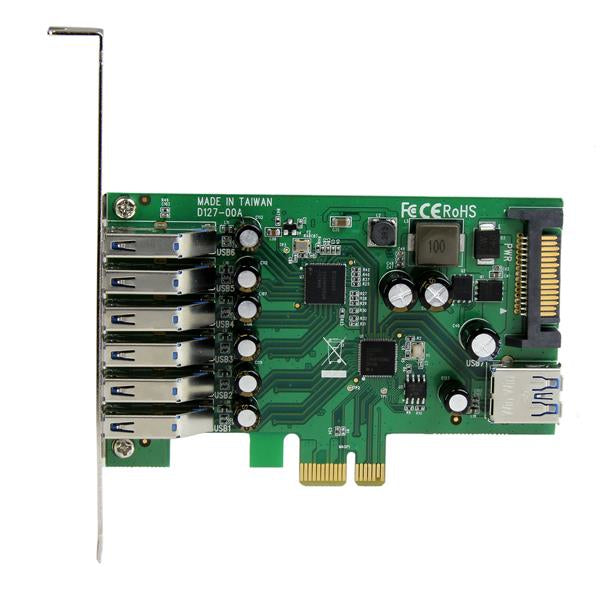

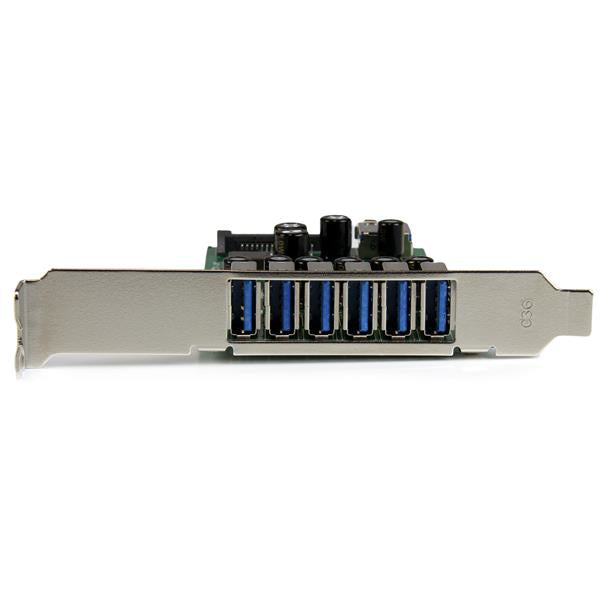

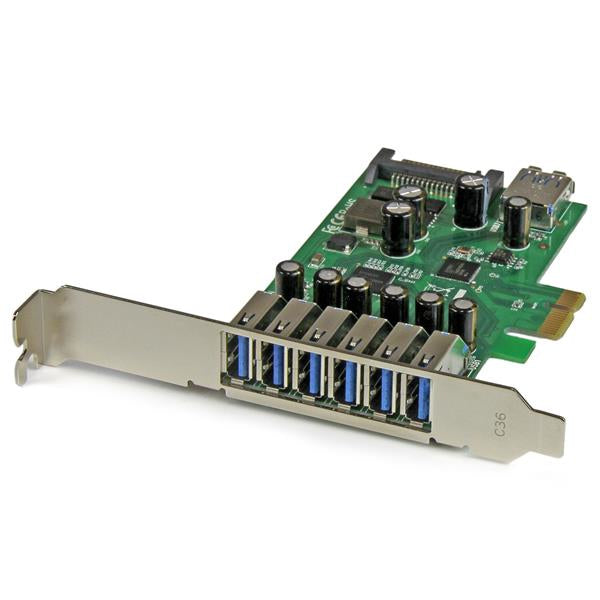

StarTech.com 7-Port PCI Express USB 3.0 Card - 5Gbps - Standard and Low-Profile Design - TAA
Regular price
$163.42
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (18)
Get the scalability you need by adding 7 USB 3.0 (USB 3.2 Gen 1) ports with SATA power to your computer
Handle your workload more efficiently. This USB 3.2 Gen 1 card expands your computer’s capabilities by giving you seven extra USB 3.2 Gen 1 ports. It’s engineered with an innovative stacked port layout to fit easily into both low-profile and standard desktop computers.
Greater port count. Greater scalability.
More ports means you can add USB devices as you need them. This robust USB 3.2 Gen 1 card gives you seven USB 3.2 Gen 1 ports - six external and one internal - so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they’re ready to use when you need them. It’s also economical - by being able to connect so many devices, you save the cost of extra hubs or cards.
The internal USB 3.2 Gen 1 port lets you connect a USB device inside your computer for added convenience and security.
Unique dual-profile design
This versatile USB 3.2 Gen 1 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers.
Easy driver installation
You'll be up and running in no time. The card automatically installs in Windows® 8.1 or later, with native operating system support. It’s also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.
Effective USB 3.2 Gen 1 performance enhanced by UASP
This high-performance SuperSpeed USB 3.2 Gen 1 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 1, when paired with a UASP-enabled enclosure.
The rugged build quality of the card delivers long-lasting performance, and gives you peace of mind when connecting multiple devices. The PEXUSB3S7 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1 or later, and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
Handle your workload more efficiently. This USB 3.2 Gen 1 card expands your computer’s capabilities by giving you seven extra USB 3.2 Gen 1 ports. It’s engineered with an innovative stacked port layout to fit easily into both low-profile and standard desktop computers.
Greater port count. Greater scalability.
More ports means you can add USB devices as you need them. This robust USB 3.2 Gen 1 card gives you seven USB 3.2 Gen 1 ports - six external and one internal - so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they’re ready to use when you need them. It’s also economical - by being able to connect so many devices, you save the cost of extra hubs or cards.
The internal USB 3.2 Gen 1 port lets you connect a USB device inside your computer for added convenience and security.
Unique dual-profile design
This versatile USB 3.2 Gen 1 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers.
Easy driver installation
You'll be up and running in no time. The card automatically installs in Windows® 8.1 or later, with native operating system support. It’s also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.
Effective USB 3.2 Gen 1 performance enhanced by UASP
This high-performance SuperSpeed USB 3.2 Gen 1 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 1, when paired with a UASP-enabled enclosure.
The rugged build quality of the card delivers long-lasting performance, and gives you peace of mind when connecting multiple devices. The PEXUSB3S7 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1 or later, and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Green, Metallic
- Internal: Yes
- Output interface: SATA, USB 3.2 Gen 1 (3.1 Gen 1)
- Host interface: PCIe
- Harmonized System (HS) code: 84733020
- Operating temperature (T-T): 5 - 50 °C
- Products per master (outer) case: 60 pc(s)
- Master (outer) case height: 32.2 cm
- Master (outer) case length: 49.6 cm
- Master (outer) case width: 37.8 cm
- Operating relative humidity (H-H): 20 - 80%
- Compliance certificates: RoHS
- Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Chipset: Renesas/NEC - µPD720201, µPD720210
- Data transfer rate (max): 5 Gbit/s
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Linux operating systems supported: Yes
- Certification: CE, FCC, TAA
- Manual: Yes
- Expansion card form factor: Full-height / Low-profile
Design
- Maximum cable length
- 3 m
- Mean time between failures (MTBF)
- 1920042 h
Features
- UASP support
- Yes
Operational conditions
- Storage temperature (T-T)
- -25 - 70 °C
Packaging data
- Drivers included
- Yes
- Mounting brackets included
- Yes
- Package depth
- 17.4 cm
- Package height
- 3.2 cm
- Package weight
- 0.15 kg
- Package width
- 14.4 cm
Ports & interfaces
- Internal SATA ports quantity
- 1
- Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
Weight & dimensions
- Depth
- 10.5 cm
- Height
- 12 cm
- Weight
- 0.07 kg
- Width
- 1.5 cm
Drivers included
Manual
Mounting brackets included
Manual
Mounting brackets included
Materials
Compare With Similar Items
|
|
|
|
|
|
|
| Description | Get the scalability you need by adding 7 USB 3.0 (USB 3.2 Gen 1) ports with SATA power to your computer Handle your workload more efficiently. This USB 3.2 Gen 1 card expands your computer’s capabilities by giving you seven extra USB 3.2 Gen 1 ports. It’s engineered with an innovative stacked port layout to fit easily into both low-profile and standard desktop computers. Greater port count. Greater scalability. More ports means you can add USB devices as you need them. This robust USB 3.2 Gen 1 card gives you seven USB 3.2 Gen 1 ports - six external and one internal - so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they’re ready to use when you need them. It’s also economical - by being able to connect so many devices, you save the cost of extra hubs or cards. The internal USB 3.2 Gen 1 port lets you connect a USB device inside your computer for added convenience and security. Unique dual-profile design This versatile USB 3.2 Gen 1 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers. Easy driver installation You'll be up and running in no time. The card automatically installs in Windows® 8.1 or later, with native operating system support. It’s also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals. Effective USB 3.2 Gen 1 performance enhanced by UASP This high-performance SuperSpeed USB 3.2 Gen 1 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.2 Gen 1, when paired with a UASP-enabled enclosure. The rugged build quality of the card delivers long-lasting performance, and gives you peace of mind when connecting multiple devices. The PEXUSB3S7 is backed by a StarTech.com 2-year warranty and free lifetime technical support. Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1 or later, and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive. |
Add an extra serial port to the back of your PC from your motherboard. This 9-pin Serial to 10-pin Header Slot Plate adapter features one DB9 male connector and one IDC10 connector. The adapter is constructed of high quality components and expertly designed to ensure durability and reliability. Please refer to the Technical Specifications to ensure your motherboard is compatible with this product. |

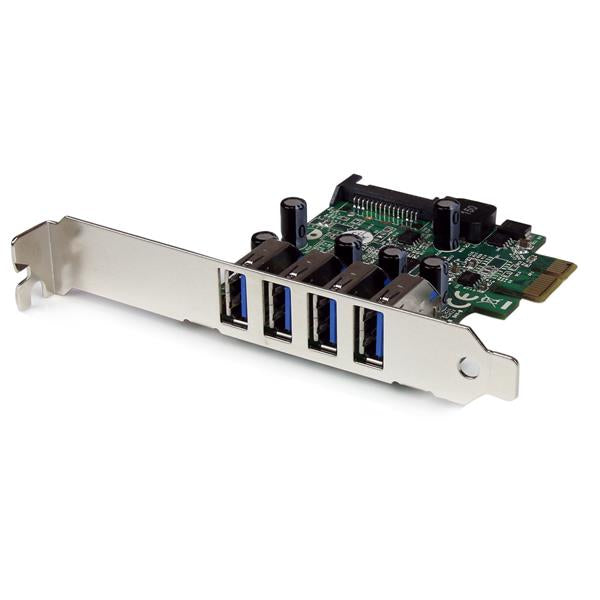

Add 4 external USB 3.0 (USB 3.2 Gen 1) ports to a low profile or standard computer, through PCI Express The PEXUSB3S4V PCI Express USB 3.2 Gen 1 Card (with SATA Power) adds 4 external USB 3.2 Gen 1 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices. Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details. The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.2 Gen 1 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket. Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply. Backed by a StarTech.com 2-year warranty and free lifetime technical support. Improved Performance with UASP UASP is supported in Windows® 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance. At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive. |
