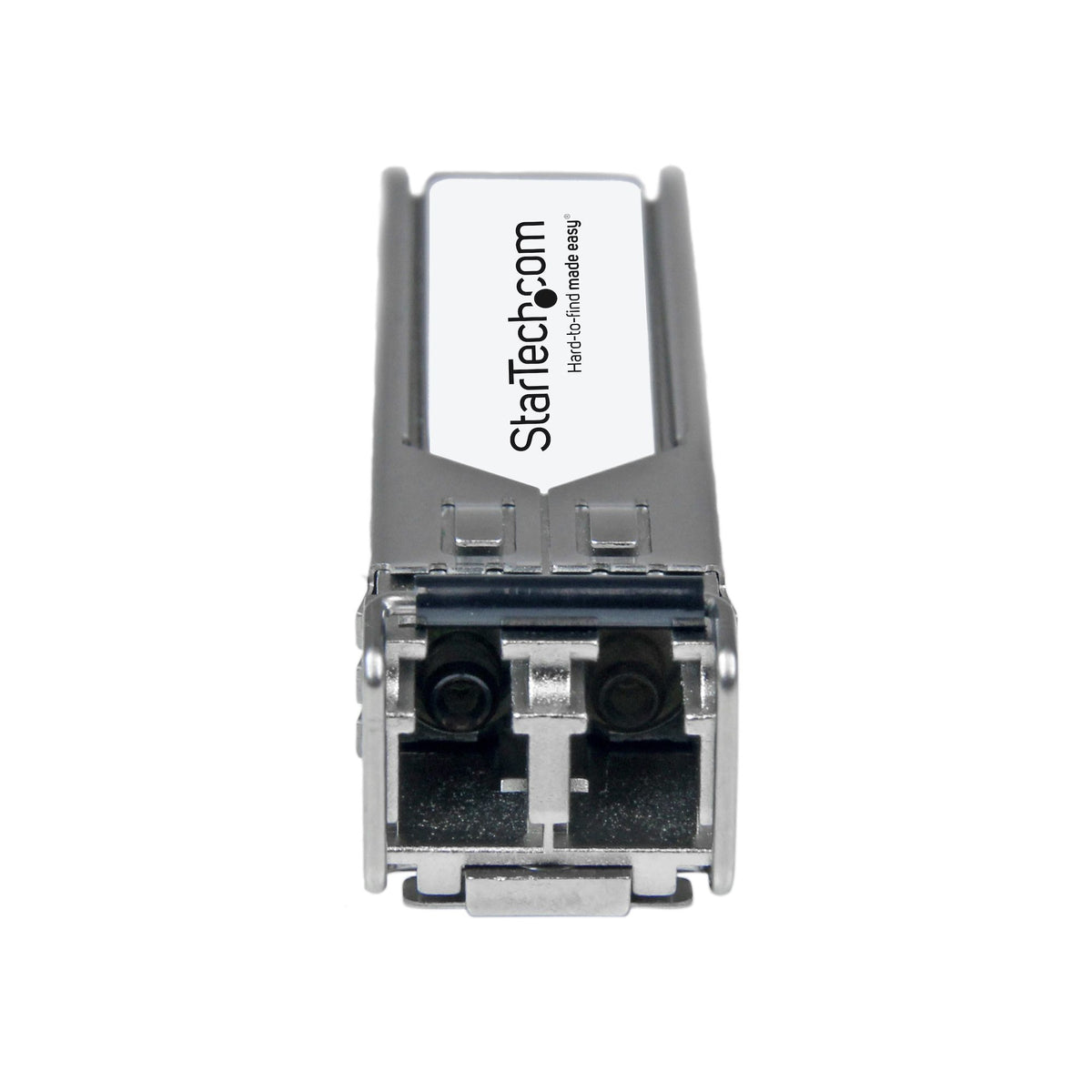

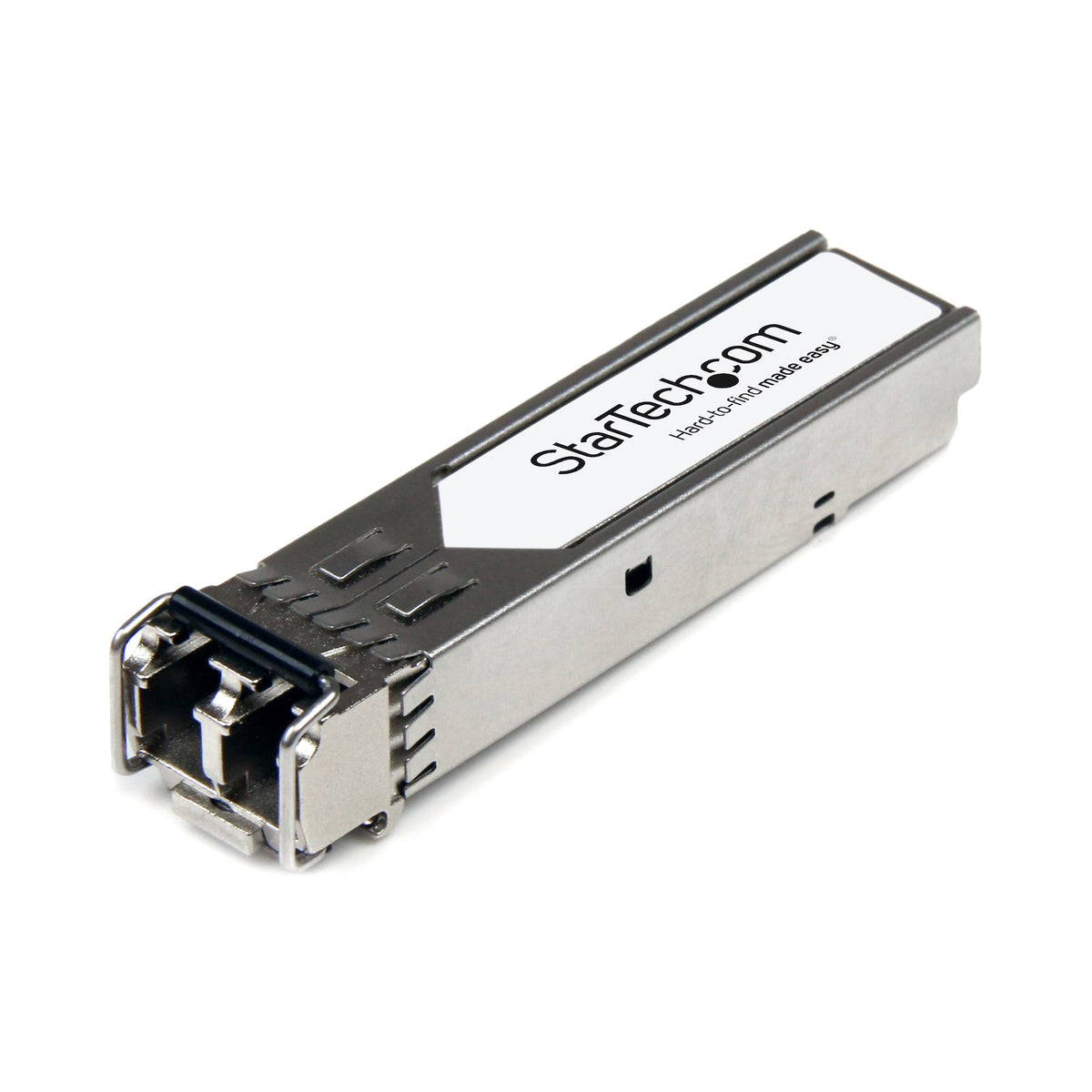

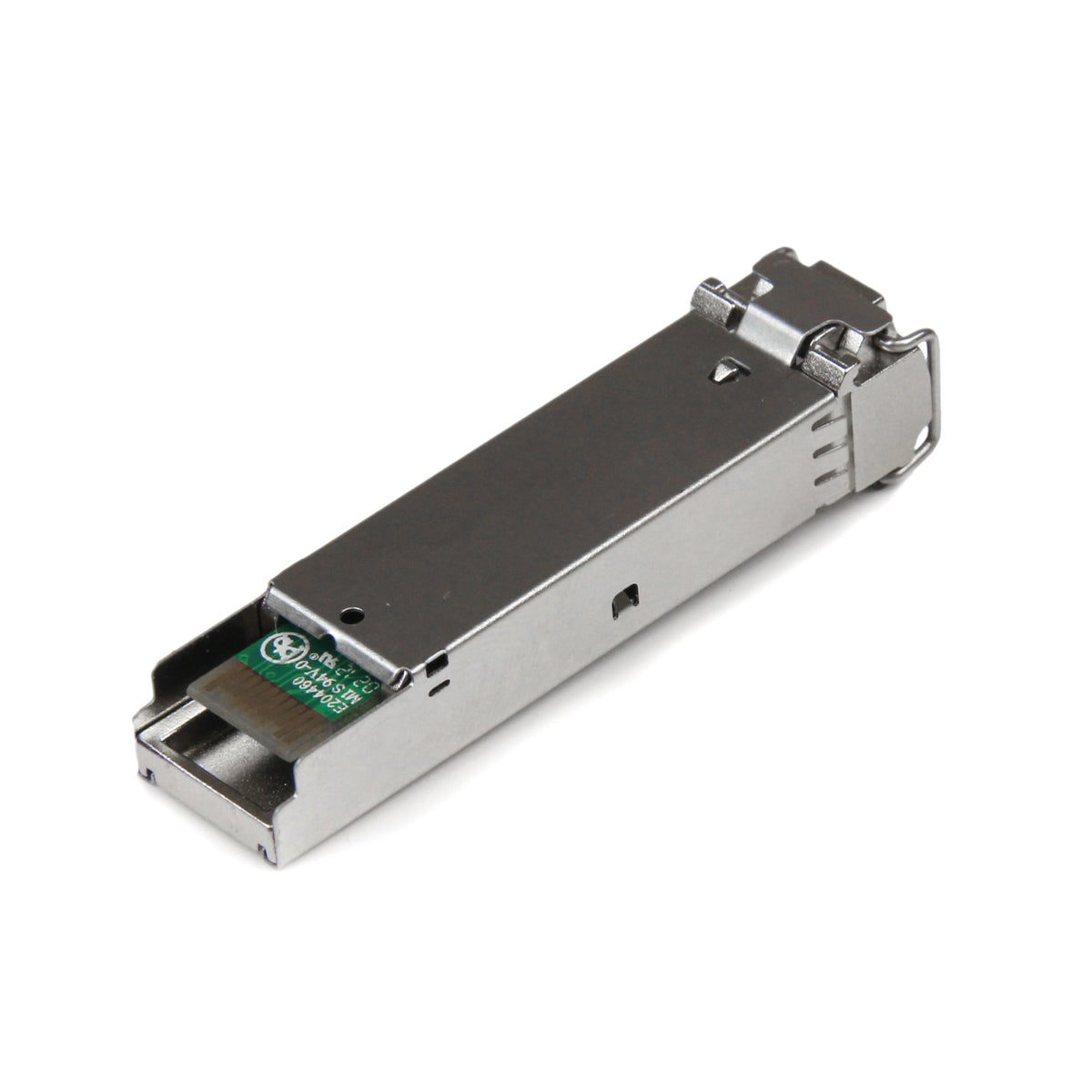

StarTech.com Palo Alto Networks PAN-SFP-PLUS-SR Compatible SFP+ Module, 10GBASE-SR, Multimode Fiber (MMF), 300m (984ft), LC, 850nm, 10 Gigabit Optic Transceiver
Hurry up, only 8 items left in stock.
The PLUS-SR-ST is a Palo Alto Networks PAN-SFP-PLUS-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto Networks brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 498,745,585 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Silver
- Interface type: SFP+
- SFP transceiver type: Fiber optic
- Maximum transfer distance: 300 m
- Harmonized System (HS) code: 85369010
- Digital Diagnostics Monitoring (DDM): Yes
- Master (outer) case height: 3.3 cm
- Master (outer) case length: 11.5 cm
- Master (outer) case width: 9.1 cm
- Products per master (outer) case: 1 pc(s)
- Fiber optic connector: LC
- Hot-swap: Yes
- SFP transceiver standard: SR
- Mean time between failures (MTBF): 498745585 h
- Certification: CE, FCC, UR
- Multi-mode fiber (MMF) supported: Yes
- Power consumption (typical): 1.3 W
- Wavelength: 850 nm
- Brand compatibility: Palo Alto Networks
- Compatible products: PLUS-SR
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package depth
- 11.4 cm
- Package height
- 3.3 cm
- Package weight
- 0.05 kg
- Package width
- 9.1 cm
Performance
- Duplex system
- Full
- Fiber ethernet cabling technology
- 10GBASE
- Maximum data transfer rate
- 40000 Mbit/s
Weight & dimensions
- Depth
- 1.39 cm
- Height
- 1.37 cm
- Weight
- 0.02 kg
- Width
- 5.84 cm
Materials
