StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support
Regular price
$2,976.69
Sale price
Regular price
Tax included.
Hurry up, only 1 item left in stock.
KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included
Providing centralized control of up to 16 servers, this 16-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution

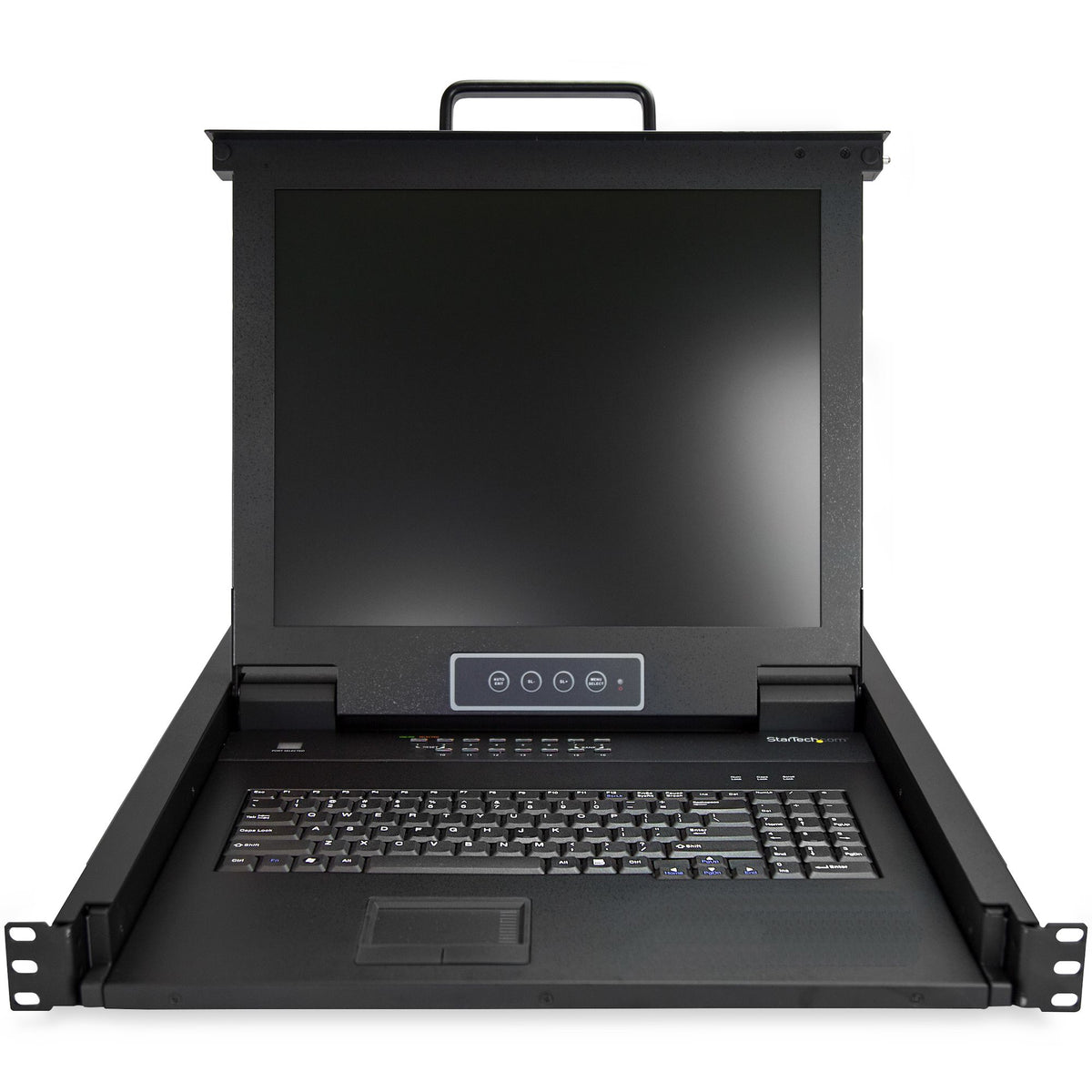

The 1U rackmount console features a built-in keyboard (QWERTY), and a touchpad for intuitive control, as well as a 17-inch LCD display that supports resolutions up to 1280x1024.
This 16-port KVM console comes with everything you need to set up right out of the box:
• 16 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
With direct access to 16 systems or servers, the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Providing centralized control of up to 16 servers, this 16-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard (QWERTY), and a touchpad for intuitive control, as well as a 17-inch LCD display that supports resolutions up to 1280x1024.
This 16-port KVM console comes with everything you need to set up right out of the box:
• 16 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
With direct access to 16 systems or servers, the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Display diagonal: 43.2 cm (17")
- Display resolution: 1280 x 1024 pixels
- Product colour: Black
- Rack capacity: 1U
- Operating temperature (T-T): 0 - 40 °C
- Display: TFT LCD
- Operating relative humidity (H-H): 10 - 80%
- LED indicators: Yes
- Video port type: VGA
- Rack mounting: Yes
- AC adapter input voltage: 100 - 240 V
- Compliance certificates: RoHS
- Power consumption (typical): 23 W
- Keyboard port type: PS/2
- Mouse port type: PS/2
- Hot keys: Yes
- Master (outer) case height: 18.5 cm
- Master (outer) case length: 76.5 cm
- Master (outer) case width: 61.5 cm
- Products per master (outer) case: 1 pc(s)
Certificates
- Certification
- FCC, PSE, UL, CE, REACH
Display
- Aspect ratio
- 5:4
- Contrast ratio (typical)
- 1000:1
- Display brightness
- 250 cd/m²
- Display number of colours
- 16.78 million colours
- Display type
- LCD
- On Screen Display (OSD)
- Yes
- Pixel pitch
- 0.264 x 0.264 mm
- Response time
- 5 ms
- Viewing angle, horizontal
- 170°
- Viewing angle, vertical
- 160°
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Packaging content
- Cables included
- KVM
- Cage nuts included
- Yes
- Included power plug types
- ANZ, EU, JP, NA, UK
- Manual
- Yes
- Mounting brackets included
- Yes
- Number of cage nuts
- 8
- Number of screws
- 8
- Screws included
- Yes
Packaging data
- Package depth
- 76.5 cm
- Package height
- 18.5 cm
- Package weight
- 21.1 kg
- Package width
- 61.5 cm
Ports & interfaces
- USB 2.0 Type-A ports quantity
- 2
- VGA (D-Sub) ports quantity
- 16
Power
- Input current
- 1.5 A
Technical details
- Daisy chain
- No
- IP control
- No
- Key lock
- No
- Material
- Steel
- Mean time between failures (MTBF)
- 50000 h
Weight & dimensions
- Depth
- 4.3 cm
- Height
- 58.1 cm
- Mounting depth (max)
- 90 cm
- Mounting depth (min)
- 56 cm
- Weight
- 13 kg
- Width
- 44.8 cm
Cables included: KVM
Cage nuts included
Included power plug types: ANZ, EU, JP, NA, UK
Manual
Mounting brackets included
Screws included
Cage nuts included
Included power plug types: ANZ, EU, JP, NA, UK
Manual
Mounting brackets included
Screws included
Materials
Material: Steel
