StarTech.com SATA to 2.5in or 3.5in IDE Hard Drive Adapter for HDD Docks
Hurry up, only 3 items left in stock.

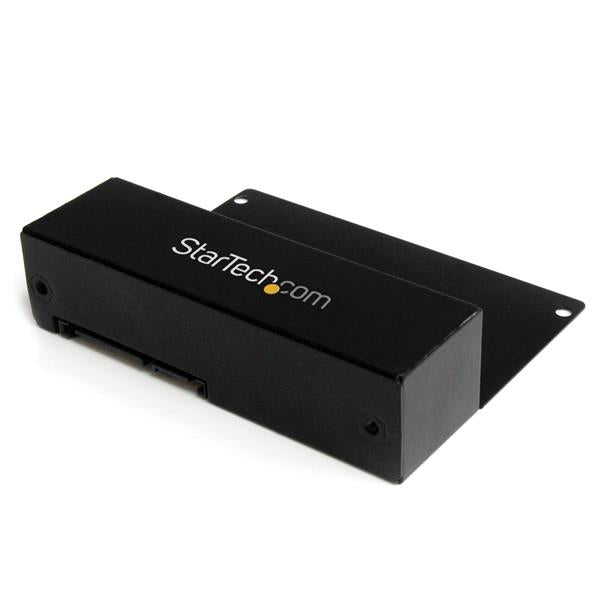

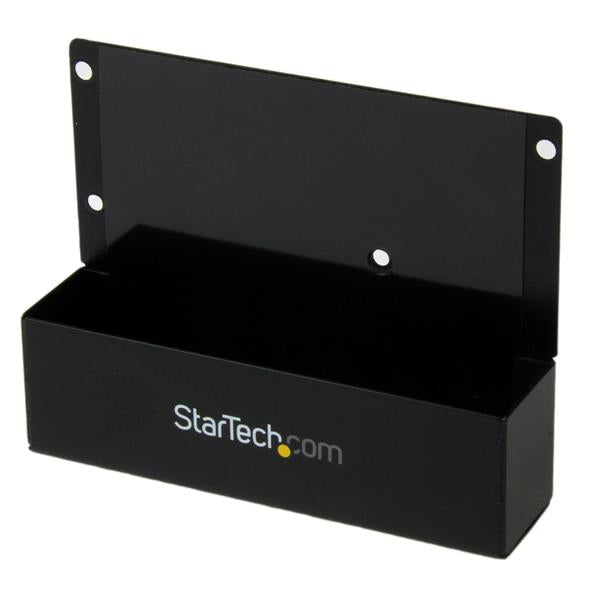

The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators" title="Hard Drive Docking Stations and Duplicator. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).

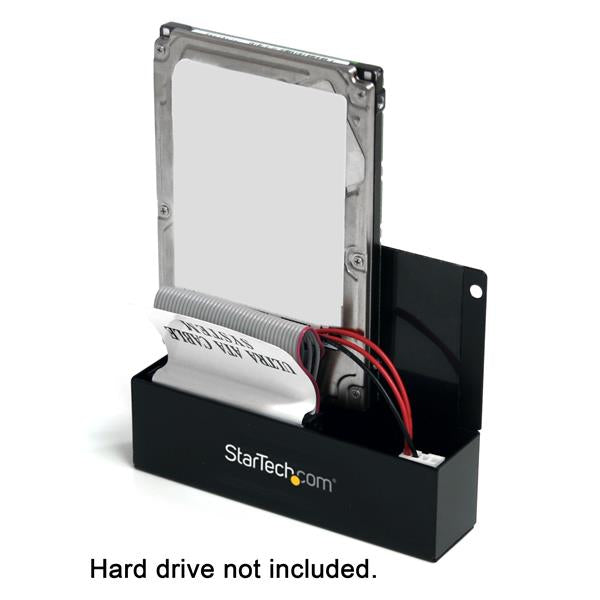

The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.
The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators.
Backed by 2-year warranty and free, lifetime technical support.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black

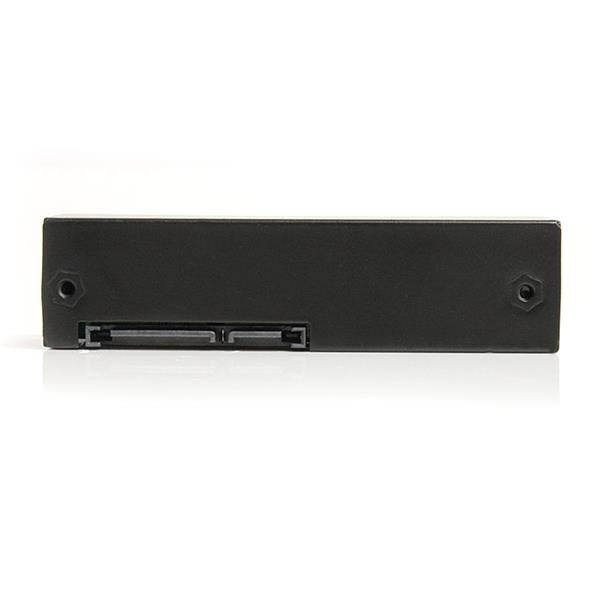

- Connector 1: SATA 7-pin + SATA 15-pin

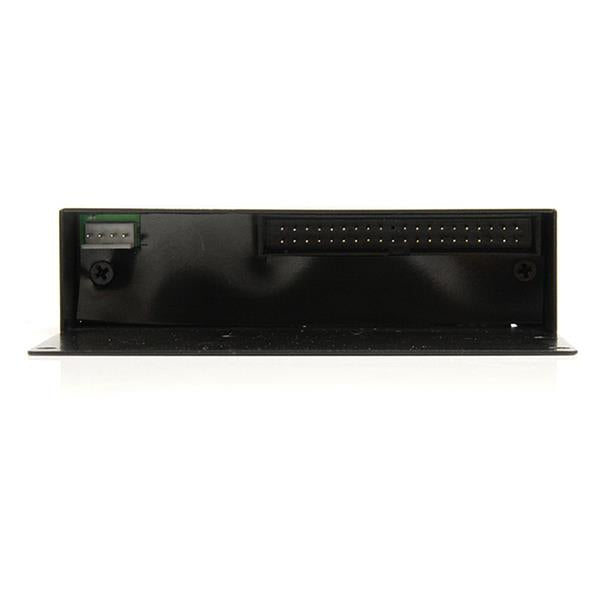

- Connector 2: IDE 40-pin + IDE 44-pin + LP4
- Connector 1 gender: Male
- Connector 2 gender: Female
- Master (outer) case height: 27.2 cm
- Master (outer) case length: 30.6 cm
- Master (outer) case width: 28.2 cm
- Products per master (outer) case: 20 pc(s)
- Compliance certificates: RoHS
- Operating temperature (T-T): 5 - 80 °C
- Relative humidity: 8 - 90%
- Certification: CE, FCC, REACH
- Chipset: JMicron - JM20330
- Manual: Yes
- Storage drive sizes supported: 2.5,3.5"
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package depth
- 11.3 cm
- Package height
- 5.3 cm
- Package weight
- 0.2 kg
- Package width
- 14.5 cm
Weight & dimensions
- Depth
- 10.1 cm
- Height
- 2.6 cm
- Weight
- 0.1 kg
- Width
- 7.8 cm
Materials
