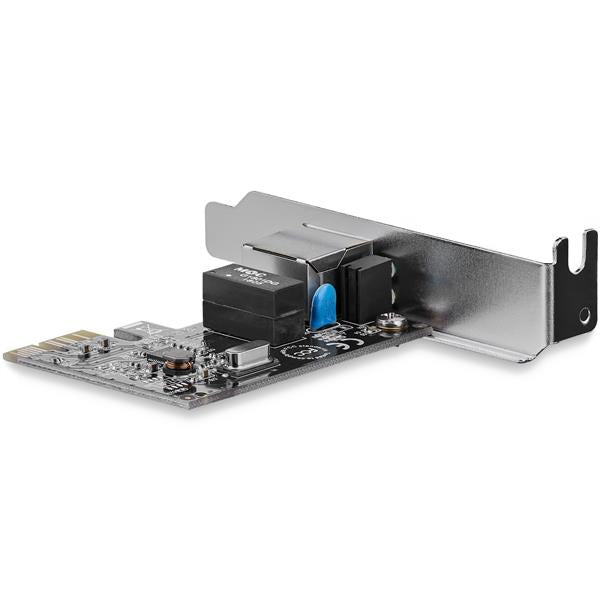

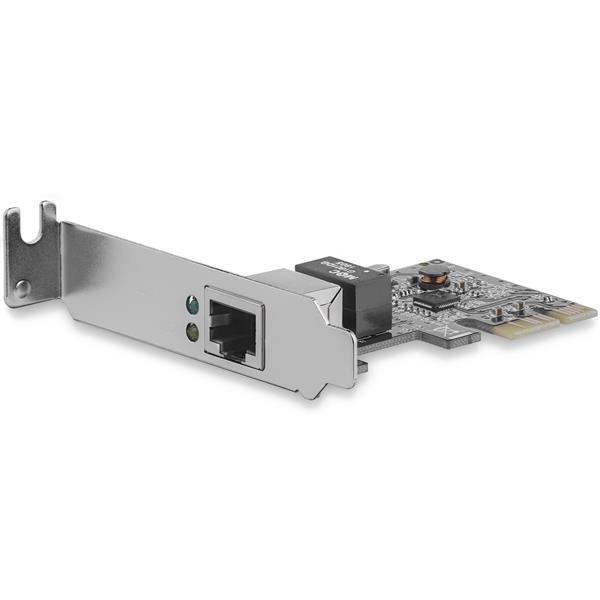

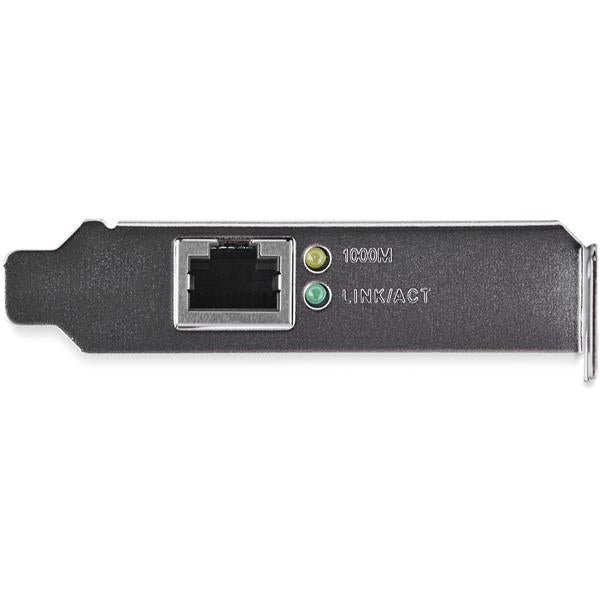

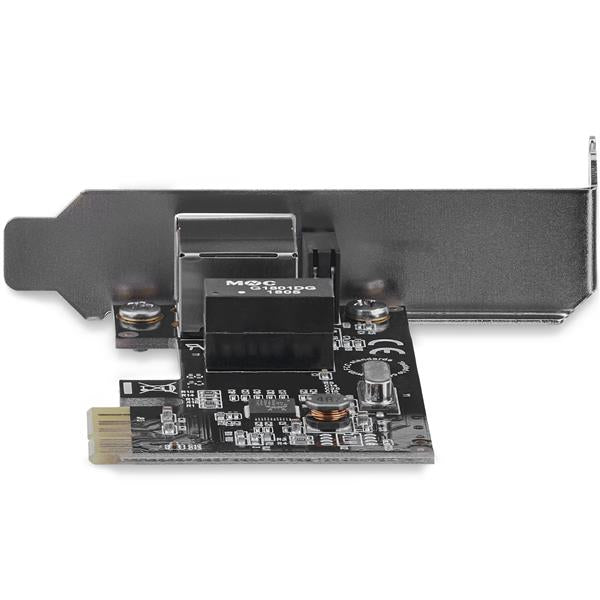

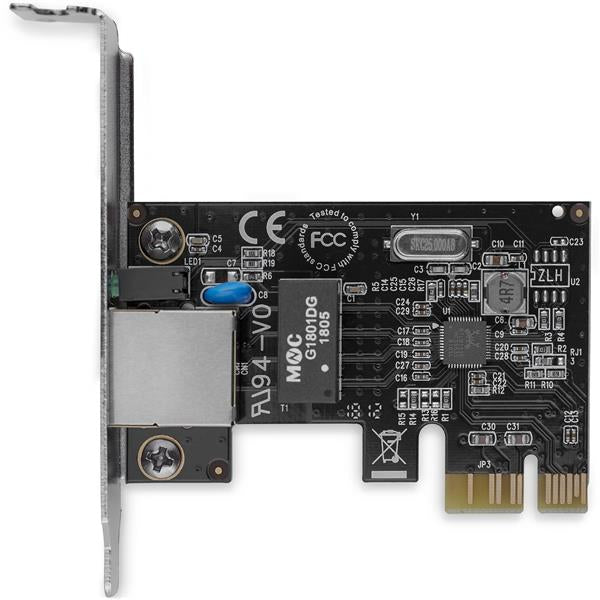

StarTech.com 1 Port PCI Express PCIe Gigabit NIC Server Adapter Network Card - Low Profile
Regular price
$67.67
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (23)
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot
The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket
The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance.
The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor.
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
- Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Connectivity technology: Wired
- Internal: Yes
- Host interface: PCI Express
- Interface: Ethernet
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Operating temperature (T-T): 0 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Harmonized System (HS) code: 85176990
- Ethernet LAN: Yes
- Linux operating systems supported: Yes
- Compliance certificates: RoHS
- LED indicators: Activity, Link
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Chipset: Realtek - RTL8111H
- Full duplex: Yes
- Jumbo frames support: Yes
- Cabling technology: 10/100/1000BaseT(X)
- Jumbo frames: 9000
Design
- Certification
- CE, FCC, REACH
Network
- Auto MDIX IEEE
- Yes
- Maximum data transfer rate
- 1000 Mbit/s
- Supported network protocols
- CSMA/CD
Operational conditions
- Storage temperature (T-T)
- 0 - 100 °C
Other features
- Link/Act LED
- Yes
- Power LED
- Yes
Packaging content
- Manual
- Yes
Packaging data
- Package depth
- 14.4 cm
- Package height
- 3.1 cm
- Package weight
- 0.13 kg
- Package width
- 17.3 cm
System requirements
- Mac operating systems supported
- Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Weight & dimensions
- Depth
- 7 cm
- Height
- 4.9 cm
- Weight
- 0.03 kg
- Width
- 1.8 cm
Manual
Materials
Compare With Similar Items
|
|
|
|
|
|
|
| Description | Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot The ST1000SPEX2L Low-Profile PCIe Gigabit Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface. Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter offers effective network performance. The card comes pre-configured with a low-profile/half-height installation bracket and includes a standard profile bracket for installation in a wide range of computer/server chassis, regardless of form factor. Backed by a 2-year StarTech.com warranty and free lifetime technical support. The StarTech.com Advantage - Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging - Saves the time of having to adjust the mounting bracket, with a pre-configured half-height/low-profile bracket |

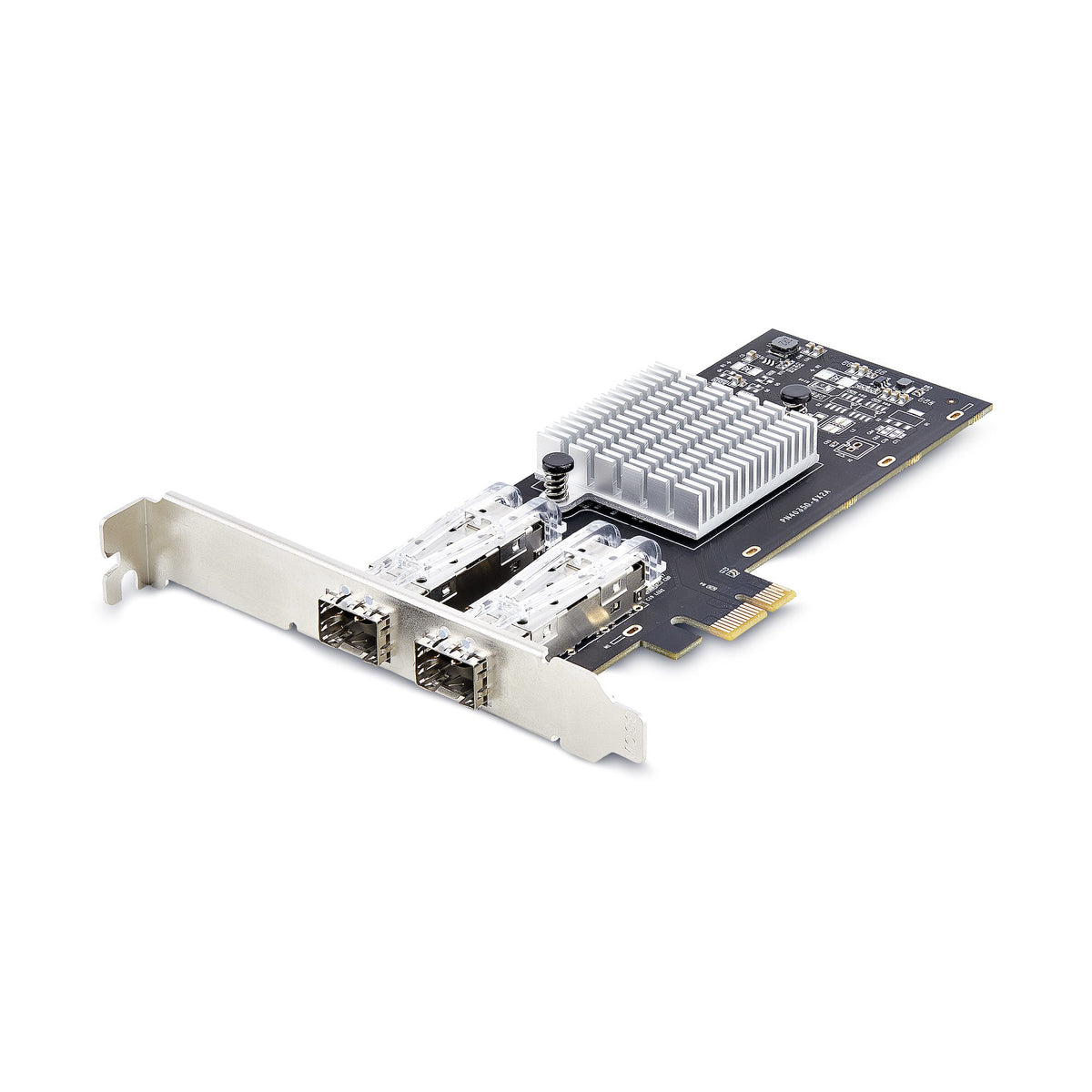

Add two fiber/copper GbE SFP transceivers or Direct Attach Cables to a workstation or server Add up to two 1GbE SFP modules to a PCI Express (PCIe) 2.0 x1 (or higher) slot in an IT Administrator workstation or server backplane, using this 2-Port SFP Network Controller. High Performance Intel Chipset The network controller features an Intel I350 chip known for its reliability and high-performance capabilities, offering low-latency and low CPU utilization, ensuring smooth and efficient network data transfer, which is critical for business applications and services. Support for VMDq, SR-IOV, and Intel® VT-c technologies allow for enhanced virtual machine performance, reduced CPU overhead, and improved network virtualization capabilities. The PCIe network card supports PXE boot, enabling centralized operating system deployment and updates. It also features 9K jumbo frame support, reducing packet overhead for improved data transmission efficiency. VLAN tagging support allows for efficient network management and segmentation. Hardware and Operating System Compatibility The network interface controller connects to an available x1 PCI Express 2.0 (or higher) expansion slot. It is compatible with Windows Server 2012 and newer, Windows 10 and newer, Linux, VMware ESXi 7.x, and Microsoft Hyper-V. This NIC is compatible with both MSA-compliant and branded 1GB SFP modules, as well as direct attach copper cables (DACC). Includes a low-profile bracket designed for small form factor systems. Flexible Network Connections The card features two SFP slots for interchangeable SFP modules. Select fiber transceiver modules that best suit the network needs of the application, based on the distance and connector type. StarTech.com offers a wide variety of SFP transceiver modules to meet many GbE network applications. |
