Sold out
StarTech.com 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T
Regular price
$626.24
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
PXE Boot | PCIe 3.0 x4 | Marvell AQC113CS

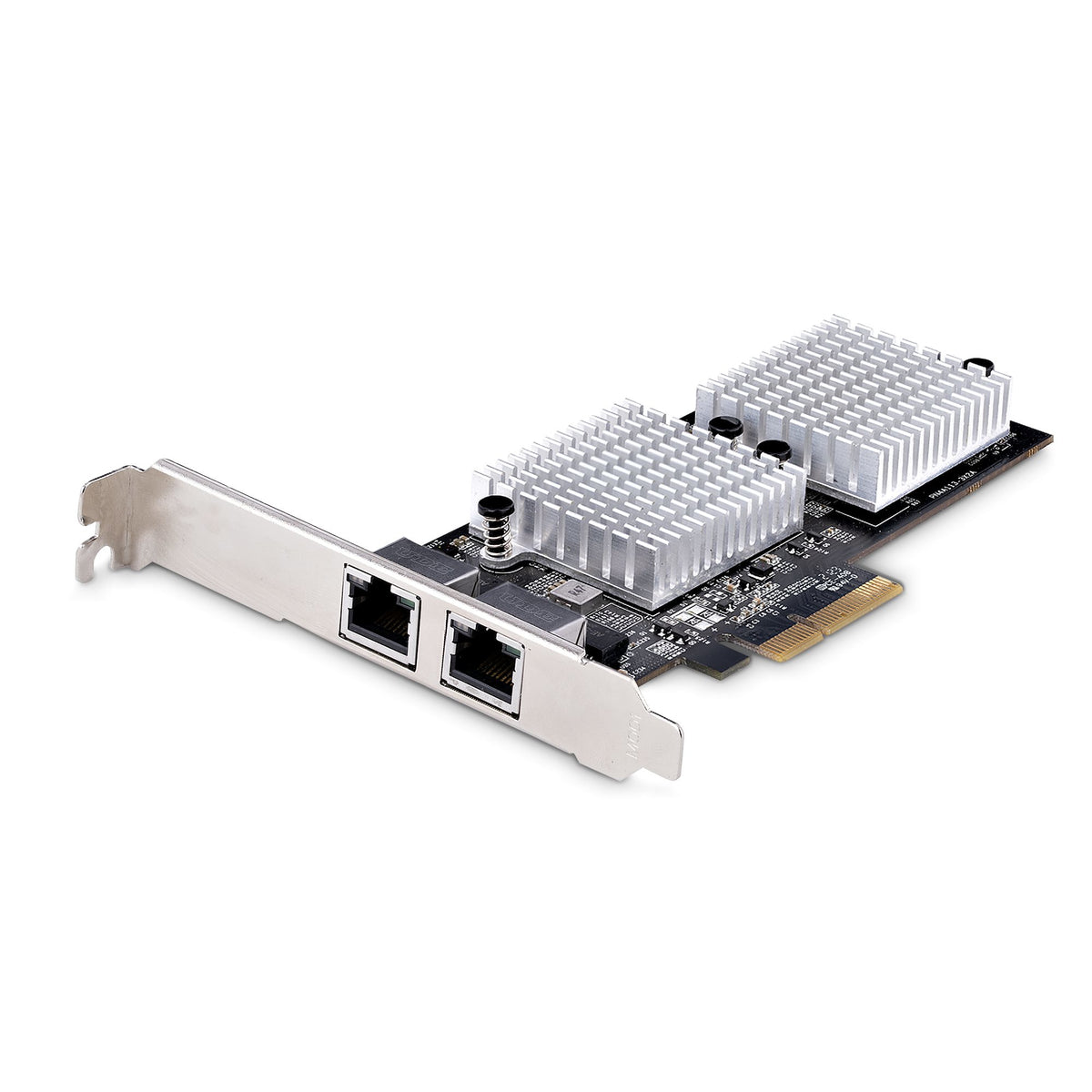

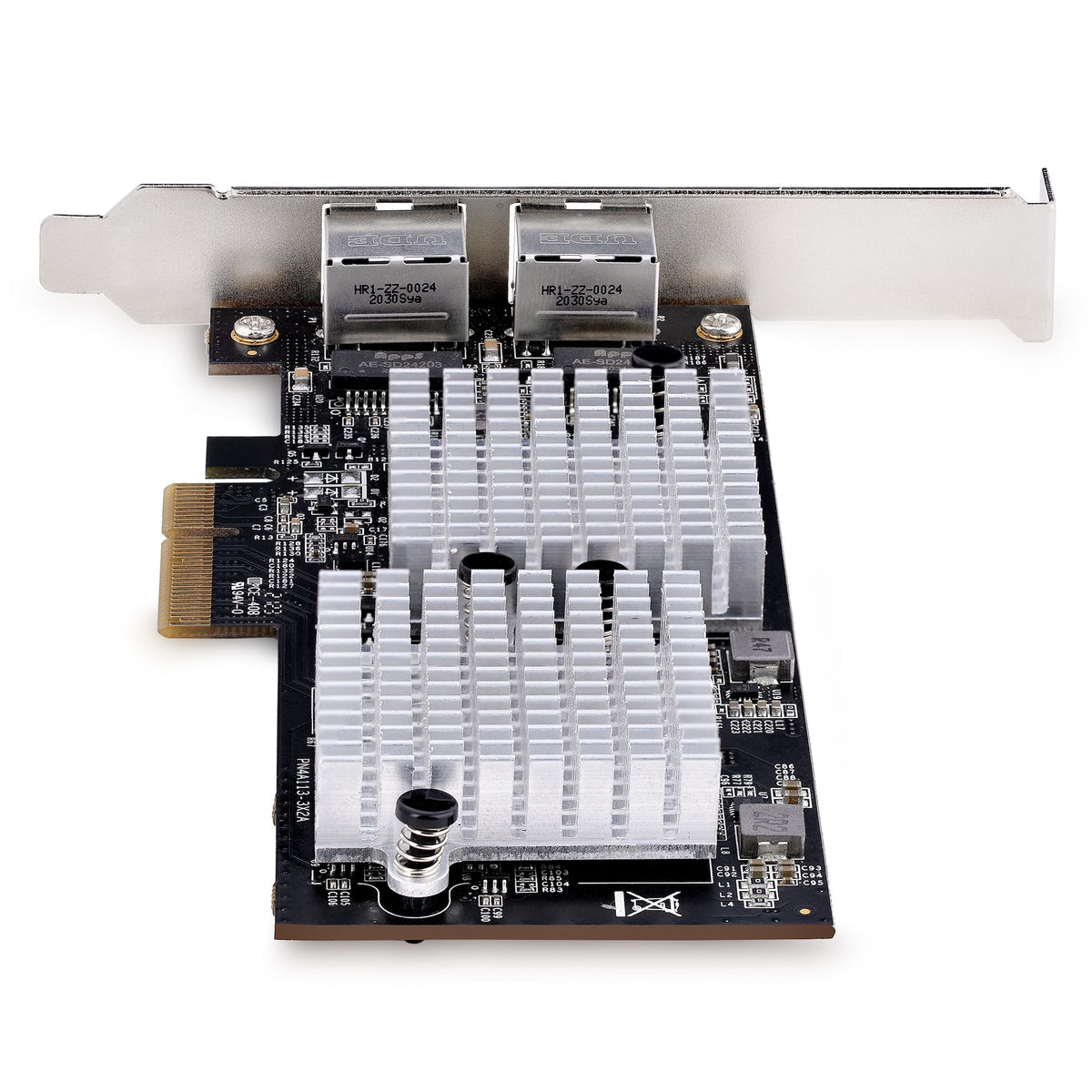

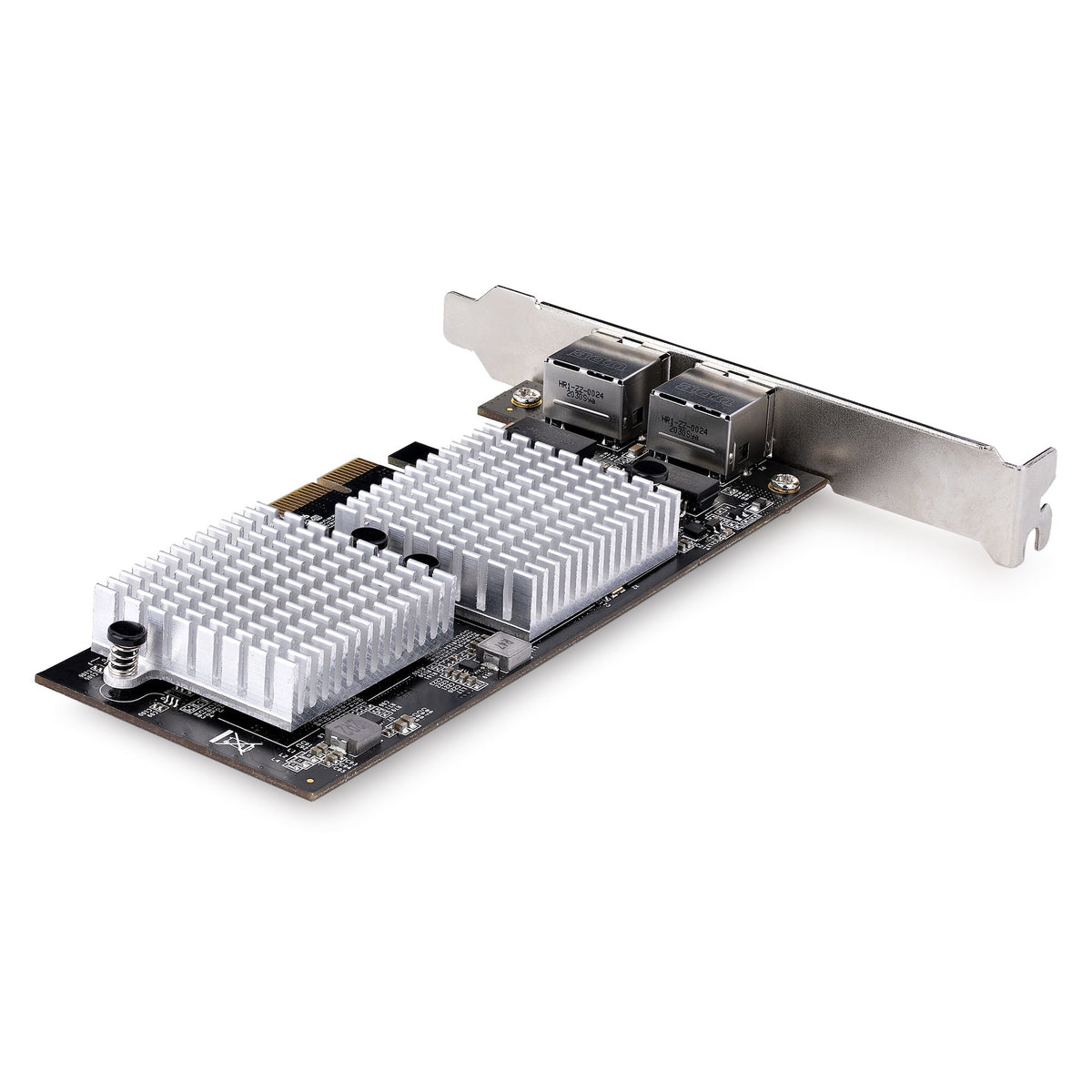

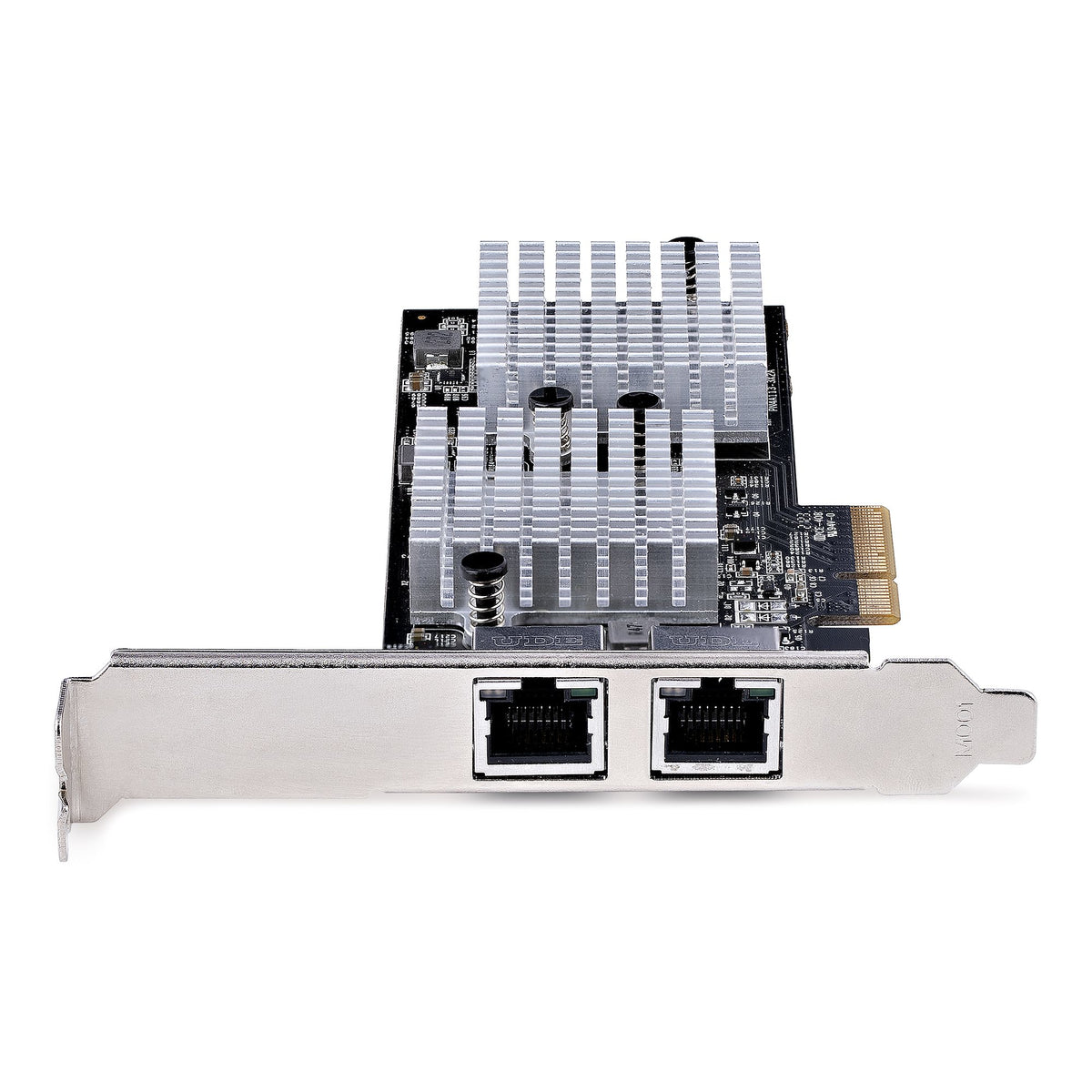

Install this 2-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) with independent controllers into a server or computer to enable fast network speeds and enhanced network functionality by providing failover and redundancy protection to mission-critical servers/applications.
This Card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps with auto-negotiation for instant compatibility with new and legacy hardware. In addition, 10GBASE-T and NBASE-T (2.5GBASE-T/5GBASE-T) capabilities ensure compatibility with the latest network switches and access points manufactured by Cisco®; HPE®; and Aruba Networks®.
10GbE Network Speeds
This PCIe Network Card enables access to two high-bandwidth ethernet connections. As a result, it reduces network degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and streaming online content. The Ethernet Network Card supports 10GBASE-T using existing Cat6 (or better) cable infrastructure.
Enhance Existing Hardware

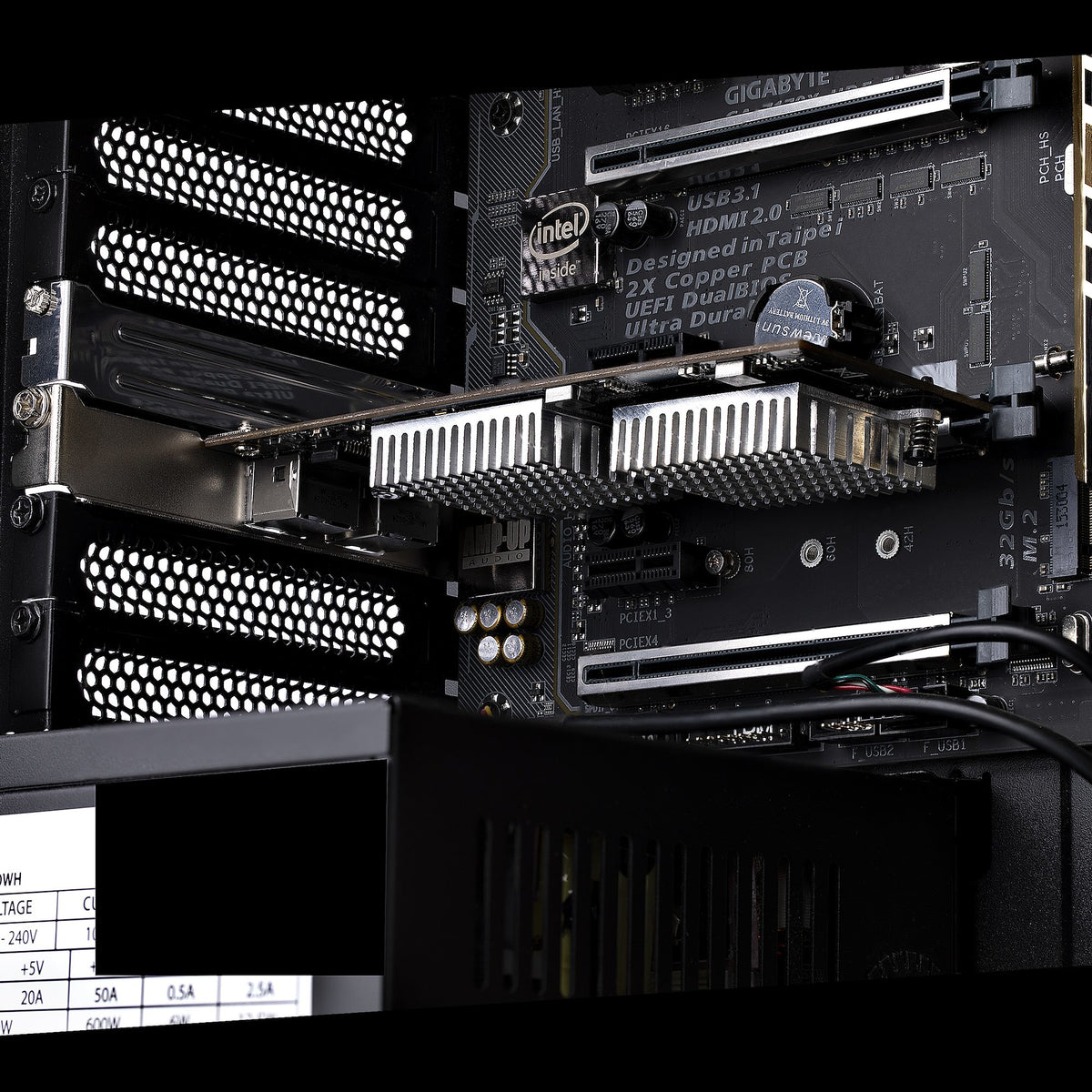

NBASE-T technology maximizes the capability of Cat5e copper infrastructure over distances of up to 100 meters. The Network Interface Card connects to a PCIe x4 3.0/4.0 (or higher) slot and comes with a full-height bracket preinstalled, and a low-profile bracket is included. This Card is compatible with Windows, Windows Server, and Linux operating systems.
Take advantage of advanced features such as load balancing in server or network equipment, bridging two different networks on one system, Audio Video Bridging (AVB), VLAN tagging (802.1Q), 16K-byte Jumbo Frames, full-duplex (FDX), UEFI Secure Boot (SB), and Preboot eXecution Environment (PXE).
Install this 2-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) with independent controllers into a server or computer to enable fast network speeds and enhanced network functionality by providing failover and redundancy protection to mission-critical servers/applications.
This Card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps with auto-negotiation for instant compatibility with new and legacy hardware. In addition, 10GBASE-T and NBASE-T (2.5GBASE-T/5GBASE-T) capabilities ensure compatibility with the latest network switches and access points manufactured by Cisco®; HPE®; and Aruba Networks®.
10GbE Network Speeds
This PCIe Network Card enables access to two high-bandwidth ethernet connections. As a result, it reduces network degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and streaming online content. The Ethernet Network Card supports 10GBASE-T using existing Cat6 (or better) cable infrastructure.
Enhance Existing Hardware
NBASE-T technology maximizes the capability of Cat5e copper infrastructure over distances of up to 100 meters. The Network Interface Card connects to a PCIe x4 3.0/4.0 (or higher) slot and comes with a full-height bracket preinstalled, and a low-profile bracket is included. This Card is compatible with Windows, Windows Server, and Linux operating systems.
Take advantage of advanced features such as load balancing in server or network equipment, bridging two different networks on one system, Audio Video Bridging (AVB), VLAN tagging (802.1Q), 16K-byte Jumbo Frames, full-duplex (FDX), UEFI Secure Boot (SB), and Preboot eXecution Environment (PXE).
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Connectivity technology: Wired
- Internal: Yes
- Host interface: PCI Express
- Interface: Ethernet
- Networking standards: IEEE 802.3, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Operating temperature (T-T): 5 - 50 °C
- Operating relative humidity (H-H): 20 - 80%
- Component for: PC/Server
- Ethernet LAN (RJ-45) ports: 2
- Ethernet LAN: Yes
- Linux operating systems supported: Yes
- Compliance certificates: CE
- LED indicators: Activity, Link, Status
- Ethernet LAN data rates: 10,100,1000,2500,5000,10000 Mbit/s
- Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Chipset: Marvell AQC113CS
- Master (outer) case height: 31.5 cm
- Master (outer) case length: 37 cm
Logistics data
- Master (outer) case width
- 44 cm
- Products per master (outer) case
- 40 pc(s)
Network
- Auto MDIX IEEE
- Yes
- Cabling technology
- 10GBase-T
- Ethernet interface type
- 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Full duplex
- Yes
- Jumbo frames
- 16000
- Jumbo frames support
- Yes
- Maximum data transfer rate
- 10000 Mbit/s
- Maximum operating distance
- 100 m
- VLAN tagging
- Yes
- Wake-on-LAN ready
- Yes
Operational conditions
- Storage temperature (T-T)
- -10 - 60 °C
Packaging content
- Mounting brackets included
- Yes
- Quick installation guide
- Yes
Packaging data
- Package depth
- 21.5 cm
- Package height
- 3.6 cm
- Package weight
- 0.21 kg
- Package width
- 14.8 cm
Ports & interfaces
- PCI Card form factor
- Full-height (low-profile)
- PCI version
- 3.0
Sustainability
- Sustainability compliance
- Yes
Weight & dimensions
- Depth
- 14.5 cm
- Height
- 6.5 cm
- Weight
- 0.12 kg
- Width
- 2 cm
Mounting brackets included
Materials
