StarTech.com VGA Video Extender over Cat5 (ST121 Series) - TAA
Regular price
$243.69
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Extend and distribute a VGA signal to 2 local, and 2 remote displays over Cat5 or better cabling

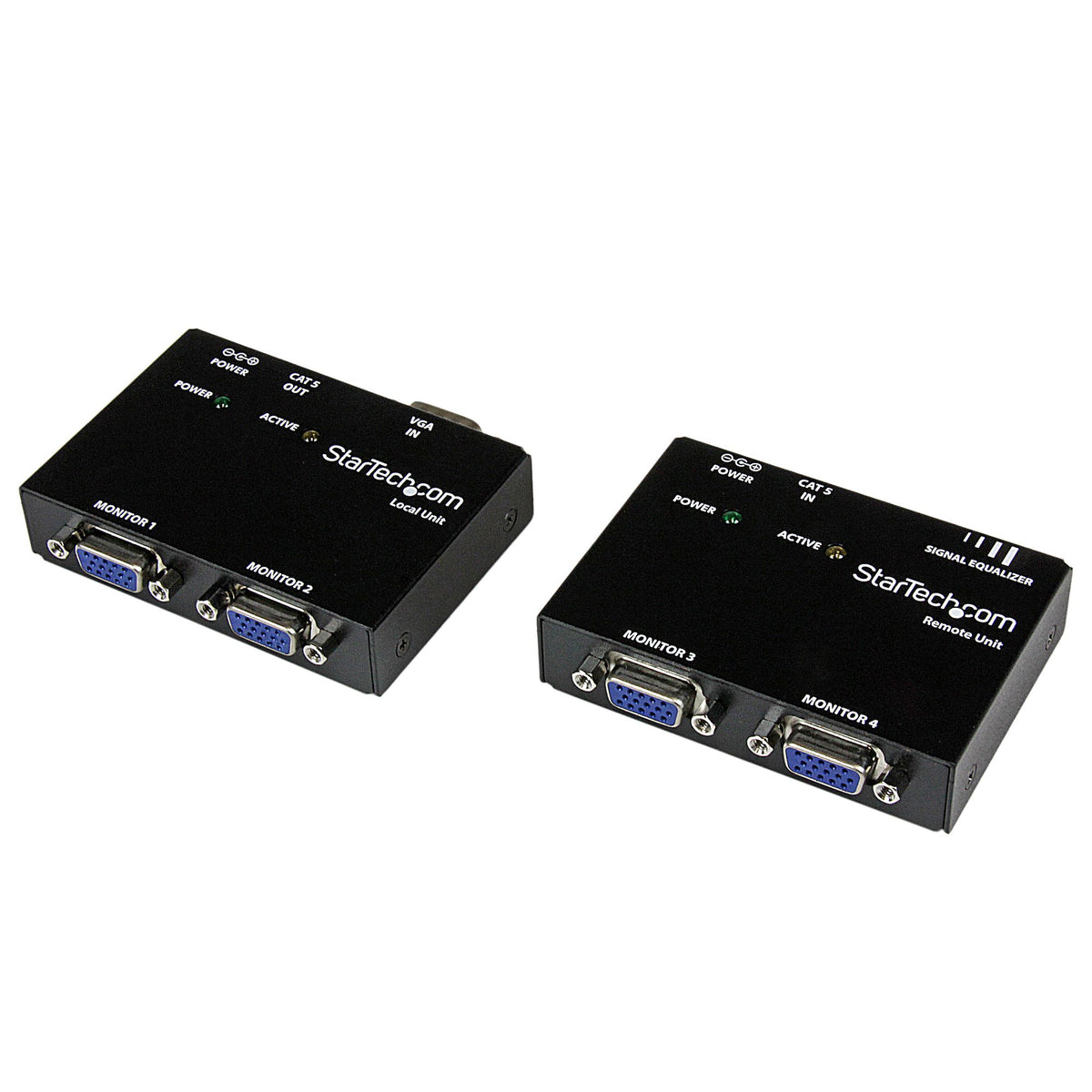

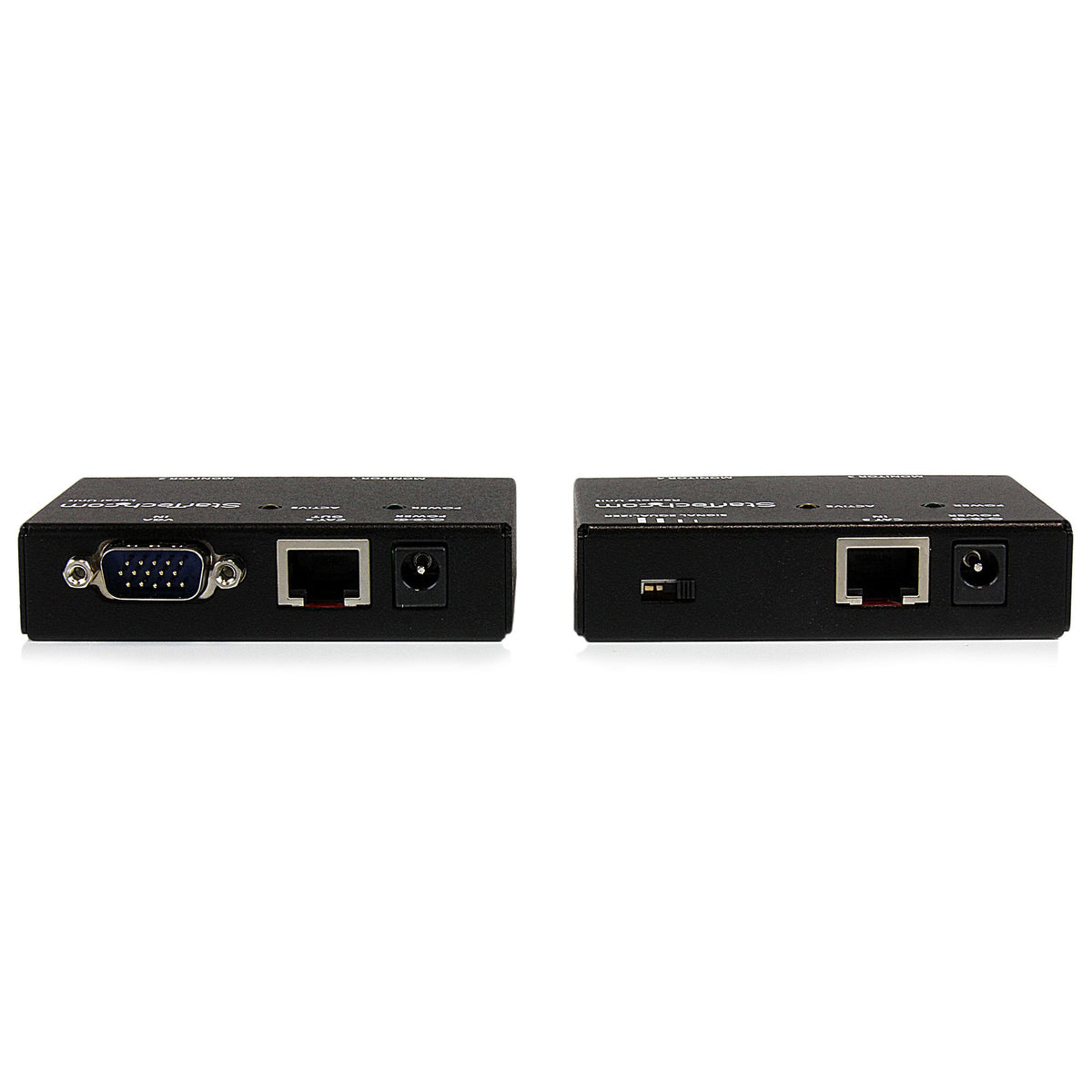

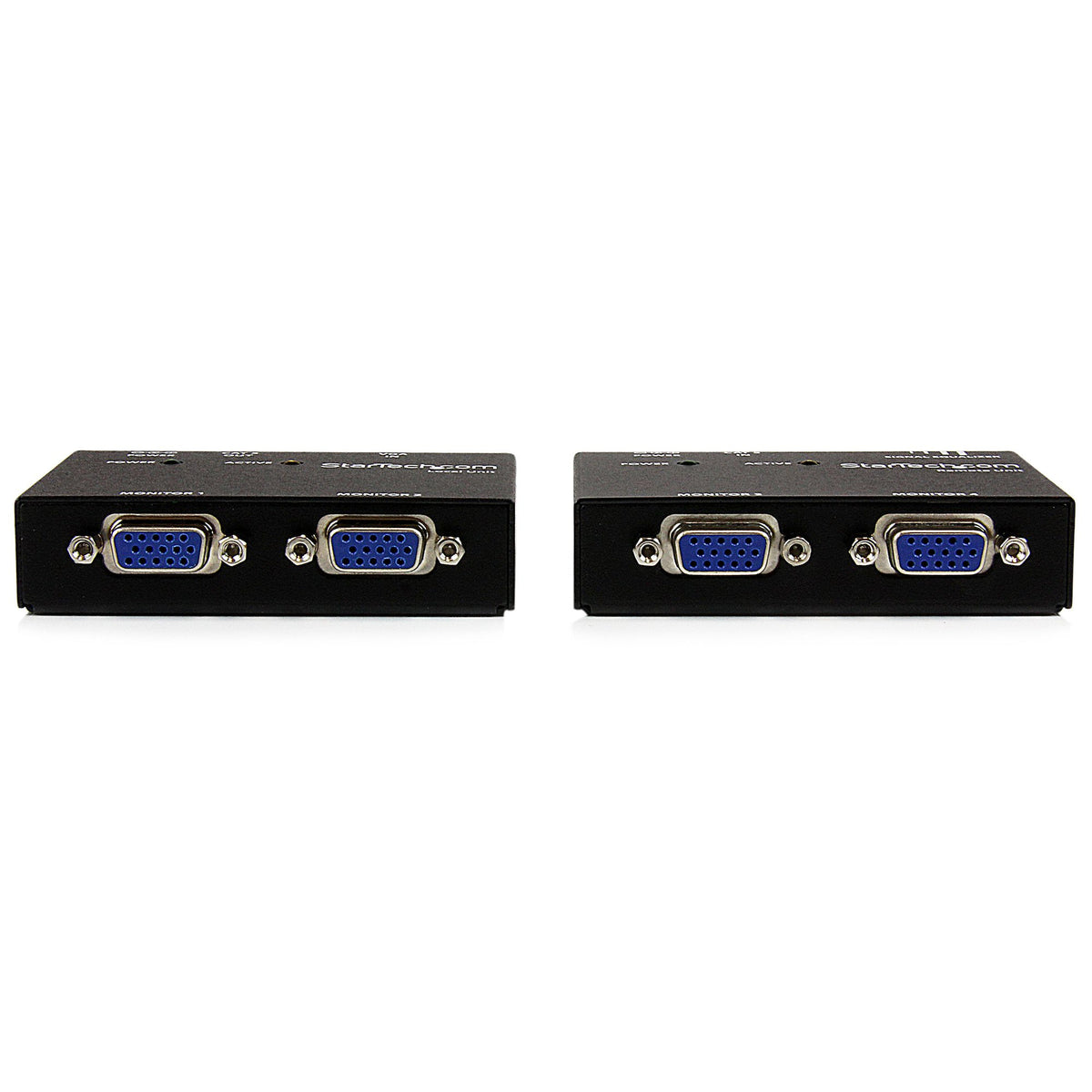

The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit, offering a complete solution for scenarios in which remote monitor displays are required. The local unit features a single VGA input as well as two VGA outputs giving you the ability to view and split your source VGA signal to two independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features two additional VGA outputs giving you the freedom to display your VGA source on up to four monitors in total. The included a mounting bracket for the ST121UTP receiver provides versatile mounting options such as a wall, desk or cabinet. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit, offering a complete solution for scenarios in which remote monitor displays are required. The local unit features a single VGA input as well as two VGA outputs giving you the ability to view and split your source VGA signal to two independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features two additional VGA outputs giving you the freedom to display your VGA source on up to four monitors in total. The included a mounting bracket for the ST121UTP receiver provides versatile mounting options such as a wall, desk or cabinet. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Type: AV transmitter & receiver
- Maximum transfer distance: 150 m
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 1440 x 900 pixels
- Cable types supported: Cat5e, Cat6
- Connectivity technology: Wired
- Material: Aluminium
- AC adapter included: Yes
- RJ-45 input ports: 1
- Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+)
- Compliance certificates: CE
- RJ-45 output ports: 1
- Master (outer) case height: 32.2 cm
- Master (outer) case length: 41.2 cm
- Master (outer) case width: 51.5 cm
- Products per master (outer) case: 12 pc(s)
- Power consumption (typical): 5.4 W
- Manual: Yes
- Power plug type: Type M
Features
- Rubber feet
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 60 °C

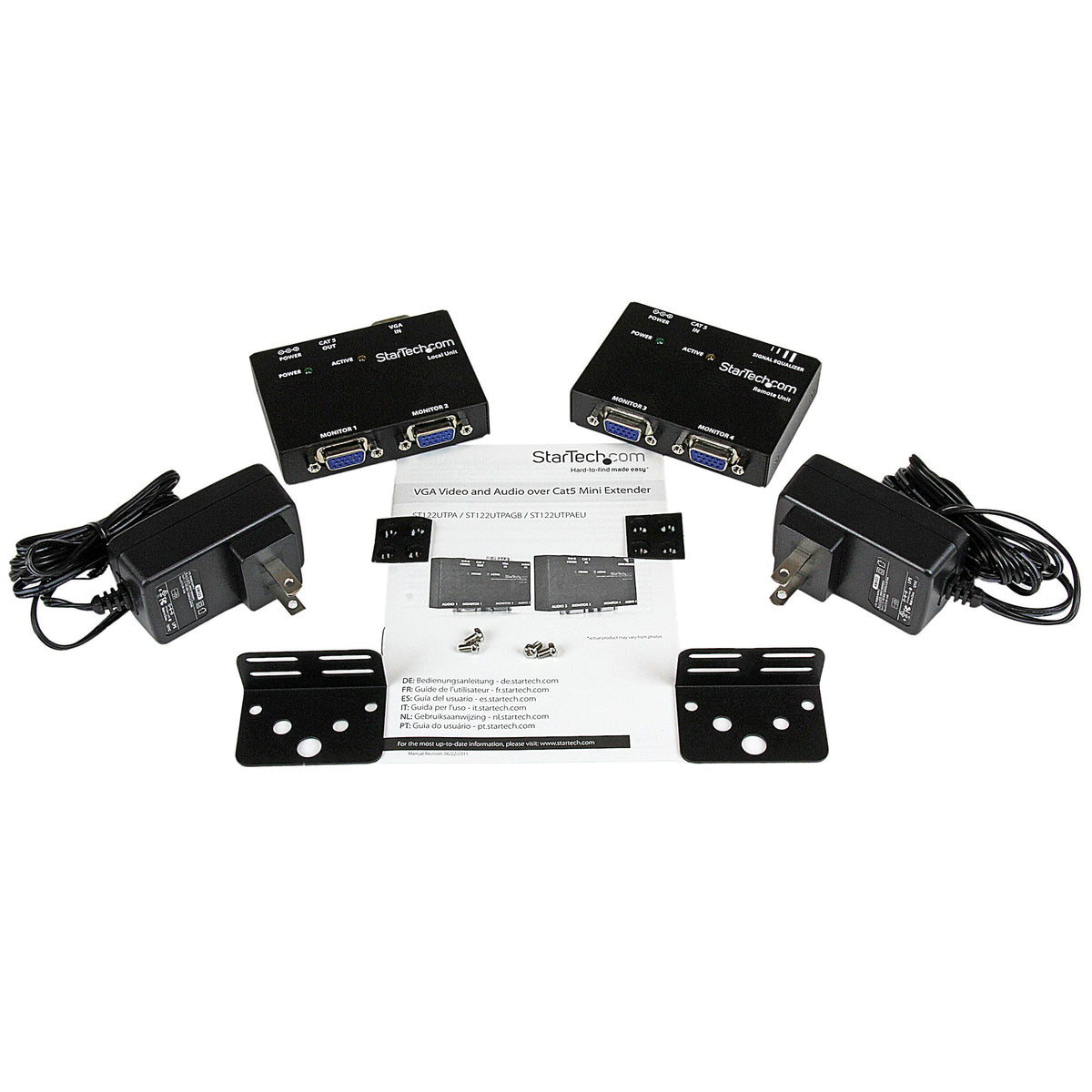

Packaging content
- Mounting brackets included
- Yes
Packaging data
- Package depth
- 18.8 cm
- Package height
- 9.3 cm
- Package weight
- 0.8 kg
- Package width
- 24.2 cm
Ports & interfaces
- VGA (D-Sub) input ports
- 1
- VGA (D-Sub) output ports
- 4
Power
- Operating voltage
- 9 V
- Output current
- 0.6 A
Technical details
- Sustainability compliance
- Yes
Weight & dimensions
- Depth
- 6 cm
- Height
- 2 cm
- Weight
- 0.34 kg
- Width
- 8.3 cm
AC adapter included
Manual
Mounting brackets included
Manual
Mounting brackets included
Materials
Material: Aluminium
Compare With Similar Items
|
|
|
|
|
|
|
| Description | Extend and distribute a VGA signal to 2 local, and 2 remote displays over Cat5 or better cabling The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit, offering a complete solution for scenarios in which remote monitor displays are required. The local unit features a single VGA input as well as two VGA outputs giving you the ability to view and split your source VGA signal to two independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features two additional VGA outputs giving you the freedom to display your VGA source on up to four monitors in total. The included a mounting bracket for the ST121UTP receiver provides versatile mounting options such as a wall, desk or cabinet. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. |
The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation. - HDBaseT Connectivity – extends a DVI connection up to 70 meters via a single Ethernet cable - HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology - Rack-Mountable |

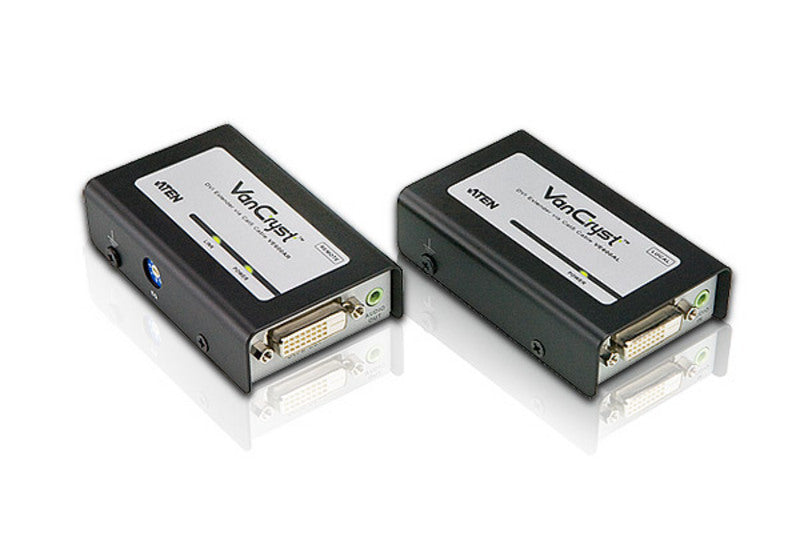

Features - Extends the distance between DVI source and DVI display device - Long distance transmission – up to 60 m - Uses Cat 5e cable to connect the local and remote units - Features ATEN EDID technology that allows transmission over one Cat 5e cable - Superior video quality – up to 1920x1200 (40 m); 1080p (40 m) ; 1080i (60 m) - Audio enabled - Adjustable EQ compensation control - Supports widescreen formats - Rack mountable - HDCP Compatible Package Contents - 1x VE600A DVI Extender with Audio Local Unit - 1x VE600A DVI Extender with Audio Remote Unit - 2x 0AD6-1605-09EG Power Adapters - 1x Mounting Kit - 1x User Instructions |
