StarTech.com VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender - TAA
Regular price
$306.74
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 1 item left in stock.
Extend a VGA signal to a remote display using Cat5 cabling

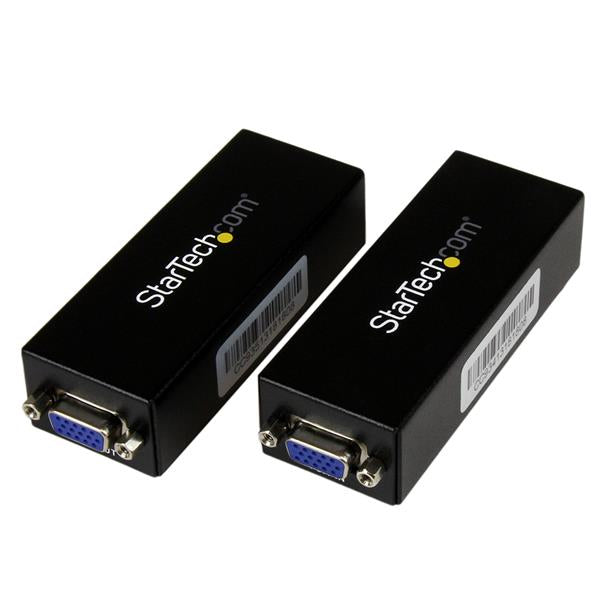

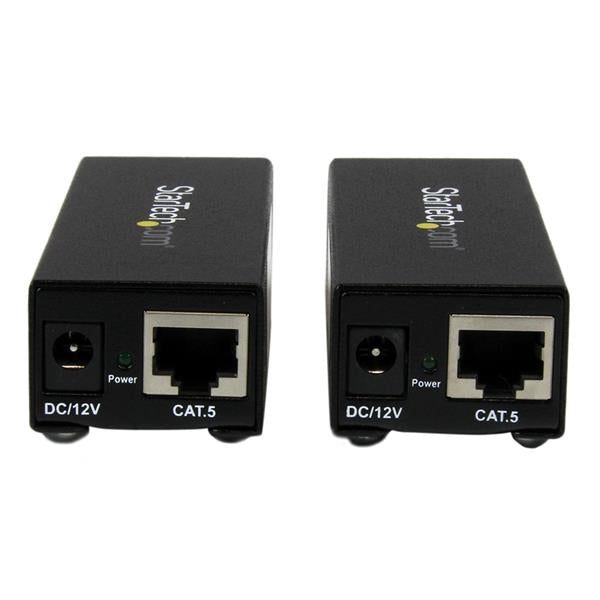

The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).
Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.
To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).
Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.
To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Type: AV transmitter & receiver
- Maximum transfer distance: 80 m
- Maximum resolution: 1920 x 1200 pixels
- Cable types supported: Cat5
- DC-in jack: Yes
- Material: Aluminium
- AC adapter included: Yes
- RJ-45 input ports: 1
- Supported graphics resolutions: 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
- Compliance certificates: RoHS
- RJ-45 output ports: 1
- Master (outer) case height: 31.8 cm
- Master (outer) case length: 33.6 cm
- Master (outer) case width: 33.2 cm
- Products per master (outer) case: 10 pc(s)
- Power consumption (typical): 7.2 W
- Daisy chain: No
- External power adapter: Yes
- Cables included: VGA
Features
- Certification
- CE, FCC, REACH, TAA
- Plug and Play
- Yes

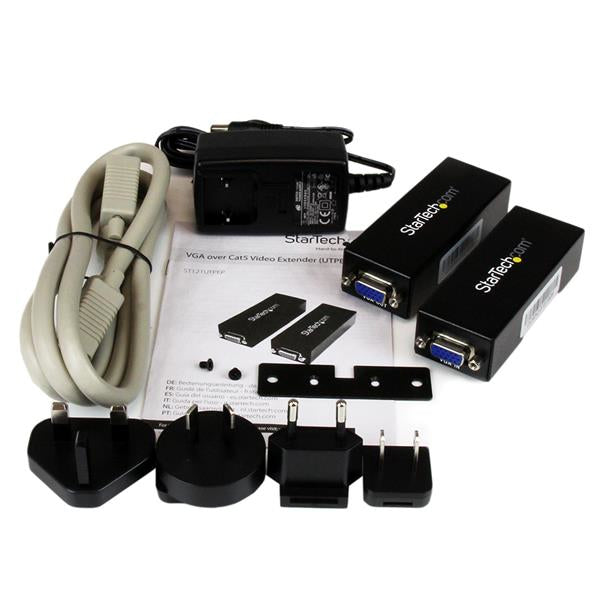

Packaging content
- Included power plug types
- AU, EU, NA, UK
- Manual
- Yes
- Mounting brackets included
- Yes
Packaging data
- Package depth
- 31.6 cm
- Package height
- 6.2 cm
- Package weight
- 0.8 kg
- Package width
- 14.4 cm
Ports & interfaces

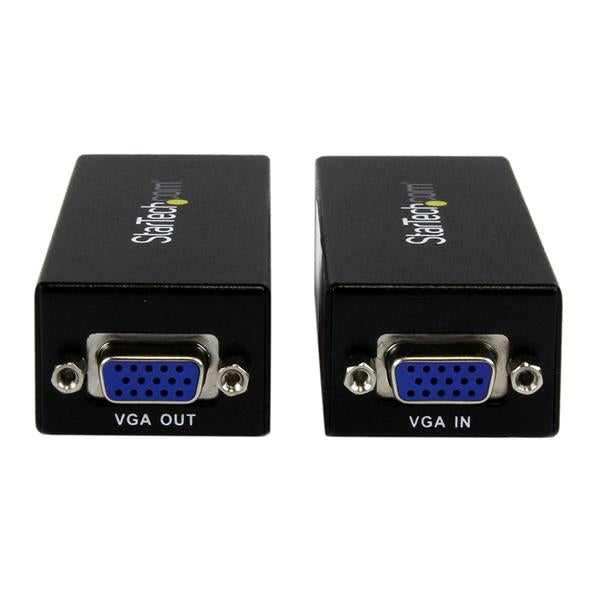

- VGA (D-Sub) input ports
- 1
- VGA (D-Sub) output ports
- 1
Power
- Operating voltage
- 12 V
- Output current
- 0.6 A
- Power plug type
- Type M
Weight & dimensions
- Depth
- 10 cm
- Height
- 2.5 cm
- Weight
- 0.26 kg
- Width
- 13.8 cm
AC adapter included
Cables included: VGA
Included power plug types: AU, EU, NA, UK
Manual
Mounting brackets included
Cables included: VGA
Included power plug types: AU, EU, NA, UK
Manual
Mounting brackets included
Materials
Material: Aluminium
Compare With Similar Items
|
|
|
|
|
|
|
| Description | Extend a VGA signal to a remote display using Cat5 cabling The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors). Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application. To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles. Backed by a StarTech.com 2-year warranty and free lifetime technical support. |

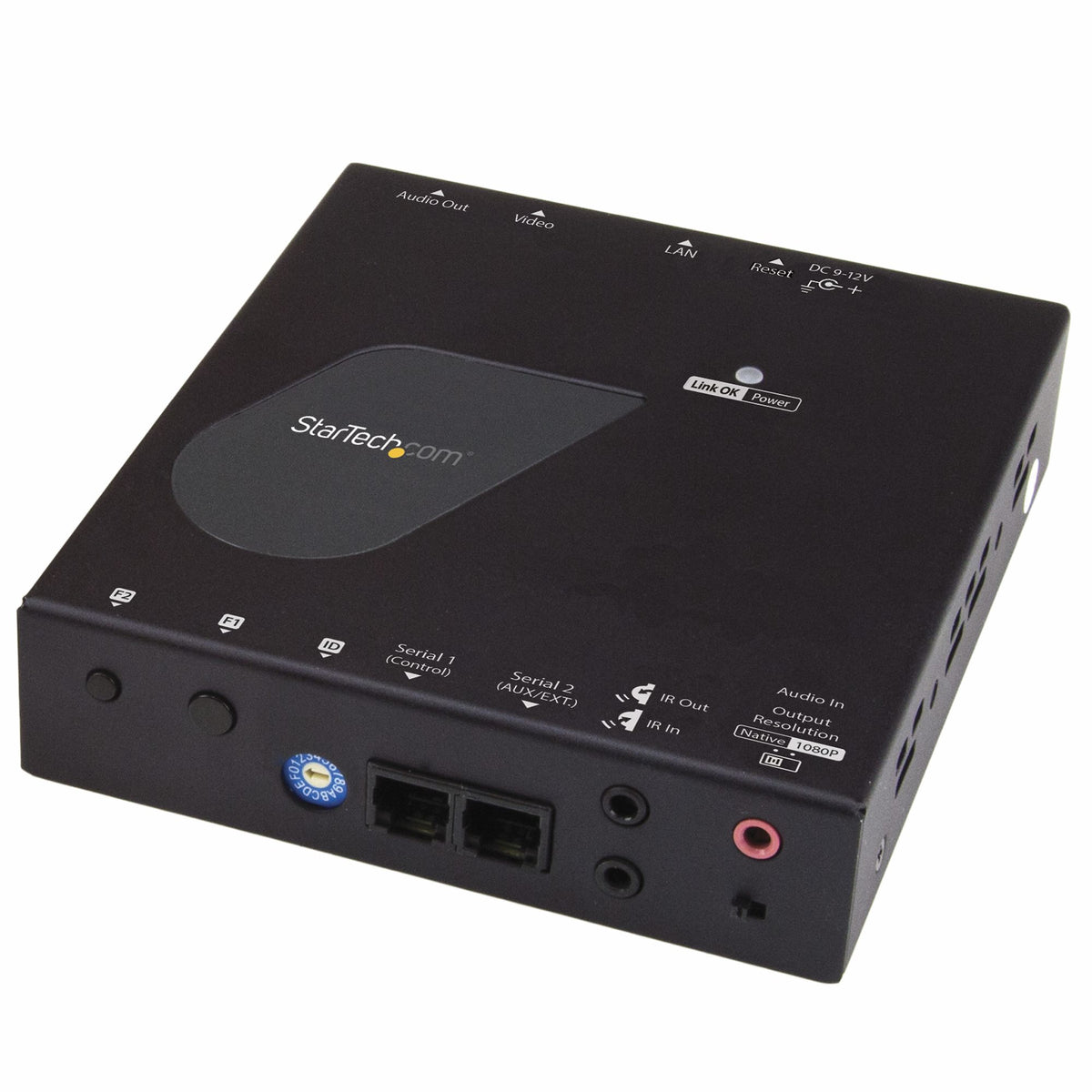

Use this 4K receiver with your HDMI extender over IP kit (ST12MHDLAN4K) to build scalable/cost-effective AVoIP solutions This HDMI® over IP Receiver works with the HDMI over IP Extender Kit [%product id="ST12MHDLAN4K (sold separately). Designed for IT professionals, system integrators, and digital signage specialists, this solution delivers unmatched flexibility for scaling video distribution without the limitations of traditional HDMI splitters or fixed extenders. Scalable HDMI Over IP Easily expand your A/V distribution setup and build dynamic video walls using the ST12MHDLAN4K extender kit and additional receivers: • One-to-Many : Connect up to 16 receivers to a single transmitter, ideal for broadcasting HDMI over IP to multiple displays • Many-to-Many : Integrate up to 16 [%product id="ST12MHDLAN4K extender kits and additional ST12MHDLAN4R receivers with a maximum of 16 transmitters and 256 receivers. Centralized Video Control App The included iOS/Android Video Control App empowers administrators to name sources and displays, switch inputs, and configure video walls, all from a mobile device. With RS232 passthrough, TVs or serial-controlled devices can be managed remotely through the same network. Flexible Installations for Any Environment Perfect for digital signage in retail, hospitality, and corporate settings, as well as command centers or other mission-critical environments. The kit includes mounting hardware for clean shelf or rack installations and supports both static and dynamic signage needs. Note: For optimal performance, a managed network switch with IGMP is recommended when using more than one transmitter or more than four receivers. Non-managed switches may impact the performance of other devices on your network. Jumbo frames support must be enabled to stream 4K video effectively. |

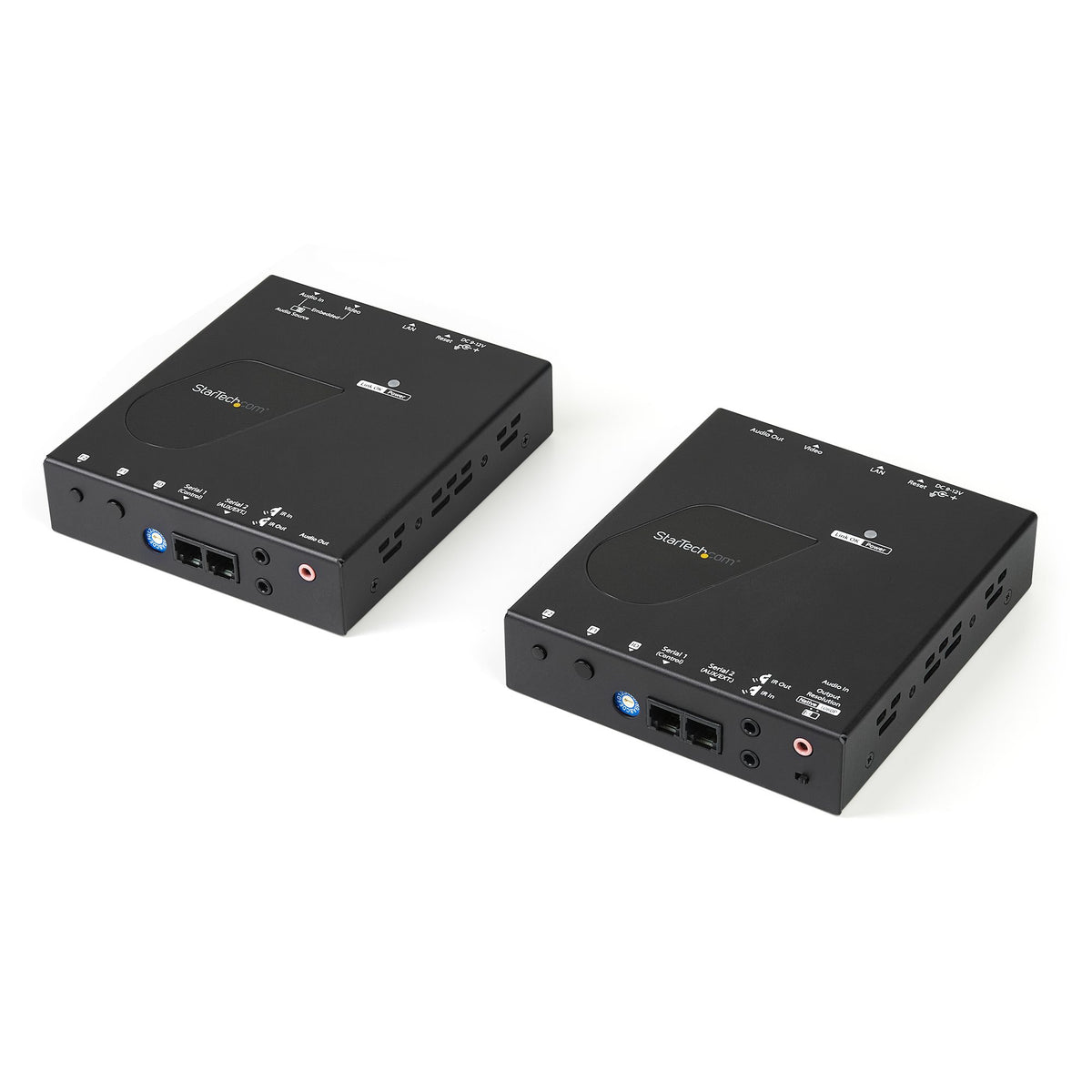

Use your existing network infrastructure to build scalable/cost-effective AVoIP solutions Distribute 4K 30Hz HDMI signals across your existing IP network with this high-performance AV over IP extender kit. Designed for IT professionals, system integrators, and digital signage specialists, this solution delivers unmatched flexibility for scaling video distribution without the limitations of traditional HDMI splitters or fixed extenders. Scalable HDMI Over IP Easily expand your A/V distribution setup and build dynamic video walls using the ST12MHDLAN4K extender kit and additional receivers (ST12MHDLAN4R , sold separately): • One-to-Many : Connect up to 16 receivers to a single transmitter, ideal for broadcasting HDMI over IP to multiple displays • Many-to-Many : Integrate up to 16 ST12MHDLAN4K extender kits and additional ST12MHDLAN4R receivers with a maximum of 16 transmitters and 256 receivers. For smaller-scale deployments, the extender kit can be used in a simple point-to-point setup over Cat5e/6 cabling up to 330 ft (100 m), with support for extending two independent 3.5 mm audio sources to remote speaker systems. Centralized Video Control App The included iOS/Android Video Control App empowers administrators to name sources and displays, switch inputs, and configure video walls, all from a mobile device. With RS232 passthrough, TVs or serial-controlled devices can be managed remotely through the same network. Flexible Installations for Any Environment Perfect for digital signage in retail, hospitality, and corporate settings, as well as command centers or other mission-critical environments. The kit includes mounting hardware for clean shelf or rack installations and supports both static and dynamic signage needs. Note: For optimal performance, a managed network switch with IGMP is recommended when using more than one transmitter or more than four receivers. Non-managed switches may impact the performance of other devices on your network. Jumbo frames support must be enabled to stream 4K video effectively. |

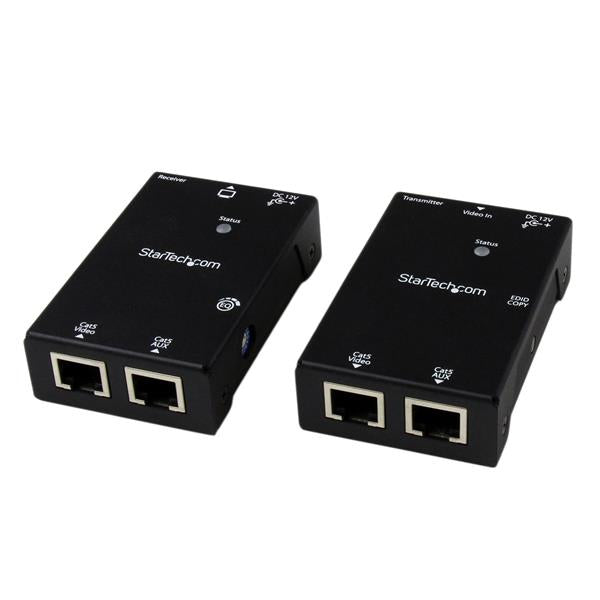

Extend HDMI® up to 165ft (50m) over Cat5e/6 cabling with Power over Cable to Receiver The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver. With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector. For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances. The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. |
