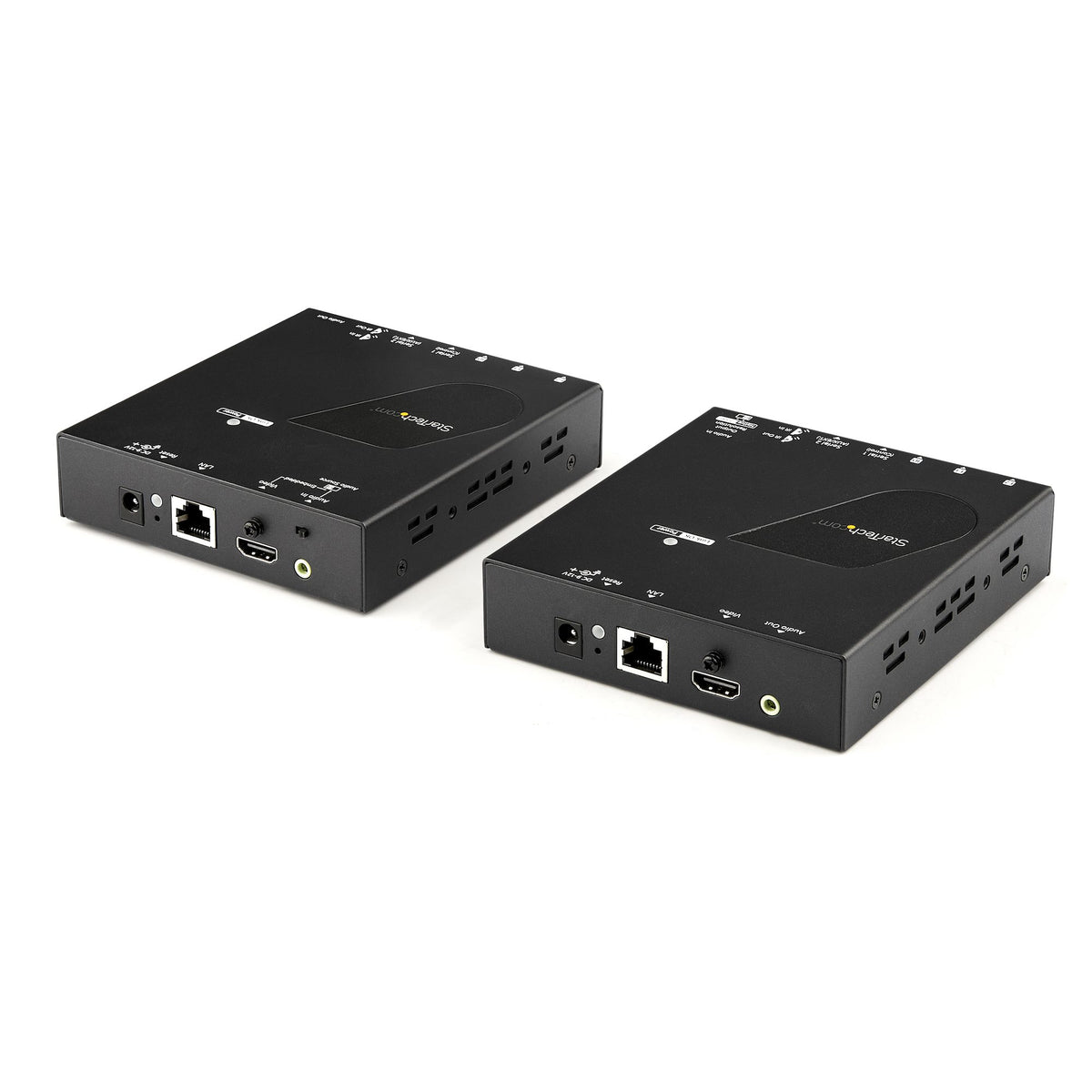

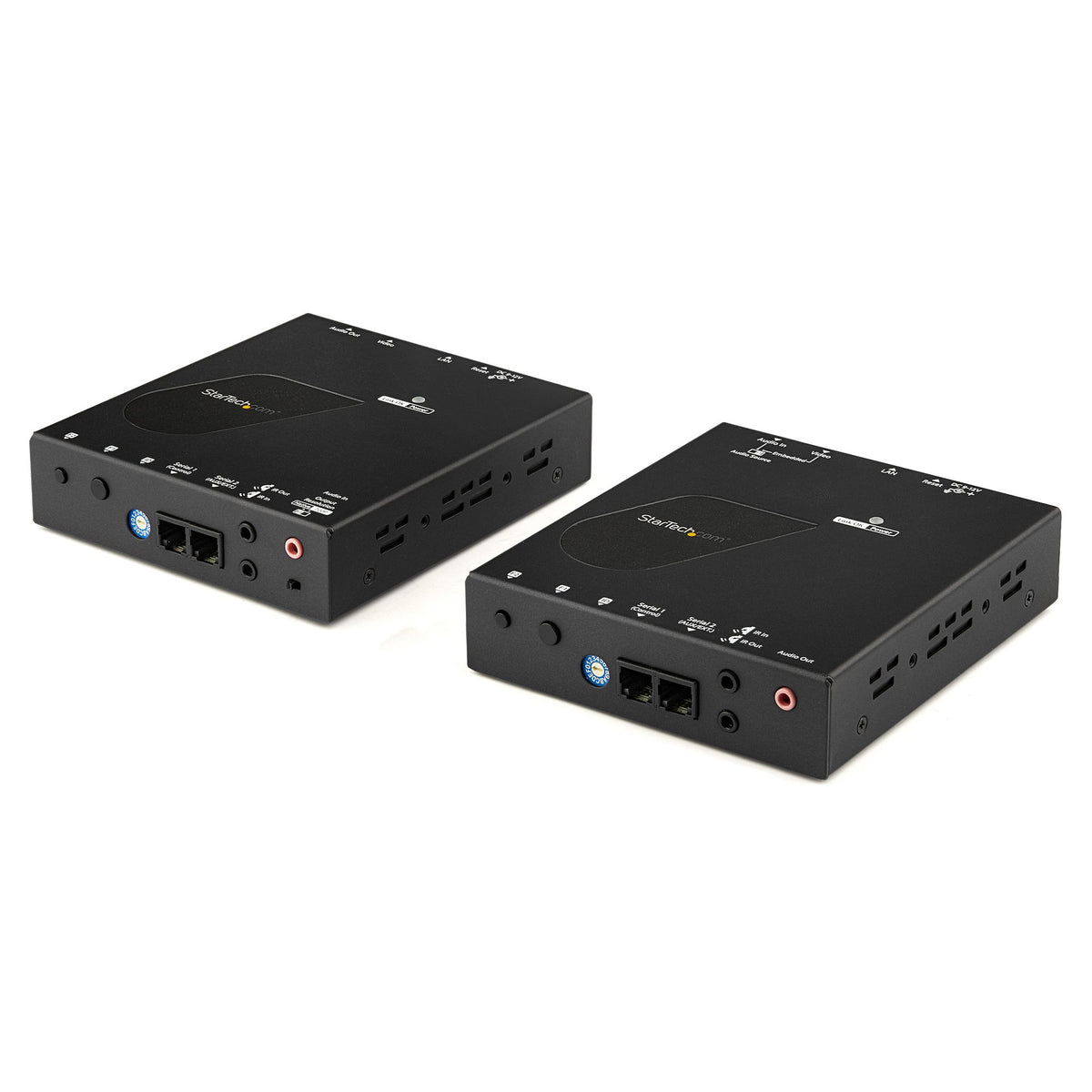

StarTech.com HDMI over IP Extender Kit with Video Wall Support - 1080p - TAA
Regular price
$1,072.77
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
HDMI® Video over Cat5e or Cat6 |Multiple Sources to Multiple Displays | Mobile Control App

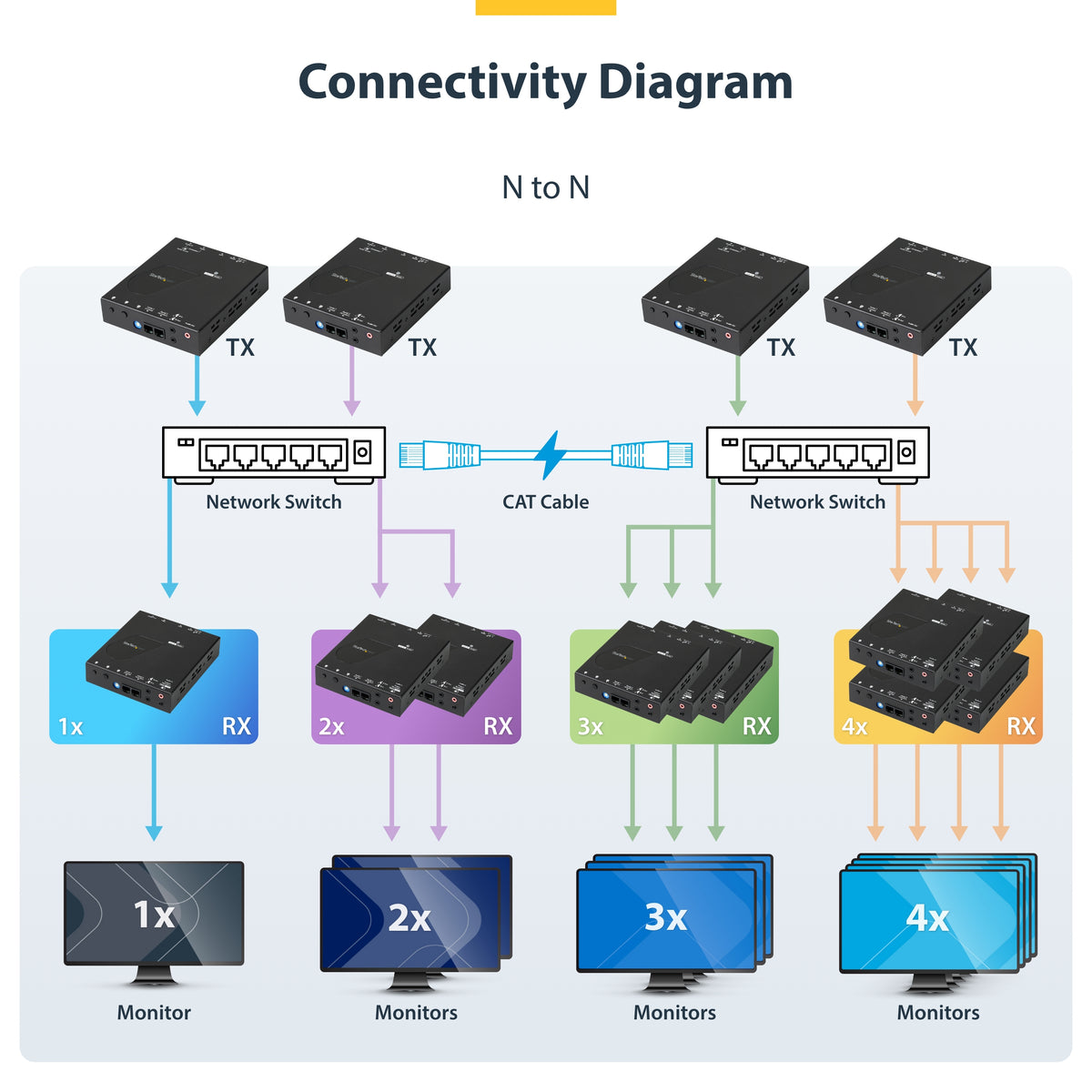

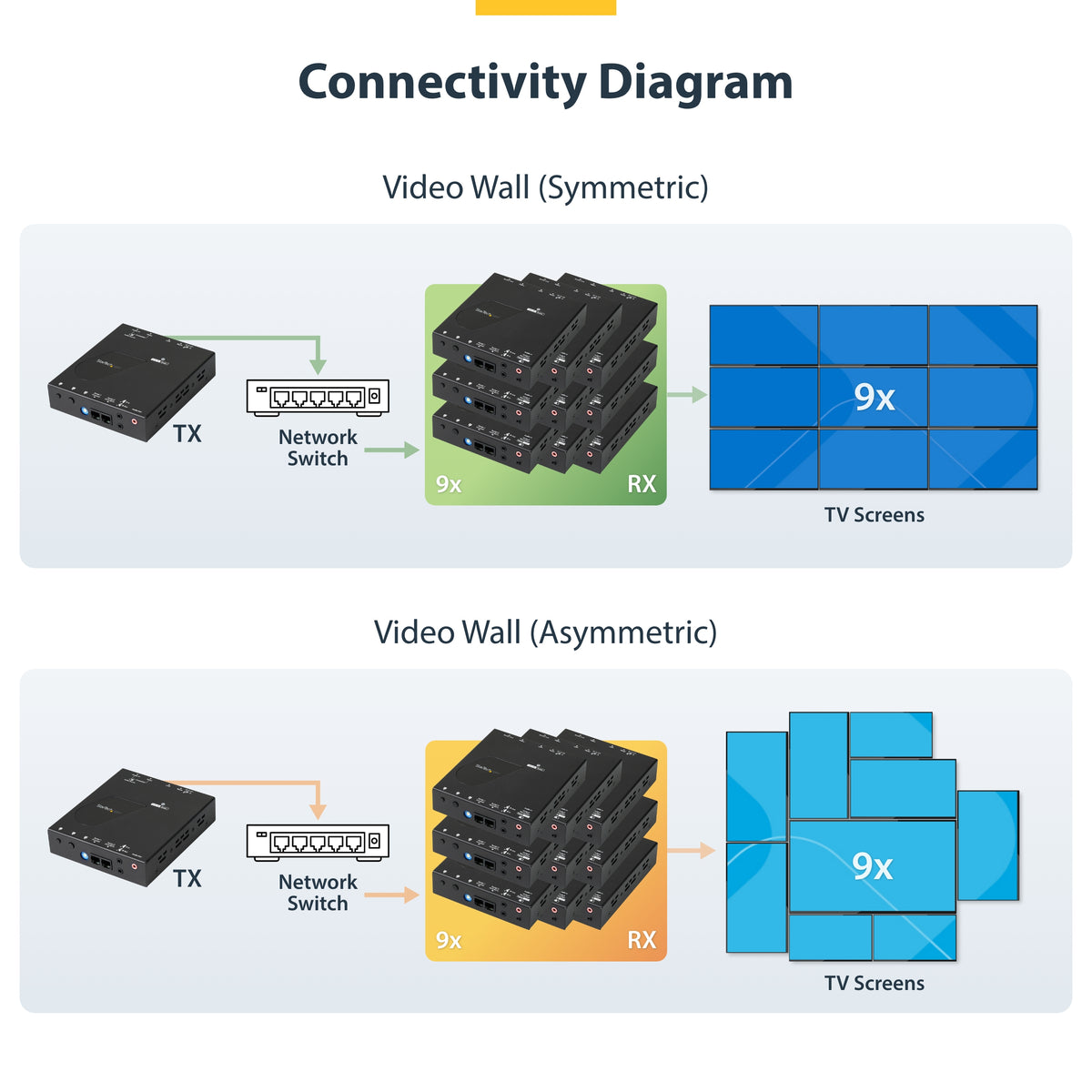

This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.

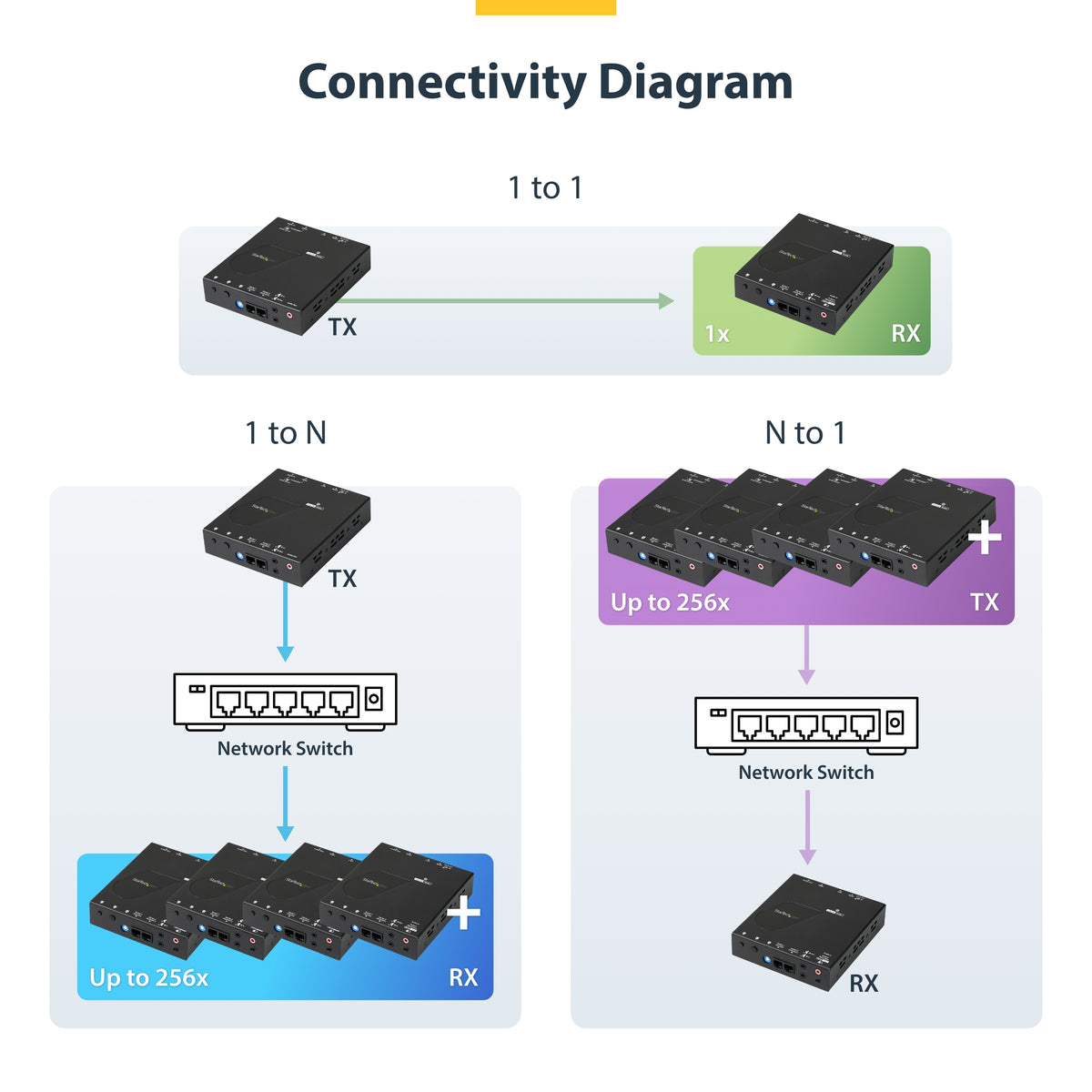

You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
Resolutions up to 1080p, with Audio
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile Control Through a Free App
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
Hassle-Free Installations
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
Resolutions up to 1080p, with Audio
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile Control Through a Free App
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
Hassle-Free Installations
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Type: AV transmitter & receiver
- Maximum transfer distance: 100 m
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 1920 x 1080 pixels
- Cable types supported: Cat5e, Cat6
- Number of HDMI outputs: 1

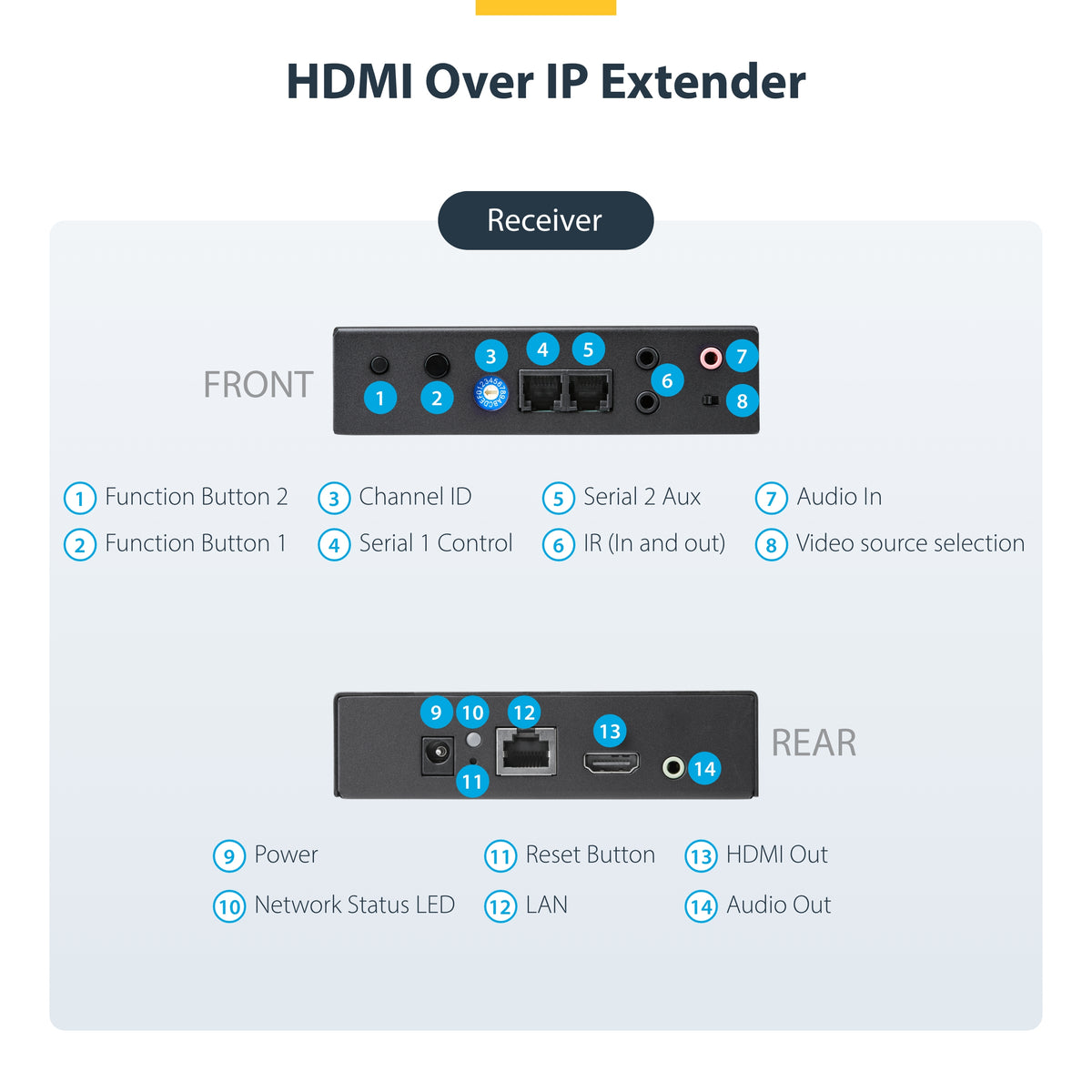

- LED indicators: Link, Network, Power, Status
- AC adapter included: Yes
- HDMI in: 1
- RJ-45 input ports: 1
- Supported graphics resolutions: 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
- Compliance certificates: CE, RoHS
- Supported video modes: 720p, 1080p
- RJ-45 output ports: 1
- Master (outer) case height: 26.6 cm
- Master (outer) case length: 49.8 cm
- Master (outer) case width: 39 cm
- Products per master (outer) case: 6 pc(s)
- Power consumption (typical): 10 W
Features
- Audio output channels
- 7.1 channels
- Daisy chain
- Yes
- Maximum refresh rate
- 60Hz
- Rack mounting
- Yes
- Rubber feet
- Yes
General
- Video/mp4
- https://www.youtube.com/watch?v=GcHji1rqfqo
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 60 °C

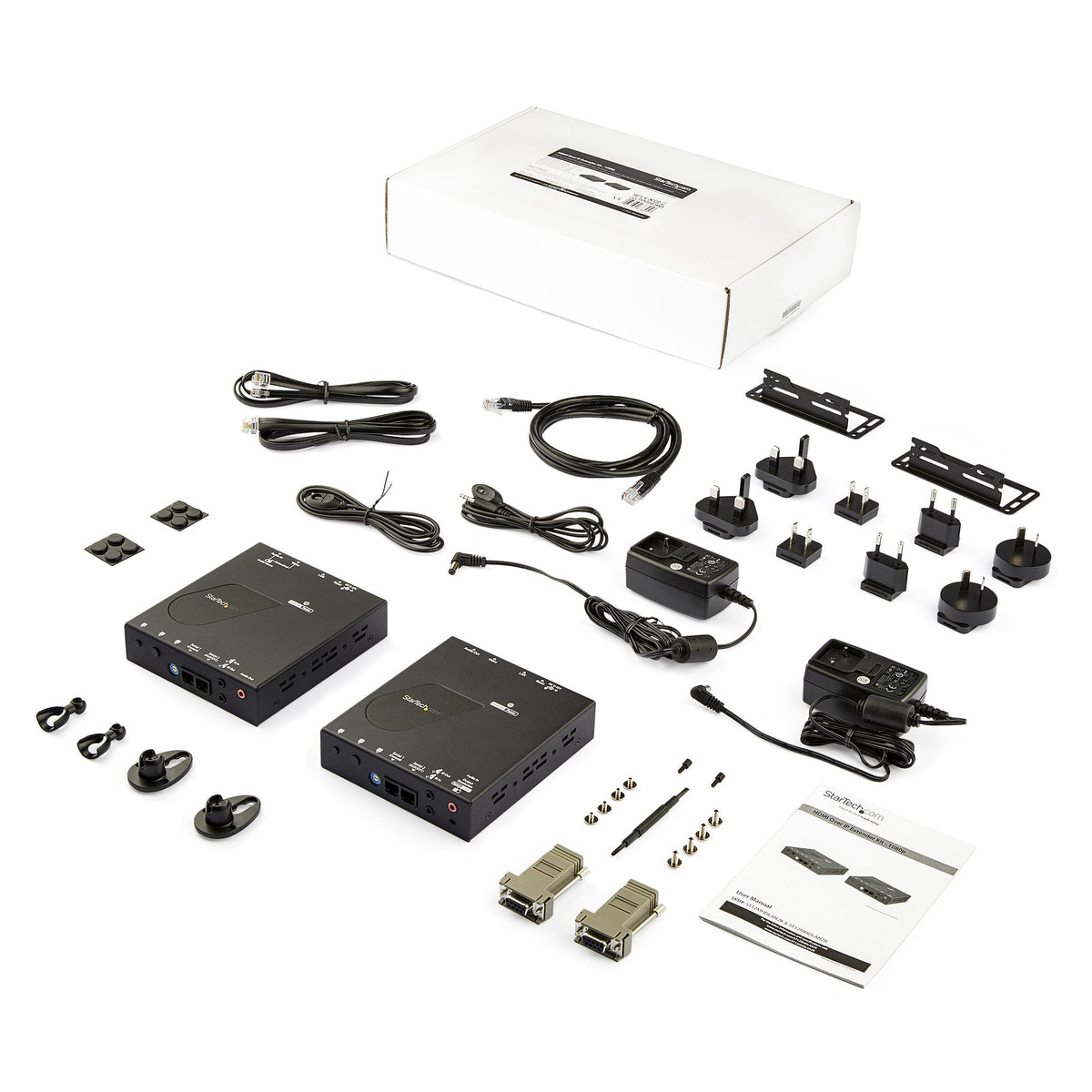

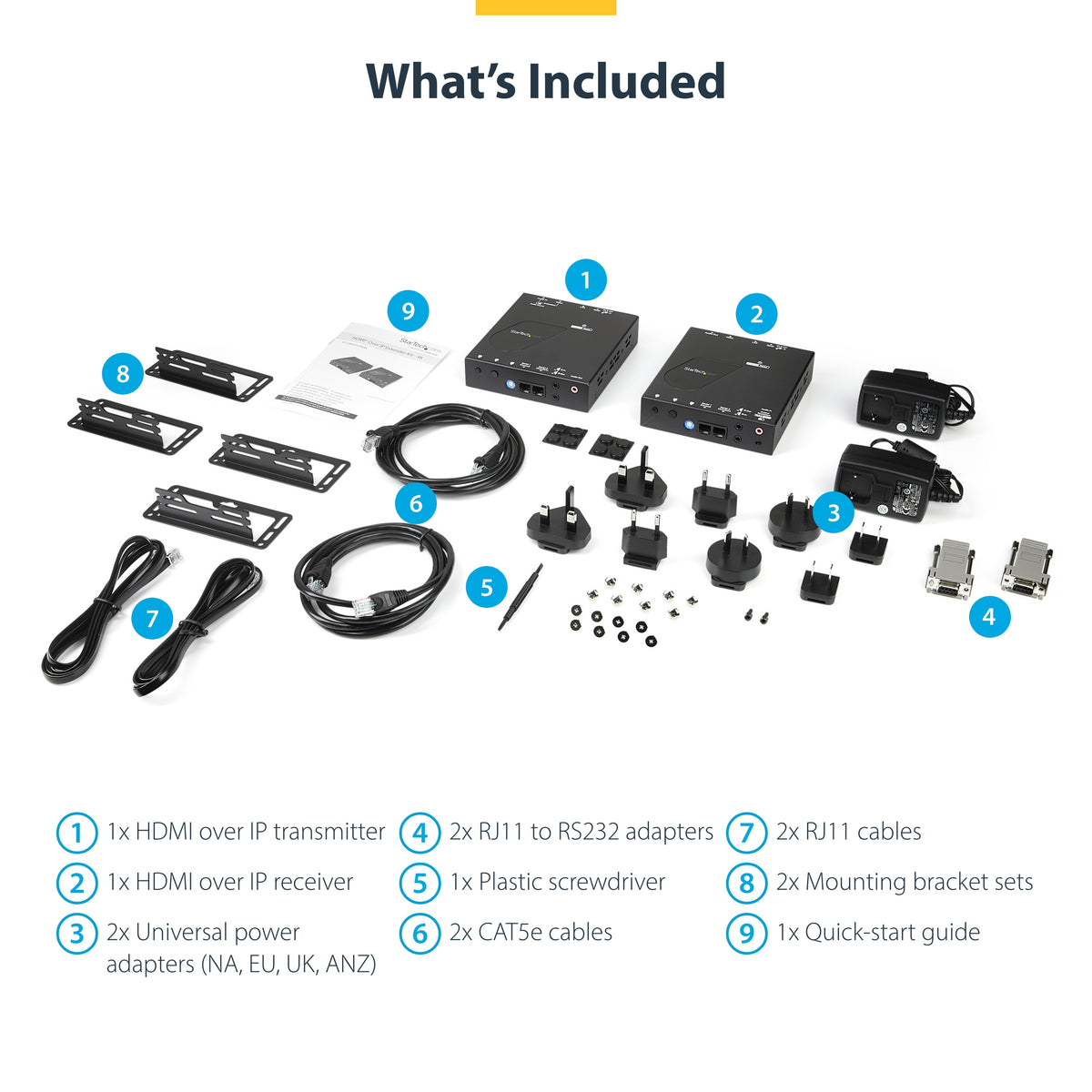

Packaging content
- Cables included
- LAN (RJ-45), Phone (RJ-11)
- Included power plug types
- ANZ, EU, JP, NA, UK, US
- IR blaster included
- Yes
- IR receiver included
- Yes
- Manual
- Yes
- Mounting kit
- Yes
Packaging data
- Package depth
- 36.6 cm
- Package height
- 7.6 cm
- Package weight
- 2.3 kg
- Package width
- 23.6 cm

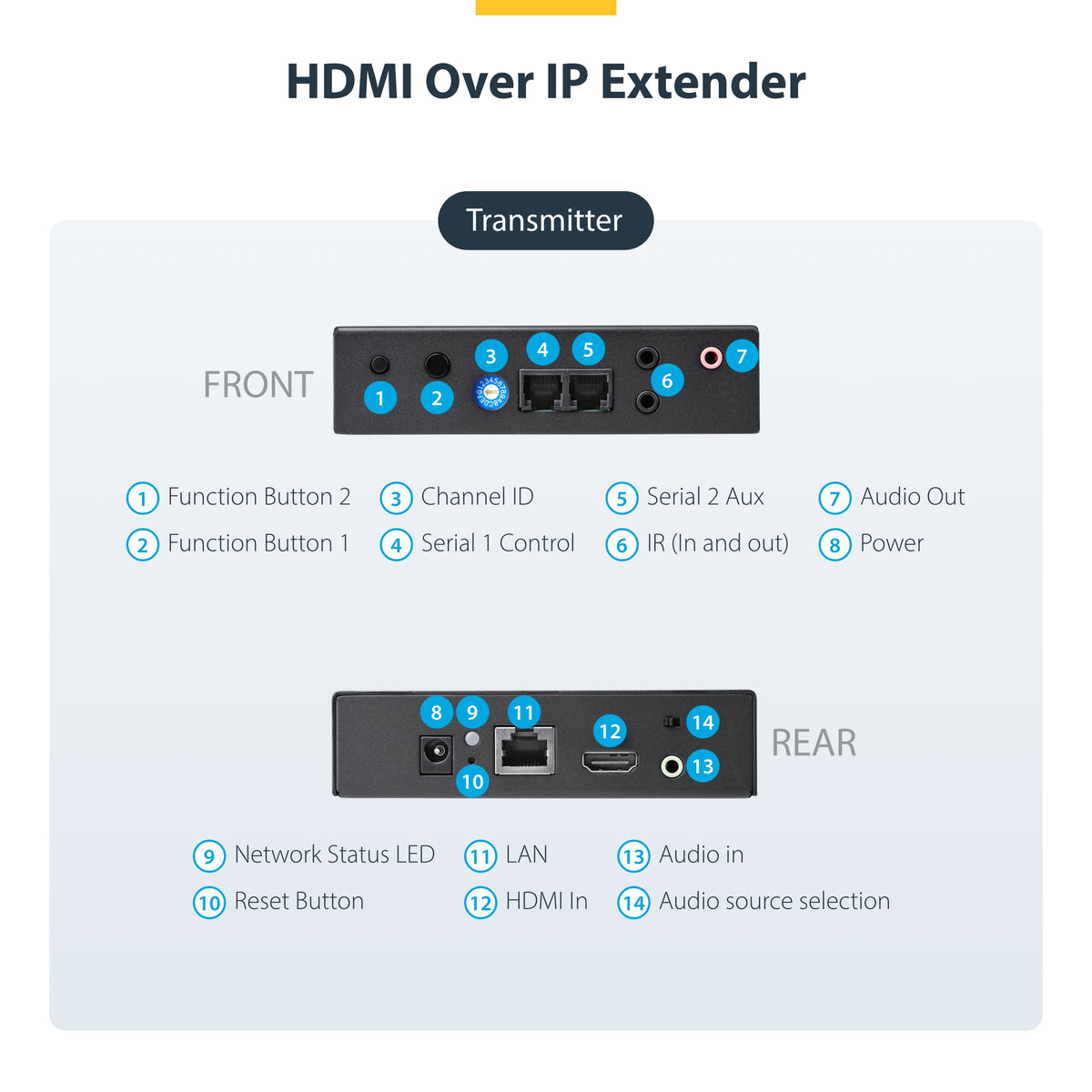

Ports & interfaces
- 3.5 mm (1/8-inch) in
- Yes
- 3.5 mm (1/8-inch) out
- Yes
- Audio input
- 2 x 3.5 mm
- Audio output
- 2 x 3.5 mm
- RJ-11 ports quantity
- 4
Power
- AC input voltage
- 100 - 240 V
- External power adapter
- Yes
- Input current
- 0.6 A
- Operating voltage
- 12 V
- Output current
- 1.5 A
- Power plug type
- Type M
Technical details
- Sustainability compliance
- Yes
Weight & dimensions
- Depth
- 13.1 cm
- Height
- 3.1 cm
- Weight
- 1.2 kg
- Width
- 11.8 cm
AC adapter included
Cables included: LAN (RJ-45), Phone (RJ-11)
Included power plug types: ANZ, EU, JP, NA, UK, US
IR blaster included
IR receiver included
Manual
Cables included: LAN (RJ-45), Phone (RJ-11)
Included power plug types: ANZ, EU, JP, NA, UK, US
IR blaster included
IR receiver included
Manual
