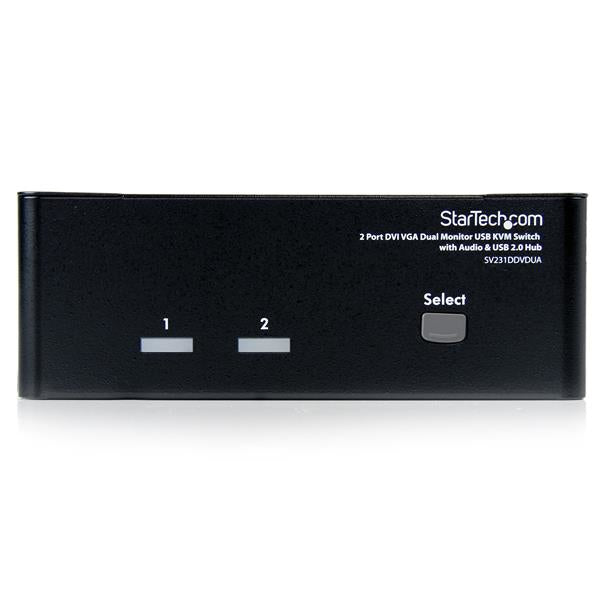

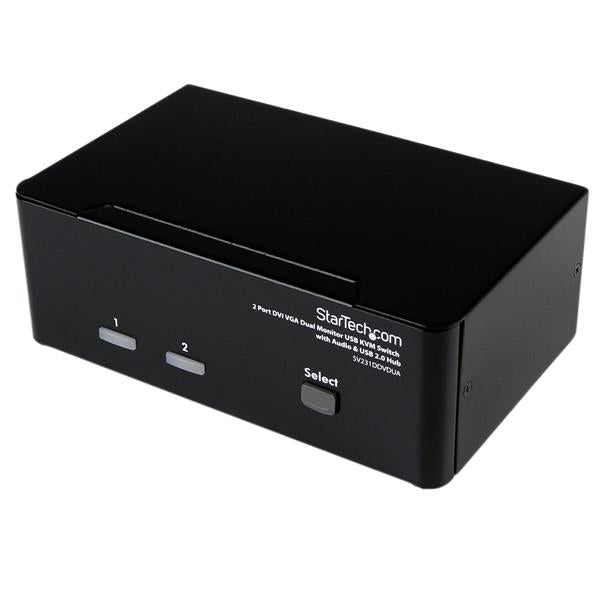

StarTech.com 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio & USB 2.0 Hub - TAA
Regular price
$351.30
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 3 items left in stock.
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 2 multimedia computers
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.
With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.
With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Keyboard port type: USB
- Mouse port type: USB
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 1920 x 1200 pixels
- Video port type: VGA/DVI-I
- Number of computers controlled: 2
- LED indicators: Power
- Built-in display: No
- Housing material: Steel

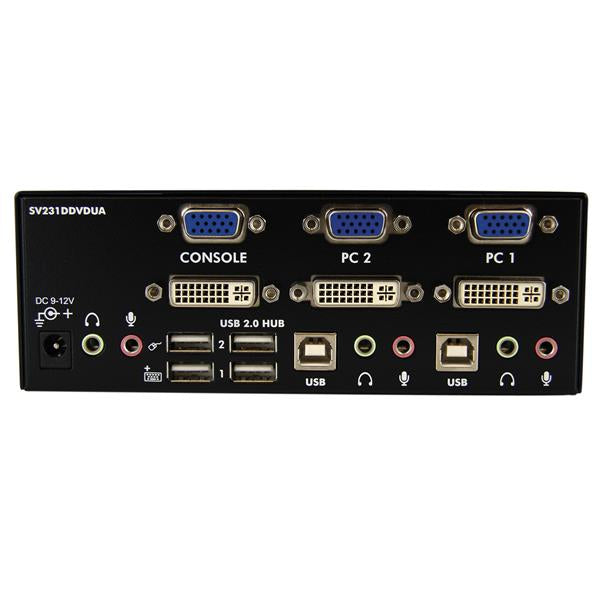

- Console ports: 3.5mm headphone, DVI-I, VGA (D-Sub)
- HD type: WUXGA
- Rack mounting: No
- Master (outer) case height: 33.2 cm
- Master (outer) case length: 45.4 cm
- Master (outer) case width: 41 cm
- Products per master (outer) case: 12 pc(s)
- Power consumption (typical): 18 W
- Audio connections: Yes
Design
- Certification
- CE, FCC
- Mean time between failures (MTBF)
- 64691 h
Logistics data
- Harmonized System (HS) code
- 85176200
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Other features
- Audio support
- Yes
- IP control
- No

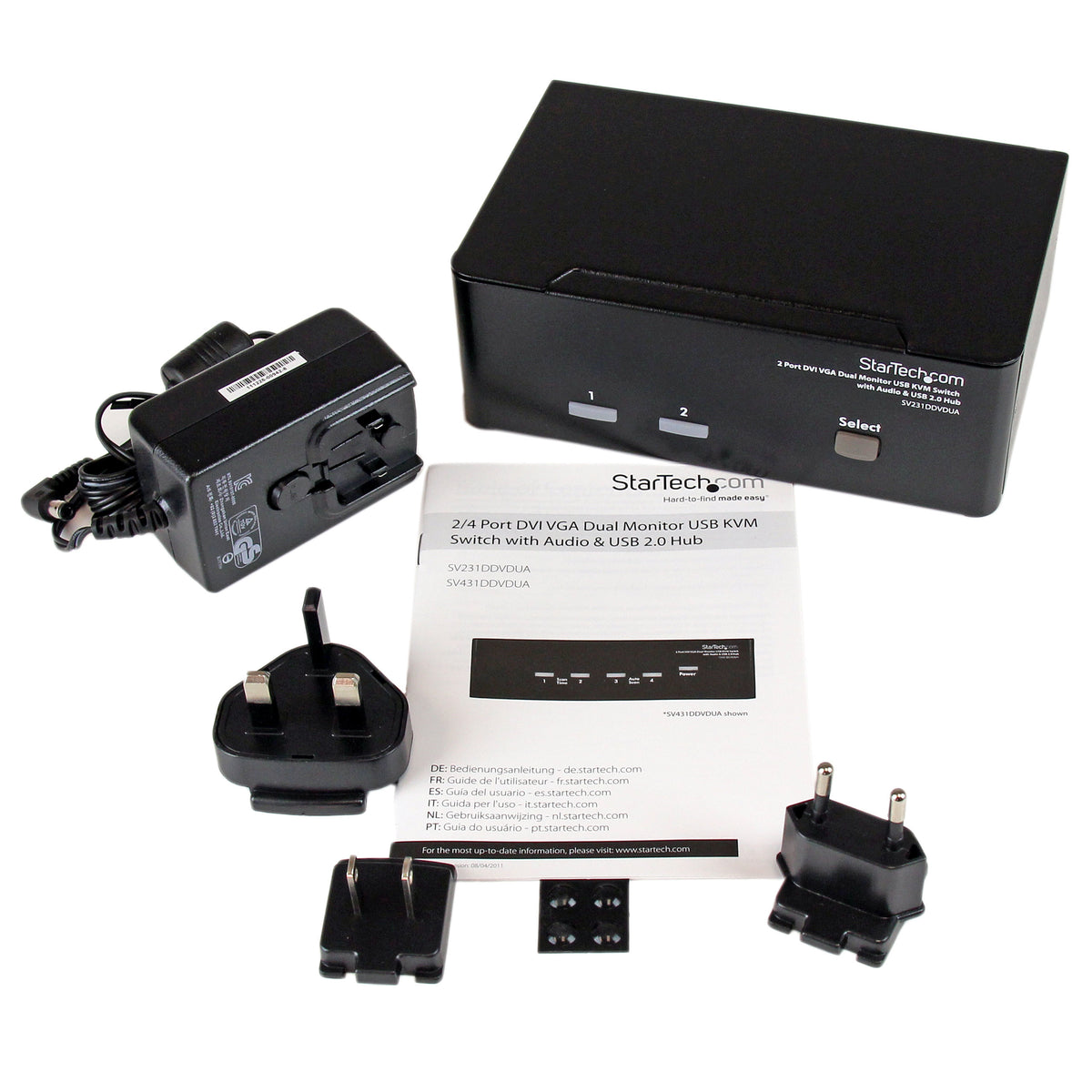

Packaging content
- AC adapter included
- Yes
- Manual
- Yes
- Rubber feet
- Yes
Packaging data
- Package depth
- 29.4 cm
- Package height
- 7.2 cm
- Package weight
- 1.29 kg
- Package width
- 19.8 cm
Performance
- Daisy chain
- No
- DDC2B support
- Yes
- HDCP
- Yes
- Maximum digital resolution
- 1920 x 1200 pixels
- Number of users
- 1 user(s)
Ports & interfaces
- Headphone outputs
- 3
- Number of microphone inputs
- 3
- USB 2.0 ports quantity
- 4
- USB connector type
- USB Type-A
Power
- Compatible power plug types
- AU, EU, UK, US
- External power adapter
- Yes
- Input current
- 0.8 A
- Input voltage
- 100-240 V
- Output current
- 1.5 A
- Output voltage
- 12 V
- Power plug type
- Type M
Sustainability
- Compliance certificates
- RoHS
Weight & dimensions
- Depth
- 16.3 cm
- Height
- 5.7 cm
- Weight
- 0.75 kg
- Width
- 16 cm
AC adapter included
Manual
Manual
Materials
Housing material: Steel
