StarTech.com 4-Port Dual DisplayPort KVM Switch - 4K 60Hz - TAA
Regular price
$1,545.55
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 2 items left in stock.
This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers
This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.
Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
The SV431DPDDUA2 is TAA compliant and backed by a 2-year StarTech.com warranty.
This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.
Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
The SV431DPDDUA2 is TAA compliant and backed by a 2-year StarTech.com warranty.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Keyboard port type: USB
- Mouse port type: USB
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 3840 x 2160 pixels
- Video port type: DisplayPort
- Number of computers controlled: 4
- LED indicators: Power
- Built-in display: No
- Housing material: Steel
- Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
- HD type: 4K Ultra HD
- Rack mounting: Yes
- Console USB ports quantity: 4
- Master (outer) case height: 29.9 cm
- Master (outer) case length: 32.1 cm
- Master (outer) case width: 51.4 cm
- Products per master (outer) case: 6 pc(s)
- Hot keys: Yes
Design
- Certification
- CE, FCC, TAA, REACH
- Mean time between failures (MTBF)
- 142000 h
- Rack capacity
- 2U
Logistics data
- Harmonized System (HS) code
- 85176200
Operational conditions
- Storage temperature (T-T)
- -10 - 60 °C
Other features
- Audio support
- Yes
- IP control
- No

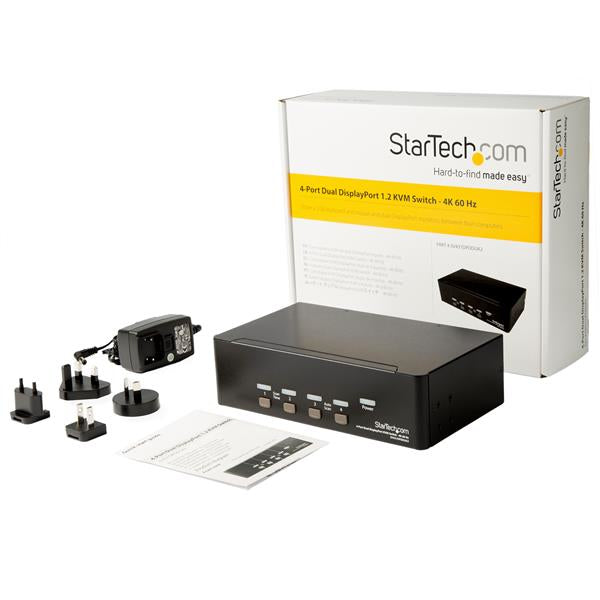

Packaging content
- Quick installation guide
- Yes
- Rubber feet
- Yes
Packaging data
- Package depth
- 29.6 cm
- Package height
- 8.6 cm
- Package weight
- 1.8 kg
- Package width
- 24.4 cm
Performance
- Daisy chain
- No
- Data transfer rate (max)
- 0.5 Gbit/s
- Scan interval
- 3,8,15,30 s

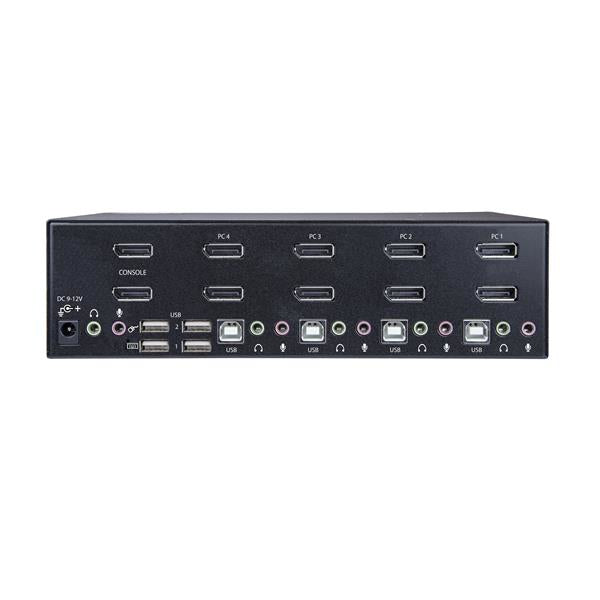

Ports & interfaces
- Audio connections
- Yes
- DC-in jack
- Yes
- DisplayPorts quantity
- 10
- USB connector type
- USB Type-A
- USB hub
- Yes
Power
- Compatible power plug types
- AU, EU, JP, UK, US
- External power adapter
- Yes
- Input current
- 0.6 A
- Input voltage
- 100 - 240 V
- Output current
- 1.5 A
- Output voltage
- 12 V
- Power consumption (typical)
- 18 W
- Power plug type
- Type M
- Power source
- AC
Sustainability
- Compliance certificates
- RoHS
Weight & dimensions
- Depth
- 12.7 cm
- Height
- 6.3 cm
- Weight
- 1.2 kg
- Width
- 21.6 cm
Materials
Housing material: Steel
