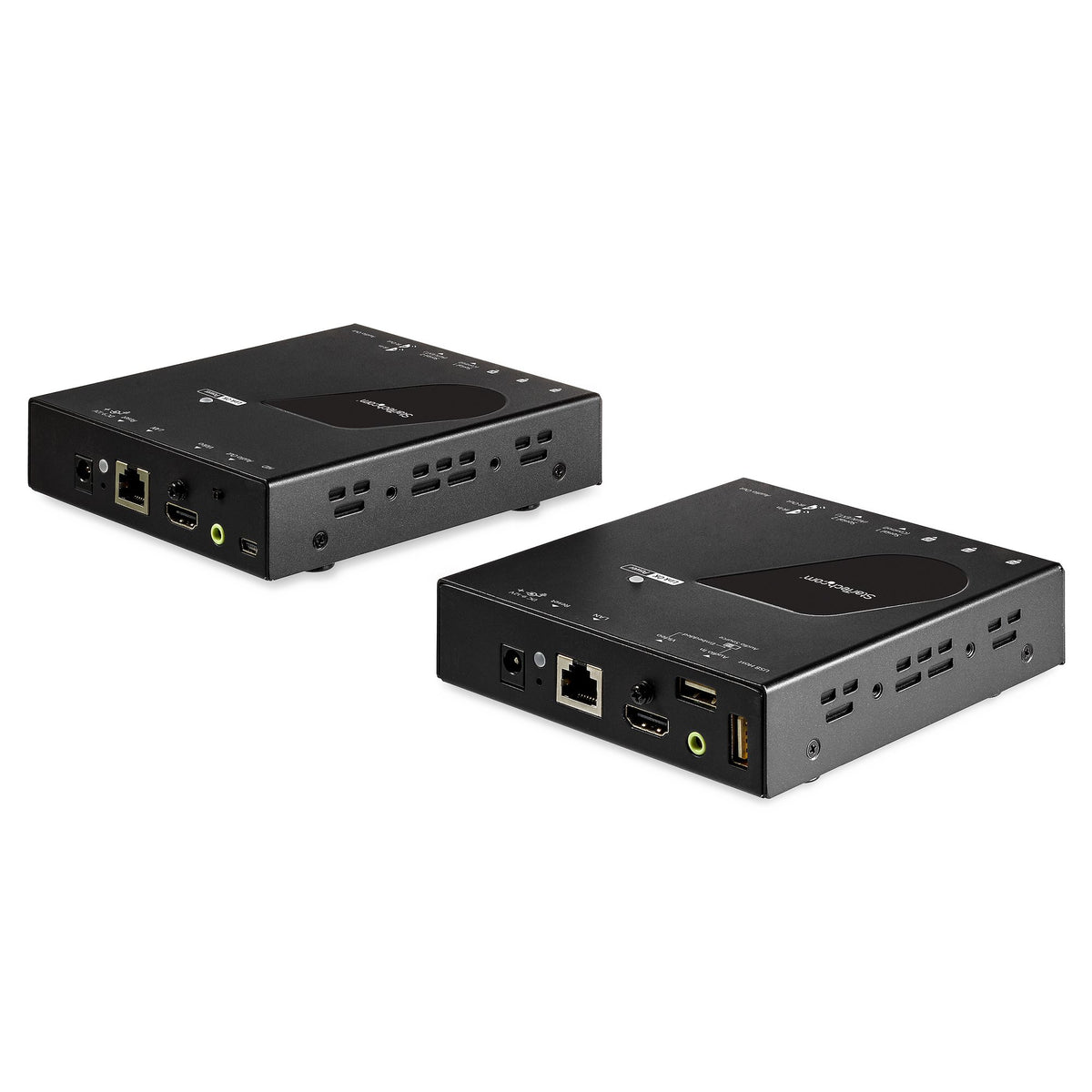

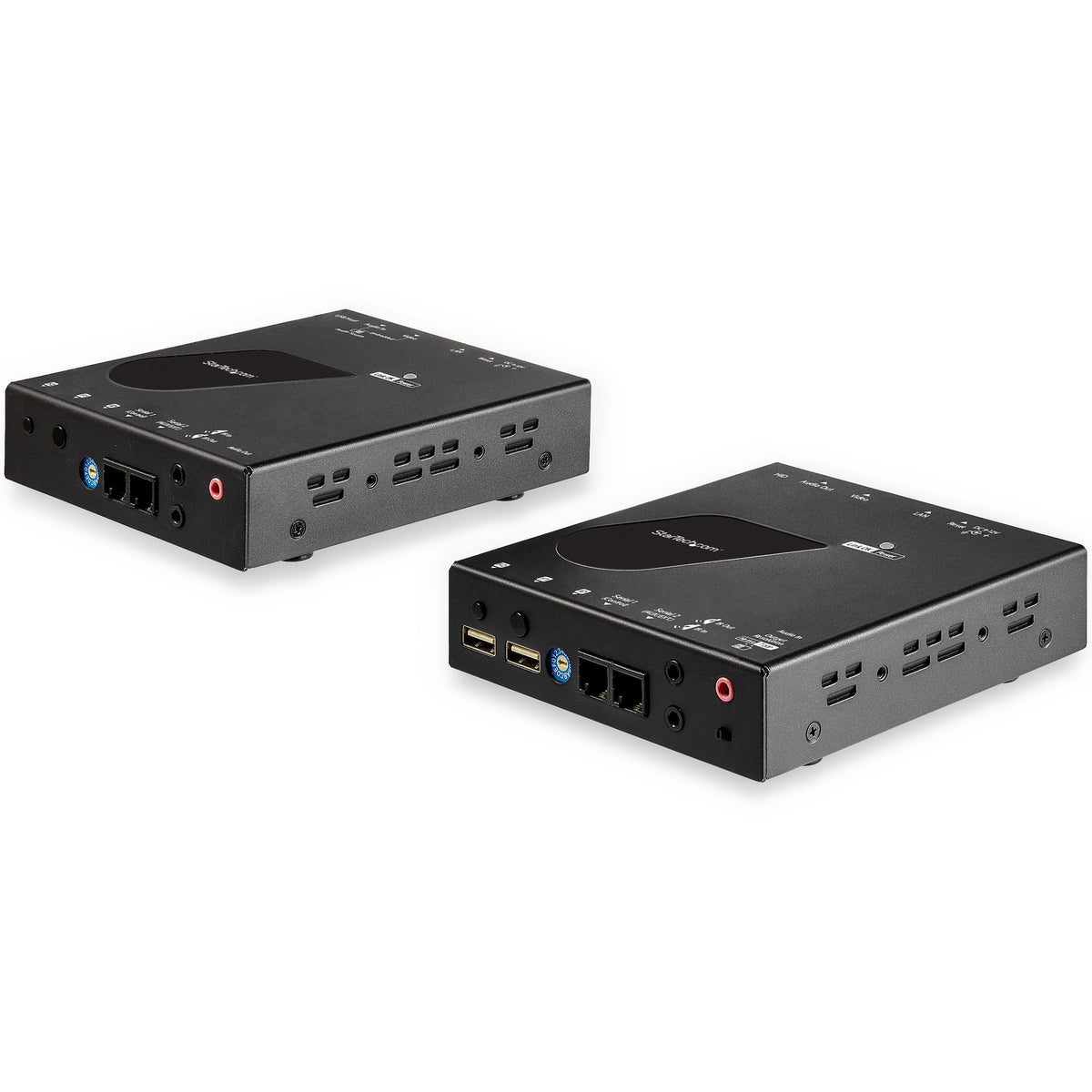

StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit - TAA
Regular price
$1,402.88
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 9 items left in stock.
KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-Through
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.
Supports UHD 4K 30Hz
The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.
Hassle-Free Installation
With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.
Versatile Configuration Options
The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.
For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
SV565HDIP is backed by a 2-year warranty and free lifetime technical support.
This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.
Supports UHD 4K 30Hz
The HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.
Hassle-Free Installation
With a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.
Versatile Configuration Options
The extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.
For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5e or CAT6 cabling up to 330 feet (100 meters).
SV565HDIP is backed by a 2-year warranty and free lifetime technical support.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Keyboard port type: USB
- Mouse port type: USB
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 3840 x 2160 pixels
- Video port type: HDMI
- LED indicators: Yes
- Built-in display: No
- Housing material: Steel
- HD type: 4K Ultra HD
- Master (outer) case height: 27.2 cm
- Master (outer) case length: 49 cm
- Master (outer) case width: 39.4 cm
- Products per master (outer) case: 6 pc(s)
- Hot keys: No
- Power consumption (typical): 18 W
- Audio connections: Yes
- Harmonized System (HS) code: 85176200
- Compliance certificates: RoHS
Design
- Certification
- CE, FCC, TAA, REACH
- Mean time between failures (MTBF)
- 60000 h
Display
- On Screen Display (OSD)
- Yes
Network
- Ethernet LAN (RJ-45) ports
- 2
Operational conditions
- Storage temperature (T-T)
- -10 - 60 °C
Other features
- IP control
- No

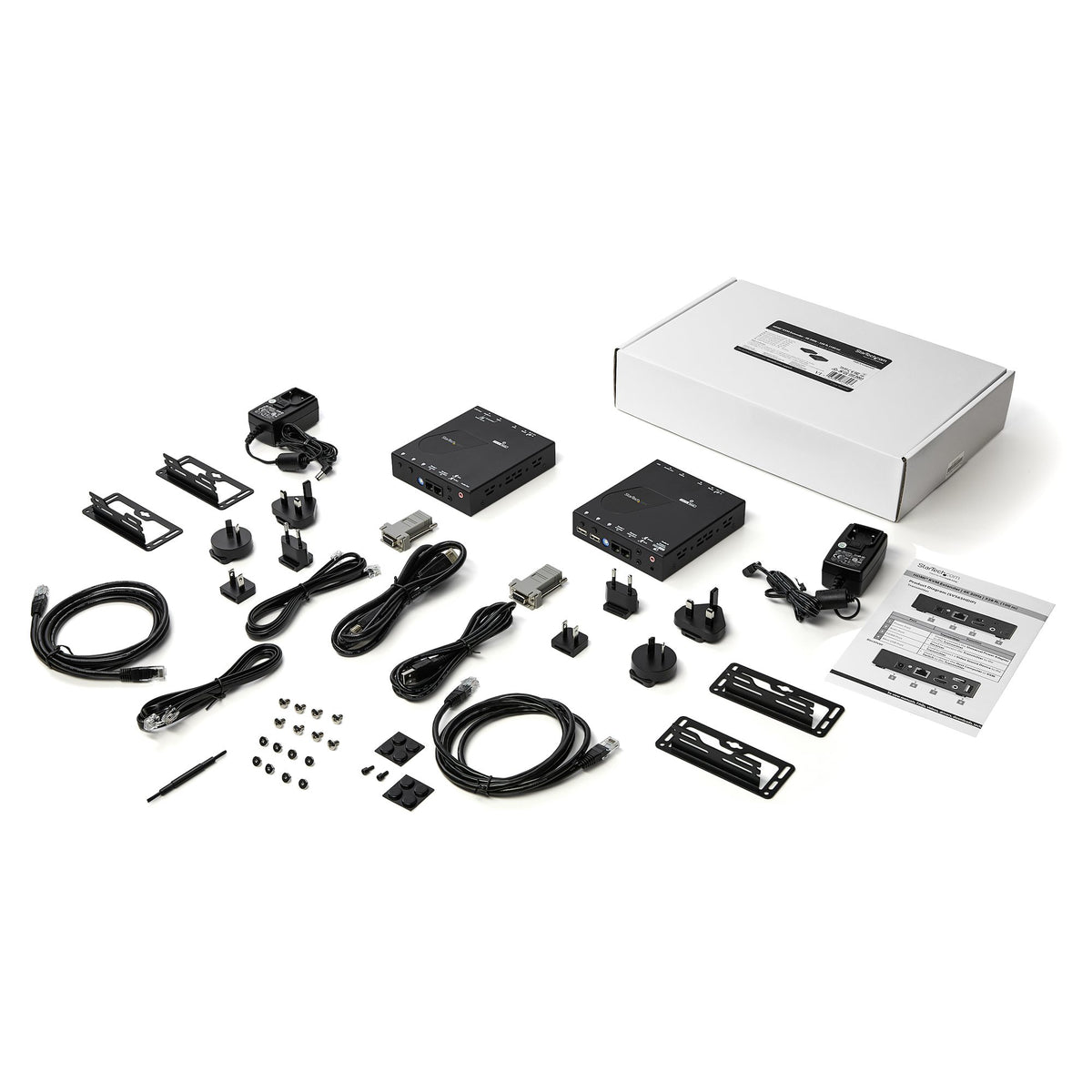

Packaging content
- AC adapter included
- Yes
- Cables included
- HDMI, LAN (RJ-45), Phone (RJ-11), USB
- Quick installation guide
- Yes
- Rubber feet
- Yes
Packaging data
- Package depth
- 36.8 cm
- Package height
- 8 cm
- Package width
- 35.4 cm
Performance
- Audio channels
- 7.1
- Chipset
- ASPEED - AST1520
- Daisy chain
- No
- Maximum operating distance
- 100 m
- Video bandwidth
- 30 Hz

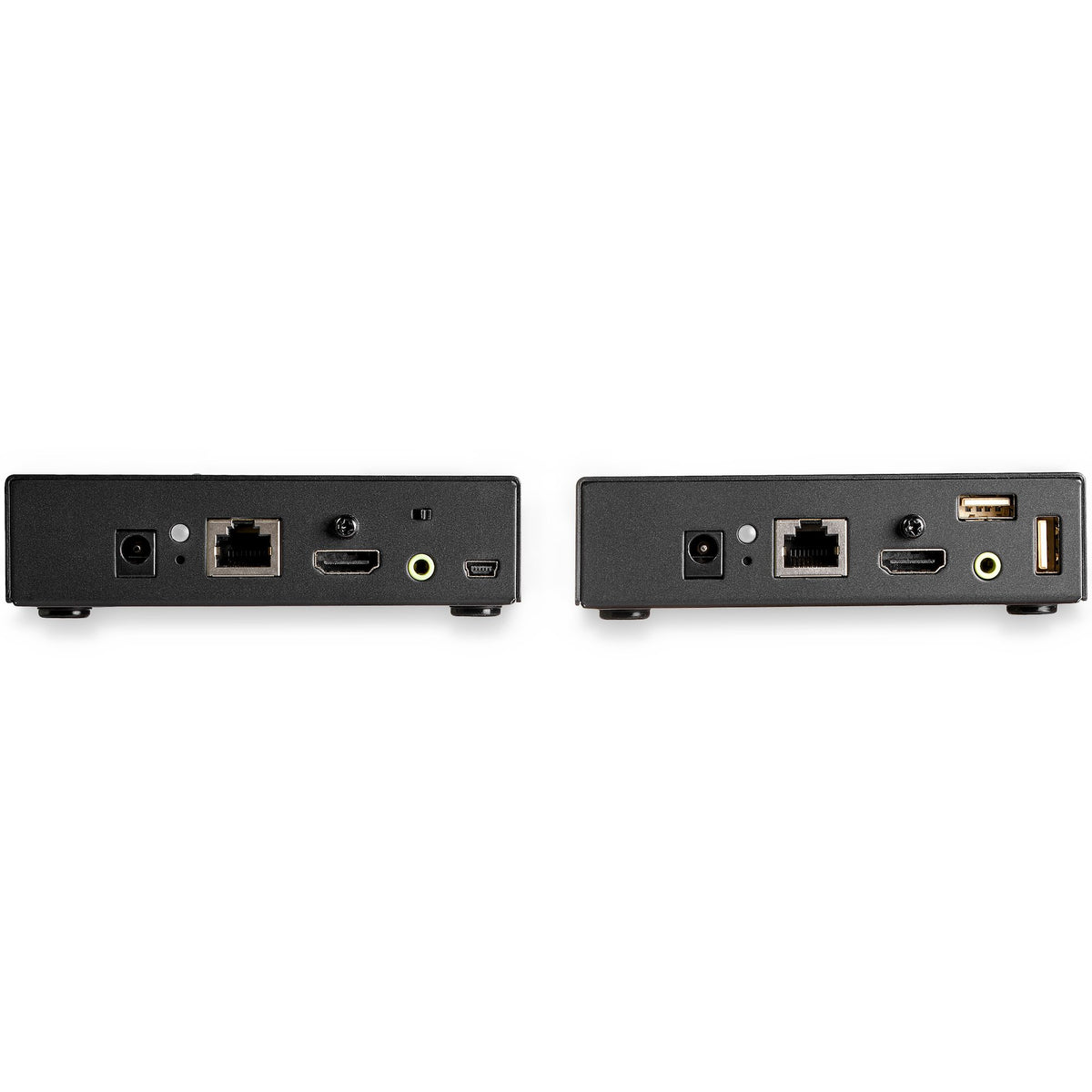

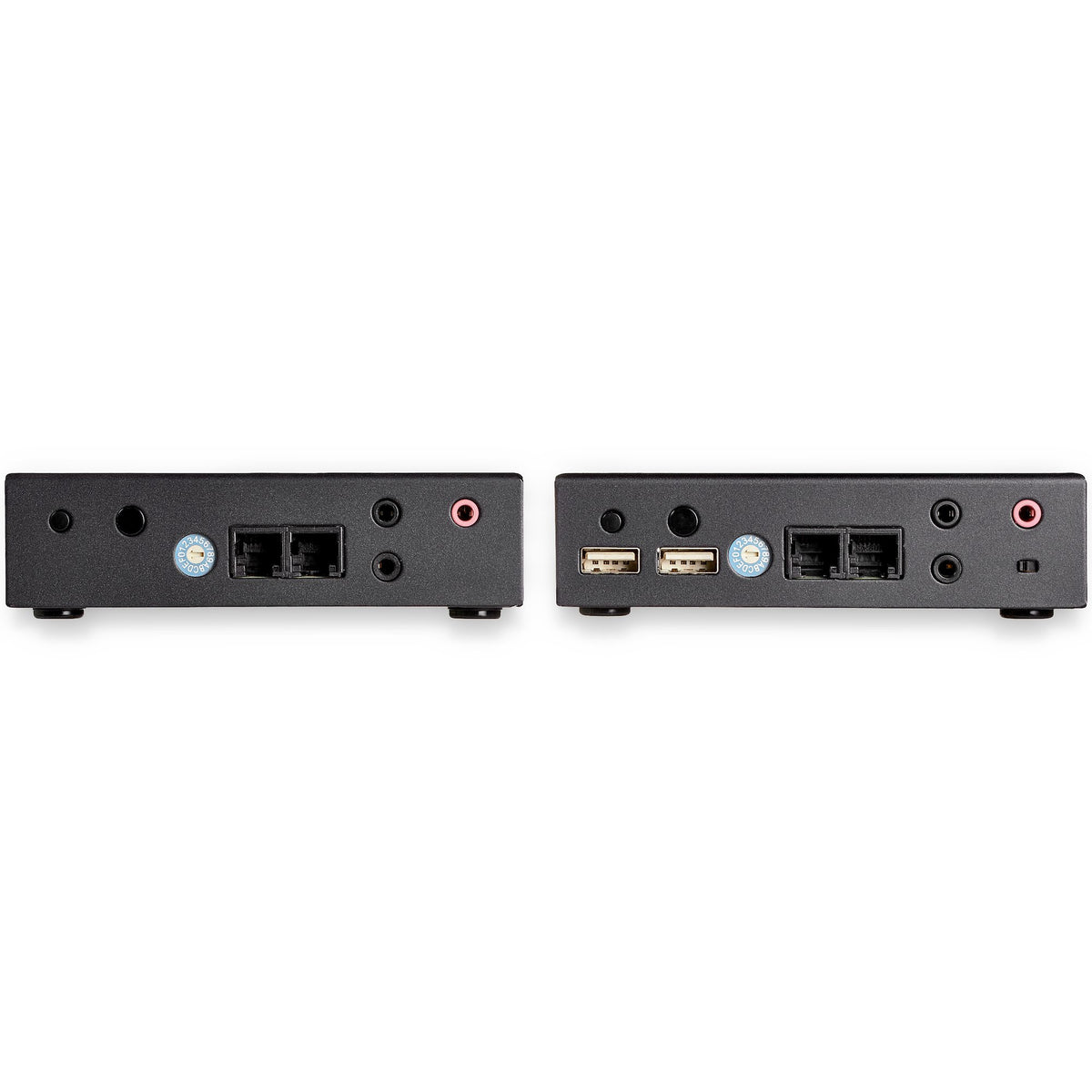

Ports & interfaces
- DC-in jack
- Yes
- HDMI ports quantity
- 2
- Headphone outputs
- 8
- Number of microphone inputs
- 2
- USB 2.0 Type-A hub ports quantity
- 2
- USB hub
- Yes
Power
- Compatible power plug types
- AU, EU, JP, UK
- External power adapter
- Yes
- Input current
- 0.6 A
- Input voltage
- 100 - 240 V
- Output current
- 1.5 A
- Output voltage
- 12 V
- Power plug type
- Type M
Weight & dimensions
- Depth
- 13 cm
- Height
- 2.8 cm
- Weight
- 0.61 kg
- Width
- 11.7 cm
AC adapter included
Cables included: HDMI, LAN (RJ-45), Phone (RJ-11), USB
Cables included: HDMI, LAN (RJ-45), Phone (RJ-11), USB
Materials
Housing material: Steel
