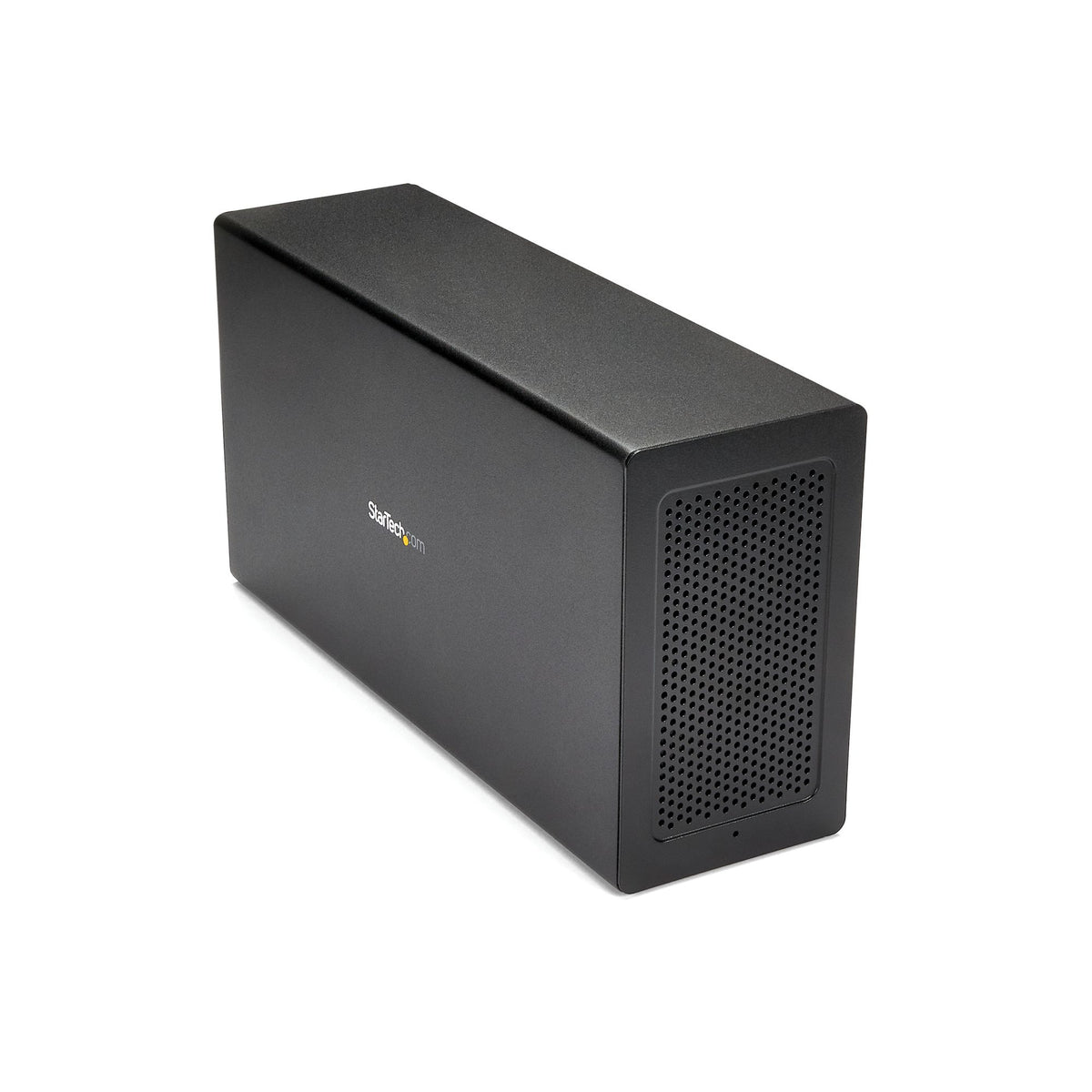

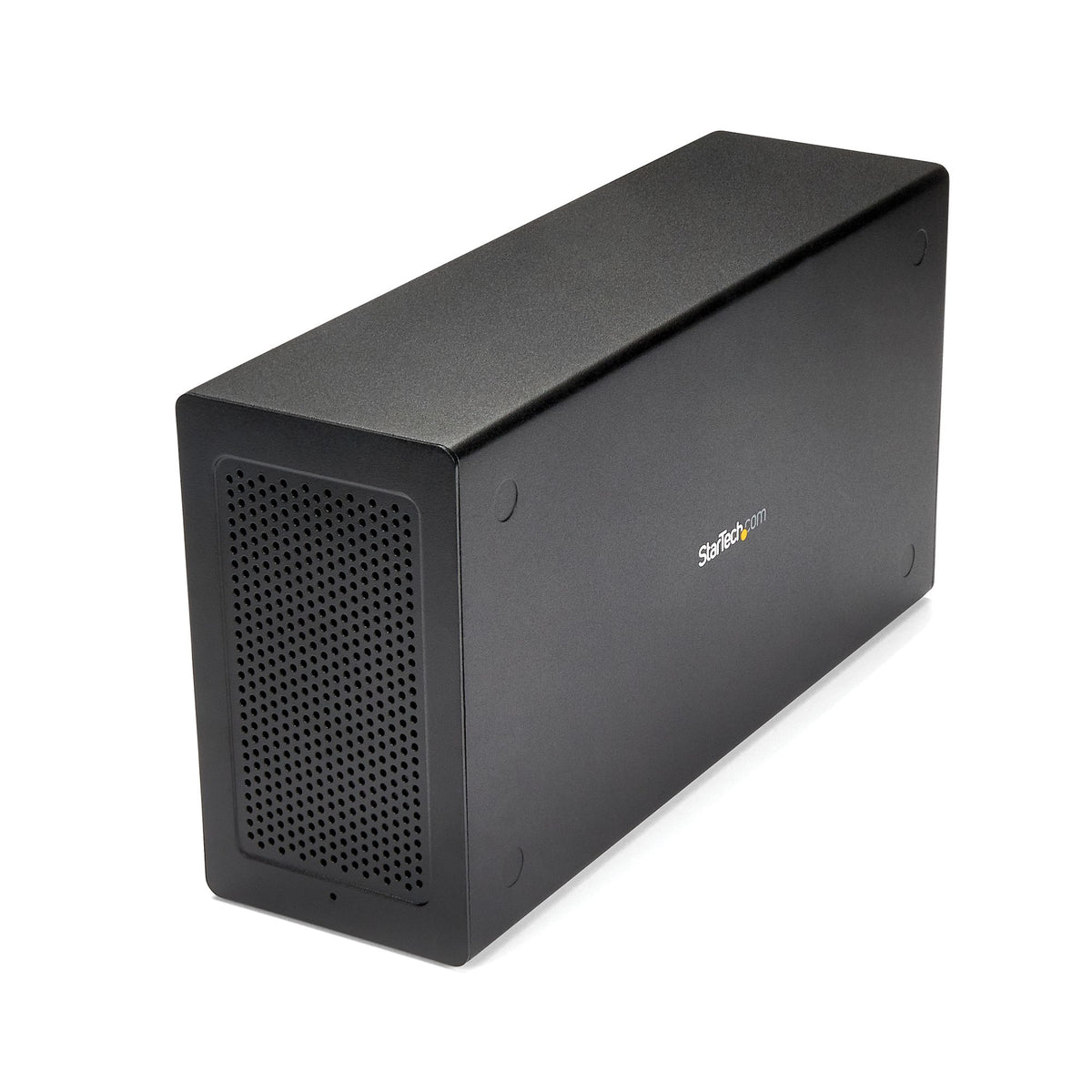

StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure with One PCI Express Slot, PCIe Box for Laptops/Desktops/All-In-Ones, 5K/4K Output Via TB3/DP Ports, TAA Compliant
Regular price
$659.06
Sale price
Regular price
Tax included.
Hurry up, only 4 items left in stock.
Add an external PCIe (PCI Express 3.0) x16 slot and a DisplayPort connection to your Thunderbolt 3 equipped MacBook or laptop
This Thunderbolt™3 PCIe expansion chassis lets you add a PCI Express card to your laptop or desktop computer, through an external Thunderbolt 3 connection. The chassis also features a DisplayPort video output, so you can connect an additional monitor to your laptop, and supports Thunderbolt 3 daisy chaining, so you can expand your workstation even further.
Expand the capabilities of your Thunderbolt 3 computer
The Thunderbolt 3 PCIe chassis makes it easy to expand your system with the capabilities you need to work at peak productivity. You can add many types of PCI Express cards, such as a PCIe USB 3.1/3.0/2.0 and USB-C, SSD, network, eSATA, FireWire or video capture cards. And, with the speed and bandwidth support of Thunderbolt 3 and PCIe 3.0, you can enjoy many of the same port additions you would from the PCI Express expansion slots of a desktop system.

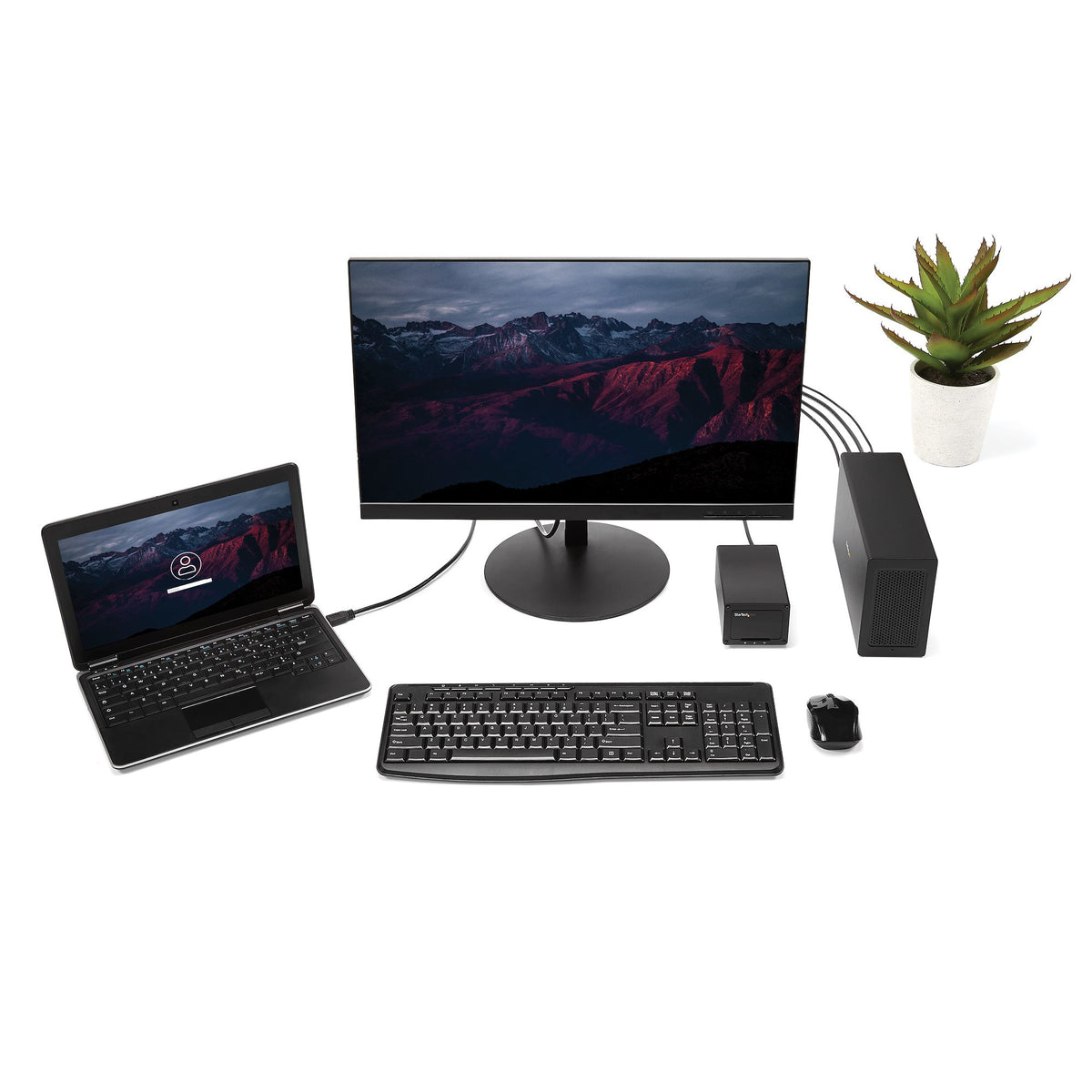

Extend your workstation

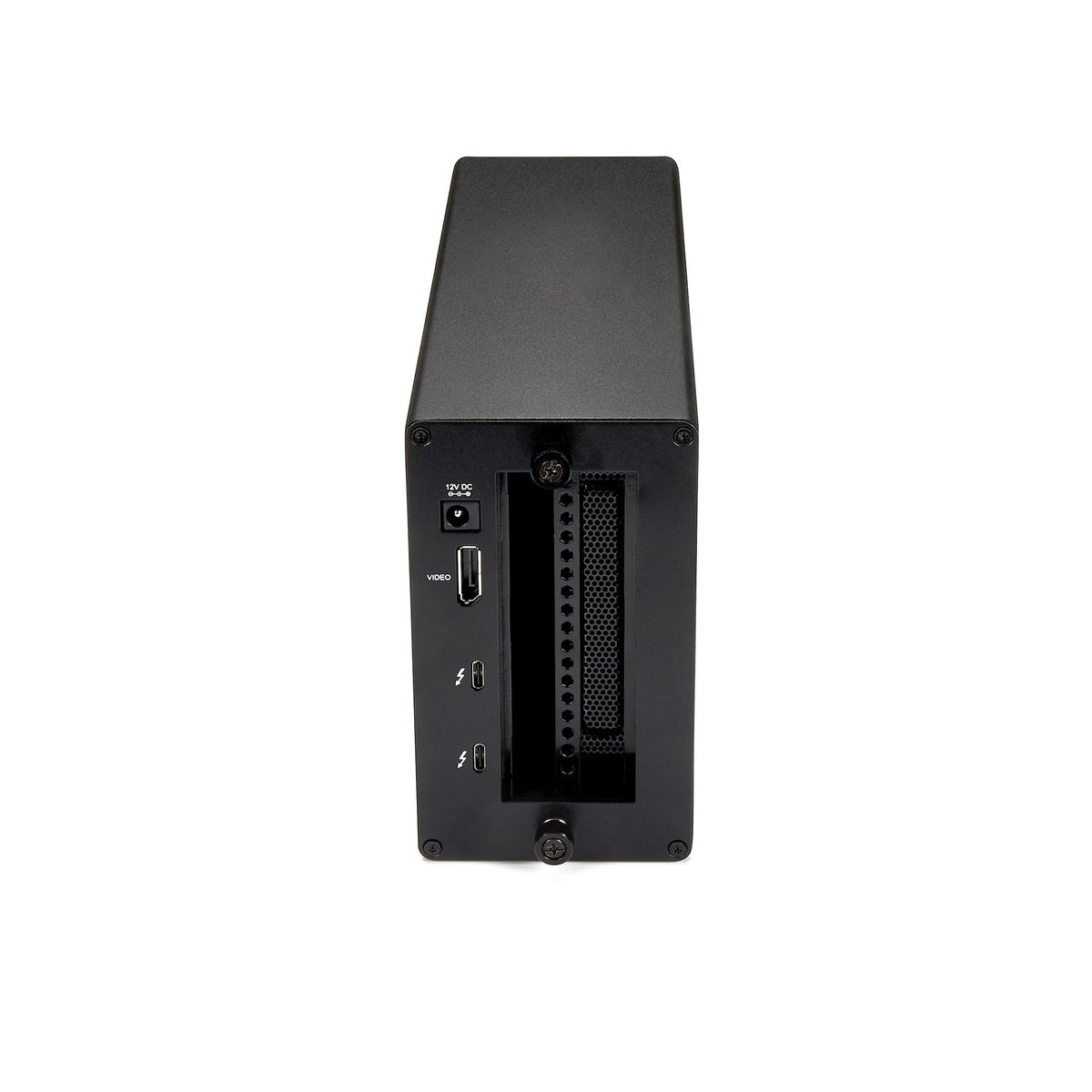

The external PCIe enclosure features a dedicated DisplayPort output that lets you add an additional display to your laptop or desktop computer. The enclosure features a second Thunderbolt 3 (USB-C) port, that you can use to connect a secondary display (a USB-C video adapter may be required). With multiple extended displays, you can work more efficiently by multitasking faster, and avoid the hassle of continually repositioning several open windows or programs.
You can also use the second Thunderbolt 3 port to connect additional Thunderbolt, USB and DisplayPort devices to your system. You can daisy chain up to six Thunderbolt 3 devices and expand your workstation to suit your specific requirements.
Increase productivity with faster speeds
Thunderbolt 3 is the fastest connection available, which means you don't have to deal with the performance bottlenecks of a slower connection, and can accomplish more in the same amount of time.
At up to 40Gbps this Thunderbolt 3 expansion chassis gives you the throughput to add displays to your laptop, access files quickly, and work without disruptions. It's easy to access and edit large uncompressed files such as videos and images on the fly, making it ideal for dynamic on-site production.
This Thunderbolt™3 PCIe expansion chassis lets you add a PCI Express card to your laptop or desktop computer, through an external Thunderbolt 3 connection. The chassis also features a DisplayPort video output, so you can connect an additional monitor to your laptop, and supports Thunderbolt 3 daisy chaining, so you can expand your workstation even further.
Expand the capabilities of your Thunderbolt 3 computer
The Thunderbolt 3 PCIe chassis makes it easy to expand your system with the capabilities you need to work at peak productivity. You can add many types of PCI Express cards, such as a PCIe USB 3.1/3.0/2.0 and USB-C, SSD, network, eSATA, FireWire or video capture cards. And, with the speed and bandwidth support of Thunderbolt 3 and PCIe 3.0, you can enjoy many of the same port additions you would from the PCI Express expansion slots of a desktop system.
Extend your workstation
The external PCIe enclosure features a dedicated DisplayPort output that lets you add an additional display to your laptop or desktop computer. The enclosure features a second Thunderbolt 3 (USB-C) port, that you can use to connect a secondary display (a USB-C video adapter may be required). With multiple extended displays, you can work more efficiently by multitasking faster, and avoid the hassle of continually repositioning several open windows or programs.
You can also use the second Thunderbolt 3 port to connect additional Thunderbolt, USB and DisplayPort devices to your system. You can daisy chain up to six Thunderbolt 3 devices and expand your workstation to suit your specific requirements.
Increase productivity with faster speeds
Thunderbolt 3 is the fastest connection available, which means you don't have to deal with the performance bottlenecks of a slower connection, and can accomplish more in the same amount of time.
At up to 40Gbps this Thunderbolt 3 expansion chassis gives you the throughput to add displays to your laptop, access files quickly, and work without disruptions. It's easy to access and edit large uncompressed files such as videos and images on the fly, making it ideal for dynamic on-site production.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Host interface: Thunderbolt 3
- Card reader integrated: No
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
- Connectivity technology: Wired
- Ethernet LAN: No
- Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
- Operating relative humidity (H-H): 20 - 80%
- Products per master (outer) case: 3 pc(s)
- Master (outer) case height: 33.1 cm
- Master (outer) case length: 38.4 cm
- Master (outer) case width: 46.7 cm
- Chipset: Intel - Alpine Ridge DSL6540
- Compliance certificates: CE, RoHS
- Housing material: Aluminium, Steel
- DC-in jack: Yes
- Power source type: DC
- Quick start guide: Yes
- DisplayPorts quantity: 1
- Harmonized System (HS) code: 84733020
Cooling
- Bearing type
- Sleeve bearing
- Built-in fan
- Yes
- Fan diameter
- 6 cm
- Maximum airflow
- 14.06 cfm
- Noise level
- 24.55 dB
- Number of fans
- 1 fan(s)
General
- Video/mp4
- https://www.youtube.com/watch?v=RwR6cfRG5J0
Operational conditions
- Operating temperature (T-T)
- 5 - 35 °C
- Storage temperature (T-T)
- -20 - 50 °C
Other features
- Cable length
- 0.5 m
- Maximum port bandwidth
- 3.94 GB/s
Packaging content
- AC adapter included
- Yes
- Cables included
- Thunderbolt
Packaging data
- Package depth
- 23.9 cm
- Package height
- 9.4 cm
- Package weight
- 3.1 kg
- Package width
- 47.1 cm
Performance
- Data transfer rate
- 40 Gbit/s
- LED indicators
- Power
- Rubber feet
- Yes
Ports & interfaces
- Thunderbolt 3 ports quantity
- 2
Power
- AC input voltage
- 100 - 240 V
- Compatible power plug types
- AU, EU, JP, UK, US
- Input current
- 2 A
- Output current
- 5.417 A
- Output voltage
- 12 V
- Power consumption (typical)
- 65 W
- Power plug type
- Type N
- Wireless charging
- No
Software
- Mac compatibility
- Yes
Sustainability
- Sustainability compliance
- Yes
Weight & dimensions
- Depth
- 28 cm
- Height
- 8.2 cm
- Weight
- 1.6 kg
- Width
- 14.2 cm
AC adapter included
Cables included: Thunderbolt
Quick start guide
Cables included: Thunderbolt
Quick start guide
Materials
Housing material: Aluminium, Steel
