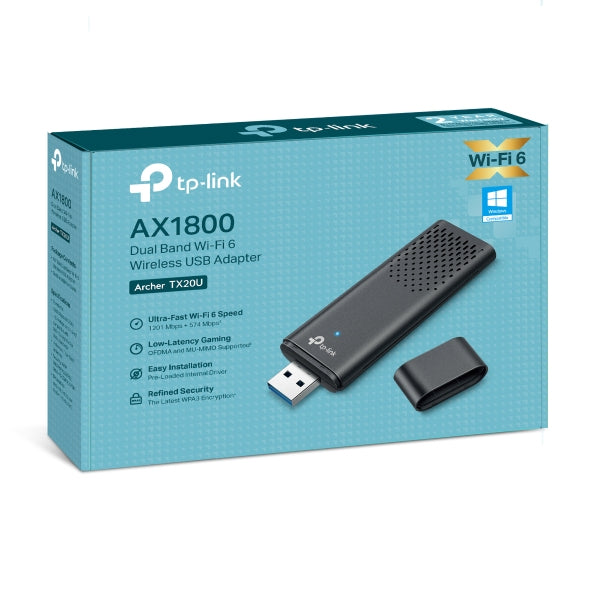

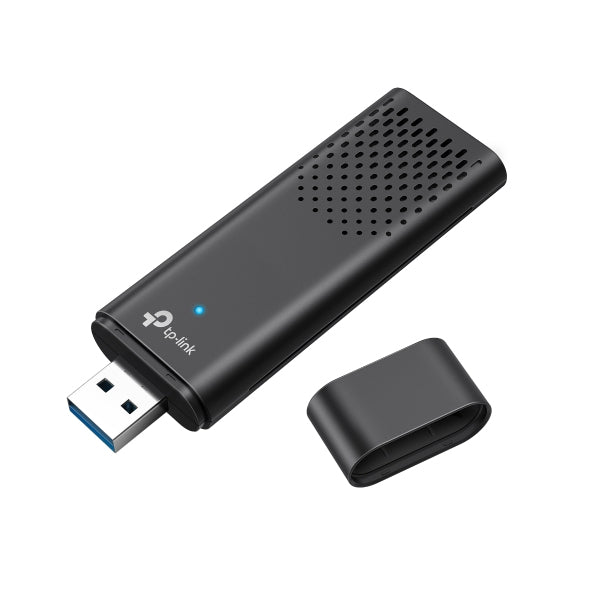

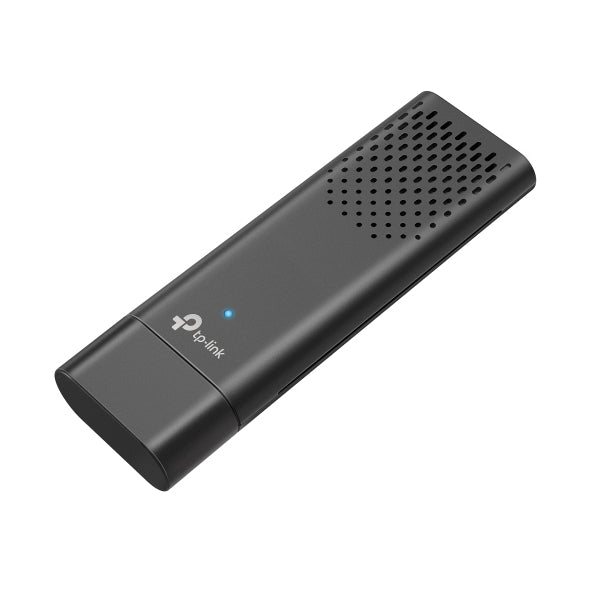

TP-Link Archer AX1800 Dual Band Wi-Fi 6 USB Adapter
Regular price
$67.05
Sale price
Regular price
Tax included.
Available in stock (23)
Wi-Fi 6 Upgrades Everything
The latest Wifi technology makes annoying lag and endless loading a thing of the past. Equip your PC with TX20U and enjoy the future of faster network loads and more connections.
Greater Coverage and Stability
The built-in high-performance antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20U ideal for HD streaming, online gaming and large file downloads.
The latest Wifi technology makes annoying lag and endless loading a thing of the past. Equip your PC with TX20U and enjoy the future of faster network loads and more connections.
Greater Coverage and Stability
The built-in high-performance antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20U ideal for HD streaming, online gaming and large file downloads.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Connectivity technology: Wired
- Internal: No
- Host interface: USB
- Interface: WLAN
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Windows operating systems supported: Windows 10, Windows 11
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Component for: PC
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
- LED indicators: Status
- USB version: 3.2 Gen 1 (3.1 Gen 1)
- Quick installation guide: Yes
- Wi-Fi: Yes
- Storage relative humidity (H-H): 5 - 90%
- Security algorithms: WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
- Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- USB connector form factor: Straight
Design
- Operating modes
- Infrastructure mode
- Transmitting power (CE)
- 18.5 - 21.5 dBm
- Transmitting power (FCC)
- 19 dBm
Network
- Maximum data transfer rate
- 1201 Mbit/s
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- WLAN data transfer rates supported
- 11,54,300,400,574,867 Mbit/s
Packaging data
- Package depth
- 20 cm
- Package height
- 3.9 cm
- Package weight
- 0.11 kg
- Package width
- 15 cm
Weight & dimensions
- Depth
- 2.92 cm
- Height
- 1.29 cm
- Width
- 9.02 cm
Materials
