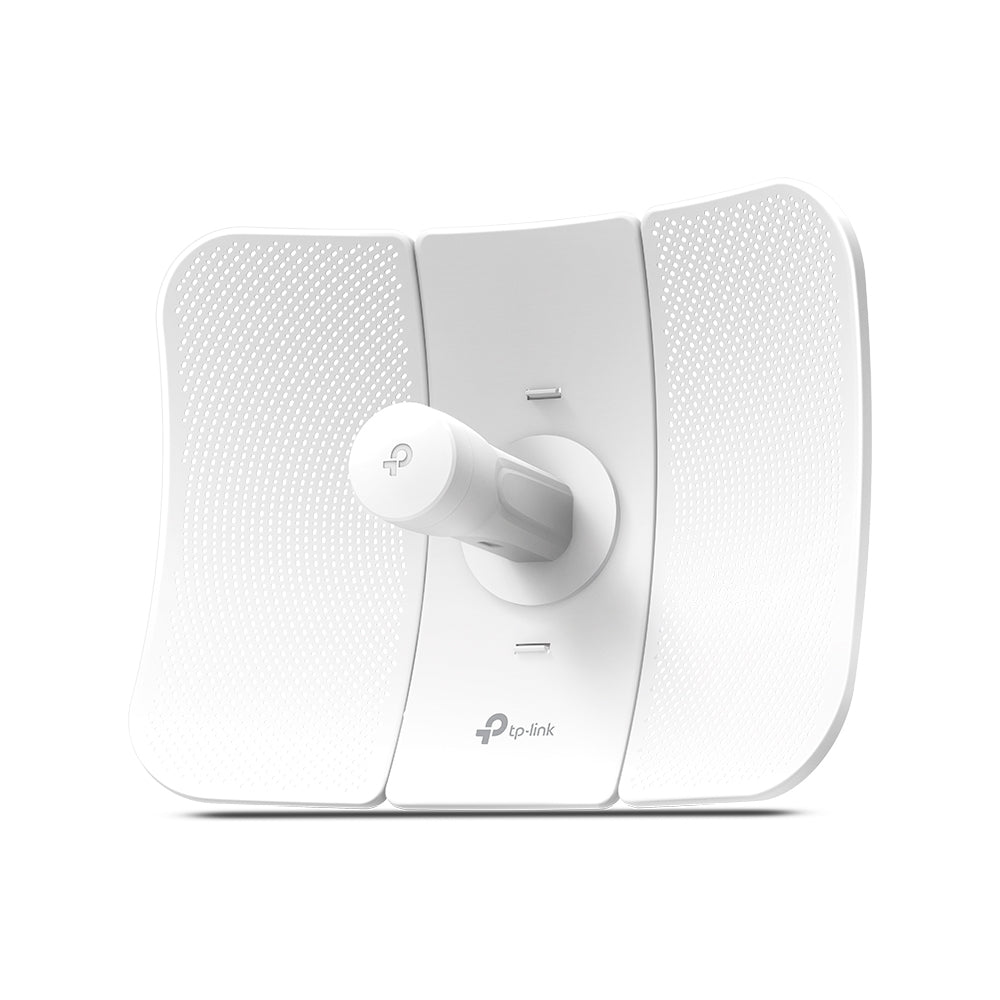

TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi
Available in stock (11)
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.
Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.
Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.
Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Internal memory: 128MB
- Product colour: White
- Antenna gain level (max): 23 dBi
- Harmonized System (HS) code: 85176990
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
- Antenna connector type: PoE/LAN
- Antenna type: Directional antenna
- Wi-Fi standards: 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- Vertical beam width: 7°
- Storage relative humidity (H-H): 5 - 95%
- Power source type: PoE
- Package type: Box
- Operating temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- LED indicators: Power
- International Protection (IP) code: IP65
- Housing material: Plastic
- Horizontal beam width: 9°
- Export Control Classification Number (ECCN): EAR99
- Certification: CE, FCC, RoHS, IC
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Cables included
- AC
Performance
- Built-in processor
- Yes
- Flash memory
- 16MB
- Frequency band
- 5.15 - 5.85 GHz
- Gain
- 23 dBi
- Processor frequency
- 750 MHz
Power
- Input voltage
- 24 V
Weight & dimensions
- Depth
- 28 cm
- Height
- 20.7 cm
- Width
- 36.6 cm
Materials
Housing material: Plastic
