TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE)
Regular price
$158.10
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (48)
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: White
- 2.4 GHz: Yes
- 5 GHz: Yes
- Ethernet LAN (RJ-45) ports: Yes
- Power over Ethernet (PoE): Yes
- Security algorithms: 802.1x RADIUS
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
- Antenna type: External
- Placement: Pole, Wall
- Maximum data transfer rate (2.4 GHz): 300 Mbit/s
- Maximum data transfer rate (5 GHz): 867 Mbit/s
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): -30 - 70 °C
- Storage relative humidity (H-H): 5 - 90%
- 6 GHz: No
- MAC address filtering: Yes
- Reset button: Yes
- MIMO: Yes
- MIMO type: Multi User MIMO
Antenna
- Antenna direction type
- Omni-directional
- Antenna features
- Detachable antenna
- Antenna gain level (max)
- 4 dBi
- Antennas quantity
- 2
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Design
- International Protection (IP) code
- IP65
Features
- Airtime Fairness (ATF)
- Yes
- Band steering
- Yes
- BeamForming
- Yes
- Frequency band
- 2.4 - 5 GHz
- Maximum data transfer rate
- 1200 Mbit/s
- Quality of Service (QoS) support
- Yes
- Rate limiting
- Yes
- Transmitting power (CE)
- 27 dBm
- Transmitting power (FCC)
- 22 dBm
- Virtual LAN features
- VLAN mapping
- VLAN support
- Yes
- Wi-Fi Multimedia (WMM)/(WME)
- Yes
General
- Video/mp4
- https://www.youtube.com/watch?v=FpuQpFwE4FI&feature=emb_logo|https://objects.icecat.biz/objects/79344026_37313344.mp4|https://objects.icecat.biz/objects/79344026_37313345.mp4
Logistics data
- Harmonized System (HS) code
- 85176990
Management features
- Syslog
- Yes
- Web-based management
- Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C

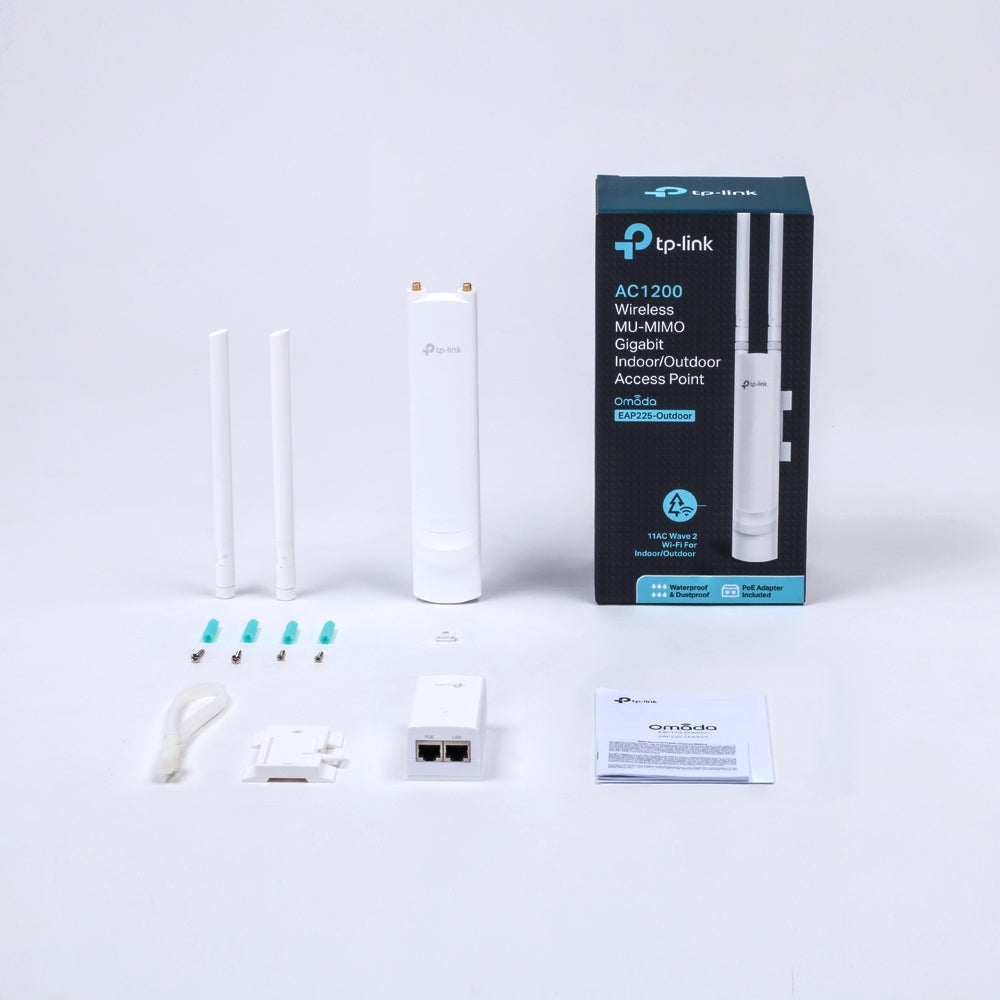

Packaging content
- AC adapter included
- Yes
- Mounting kit
- Yes
- Quantity per pack
- 1 pc(s)
- Quick start guide
- Yes
Packaging data
- Package depth
- 27 cm
- Package height
- 10 cm
- Package weight
- 0.64 kg
- Package width
- 14 cm
Performance
- Compatible operating systems
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Power
- Output voltage
- 24 V
- Power consumption (typical)
- 10.5 W
- Power over Ethernet (PoE) type supported
- Passive PoE
Security
- Access Control List (ACL)
- Yes
- Number of SSID supported
- 16
- Service Set Identifier (SSID) features
- Multiple SSIDs
Sustainability
- Sustainability compliance
- Yes
Weight & dimensions
- Depth
- 4.6 cm
- Height
- 2.7 cm
- Width
- 21.5 cm
AC adapter included
Quick start guide
Quick start guide
Materials
