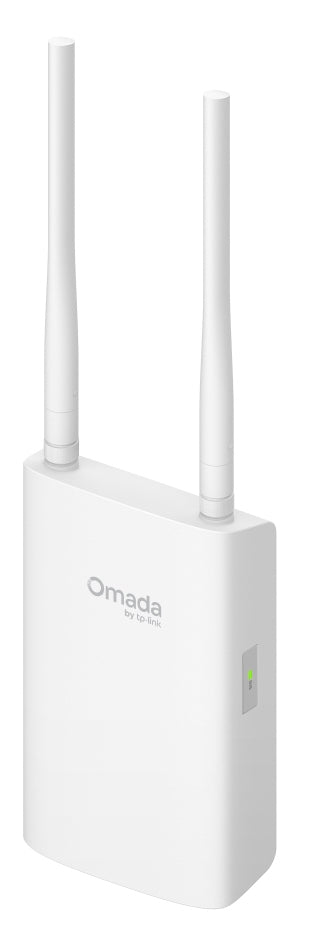

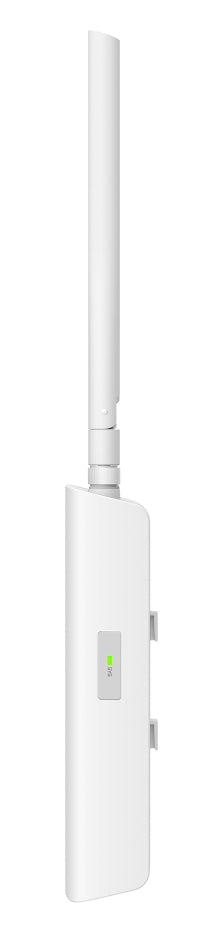

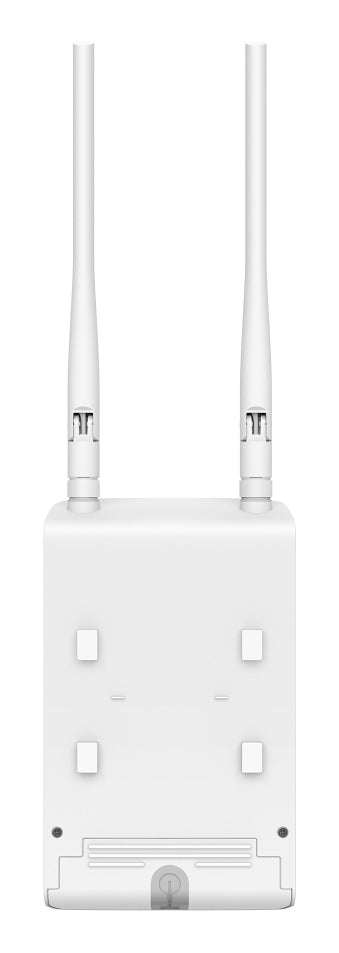

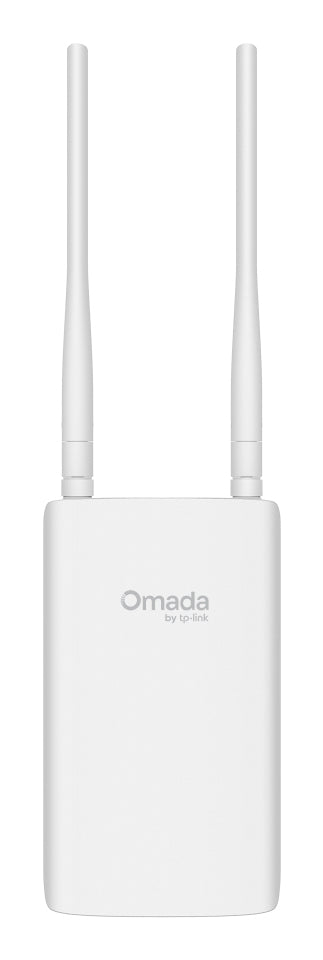

TP-Link Omada EAP603-Outdoor 1800 Mbit/s White Power over Ethernet (PoE)
Hurry up, only 8 items left in stock.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: White
- 2.4 GHz: Yes
- 5 GHz: Yes

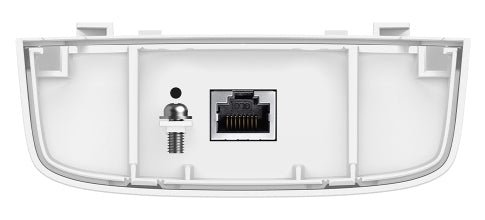

- Ethernet LAN (RJ-45) ports: Yes
- Power over Ethernet (PoE): Yes
- Security algorithms: EAP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
- Networking standards: IEEE 802.11a, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3at
- Antenna type: Internal & external
- Placement: Pole, Wall
- Maximum data transfer rate (2.4 GHz): 573 Mbit/s
- Maximum data transfer rate (5 GHz): 1201 Mbit/s
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): -30 - 70 °C
- Storage relative humidity (H-H): 5 - 90%
- 6 GHz: No
- MAC address filtering: Yes
- Web-based management: Yes
- Antenna gain level (max): 5 dBi
- Mounting kit: Yes
Antenna
- Antenna direction type
- Omni-directional
- Antennas quantity
- 4
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Design
- International Protection (IP) code
- IP65, IP66
Features
- Bluetooth
- Yes
- Maximum data transfer rate
- 1800 Mbit/s
- Maximum outdoor range
- 300 m
Management features
- Backup function
- Yes
- Cloud-managed
- Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- PoE adapter included
- Yes
- Quick start guide
- Yes
Power
- DC voltage range
- 42.5 - 57 V
- Input current
- 0.36 A
- Power consumption (max)
- 4.8 W
- Power over Ethernet (PoE) type supported
- Passive PoE
Security
- Access Control List (ACL)
- Yes
- Guest access
- Yes
- IP address filtering
- Yes
- Number of SSID supported
- 16
- Remote Authentication Dial-In User Service (RADIUS)
- Yes
- Service Set Identifier (SSID) features
- Multiple SSIDs
Weight & dimensions
- Depth
- 20.75 cm
- Height
- 6.97 cm
- Width
- 23 cm
Quick start guide
Materials
Compare With Similar Items
|
|
|
|
|
|
|
| Description | TP-Link Omada EAP603-Outdoor. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1800 Mbit/s. Security algorithms: EAP, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, PEAP, PPSK, SNMP, SSH,.... Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 4.8 W |
TP-Link TL-WA1201. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White |
Ultra-Thin Enterprise WiFi 7 Access Point - Next-Gen WiFi 7 - Wi-Fi Speeds up to 9214 Mbps - Multi-Link Operation (MLO) - 1× 2.5G RJ45 Port - PoE Power - Ultra-Thin Design - Centralized Cloud Management - Omada Mesh Technology Ultra-Thin Design for Flexible Deployment The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic. Boosted Network Security - Secure Guest Network with up to 24 SSIDs - Boost Your Business with SMS Login - WPA3 for Worry-Free Open Public Networks - Rogue AP Detection |
Ultra-Thin Enterprise WiFi 7 Access Point - Next-Gen WiFi 7 - Wi-Fi Speeds up to 9214 Mbps - Multi-Link Operation (MLO) - 1× 2.5G RJ45 Port - PoE Power - Ultra-Thin Design - Centralized Cloud Management - Omada Mesh Technology Ultra-Thin Design for Flexible Deployment The overall design of EAP772 utilizes a thinner circular arc with a groove around the top cover, fitting closer to various installation surfaces such as ceilings. The compact internal hardware layout and heat-dissipating design ensure high performance with a sharp aesthetic. Boosted Network Security - Secure Guest Network with up to 24 SSIDs - Boost Your Business with SMS Login - WPA3 for Worry-Free Open Public Networks - Rogue AP Detection |
Omada Solution Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. |
