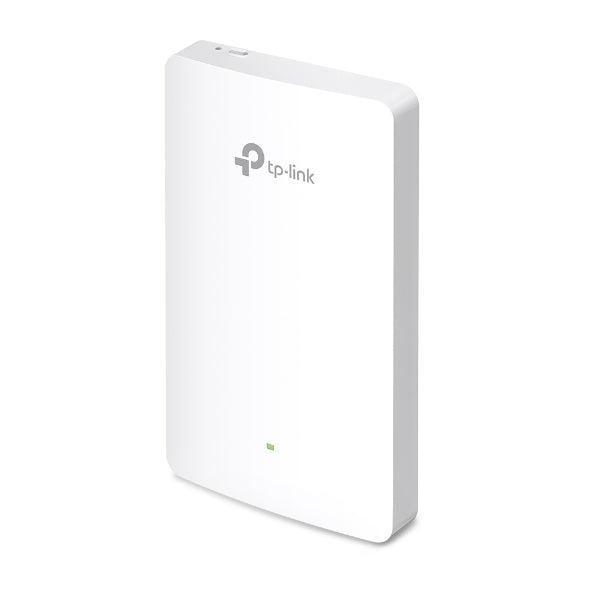

TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point
Available in stock (86)
AX1800 Wall Plate WiFi 6 Access Point
Futureproof Your Network with WiFi 6 Connectivity
Connect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps..
Corner-to-Corner Indoor WiFi Coverage
Guests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: White
- 2.4 GHz: Yes
- 5 GHz: Yes

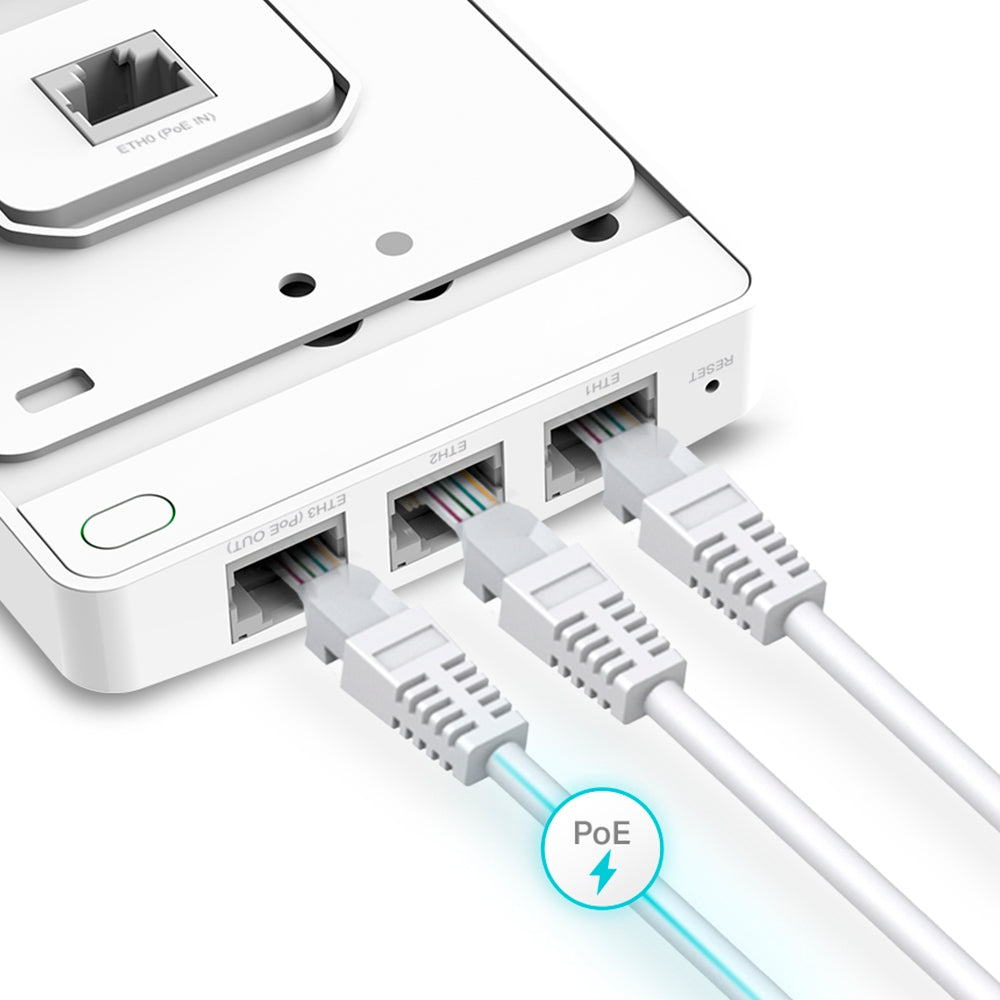

- Ethernet LAN (RJ-45) ports: 4
- Power over Ethernet (PoE): Yes
- Security algorithms: WPA, WPA2, WPA3
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Antenna type: Internal

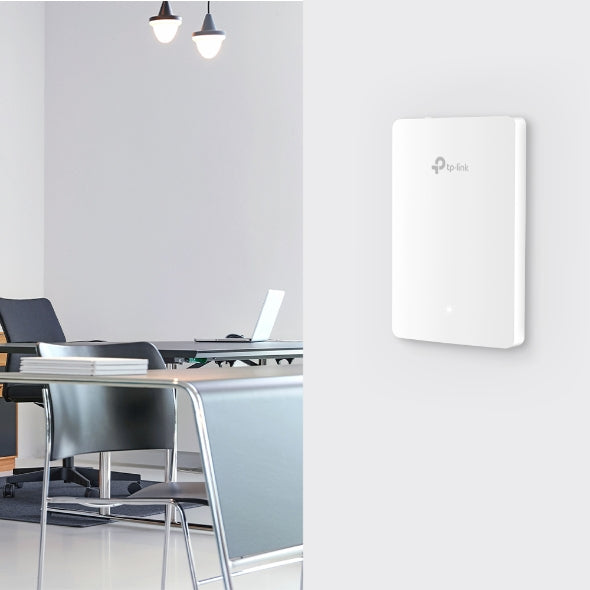

- Placement: Wall
- Maximum data transfer rate (2.4 GHz): 574 Mbit/s
- Maximum data transfer rate (5 GHz): 1201 Mbit/s
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): 0 - 40 °C
- Storage relative humidity (H-H): 5 - 90%
- 6 GHz: No
- Reset button: Yes
- LED indicators: Power
- MIMO: Yes
- MIMO type: Multi User MIMO
Antenna
- Antenna gain level (max)
- 4 dBi
- Antennas quantity
- 4
Certificates
- Certification
- CE, FCC, RoHS
Design
- On/off switch
- Yes
Features
- Airtime Fairness (ATF)
- Yes
- Automatic channel scanning
- Yes
- Automatic channel selection
- Yes
- Band steering
- Yes
- BeamForming
- Yes
- Cabling technology
- 10/100/1000Base-T(X)
- Maximum data transfer rate
- 1774 Mbit/s
- Quality of Service (QoS) support
- Yes
- Rate limiting
- Yes
- Transmitting power (CE)
- 20 dBm
- Transmitting power (FCC)
- 21 dBm
- VLAN support
- Yes
- Wireless isolation
- Yes
Logistics data
- Harmonized System (HS) code
- 85176990
Management features
- Firmware upgradeable
- Yes
- Syslog
- Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Packaging data
- Package depth
- 49.5 cm
- Package height
- 21 cm
- Package weight
- 0.33 kg
- Package width
- 38.5 cm
Security
- Access Control List (ACL)
- Yes
- Number of SSID supported
- 16
- Remote Authentication Dial-In User Service (RADIUS)
- Yes
- Service Set Identifier (SSID) features
- Multiple SSIDs
Weight & dimensions
- Depth
- 8.6 cm
- Height

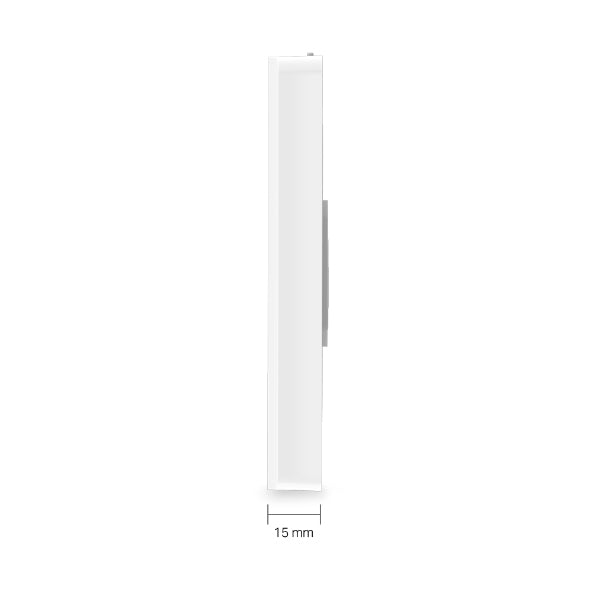

- 2 cm
- Width
- 14.3 cm
Materials
