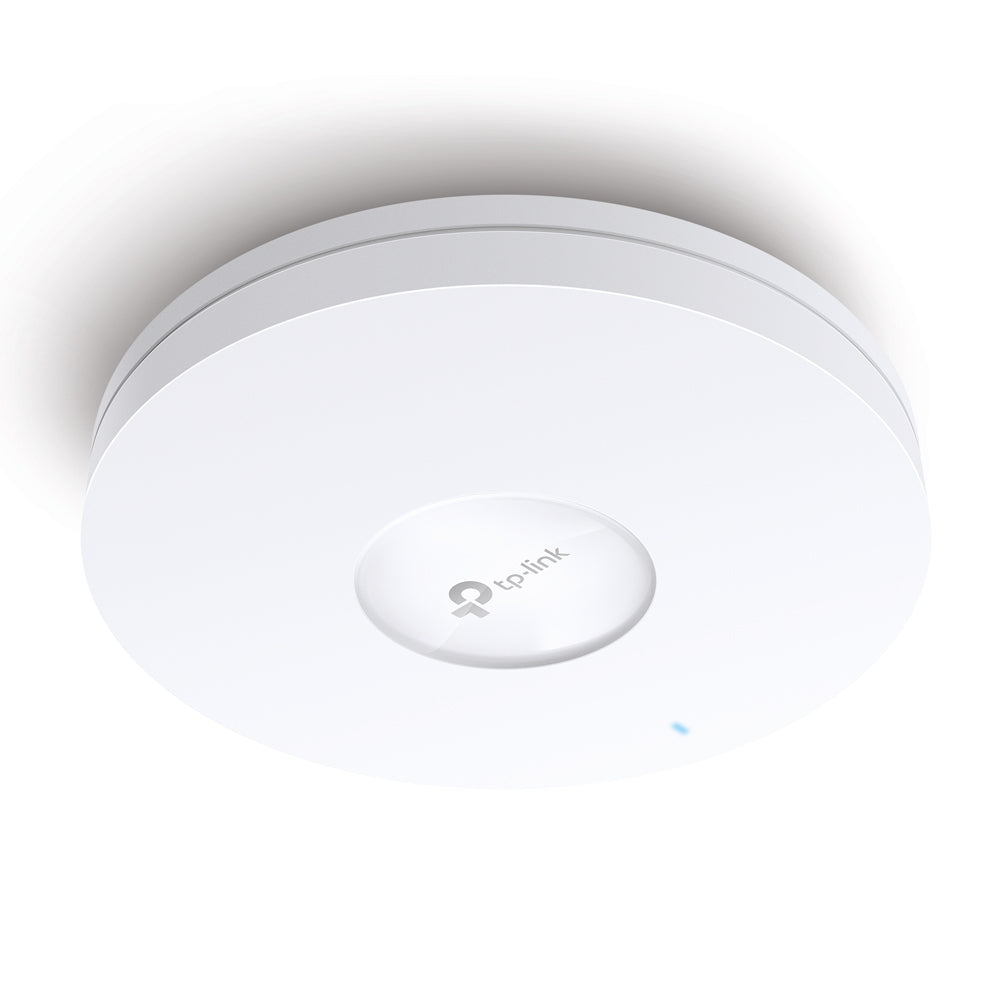

TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point
Regular price
$249.81
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 8 items left in stock.
High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.
Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
OFDMA* and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.
Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: White
- 2.4 GHz: Yes
- 5 GHz: Yes
- Ethernet LAN (RJ-45) ports: Yes
- Power over Ethernet (PoE): Yes
- Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
- Antenna type: Internal
- Placement: Ceiling, Wall
- Maximum data transfer rate (2.4 GHz): 574 Mbit/s
- Maximum data transfer rate (5 GHz): 1201 Mbit/s
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): 0 - 40 °C
- Storage relative humidity (H-H): 5 - 90%
- 6 GHz: No
- MAC address filtering: Yes
- Reset button: Yes
- LED indicators: Yes
- MIMO: Yes
Antenna
- Antenna direction type
- Omni-directional
Certificates
- Certification
- CE, FCC, RoHS
Features
- Airtime Fairness (ATF)
- Yes
- Automatic channel scanning
- Yes
- Automatic channel selection
- Yes
- Band steering
- Yes
- BeamForming
- Yes
- Cabling technology
- 10/100/1000Base-T(X)
- Fit AP mode features
- Mesh networking
- Flow control support
- Yes
- Frequency band
- 2.4 - 5 GHz
- Maximum data transfer rate
- 1201 Mbit/s
- MIMO type
- Multi User MIMO
- Number of users
- 1020 user(s)
- Quality of Service (QoS) support
- Yes
- Rate limiting
- Yes
- Spread spectrum method
- OFDMA
- Transmitting power (CE)
- 20/23 dBm
- Transmitting power (FCC)
- 23 dBm
- VLAN support
- Yes
General
- Video/mp4
- https://youtu.be/P1SnBZrGYCo
Management features
- Firmware upgradeable
- Yes
- Syslog
- Yes
- Web-based management
- Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Mounting kit
- Yes
- Quantity per pack
- 1 pc(s)
- Quick start guide
- Yes
Packaging data
- Package type
- Box
Ports & interfaces
- DC-in jack
- Yes
Power
- DC voltage range
- 12 V
- Power over Ethernet (PoE) type supported
- Active PoE, Passive PoE
Security
- Access Control List (ACL)
- Yes
- Remote Authentication Dial-In User Service (RADIUS)
- Yes
Weight & dimensions
- Depth
- 16 cm
- Height
- 3.3 cm
- Width
- 16 cm
Quick start guide
