Sold out

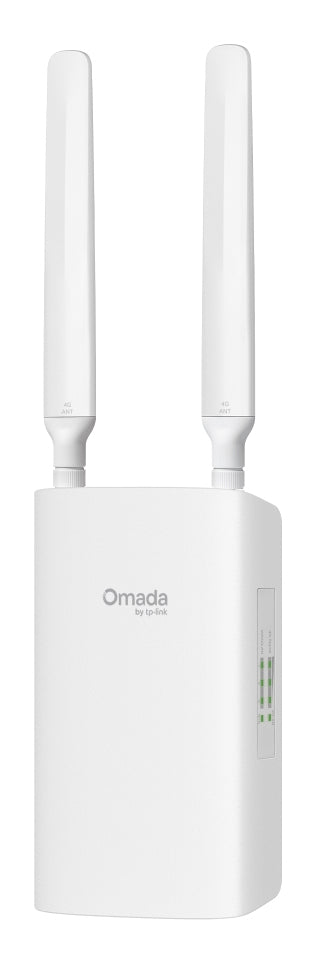

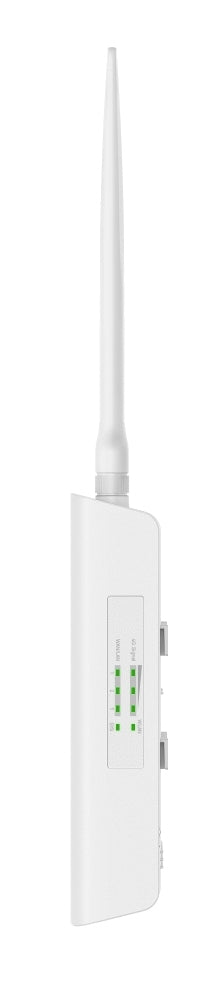

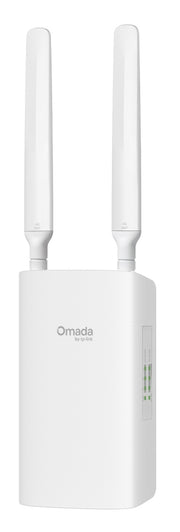

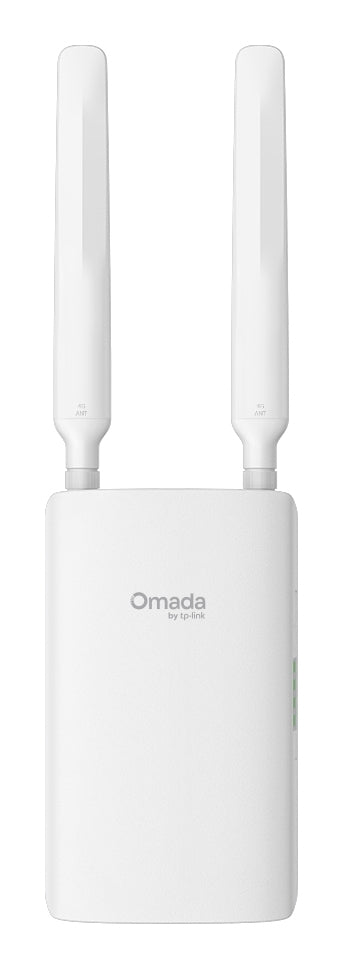

TP-Link Omada Gateway gateway/controller 10, 100, 1000 Mbit/s
Regular price
$314.52
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
TP-Link Omada Gateway. Product colour: White, Mounting type: Wall mounting, LED indicators: Status. Antenna type: External. Internal memory: 256 MB, Internal memory type: DDR3, Flash memory: 128 MB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Forwarding rate: 1419519 Mpps, Networking standards: IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af. SIM card type: NanoSIM
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Internal memory: 256MB
- Product colour: White
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Operating relative humidity (H-H): 5 - 95%
- LED indicators: Status
- Control display unit: No
- Internal memory type: DDR3
- Certification: CE, RoHS
- DHCP server: Yes
- Storage relative humidity (H-H): 5 - 90%

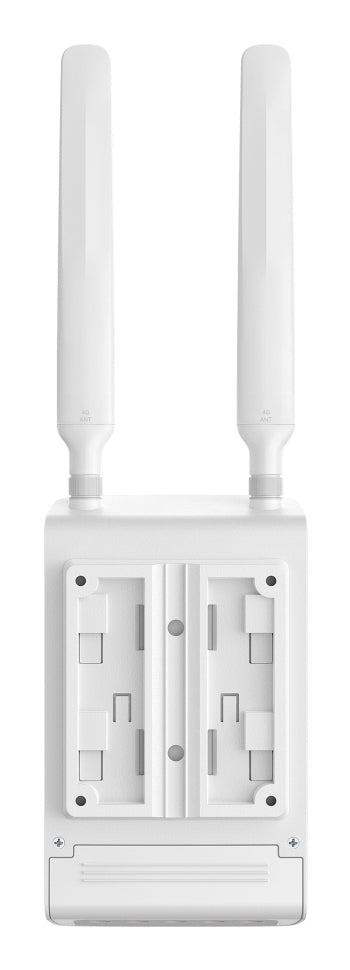

- Mounting type: Wall mounting
- Web-based management: Yes
- SIM card slot: Yes
- Networking standards: IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af
- Antenna type: External
- Reset button: Yes
- Mobile network generation: 4G
- Antennas quantity: 2

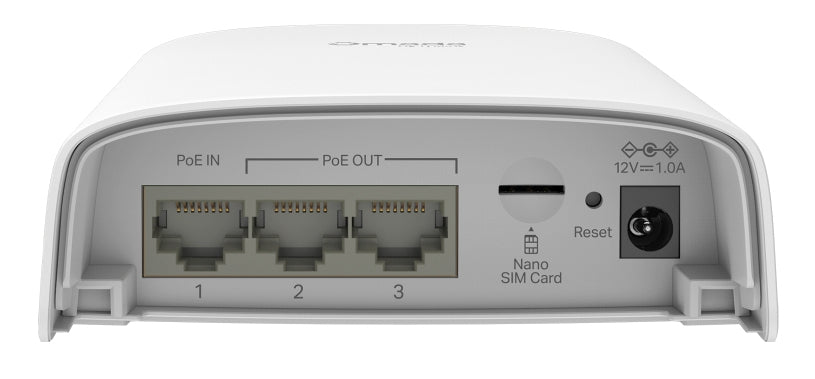

- Power over Ethernet (PoE): Yes
- Wi-Fi: Yes
Features
- Short Message Service (SMS)
- Yes
Network
- Data network
- LTE
- Downlink/uplink speed
- 150/50 Mbit/s
- Forwarding rate
- 1419519 Mpps
- Frequency band
- 2.4 GHz
Operational conditions
- Operating temperature (T-T)
- -30 - 60 °C
- Storage temperature (T-T)
- -40 - 70 °C
Performance
- Flash memory
- 128MB
Ports & interfaces
- SIM card type
- NanoSIM
Power
- Power consumption (max)
- 10 W
- Power over Ethernet (PoE) type supported
- Passive PoE
Weight & dimensions
- Depth
- 3.87 cm
- Height
- 17.48 cm
- Width
- 10.04 cm
Materials
Compare With Similar Items
|
|
|
|
|
|
|
| Description | TP-Link Omada Gateway. Product colour: White, Mounting type: Wall mounting, LED indicators: Status. Antenna type: External. Internal memory: 256 MB, Internal memory type: DDR3, Flash memory: 128 MB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Forwarding rate: 1419519 Mpps, Networking standards: IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af. SIM card type: NanoSIM |
Centralized Device Management Enables centralized device management, automated configurations, and simultaneous firmware updates for efficient network operations. Role Based Administration Allows network administrators to assign role-based access levels and permissions while enabling localized control for specific network segments. Online Firmware Upgrade Enables remote firmware upgrades, ensuring the latest features, security patches, and performance improvements without manual intervention. Traffic Reporting and Analytics Provides advanced traffic analytics, real-time insights, and customizable reports for optimized network performance. Advanced VLAN Segmentation and Access Policies Enhances network security and efficiency with VLAN access control, enabling administrators to segment networks, prioritize traffic, and enforce tailored policies. Auto RF & Bandwidth Optimization Optimizes wireless performance with Auto RF and Bandwidth Optimization, ensuring optimal connectivity and minimal interference. Multi-SSID and Captive Portal Authentication Supports Multi-SSID and Captive Portal, allowing separate networks for user groups with secure, customizable login options for guests and employees. Real-Time Monitoring and Alerts Monitor real-time network status, generate reports, and receive instant alerts from a centralized dashboard. Centralized Management for APs and Switches The Nuclias Network Controller centrally manages up to 500 devices via a unified interface. It enables configuration of SSID, VLAN, RF, and firmware updates to reduce downtime and manual effort. With role-based access and compatibility with Nuclias APs and switches, it ensures secure, scalable, and efficient network operations. Batch Configuration for Streamlined Network Management Effortlessly apply settings, updates, and security policies across multiple APs and switches, reducing manual effort and ensuring consistency. Automate SSID, VLAN, RF optimization, scheduling, and wireless resource allocation to optimize network performance, while streamlining IPv4 ACL, access policies, port settings, and SNTP configurations for enhanced security and reliability. Auto RF for Stable Connectivity Enhances wireless performance with Auto RF Management, which dynamically adjusts channel and power levels based on real-time interference and traffic conditions to reduce signal interference and maintain stable connectivity. Bandwidth Optimization enables efficient allocation of bandwidth across devices to ensure optimal connectivity. Real-Time Monitoring for Smarter Network Management Get complete network visibility with real-time monitoring of APs and switches. Instantly view client counts, traffic, channel use, PoE status, and event logs. Monitor signal quality, client data, and switch activity — including IP, MAC, VLAN, port info, and PoE usage — with built-in tools for port control and VLAN settings. Traffic and performance reports reveal peak usage, top APs, PoE consumption, and error trends. Comprehensive logs and real-time alerts ensure security and system stability. Deployment & Monitoring with the Nuclias Connect App Effortlessly deploy and monitor your network with the Nuclias Connect app. Simplify device setup, track real-time performance—all from the convenience of your mobile device. |
For small IT deployments at edge locations, the Resilience Gateway provides secure remote access to your critical devices via Smart Out-of-Band management. An embedded, global 4G-LTE cellular modem offers an alternate path when the primary link is unavailable. Connect devices directly to this small form-factor console server via 8 serial and 4 USB ports, providing always-on access to your remote networking equipment. Every model includes 4GB internal memory. Options include a 4-port GbE switch and models without the cellular modem. Part of the Opengear Network Resilience Platform, the ACM7000 Resilience Gateway with Lighthouse management software and Failover to Cellular™ is used at small Retail locations, Bank branches/ATMs, regional offices, and at many other remote locations where business continuity is critical. |
Hybrid Cloud Management for Maximum Convenience Supports remotely or locally centralized management for up to 500 Omada access points, 100 Omada gateways, a maximum of 100 Omada switches, and a maximum of 5 certain DeltaStream GPON OLTs*. Industry-Leading Hardware Design Equipped with an advanced design and the latest chipset, the Omada OC300 delivers more than enough processing power to support massive network management—while its enterprise-grade reliability ensures uninterrupted, 24/7 operation under heavy loads. Rackmount/desktop design benefits easier and flexible installation. |

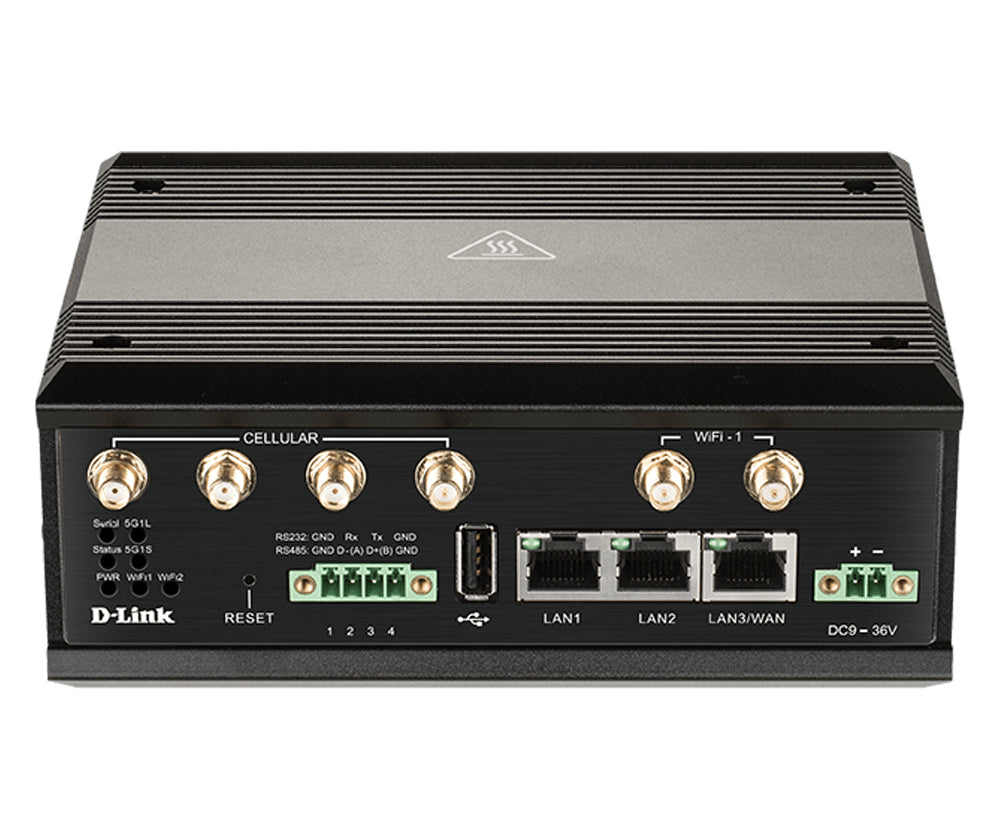

Delivers exceptional 5G broadband connectivity, facilitating IoT device-dense environments to operate with ultra-low latency, Gigabit-plus speeds and high reliability to support Industry X.0 future initiatives. Blazing-Fast 5G Next-gen, Gigabit-plus speeds ensure the highest throughput and reliability for IoT applications Ultra-Low Latency Near-instantaneous communications, essential for large-scale IoT deployments High-Efficiency IoT/M2M Communication Protocols Field communication protocols such as Virtual COM, Modbus and MQTT help IoT devices communicate more efficiently Rugged Design Specifically designed for harsher environments and wide temperature ranges Dual SIM Slots Bolster your network’s reliability with a backup SIM providing WAN failover Centralized Management With D-ECS, preconfigure, deploy and manage your devices, wherever you are Blazing Fast 5G 5G is the absolute cutting edge in mobile broadband connectivity, designed to connecting everyone and everything. Delivering multi-Gigabit speeds, ultra-low latency, greater reliability and unbeatable network capacity, 5G’s empowering industries in ways that LoRa or NB-IoT cannot. The Catalyst for IoT in Industry X.0 Industry X.0 demands large-scale deployment of sensors and monitors throughout smart factories, warehouses and other industrial settings. The DWM-facilitates private network deployments to ensure low latency for near-instantaneous M2M communications. Support for Industry Standard IoT/M2M Communication Protocols Field communication protocols such as Virtual COM, Modbus and MQTT enable an extensive range of IoT devices communicate efficiently with one another. Rugged Design, Enhanced Durability The DWM-3010 can withstand wide temperature ranges from a chilly -30°C up to a sweltering 60°C. The robust and rugged design is perfect for smart industrial applications. Centralized Management Mission-critical applications are downtime intolerant. Automated network task services alleviate administrators of routine tasks, allotting more time for network monitoring and preventive maintenance. D-ECS also features automatic failure detection and alerts to resolve network issues quickly and efficiently. |
| Price | Regular price
$314.52
Sale price
Regular price
|
Regular price
$423.14
Sale price
Regular price
|
Regular price
$2,564.83
Sale price
Regular price
|
Regular price
$701.49
Sale price
Regular price
|
Regular price
$2,299.25
Sale price
Regular price
|
| Product variants |
