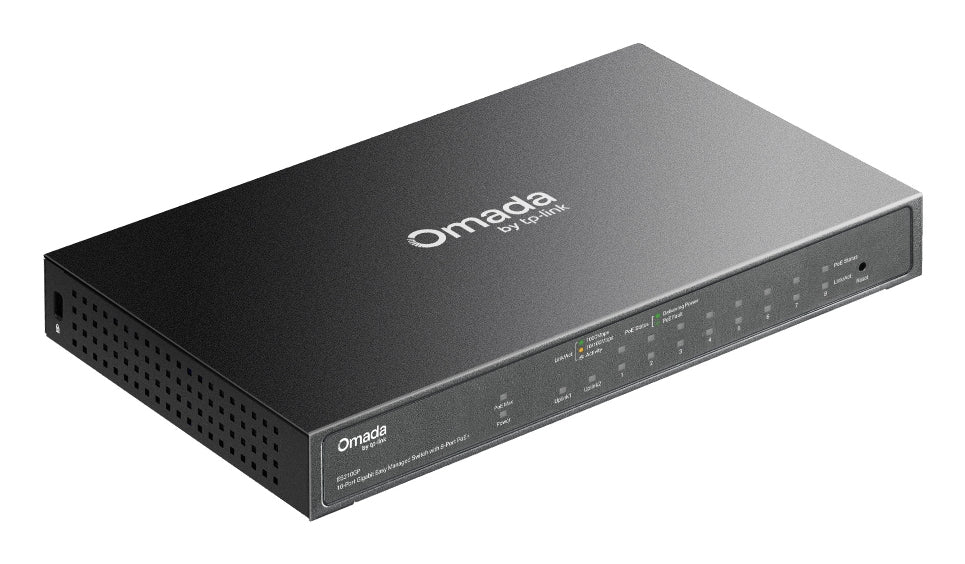

TP-Link Omada ES210GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Black
Regular price
$158.10
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (49)
TP-Link Omada ES210GP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. DC input voltage: 53 V. Power over Ethernet (PoE). Rack mounting, Form factor: DIN rail
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
- Basic switching RJ-45 Ethernet ports quantity: 10
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 20 Gbit/s
- MAC address table: 8000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2
- Forwarding rate: 14.88 Mpps
- Jumbo frames: 15000
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Data transmission
- Packet buffer memory
- 0.5MB
- Store-and-forward
- Yes
Design
- Form factor
- DIN rail
Management features
- Cloud-managed
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Broadcast storm control
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Link aggregation
- Yes
- Number of VLANs
- 4000
- Port mirroring
- Yes
- Virtual LAN features
- MTU VLAN, Port-based VLAN, Tagged VLAN
- VLAN support
- Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Optical fiber
- Transmission distance (max)
- 0.25 km
Packaging content
- Cables included
- Power
- Quick start guide
- Yes

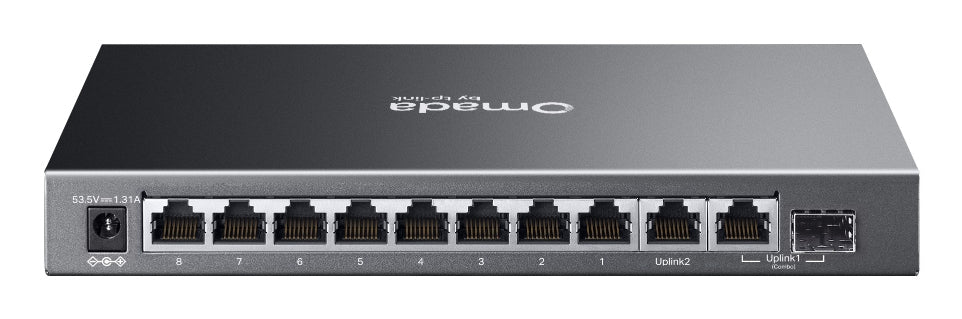

Ports & interfaces
- Combo SFP ports quantity
- 1
Power
- DC input voltage
- 53 V
- Input current
- 1.31 A
- Power source
- DC
Power over Ethernet (PoE)
- Power over Ethernet (PoE) type supported
- PoE+
- Power over Ethernet plus (PoE+) ports quantity
- 8
- Total Power over Ethernet (PoE) budget
- 63 W
Security
- DHCP features
- DHCP client
- IGMP snooping
- Yes
- Loop protection
- Yes
Weight & dimensions
- Depth
- 12.6 cm
- Height
- 2.6 cm
- Width
- 20.9 cm
Cables included: Power
Quick start guide
Quick start guide
Materials
