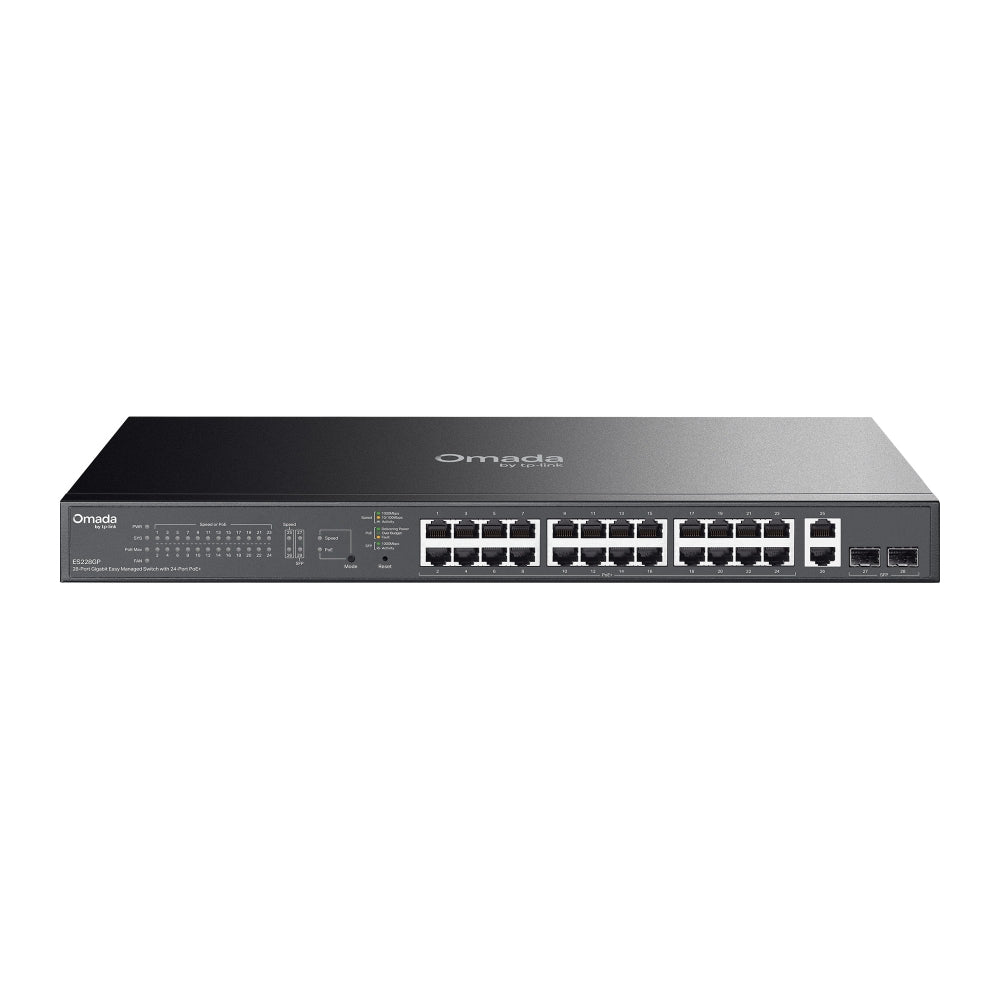

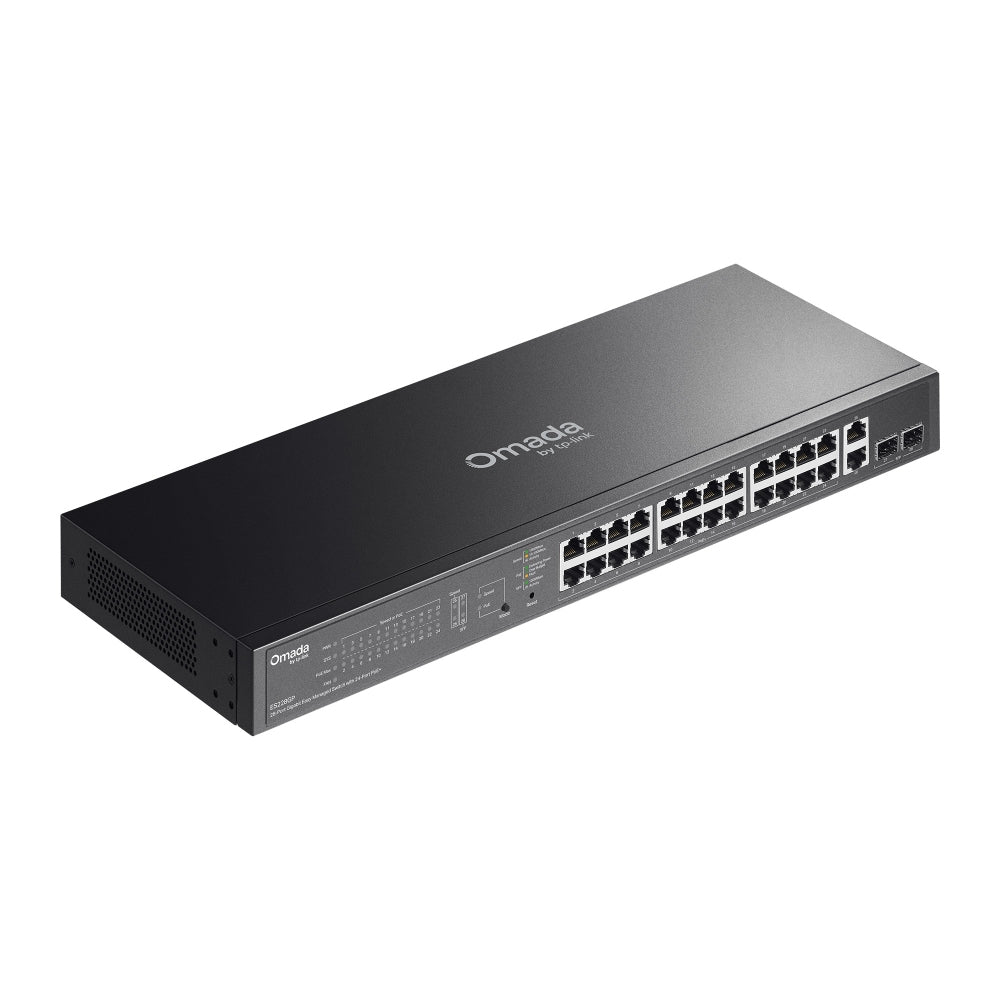

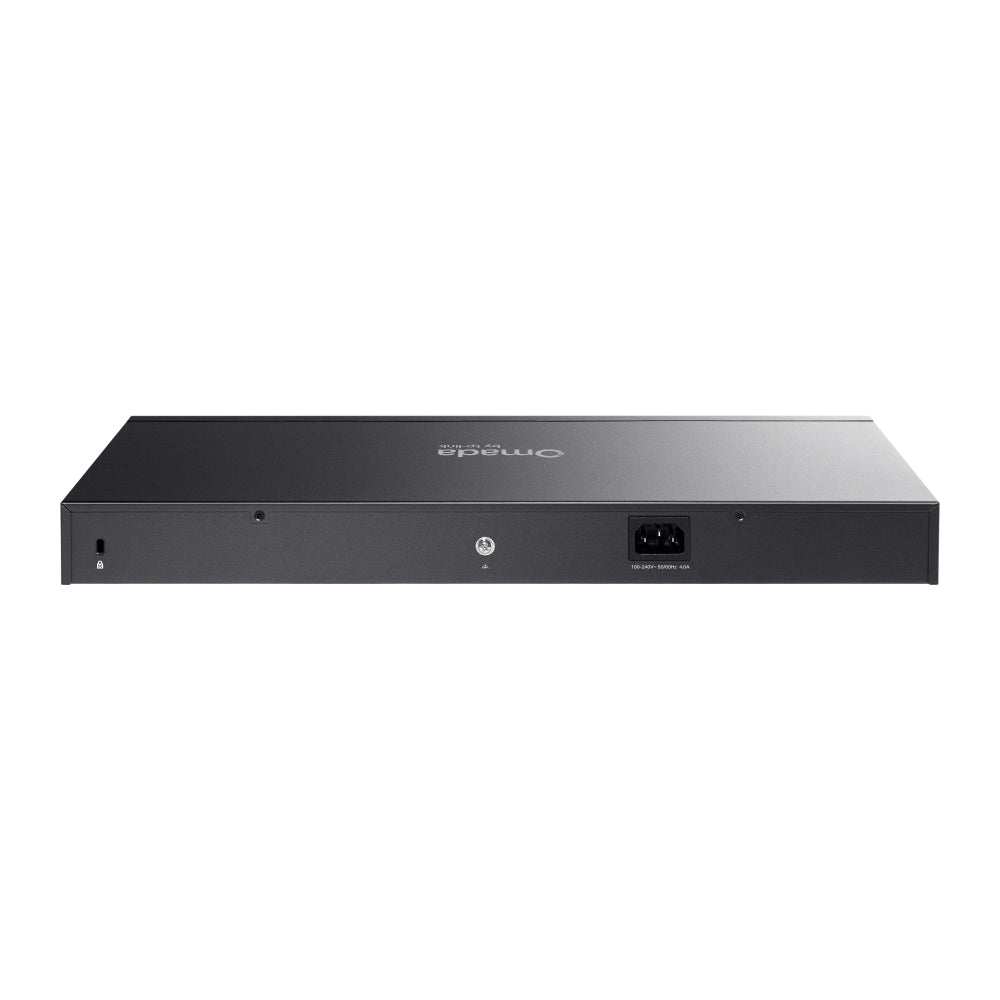

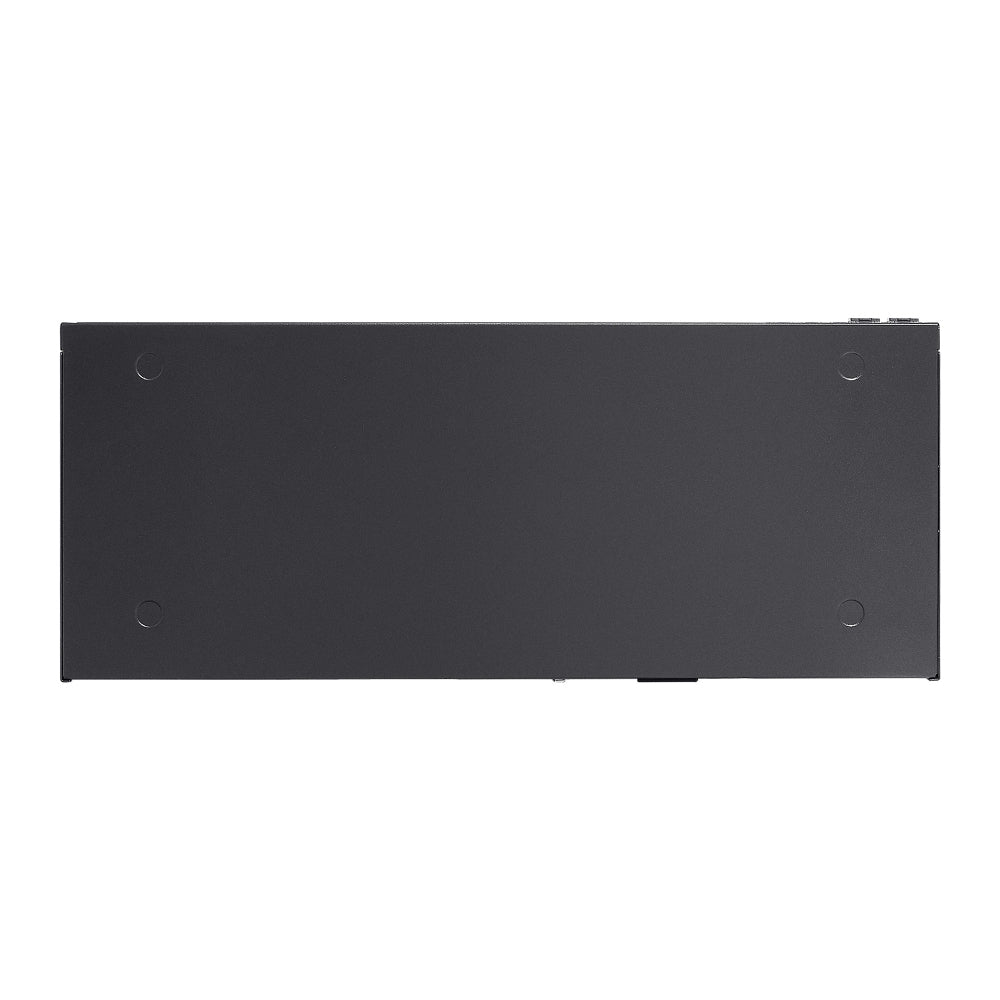

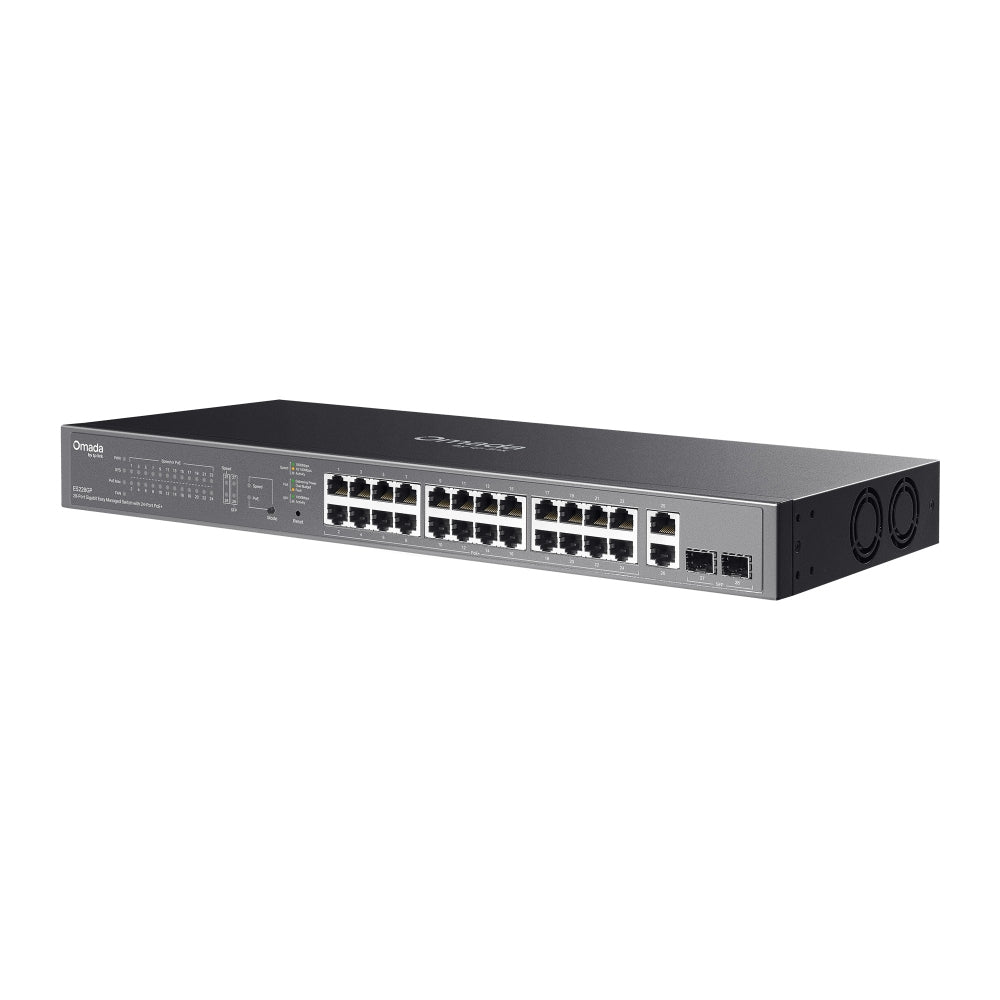

TP-Link ES228GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Regular price
$400.50
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (32)
Omada Central Essentials — A Free and Easy Cloud-Based Network Management
Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): -5 - 45 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
- Basic switching RJ-45 Ethernet ports quantity: 26
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 56 Gbit/s
- MAC address table: 8000 entries
- Storage relative humidity (H-H): 5 - 90%
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2
- Forwarding rate: 41.67 Mpps
- Jumbo frames: 15000
- AC input voltage: 100 - 240 V
- IGMP snooping: Yes
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Data transmission
- Number of queues
- 8
- Packet buffer memory
- 4MB
- Store-and-forward
- Yes
Design
- Number of fans
- 2 fan(s)
Management features
- Web-based management
- Yes
Network
- Broadcast storm control
- Yes
- Link aggregation
- Yes
- Port mirroring
- Yes
- Virtual LAN features
- MTU VLAN, Port-based VLAN, Tagged VLAN
- VLAN support
- Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Cables included
- AC
- Manual
- Yes
Ports & interfaces
- SFP module slots quantity
- 2
Power
- AC input frequency
- 50/60 Hz
- Input current
- 4 A
- Power protection features
- Surge protection
- Power source
- AC
Power over Ethernet (PoE)
- Power over Ethernet (PoE) ports quantity
- 24
- Power over Ethernet (PoE) power per port
- 30 W
- Power over Ethernet (PoE) type supported
- PoE+
- Total Power over Ethernet (PoE) budget
- 250 W
Security
- DHCP features
- DHCP client
- Loop protection
- Yes
- Queue scheduling algorithms
- Weighted Round Robin (WRR)
Weight & dimensions
- Depth
- 18 cm
- Height
- 4.4 cm
- Width
- 44 cm
Cables included: AC
Manual
Manual
Materials
