Sold out

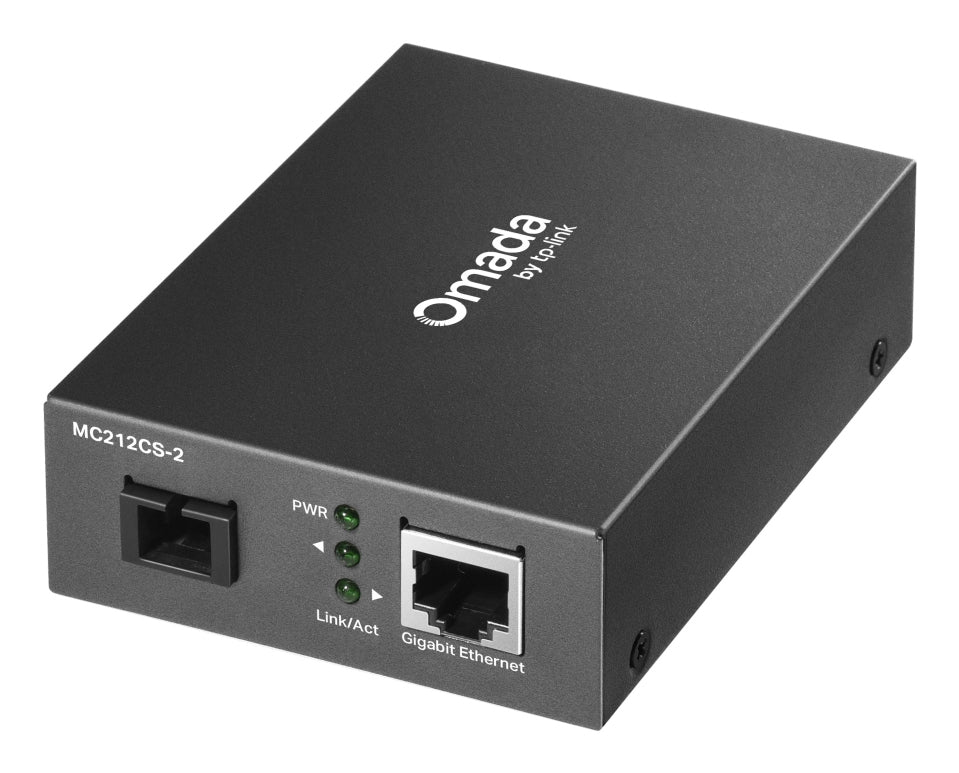

TP-Link Omada MC212CS-20 network media converter 1000 Mbit/s 1550 nm Single-mode Black
Regular price
$65.71
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
MC212CS-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Internal: No
- Fiber optic connector: SC/UPC
- Operating temperature (T-T): -5 - 50 °C
- Operating relative humidity (H-H): 10 - 90%
- Ethernet LAN (RJ-45) ports: Yes
- Connectivity technology: Wired
- Auto MDI/MDI-X: Yes
- Fiber mode structure: Single-mode
- Fiber ports quantity: 1
- Duplex system: Full, Half
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- LED indicators: Activity, Link, Power
- Maximum transfer distance: 20000 m
- Wavelength: 1550 nm
- Manual: Yes
- Wavelength-division multiplexing (WDM): Yes
- Storage relative humidity (H-H): 5 - 90%
Network
- Maximum data transfer rate
- 1000 Mbit/s
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Power
- Input current
- 0.6 A
- Input voltage
- 9 V
Weight & dimensions
- Depth
- 7.3 cm
- Height
- 2.7 cm
- Width
- 9.45 cm
Manual
Materials
