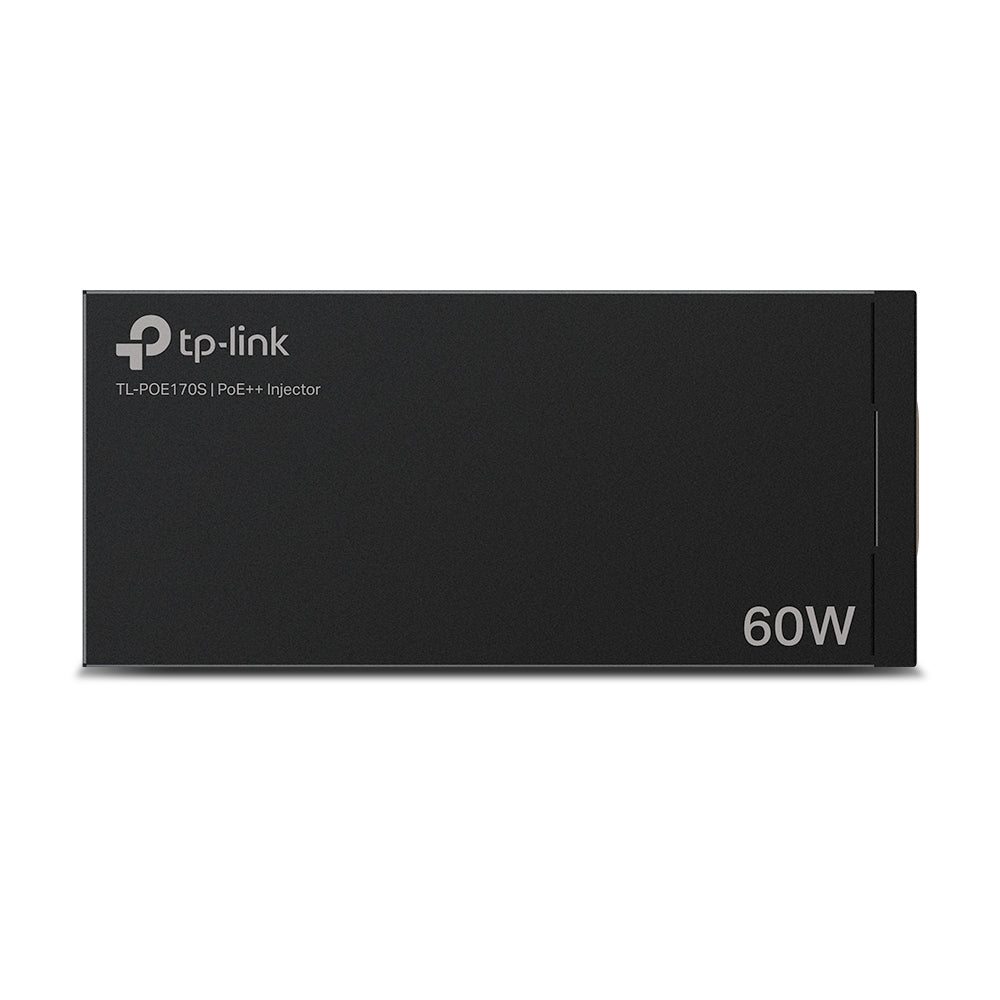

TP-Link Omada PoE++ Injector Adapter
Available in stock (127)

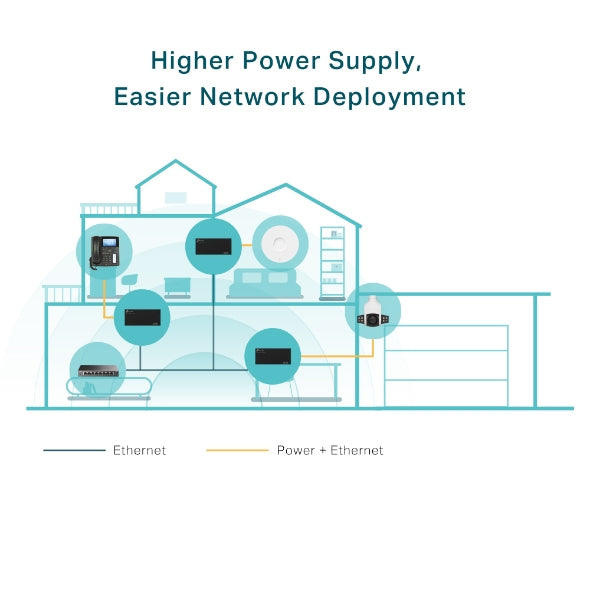

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power lines or outlets, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Ethernet interface type: Gigabit Ethernet
- Operating temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 10 - 90%
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Power over Ethernet (PoE): Yes
- Storage relative humidity (H-H): 5 - 90%

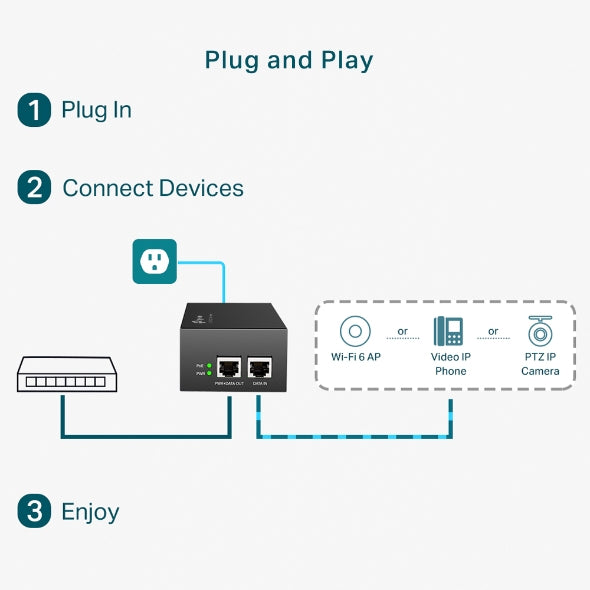

- Plug and Play: Yes
- Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
- Number of products included: 1 pc(s)
- RJ-45 output ports: 1
- Cabling technology: 10/100/1000
- Harmonized System (HS) code: 85044095
- Wall mountable: Yes
- RJ-45 input ports: 1
- Quick installation guide: Yes
- AC adapter input voltage: 100 - 240 V
- AC adapter frequency: 50/60 Hz
- Cable types supported: Cat3, Cat4, Cat5, Cat5e, Cat6
- Certification: FCC, CE, RoHS
Features
- Housing material
- Metal
Operational conditions
- Storage temperature (T-T)
- -40 - 70 °C
Packaging data
- Package depth
- 25 cm
- Package height
- 9.5 cm
- Package type
- Box
- Package weight
- 0.92 kg
- Package width
- 19 cm
Power
- Output power
- 60 W

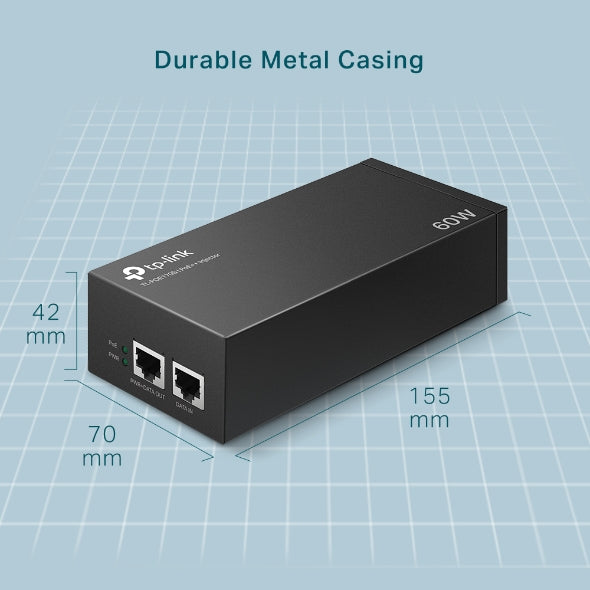

Weight & dimensions
- Depth
- 7 cm
- Height
- 4.2 cm
- Width
- 15.5 cm
Materials
Housing material: Metal
Compare With Similar Items
|
|
|
|
|
|
|
| Description | What This Product Does The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power lines or outlets, where you wish to fix devices such as PTZ IP Cameras, LED, etc. |
Passive PoE Adapter Powers TP-Link products that support 48V passive PoE Power Your Devices Use the passive PoE adapter POE4818G to simultaneously supply power and transmit data to a passive PoE device. Convenient Wall-Mounting Design POE4818G offers a convenient wall-mounting brackets to be easily installed on a wall. Compatible Devices POE4818G is recommended to offer power supply to TP-Link’s passive PoE products which as follows. |
90W 10G PoE++ Injector Unlocks peak performance for your 10G/Multi-Gig bandwidth and devices 10G Ports Ensure Faster Connection Auto-negotiation for 6-speed (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps /10 Mbps) Auto Detect the Required Power, Up to 90 W Standard 802.3af/at/bt for Various Powered Devices |
The PoE+ Injector POE160S (TL-POE160S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's POE10R (TL-POE10R), or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc. |
The PoE Injector POE150S (TL-POE150S) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc. |
