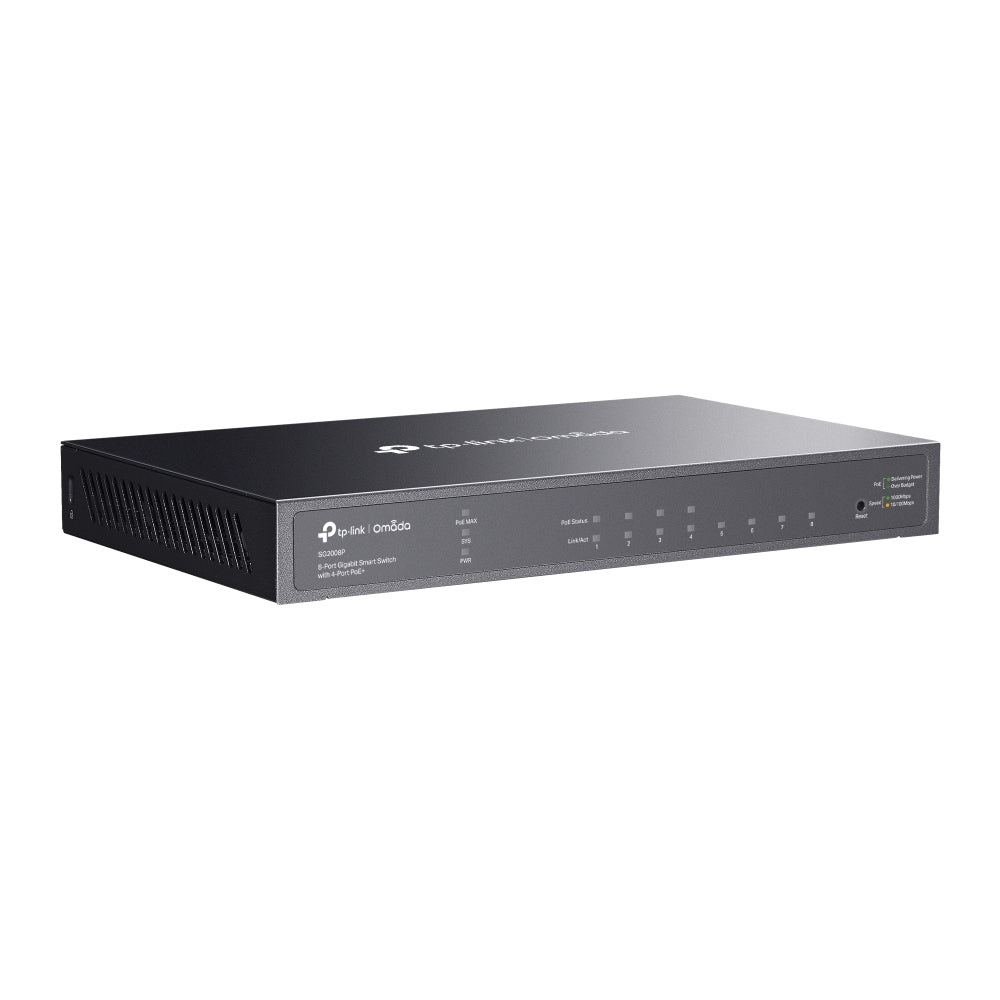

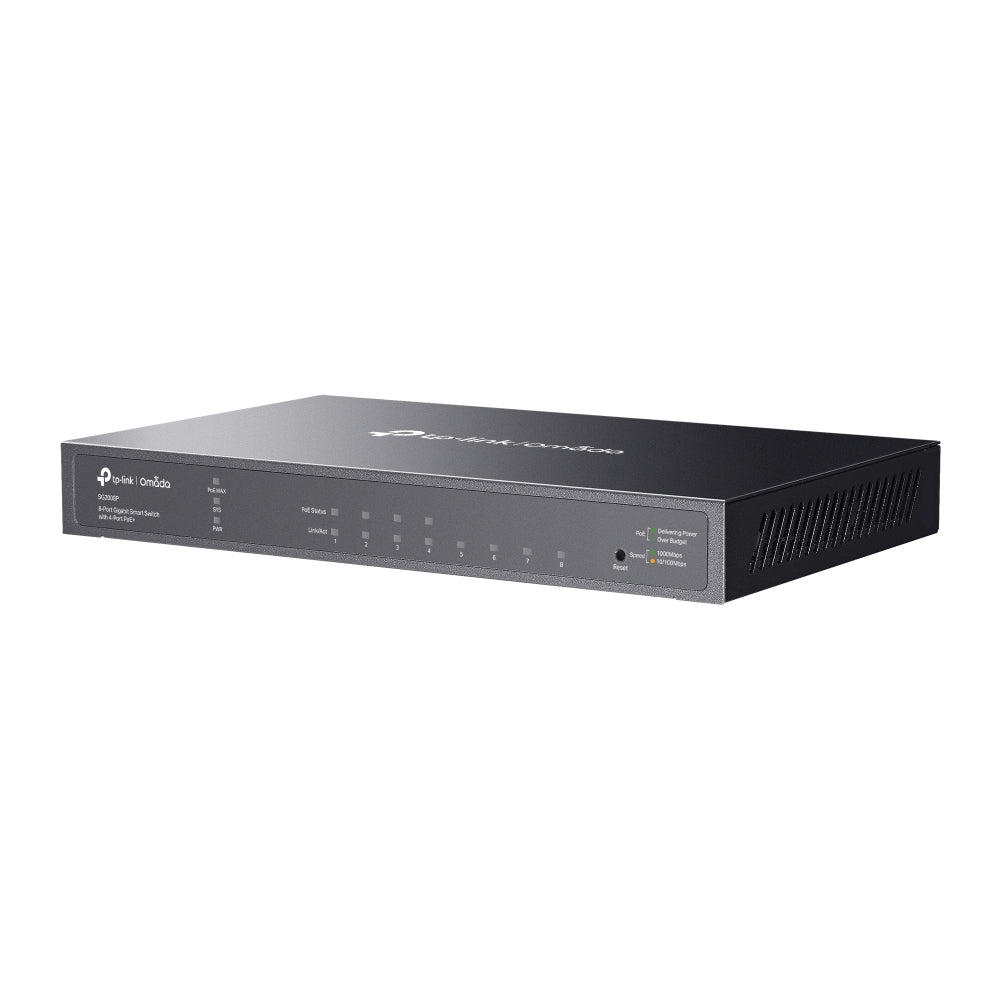

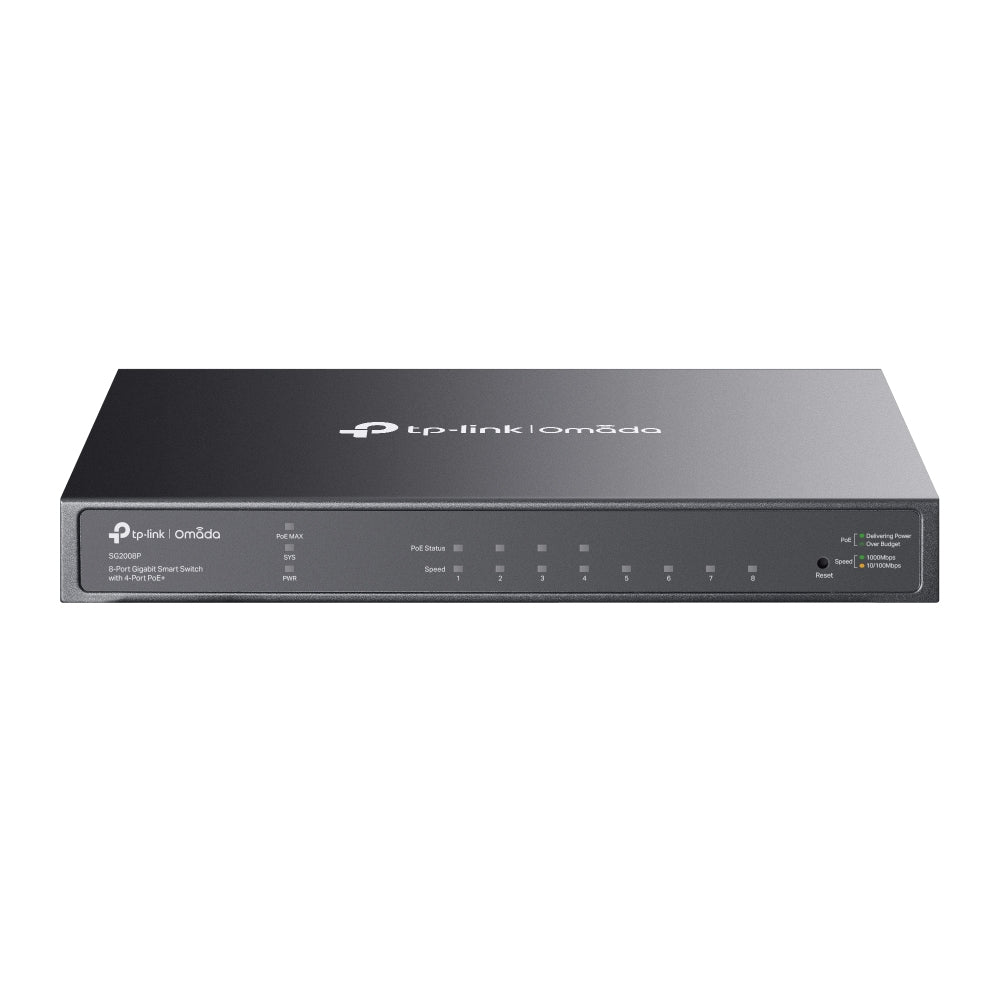

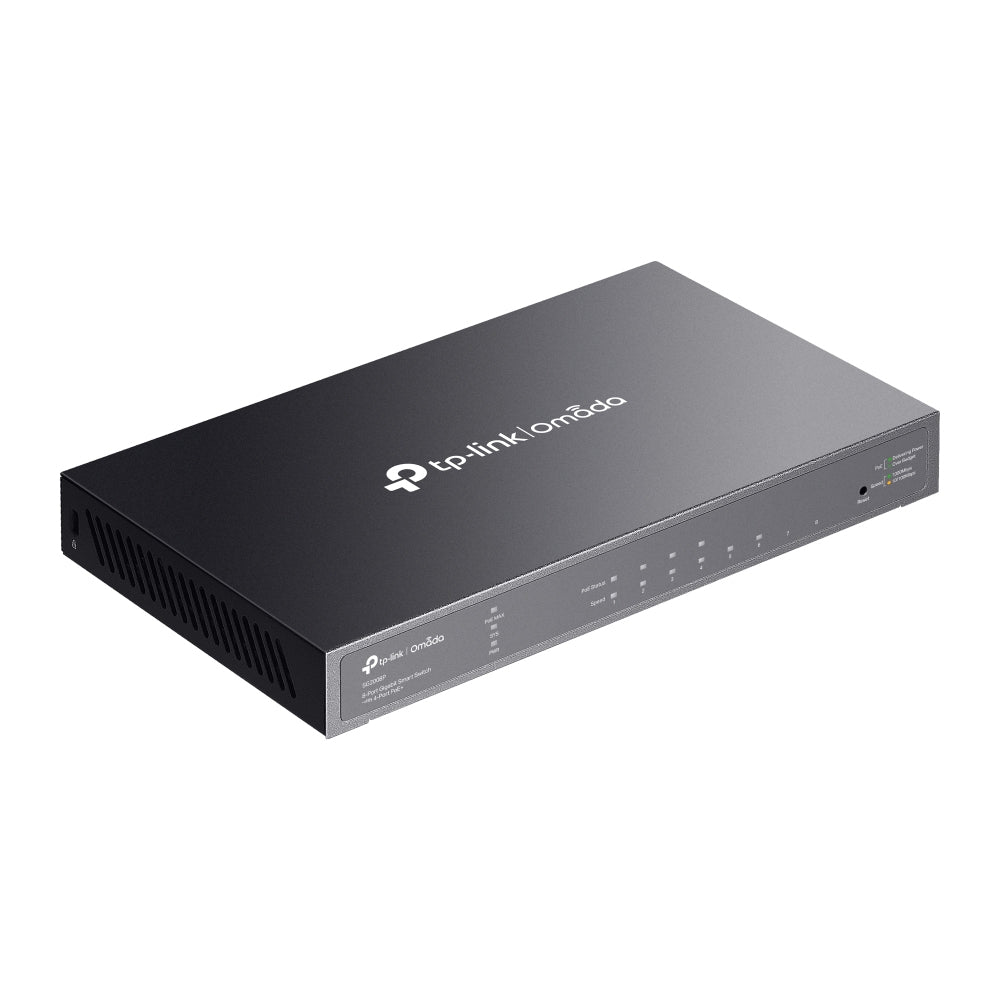

TP-Link Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
Regular price
$186.14
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (64)
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 16 Gbit/s
- MAC address table: 8000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2/L2+
- Forwarding rate: 11.9 Mpps
- Jumbo frames: 9000
Certificates
- Certification
- CE, FCC, RoHS
Data transmission
- Number of queues
- 8
- Packet buffer memory
- 4.1MB
Management features
- ARP inspection
- Yes
- MIB support
- MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9)
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Broadcast storm control
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 4094
- Port mirroring
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 263.6 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Manual
- Yes
Packaging data
- Package type
- Box
Performance
- Fanless
- Yes
Power
- Power consumption (max)
- 77.3 W
- Power supply included
- Yes
Power over Ethernet (PoE)
- Power over Ethernet plus (PoE+) ports quantity
- 4
Protocols
- IPv4 & IPv6 features
- IPv6 Telnet, IPv6 ping, IPv6 tracert
- Management protocols
- SNMPv1/v2c/v3
Security
- Authentication
- MAC-based authentication, Web-based authentication
- Authentication type
- RADIUS
- DHCP features
- DHCP client, DHCP relay, DHCP snooping, DHCPv6 server, DHCPv6 snooping
- IGMP snooping
- Yes
- MAC address filtering
- Yes
- Security algorithms
- 802.1x RADIUS
Weight & dimensions
- Depth
- 12.6 cm
- Height
- 2.6 cm
- Width
- 20.9 cm
