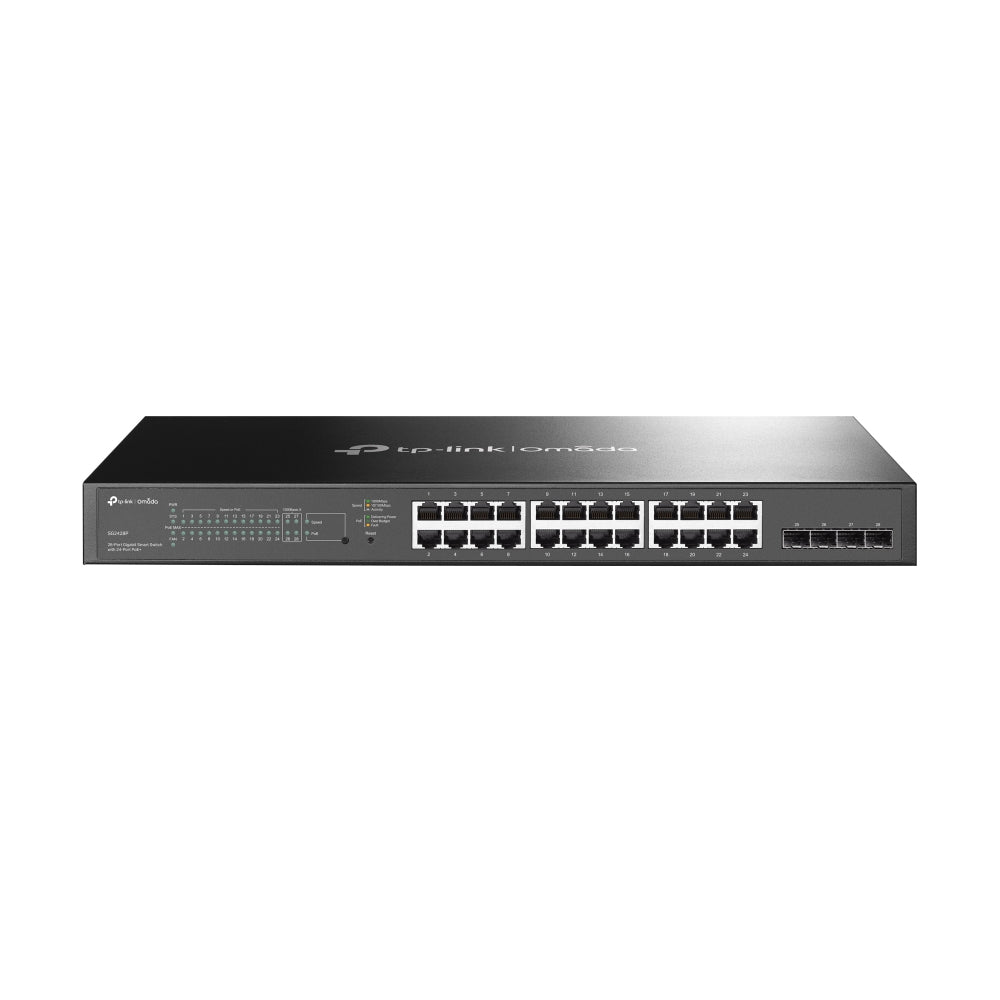

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
Regular price
$537.01
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (89)
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 56 Gbit/s
- MAC address table: 8000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2/L2+
- Forwarding rate: 41.66 Mpps
- Jumbo frames: 9000
- AC input voltage: 100 - 240 V
Certificates
- Certification
- CE, FCC, RoHS
Data transmission
- Number of queues
- 8
- Packet buffer memory
- 4.1MB
Design
- Form factor
- 1U
- Number of fans
- 2 fan(s)
Management features
- ARP inspection
- Yes
- MIB support
- Yes
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Broadcast storm control
- Yes
- Cable types supported
- Cat3, Cat4, Cat5, Cat5e
- Copper ethernet cabling technology
- 10BASE-T, 1000BASE-T
- Link aggregation
- Yes
- Number of VLANs
- 4000
- Port mirroring
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- Virtual LAN features
- MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 1052.94 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Optical fiber
- Fiber ethernet cabling technology
- 1000BASE-X
Packaging content
- Cables included
- AC
- Rack mount kit
- Yes
- User guide
- Yes
Performance
- Firmware upgradeable
- Yes
Ports & interfaces
- Gigabit Ethernet (copper) ports quantity
- 24
- SFP module slots quantity
- 4
Power
- AC input frequency
- 50/60 Hz
- Power consumption (max)
- 301.1 W
- Power source
- AC
- Power supply included
- Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port
- 30 W
- Power over Ethernet plus (PoE+) ports quantity
- 24
- Total Power over Ethernet (PoE) budget
- 250 W
Protocols
- Management protocols
- SNMPv1/v2c/v3, SNTP
Security
- Access Control List (ACL)
- Yes
- Authentication type
- RADIUS
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
- IGMP snooping
- Yes
- IP-MAC-Port binding
- Yes
- Queue scheduling algorithms
- SP, WRR+SP, Weighted Round Robin (WRR)
- Security algorithms
- HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
- SSH/SSL support
- Yes
Weight & dimensions
- Depth
- 22 cm
- Height
- 4.4 cm
- Width
- 44 cm
Cables included: AC
Power supply included
