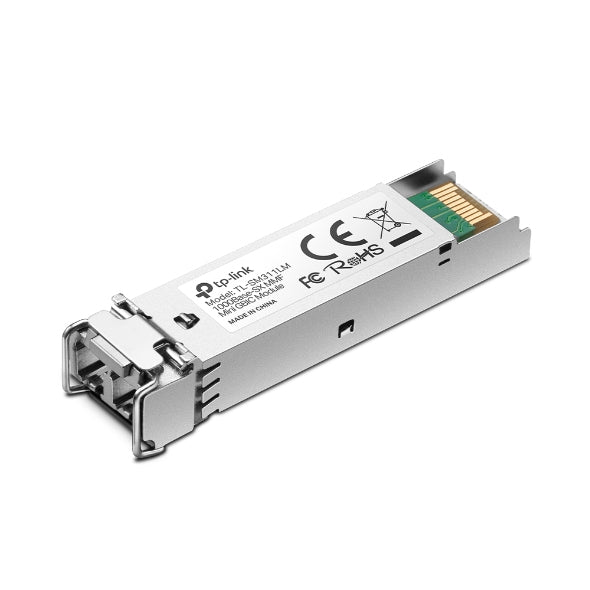

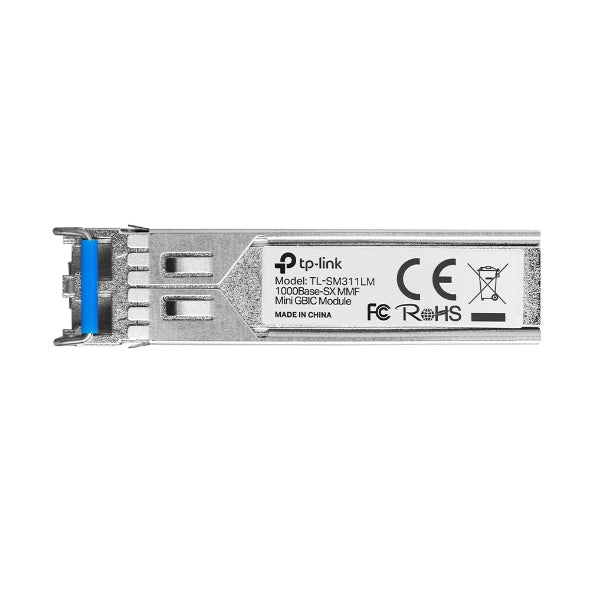

TP-Link Omada SFP 1000BASE-SX LC MiniGBIC Mm
Regular price
$52.48
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (141)
What This Product Does

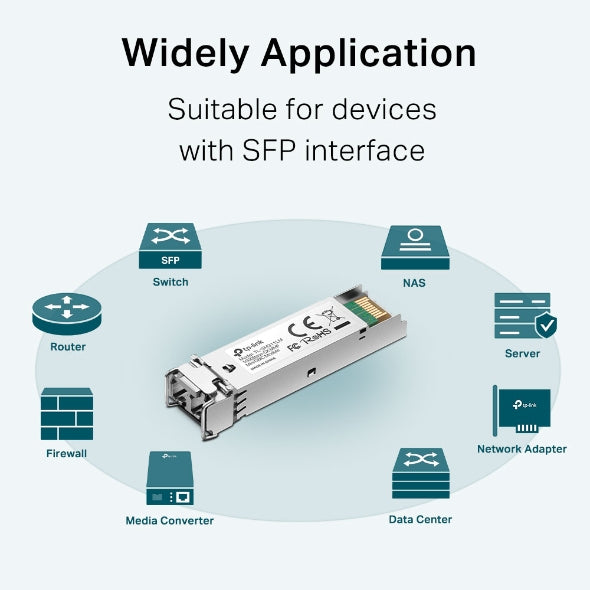

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Metallic
- Interface type: mini-GBIC/SFP
- SFP transceiver type: Fiber optic

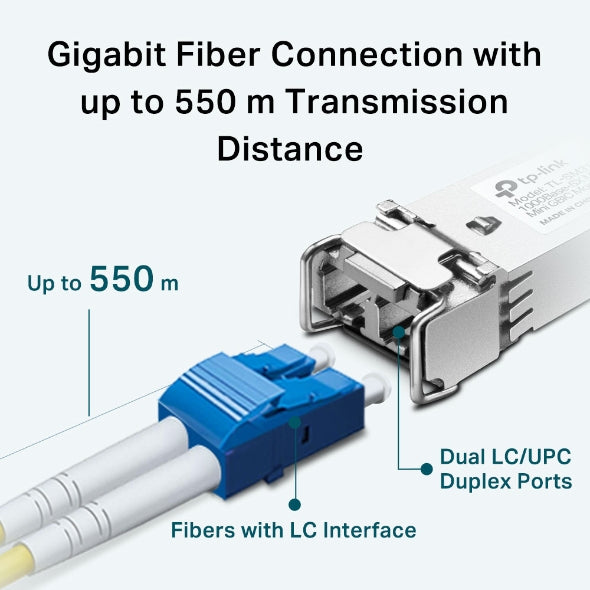

- Maximum transfer distance: 550 m
- Harmonized System (HS) code: 85369010
- Fiber optic connector: LC (UPC)
- Certification: FCC, CE
- Multi-mode fiber (MMF) supported: Yes
- Wavelength: 850 nm
- Compliance certificates: RoHS
- Single-mode fiber (SMF) supported: No
- Networking standards: IEEE 802.3z

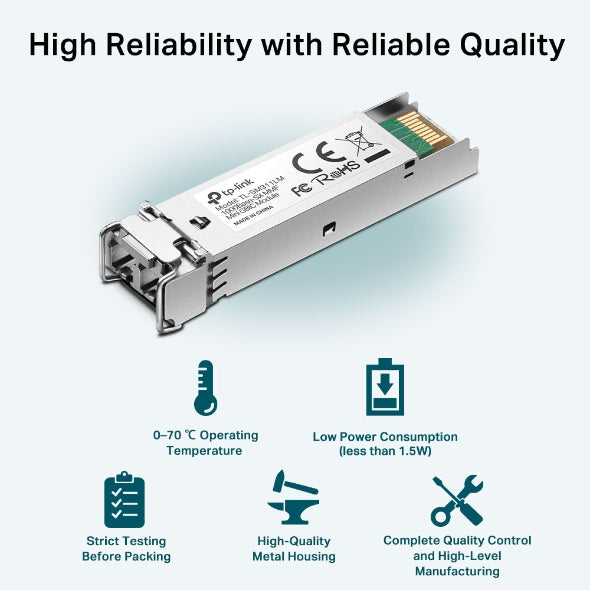

- Operating temperature (T-T): 0 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
- Maximum operating temperature: 70 °C
- Minimum operating temperature: 0 °C
- User guide: Yes
Operational conditions
- Storage temperature (T-T)
- -40 - 80 °C
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package depth
- 20.7 cm
- Package height
- 3.8 cm
- Package weight
- 0.11 kg
- Package width
- 3.8 cm
Performance
- Maximum data transfer rate
- 1250 Mbit/s
Power
- Input voltage
- 3.3 V
Weight & dimensions
- Depth
- 1.37 cm
- Height
- 1.29 cm
- Width
- 5.54 cm
Materials
Compare With Similar Items
|
|
|
|
|
|
|
| Description | What This Product Does The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost. |
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty The GLCTST is a Cisco GLC-T compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft). Technical Specifications: • Maximum Data Transfer Rate: 1000 Mbps • Type: Copper • Connection Type: RJ45 Connector • Maximum Transfer Distance: 100 m (328 ft) • MTBF: 4,655,371 hours • Power Consumption: Less than 1.3 Watts • Digital Diagnostics Monitoring (DDM): No This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. |
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty The GLCTEST is a Cisco GLC-TE compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers for extended temperatures. It delivers dependable 1 GbE connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft). Technical Specifications: • Maximum Data Transfer Rate: 1000 Mbps • Type: Copper • Connection Type: RJ45 Connector • Maximum Transfer Distance: 100 m (328 ft) • MTBF: 4,655,371 hours • Power Consumption: Less than 1.3 Watts • Digital Diagnostics Monitoring (DDM): No This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. |
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty The GLCSXMMDST is a Cisco GLC-SX-MMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft). Technical Specifications: • Wavelength: 850 nm • Maximum Data Transfer Rate: 1.25 Gbps • Type: Multi Mode Fiber • Connection Type: LC Connector • Maximum Transfer Distance: 550 m (1804 ft) • MTBF: 3,381,761 hours • Power Consumption: Less than 1 Watt • Digital Diagnostics Monitoring (DDM): Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. |
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty The GLCLXSMRGDST is a Cisco GLC-LX-SM-RGD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi). Technical Specifications: • Wavelength: 1310 nm • Maximum Data Transfer Rate: 1.25 Gbps • Type: Single Mode Fiber • Connection Type: LC Connector • Maximum Transfer Distance: 10 km (6.2 mi) • MTBF: 3,092,408 hours • Power Consumption: Less than 1 Watt • Digital Diagnostics Monitoring (DDM): Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. |
