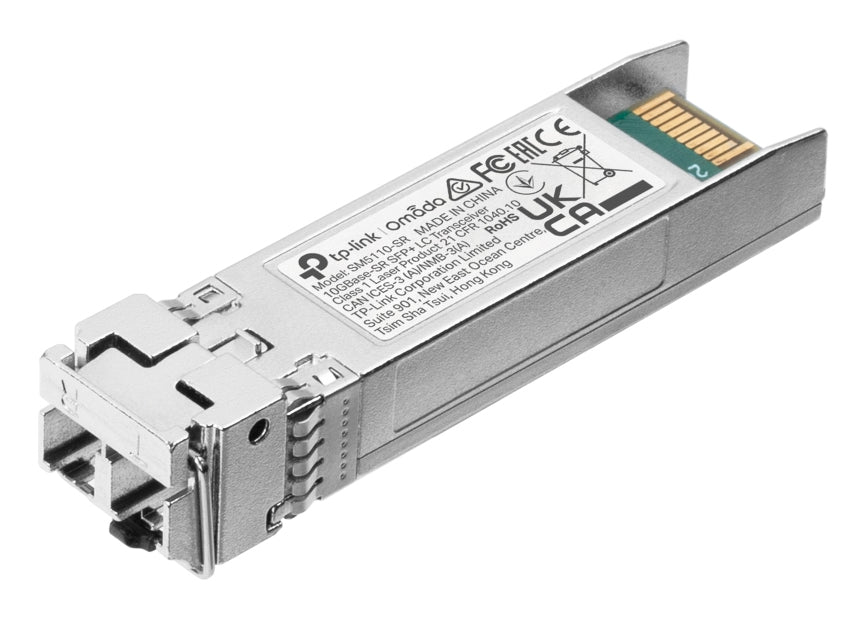

TP-Link Omada 10Gbase-SR SFP+ LC Transceiver SPEC: 850nm Multi-mode, LC Duplex Connector, Up to 300m Distance
Available in stock (35)
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Silver
- Interface type: SFP+
- SFP transceiver type: Fiber optic
- Maximum transfer distance: 300 m
- Digital Diagnostics Monitoring (DDM): Yes
- Fiber optic connector: LC (UPC)
- Hot-swap: Yes
- Certification: FCC, CE
- Multi-mode fiber (MMF) supported: Yes
- Wavelength: 850 nm
- Operating temperature (T-T): 0 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm
- Maximum operating temperature: 70 °C
- Minimum operating temperature: 0 °C
Operational conditions
- Storage temperature (T-T)
- -40 - 80 °C
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package depth
- 27 cm
- Package height
- 27.5 cm
- Package weight
- 0.06 kg
- Package width
- 22 cm
Performance
- Maximum data transfer rate
- 10000 Mbit/s
Power
- Input voltage
- 3.3 V
Weight & dimensions
- Depth
- 1.45 cm
- Height
- 1.22 cm
- Width
- 6.13 cm
Materials
Compare With Similar Items
|
|
|
|
|
|
| Description | The SM5110-SR (TL-SM5110-SR) is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively. |
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime Warranty The SFPG1320C is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LH compliant networks, with a maximum distance of up to 20 km (12.4 mi). Technical Specifications: • Wavelength: 1310nm • Maximum Data Transfer Rate: 1.25 Gbps • Type: Single Mode Fiber • Connection Type: LC Connector • Maximum Transfer Distance: 20 km (12.4 mi) • MTBF: 2,722,277 hours • Power Consumption: Less than 1 Watt • Digital Diagnostics Monitoring (DDM): Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. |
The ProSAFE GBIC Module is a LC duplex connector and meets SFP GBIC standard for use with any SFP GBIC compliant slot. |
10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty The PLUS-SR-ST is a Palo Alto Networks PAN-SFP-PLUS-SR compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto Networks brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft). Technical Specifications: • Wavelength: 850nm • Maximum Data Transfer Rate: 10 Gbps • Type: Multi Mode Fiber • Connection Type: LC • Maximum Transfer Distance: 300 m (984 ft) • MTBF: 498,745,585 hours • Power Consumption: • Digital Diagnostics Monitoring (DDM): Yes This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. |
10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft). Technical Specifications: • Maximum Data Transfer Rate: 1000 Mbps • Type: Copper • Connection Type: RJ45 Connector • Maximum Transfer Distance: 100 m (328 ft) • MTBF: 4,655,371 hours • Power Consumption: Less than 1.3 Watts • Digital Diagnostics Monitoring (DDM): No This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. |
| Price | Regular price
$61.34
Sale price
Regular price
|
Regular price
$119.24
Sale price
Regular price
|
Regular price
$156.98
Sale price
Regular price
|
Regular price
$306.93
Sale price
Regular price
|
Regular price
$108.46
Sale price
Regular price
|
| Product variants |
