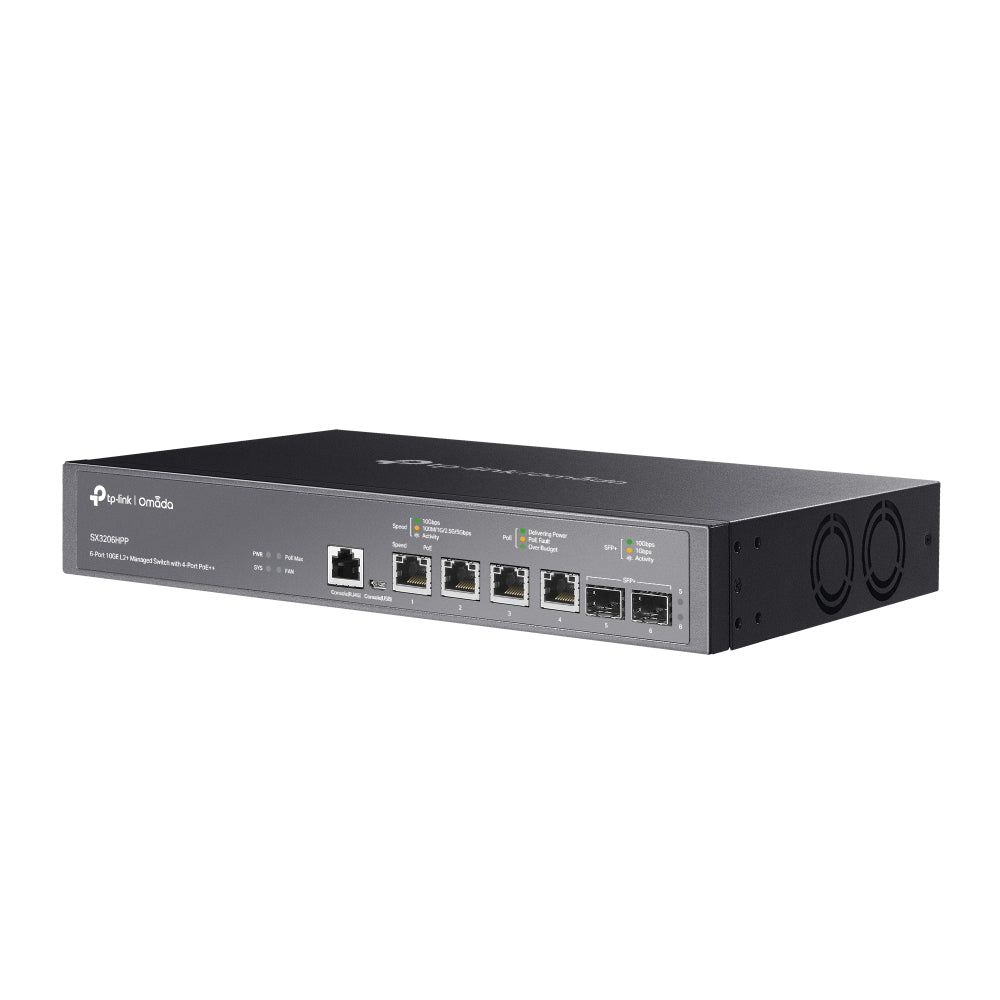

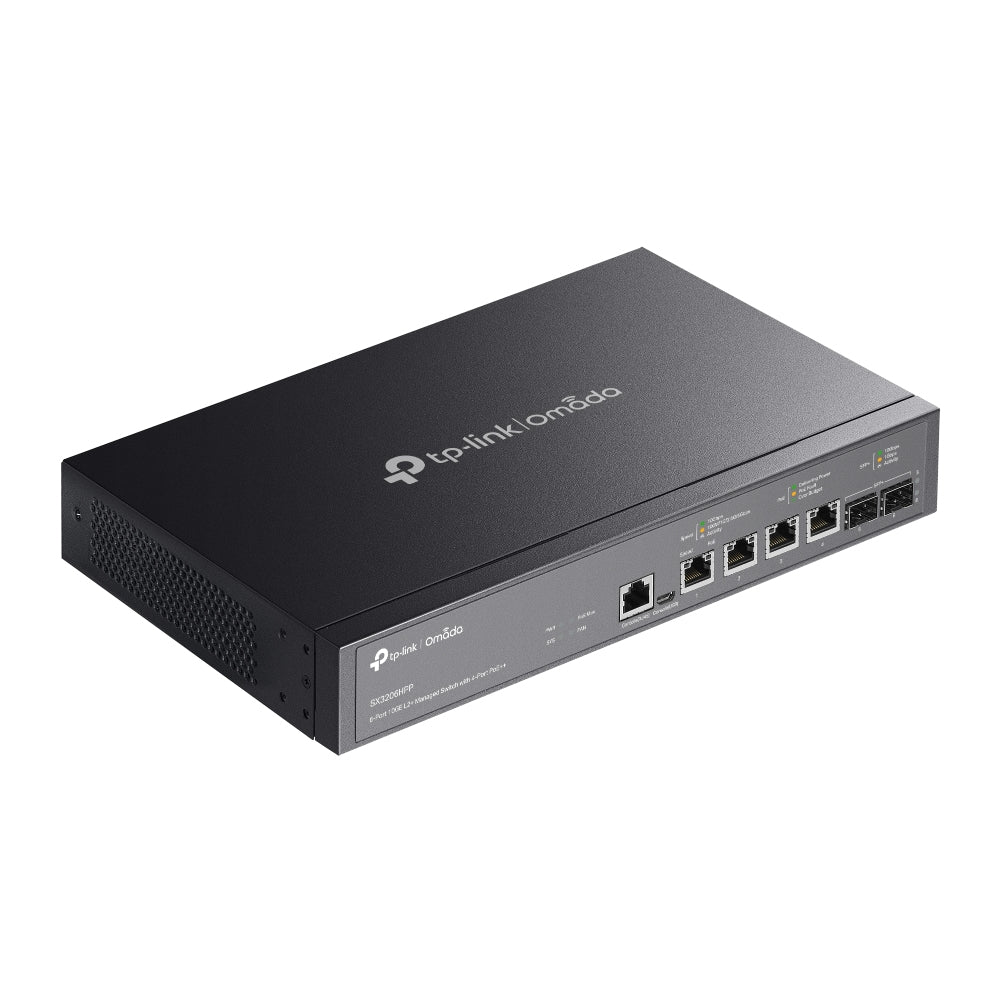

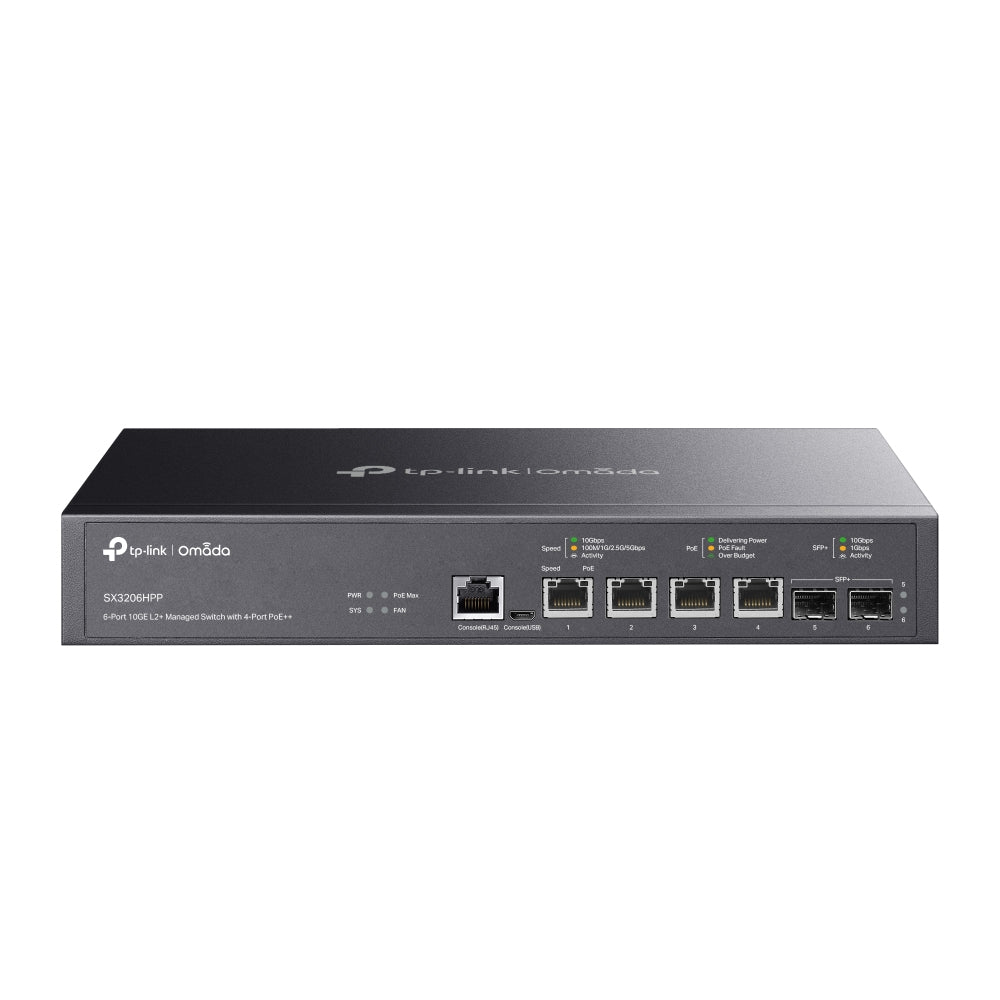

TP-Link Omada 6-Port 10GE L2+ Managed Switch with 4-Port PoE++
Regular price
$1,133.06
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 120 Gbit/s
- MAC address table: 32000 entries
- 10G support: Yes
- Storage relative humidity (H-H): 5 - 95%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2+
- Forwarding rate: 89.28 Mpps
- Jumbo frames: 9000
Certificates
- Certification
- CE, FCC, RoHS
Data transmission
- Number of static routes
- 48
- Packet buffer memory
- 16MB
- Static route
- Yes
Design
- Number of fans
- 2 fan(s)
Management features
- ARP inspection
- Yes
- Cloud-managed
- Yes
- Configuring Location Settings (CLI)
- Yes
- MIB support
- Yes
- System event log
- Yes
- Web-based management
- Yes
Multicast features
- Multicast Listener Discovery (MLD) snooping
- MLD v1/v2
- Multicast support
- Yes
Network
- Broadcast storm control
- Yes
- Head-of-line (HOL) blocking
- Yes
- IP routing
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 4000
- Port mirroring
- Yes
- Rate limiting
- Yes
- Routing entries
- 512
- Spanning tree protocol
- Yes
- Virtual LAN features
- Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 835.67 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Cables included
- AC
- Quick start guide
- Yes
- Rack mount kit
- Yes
Performance
- Minimum system requirements
- Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
Ports & interfaces
- Console port
- RJ-45/Micro-USB
- Power connector
- AC-in jack
- SFP+ module slots quantity
- 2
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 244.9 W
- Power source
- AC
- Power supply included
- Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port
- 60 W
- Power over Ethernet plus (PoE+) ports quantity
- 4
- Total Power over Ethernet (PoE) budget
- 200 W
Protocols
- Management protocols
- SNMP v1/v2c/v3
Security
- Access Control List (ACL)
- Yes
- Authentication
- Guest VLAN
- Authentication type
- AAA, RADIUS, TACACS+
- BPDU filtering/protection
- Yes
- DHCP features
- DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
- IGMP snooping
- Yes
- Loop protection
- Yes
- Security algorithms
- HTTPS, SSL/TLS
- SSH/SSL support
- Yes
Weight & dimensions
- Depth
- 18 cm
- Height
- 4.4 cm
- Width
- 29.4 cm
Cables included: AC
Quick start guide
Power supply included
Quick start guide
Power supply included
