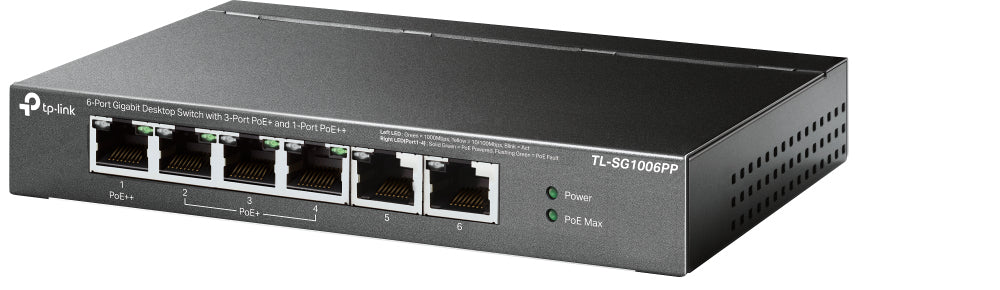

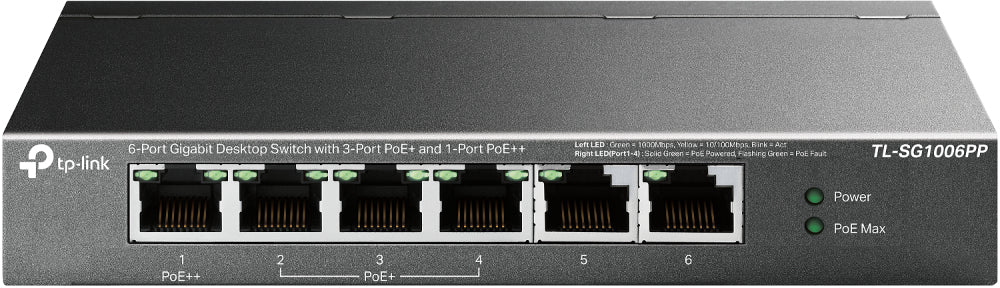

TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
Regular price
$133.10
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 1 item left in stock.

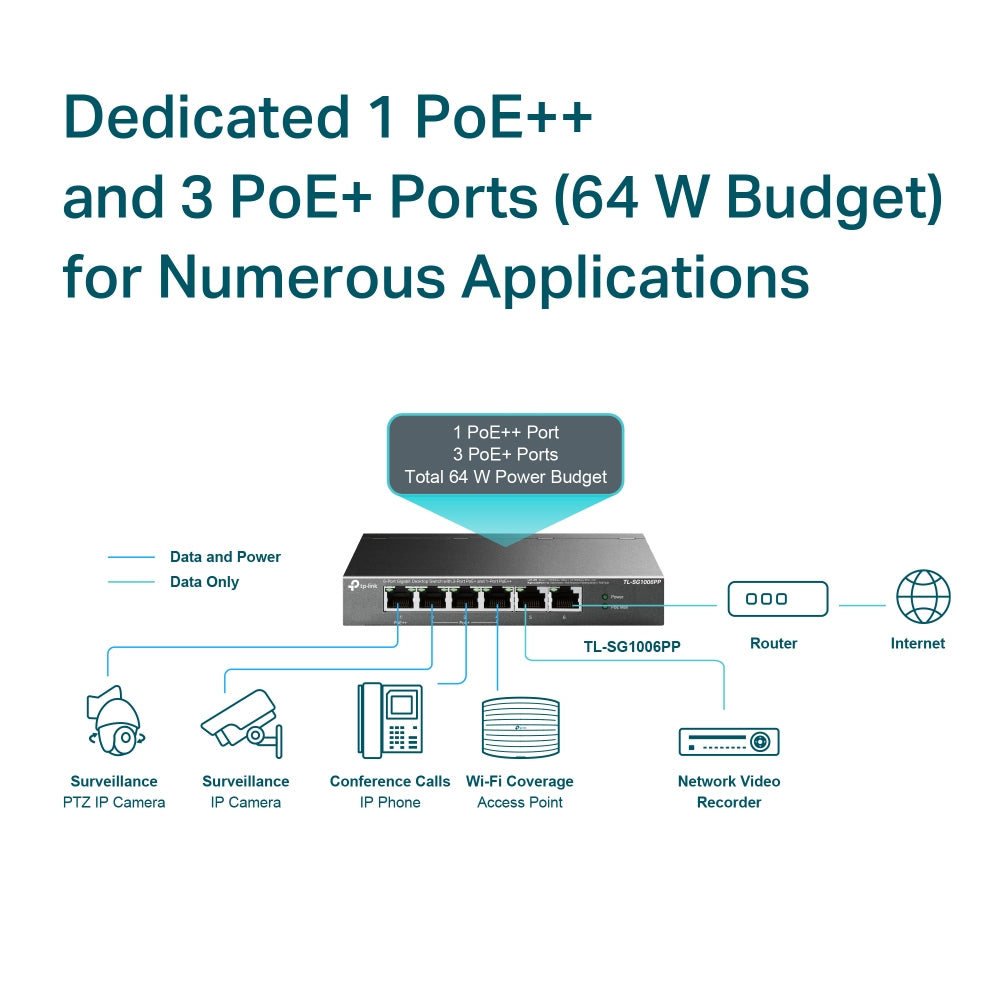

TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Grey
- Switch type: Unmanaged
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 6
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 12 Gbit/s
- MAC address table: 4000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Forwarding rate: 8.928 Mpps
- IGMP snooping: Yes
- Power supply included: Yes
- Store-and-forward: Yes
Certificates
- Certification
- FCC, CE, RoHS
Design
- Stackable
- Yes
Network
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Cable types supported
- Cat3, Cat4, Cat5, Cat5e, Cat6
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- MAC address auto-aging supported
- Yes
- MAC address auto-learning supported
- Yes
Operational conditions
- Heat dissipation
- 16.2 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- Quick start guide
- Yes
Packaging data
- Package type
- Box
Performance
- Fanless
- Yes
Power

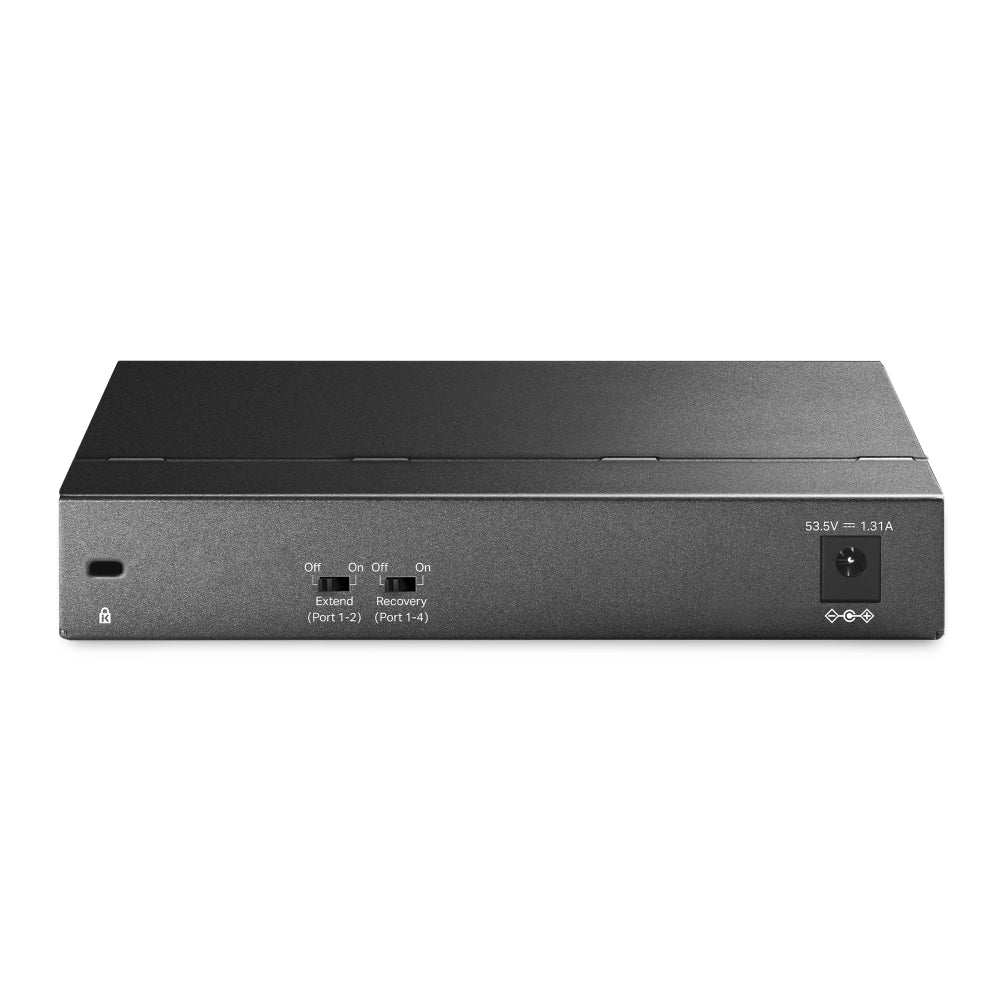

- DC input voltage
- 53.5 V
- Input current
- 1.31 A
- Power consumption (max)
- 71.46 W
- Power consumption (typical)
- 4.75 W
- Power source
- DC/PoE
Power over Ethernet (PoE)
- Power over Ethernet (PoE) ports quantity
- 4
- Total Power over Ethernet (PoE) budget
- 64 W
Weight & dimensions
- Depth
- 10.1 cm
- Height
- 2.5 cm
- Width
- 15.8 cm
Quick start guide
Power supply included
Power supply included
Materials
