APC NetShelter Rack PDU Advanced, Metered, 3Phase, 11kW 400V 16A or 11.5kW 415V 20A, 42 Outlets, IEC309
Regular price
$2,276.44
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
APC NetShelter Rack PDU Advanced provide reliable power distribution to IT Equipment within server and/or networking racks. PDU level power metering via remote access and local display for power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparreled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2 wide form factor. Outlets on the PDUs are color coded and/or labeled by breaker and input phase on 3 phase models to simplify deployment. Provides an alternating phase design whereby each of the 3 phases are organized into small outlet groups which alternate from top to bottom of the PDU to facilitate better power cord management and promote better load balancing. Power Sharing allows PDUs cascaded together via 2 ethernet ports enable an Network Management Card to continue functioning in the event of an AC power loss. No interruption in Network communication, sensors operation, and alarm traps. Live Swap Network Management Card (NMC) which can be replaced without powering down the PDU or connected devices to minimize downtime in the unlikely event of an NMC power event. Rated and approved to operate up to 60C (140F) at full load ensures reliability and availability even in today's high density deployments. Gigabit ethernet to enhance and standardize network connectivity across all assets in the data center. A second ethernet port (10/100) is available to allow cascading to other PDUs, connect to a 2nd private network, or provide network redundancy. 1% metering accuracy for the peace of mind to use NetShelter Rack PDU Advanced to bill based on power usage. In addition, the higher level of accuracy ensures the most precise measures for capacity planning and threshold alarm monitoring. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs are both UL and CE rated providing one PDU that can be used globally to simplify and standardize deployment.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- AC outlets quantity: 42 AC outlet(s)
- PDU types: Metered
- Rack capacity: 0U
- AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler
- Nominal input voltage: 400 V
- Operating temperature (T-T): 23 - 140 °F
- AC input frequency: 50 - 60 Hz
- Maximum current: 16 A
- Mounting: Vertical
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%

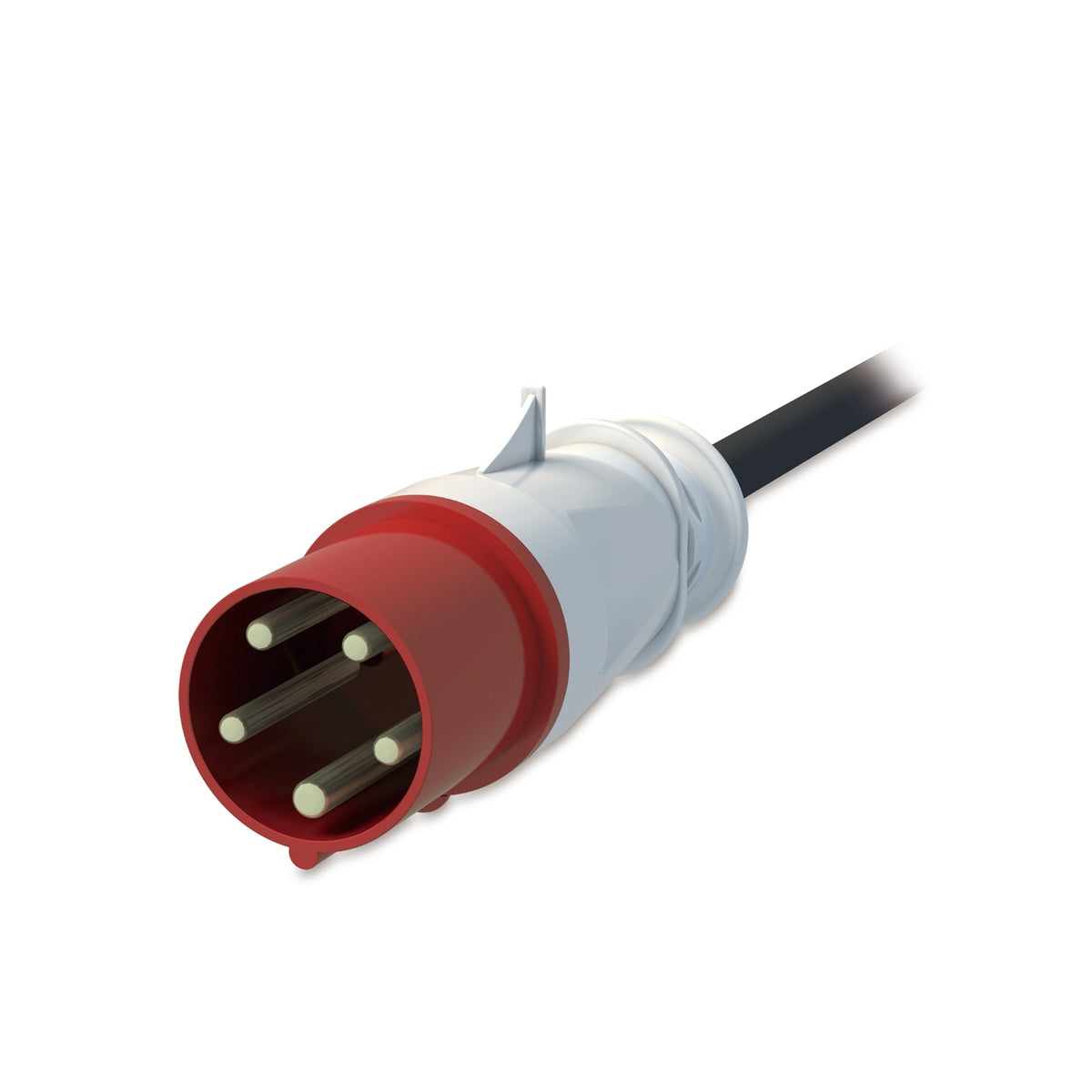

- Power plug: IEC 60309
- Nominal output voltage: 230 V
- Compliance certificates: RoHS
- Type: Three-phase
- Operating altitude: 0 - 3048 m
- Maximum power: 11040 W
- Total carbon footprint (kg of CO2e): 8717.32
- Non-operating altitude: 0 - 15240 m
Design

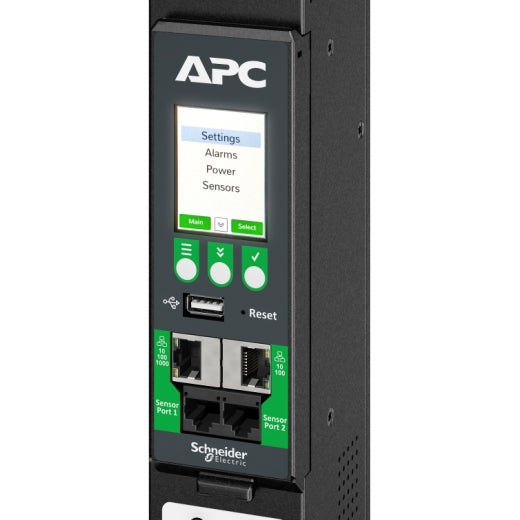

- Display
- LCD
- Form factor
- Rackmount
- On/off switch
- Yes
- Regulatory Approvals
- CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1
Features
- Cable length
- 1.8 m
- Colour-coded outlets
- Yes
- Compatible products
- Compatible with most NetShelter SX\nenclosures and third-party racks
- Daisy chain
- Yes
- LED indicators
- Activity, Network, Power
- Password protection
- Yes
- Reset button
- Yes
- Security algorithms
- 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
Management features
- Firmware upgradeable
- Yes
- Firmware upgradeable via
- Network, USB
- Monitoring
- Current, Humidity, Power, Temperature, Voltage
- Outlet control
- Lock-out, Recycle, Turn on
Operational conditions
- Storage temperature (T-T)
- -25 - 65 °C
Packaging data
- Package depth
- 11.6 cm
- Package height
- 172 cm
- Package weight
- 7.7 kg
- Package width
- 20.8 cm
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 2
- USB ports quantity
- 1
Power
- Load capacity
- 11500 VA
- Maximum total current draw per phase
- 16 A
- Number of phases
- 3
- Output voltage
- 230 V
- Power protection features
- Overload
- Surge protection
- Yes
Weight & dimensions
- Depth
- 5.5 cm
- Height
- 149 cm
- Weight
- 5.7 kg
- Width
- 5.6 cm
Materials
