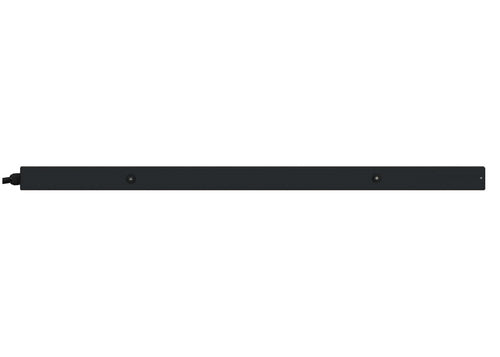

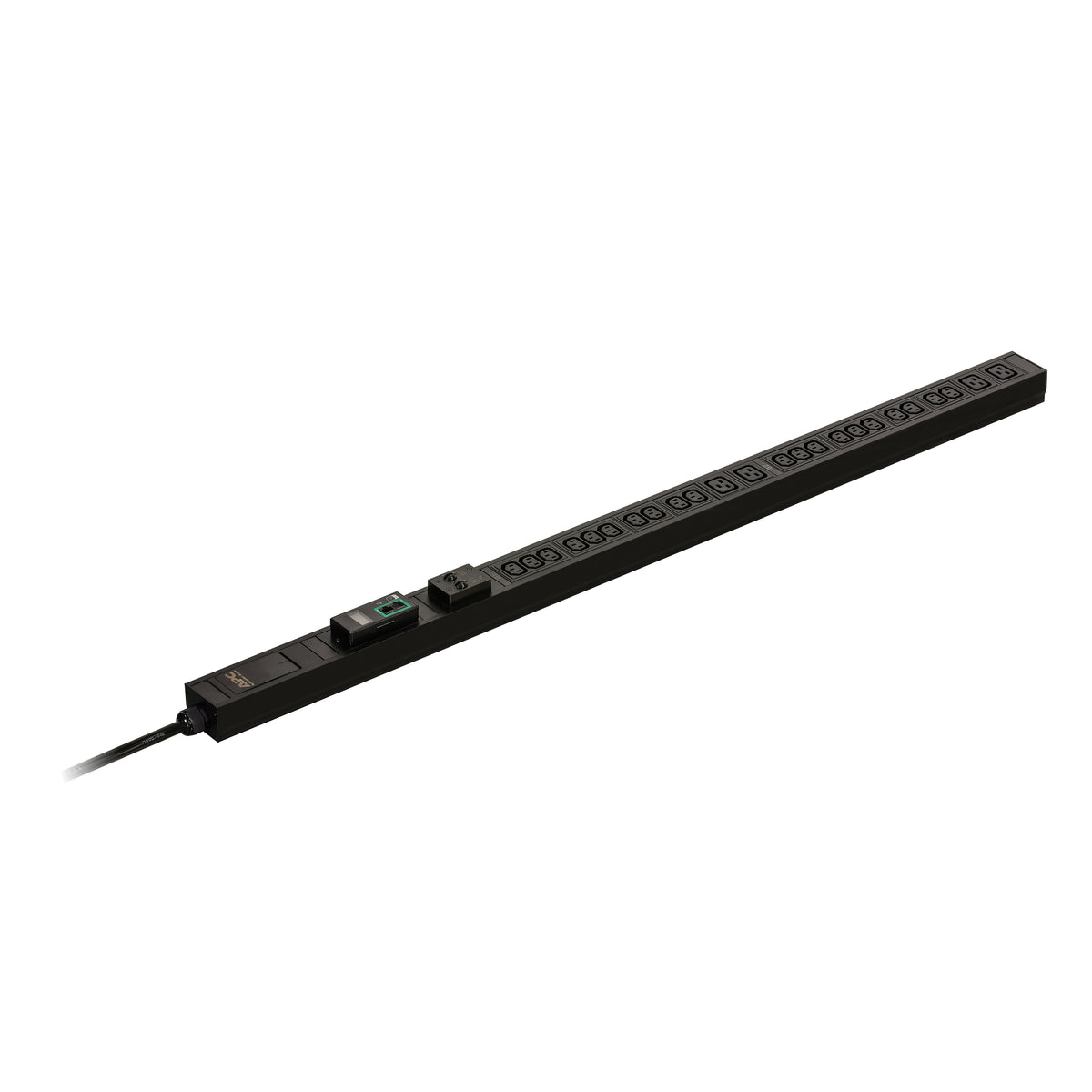

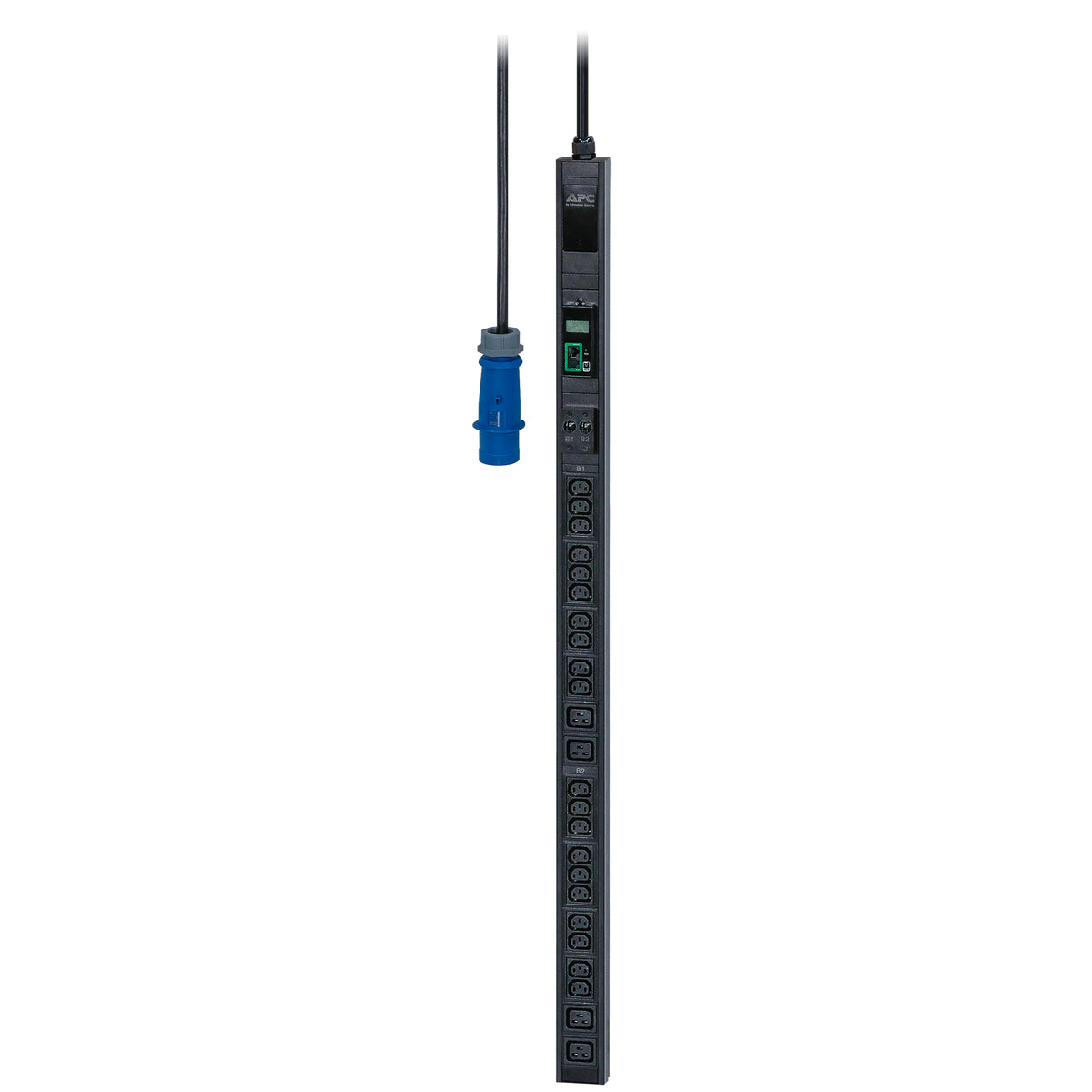

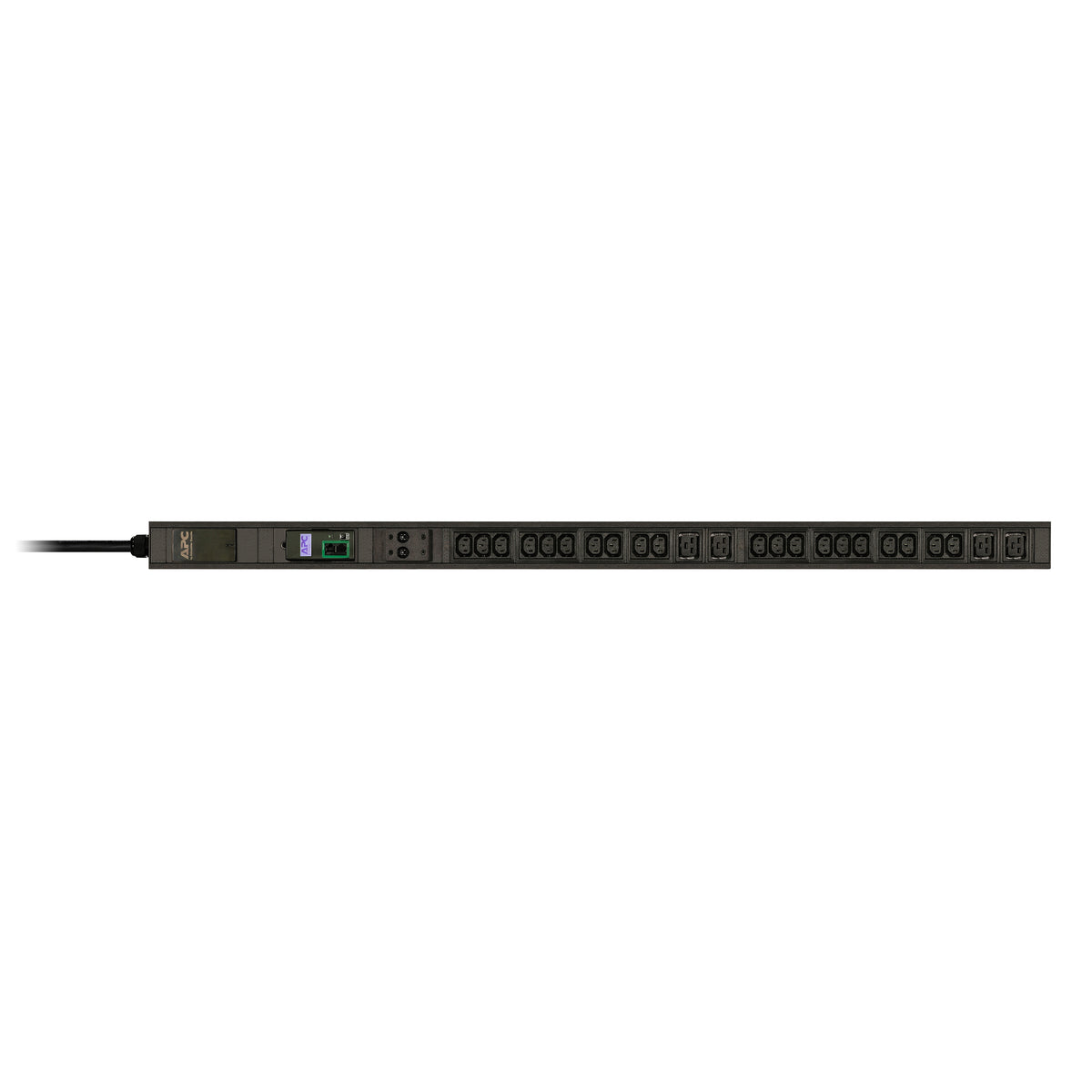

APC Easy Rack PDU, Metered, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet
Regular price
$981.28
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
APC Easy Metered Rack PDU EPDU1132M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1132M has IEC 60309 16A 2P+E type inlet, twenty IEC C13 and four IEC C19 type outlet sockets. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes installation guide, user manual toolless mounting kit and vertical mounting brackets for quick and easy mounting in the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- AC outlets quantity: 24 AC outlet(s)
- PDU types: Metered
- Rack capacity: 0U
- AC outlet types: C13 coupler, C19 coupler
- Nominal input voltage: 200/208/230 V
- Operating temperature (T-T): -5 - 45 °C
- AC input frequency: 50 - 60 Hz
- Maximum current: 32 A
- Mounting: Vertical
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Power plug: IEC 60309
- Nominal output voltage: 230 V
- Certification: CE, TUV
- Type: Single-phase
- Operating altitude: 0 - 3000 m
- Maximum power: 7360 W
- Maximum input current per phase: 32 A
- Total carbon footprint (kg of CO2e): 28890.42
Design
- Display
- LCD
- Housing material
- Aluminium
- On/off switch
- No
Features
- LED indicators
- Yes
Management features
- Firmware upgradeable
- Yes
Operational conditions
- Non-operating altitude
- 0 - 15000 m
- Storage temperature (T-T)
- -25 - 65 °C
Packaging content
- Manual
- Yes
Packaging data
- Package depth
- 11 cm
- Package height
- 132 cm
- Package weight
- 4.48 kg
- Package width
- 16 cm
Power
- Load capacity
- 7360 VA
Weight & dimensions
- Depth
- 4.4 cm
- Height
- 117.5 cm
- Weight
- 3.72 kg
- Width
- 6.2 cm
Manual
Materials
Housing material: Aluminium
