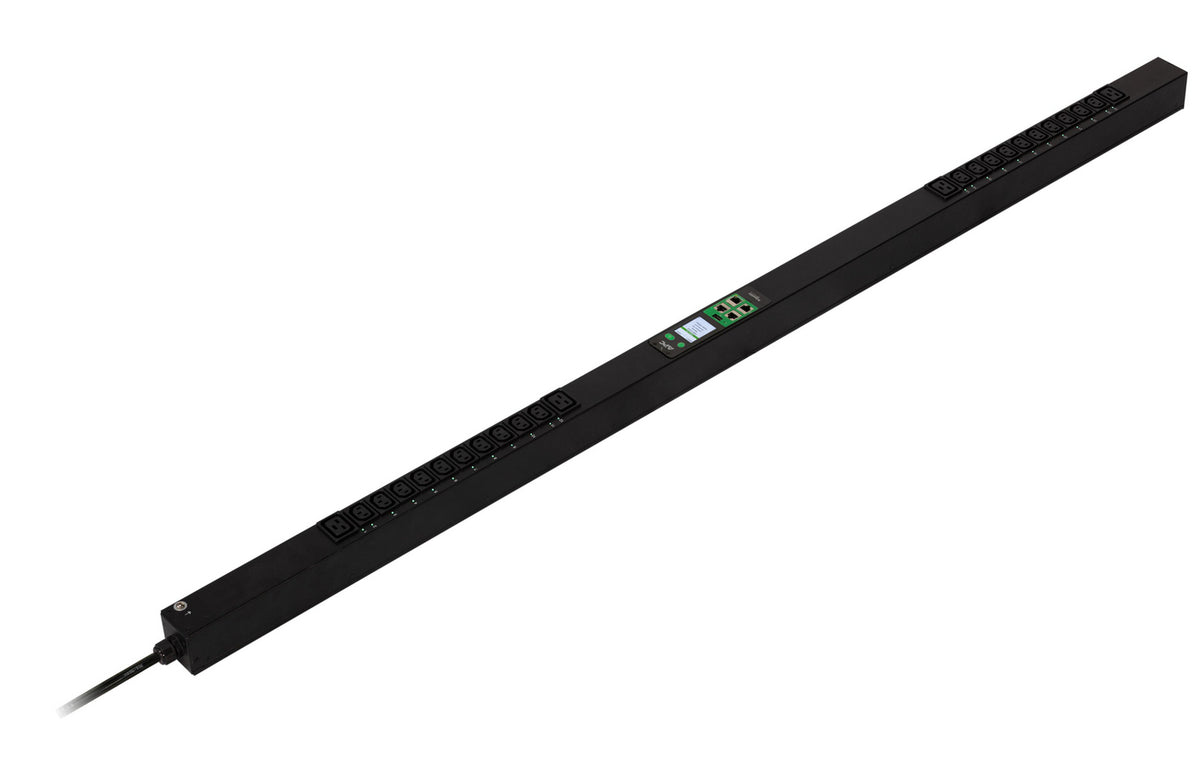

APC EasyPDU, Switched, Zero U, 22 kW, 230V, (30) C13 & (6) C19；IEC309
Out of stock
It is a high-capacity, switched power distribution unit (PDU) designed for efficient power management in data centers and network environments. It features a vertical mounting design, which saves valuable rack space. The PDU supports a load capacity of 22 kW and operates at 230V with a 32A input current. It includes 30 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. The unit is equipped with an IEC 60309 32A 3P+N+PE input plug and supports 3-phase power distribution. Additionally, it offers remote management capabilities, allowing users to monitor and control individual outlets for optimized power usage. The PDU is built with robust materials, ensuring durability and reliable performance in demanding environments.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- AC outlets quantity: 30 AC outlet(s)
- PDU types: Switched
- Rack capacity: 0U
- AC outlet types: C13 coupler, C19 coupler
- Nominal input voltage: 400 V
- Operating temperature (T-T): -5 - 50 °C
- AC input frequency: 50/60 Hz
- Maximum current: 32 A
- Mounting: Vertical
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Power plug: C13 coupler
- Nominal output voltage: 230 V
- Compliance certificates: CE, UKCA
- Type: Three-phase
- Operating altitude: 0 - 3000 m
- Total carbon footprint (kg of CO2e): 2245
- Number of phases: 3
Operational conditions
- Storage temperature (T-T)
- -25 - 65 °C
Packaging data
- Package depth
- 196 cm
- Package height
- 126 cm
- Package weight
- 10.6 kg
- Package width
- 17 cm
Power
- Load capacity
- 22080 VA
- Output voltage
- 230 V
Weight & dimensions
- Depth
- 6.2 cm
- Height
- 180 cm
- Weight
- 8.75 kg
- Width
- 5.6 cm
Materials
Compare With Similar Items
|
|
|
|
|
|
|
| Description | It is a high-capacity, switched power distribution unit (PDU) designed for efficient power management in data centers and network environments. It features a vertical mounting design, which saves valuable rack space. The PDU supports a load capacity of 22 kW and operates at 230V with a 32A input current. It includes 30 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. The unit is equipped with an IEC 60309 32A 3P+N+PE input plug and supports 3-phase power distribution. Additionally, it offers remote management capabilities, allowing users to monitor and control individual outlets for optimized power usage. The PDU is built with robust materials, ensuring durability and reliable performance in demanding environments. |
APC Basic Rack PDU, Input: 230V, Input Connections: IEC 309 16A 2P+E, Cord Length: 3 feet ( 0.91 meters ), Output: 230V, Output Connections: IEC 320 C13, IEC 320 C19. Includes: Installation guide, Toolless Mounting Kit. |
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment. |
The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack. |
It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 32A and operates at 230V. The PDU features 20 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing ample connections for IT equipment. It includes a 10-foot power cord with an IEC 60309 32A 2P + E plug. The unit is designed for reliable power distribution and includes an installation guide and safety guide. |
