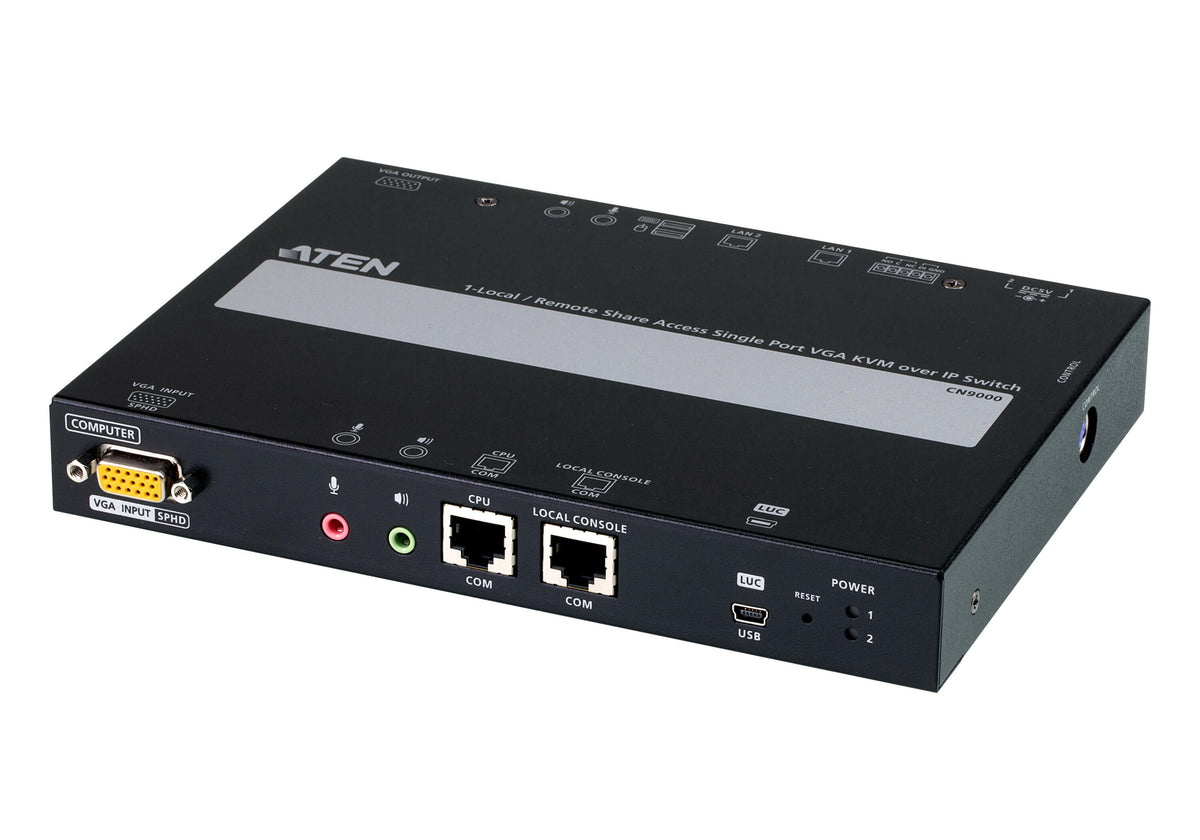

ATEN CN9000-AT-U KVM switch Black
Regular price
$1,791.76
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
The CN9000 VGA KVM over IP Switch allows remote access and control of the video, audio and virtual media of a PC or workstation, featuring VGA high video resolution up to 1920 x 1200 @ 60Hz at both the local and remote consoles. Equipped with USB and PS/2 (keyboard and mouse) support, CN9000 is compatible not only with modern-day workstations, but also legacy systems and older generation servers.

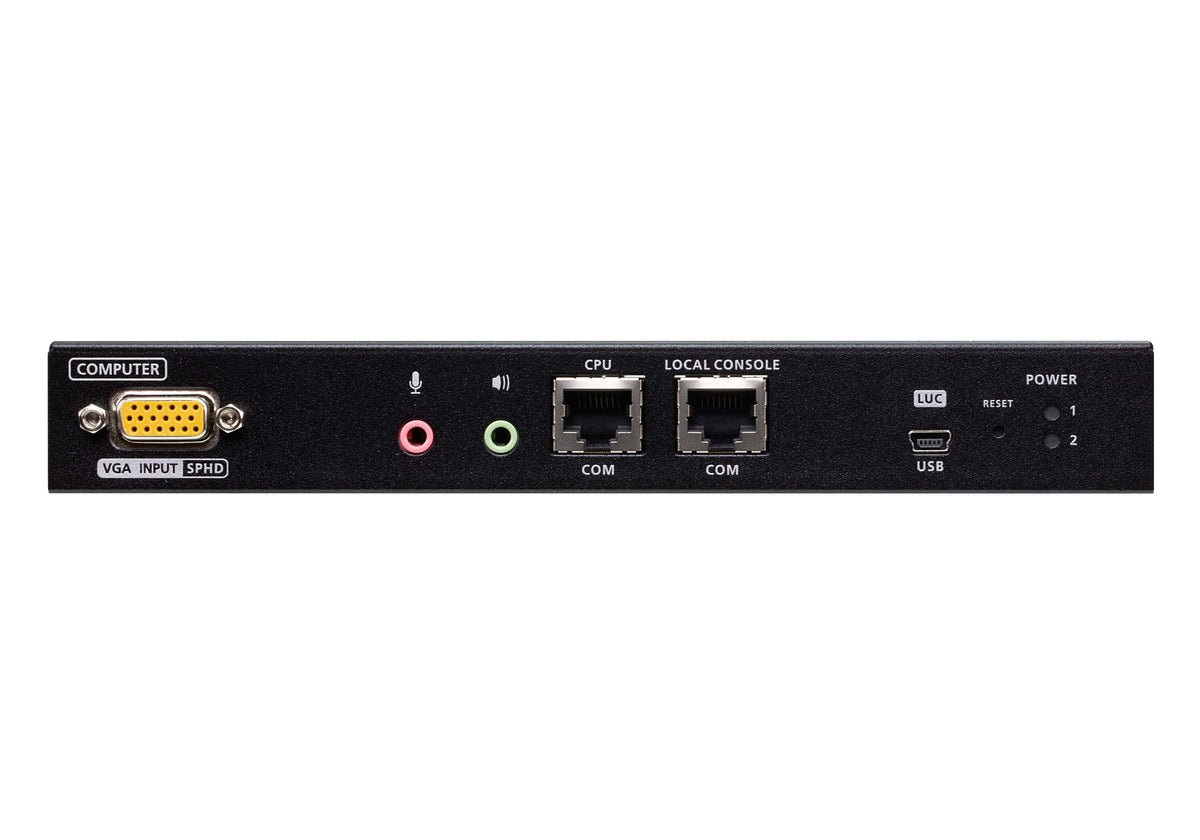

For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port for connection to a laptop, which allows the user to access the PC/server for easy routine maintenance without requiring an additional monitor, keyboard and mouse.

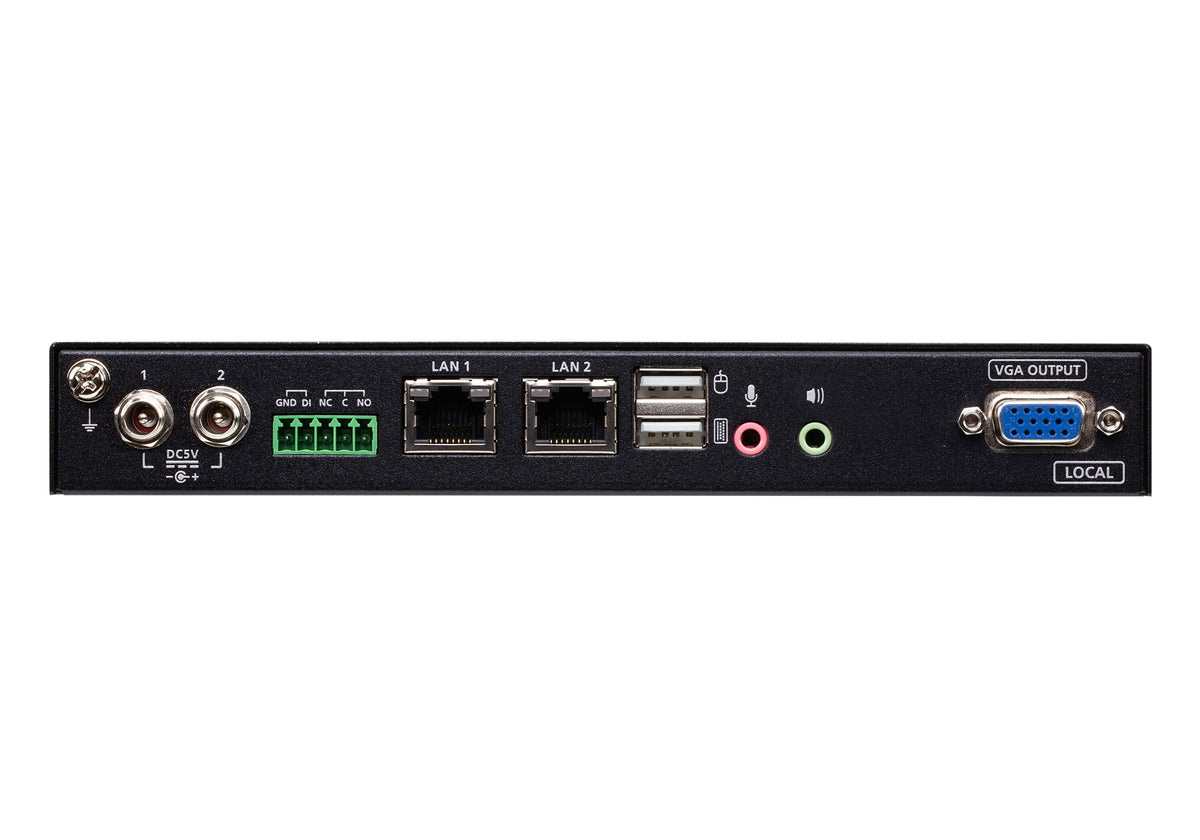

To ensure seamless connectivity, the CN9000 is equipped with dual LAN and dual power functionality to keep operation in the server room smooth and efficient. Its power status detection function automatically sends out event notifications when the device becomes offline (e.g. power failure) for device status monitoring. Moreover, the CN9000 features a 5-pin Relay / DI (digital input) terminal block allowing for remote reboot of the local server, and receiving digital inputs from a connected input/alarm device for notification of critical events.
For ease of remote management, the CN9000 WebClient Viewer supports remote desktop access without additional software applications. The VGA KVM over IP Switch provides a web-based GUI for remote access and management. With a unified multilanguage interface, it can effectively minimize user training time and increase productivity.
For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port for connection to a laptop, which allows the user to access the PC/server for easy routine maintenance without requiring an additional monitor, keyboard and mouse.
To ensure seamless connectivity, the CN9000 is equipped with dual LAN and dual power functionality to keep operation in the server room smooth and efficient. Its power status detection function automatically sends out event notifications when the device becomes offline (e.g. power failure) for device status monitoring. Moreover, the CN9000 features a 5-pin Relay / DI (digital input) terminal block allowing for remote reboot of the local server, and receiving digital inputs from a connected input/alarm device for notification of critical events.
For ease of remote management, the CN9000 WebClient Viewer supports remote desktop access without additional software applications. The VGA KVM over IP Switch provides a web-based GUI for remote access and management. With a unified multilanguage interface, it can effectively minimize user training time and increase productivity.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Keyboard port type: USB
- Mouse port type: USB
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 1920 x 1200 pixels
- Video port type: VGA
- LED indicators: Power
- Built-in display: No
- Housing material: Metal
- Console ports: RJ–45
- HD type: WUXGA
- Power consumption (typical): 7.46 W
- Audio connections: Yes
- Manual: Yes
- Headphone outputs: 2
- USB connector type: Mini-USB B, USB Type-A
- Video bandwidth: 60 Hz
- DC-in jack: Yes
- Number of microphone inputs: 2
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Security algorithms
- 2048-bit RSA, 256-bit AES, RSA, TLS
Operational conditions
- Storage relative humidity (H-H)
- 0 - 80%
- Storage temperature (T-T)
- -20 - 60 °C
Packaging content
- AC adapter included
- Yes
- Cables included
- KVM, USB
Ports & interfaces
- VGA (D-Sub) ports quantity
- 2
Power
- Input voltage
- 5 V
Weight & dimensions
- Depth
- 15.41 cm
- Height
- 2.85 cm
- Weight
- 0.86 kg
- Width
- 20 cm
AC adapter included
Cables included: KVM, USB
Manual
Cables included: KVM, USB
Manual
Materials
Housing material: Metal
