ATEN CS1942ATC-AT-U KVM switch Black
Regular price
$2,357.64
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
The ATEN CS1942ATC 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch for ATC is tailor-made for Air Traffic Control scenarios. It supports 2Kx2K resolution, making it perfect for radar monitoring, and also enables constant monitoring of flight information and mission-critical processes. Incorporating dual display capability, users can enjoy a wider screen and easy switch between the two DisplayPort systems.
The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to two USB / DisplayPort-interfaced dual display ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.
With two lockable DC jacks for power redundancy, the CS1942ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime. Patented ATEN technology – Video DynaSync™, and EDID expert™, combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.
The CS1942ATC creates a safer environment and enhanced operational efficiency for Air traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry.
The Zero-Second Switch function ensures nearly real-time switching without any black screens, providing air traffic controllers instant access to two USB / DisplayPort-interfaced dual display ATC computers for crucial operations. Port switching is flexible via pushbuttons, hotkeys, mouse, RS-232 commands, or an optional accessory the remote port selector.
With two lockable DC jacks for power redundancy, the CS1942ATC ensures uninterrupted operation and constant availability for mission-critical applications. It aims to greatly minimize or eliminate the risk of downtime. Patented ATEN technology – Video DynaSync™, and EDID expert™, combined with DisplayPort 1.2 and video resolutions up to 4K @ 60 Hz, it delivers optimized display resolution with exceptional detail and clarity in all conditions.
The CS1942ATC creates a safer environment and enhanced operational efficiency for Air traffic Control Towers, Approach Control Rooms, and Area Control Centers, specifically tailored the air traffic control industry.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Keyboard port type: USB
- Mouse port type: USB
- Operating temperature (T-T): 0 - 20 °C
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 4096 x 2160 pixels
- Video port type: DisplayPort
- Number of computers controlled: 2
- LED indicators: Yes
- Built-in display: Yes
- Housing material: Metal

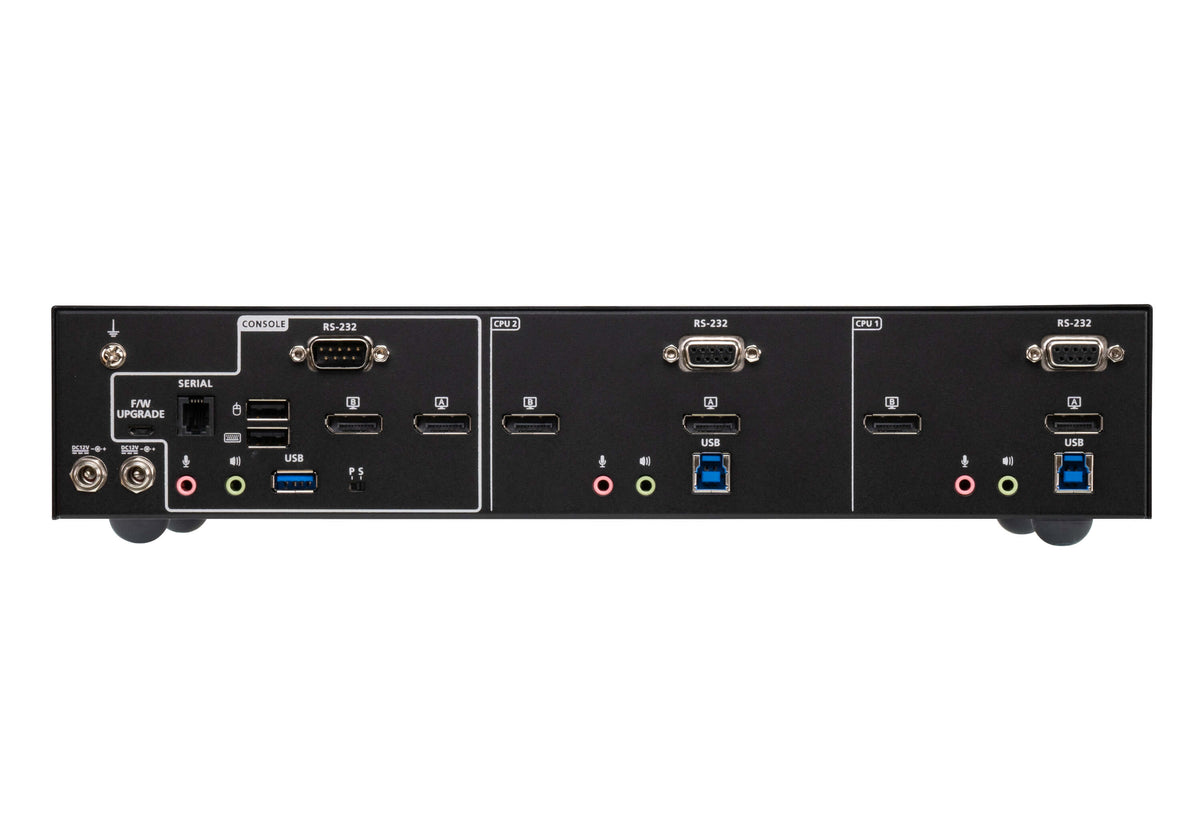

- Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A, VGA (D-Sub)
- HD type: 4K Ultra HD
- Console USB ports quantity: 2
- Hot keys: Yes
- Power consumption (typical): 17.8 W
- Audio connections: Yes
- Power source: DC
- Push button: Yes
- Headphone outputs: 2
Logistics data
- Country of origin
- Taiwan
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Performance
- Firmware upgradeable
- Yes
- Video bandwidth
- 60 Hz
Ports & interfaces
- Console DisplayPorts ports quantity
- 2
- DC-in jack
- Yes
- DisplayPorts quantity
- 4
- Number of microphone inputs
- 2
- RJ-11 ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
- 2
- USB connector type
- Micro-USB, USB Type-A
- USB hub
- Yes
- VGA (D-Sub) ports quantity
- 3
Power
- Input voltage
- 12 V
Weight & dimensions
- Depth
- 33.5 cm
- Height
- 6.55 cm
- Weight
- 1.88 kg
- Width
- 16.1 cm
Materials
Housing material: Metal
