ATEN KA7174-AX-U KVM switch Black
Out of stock

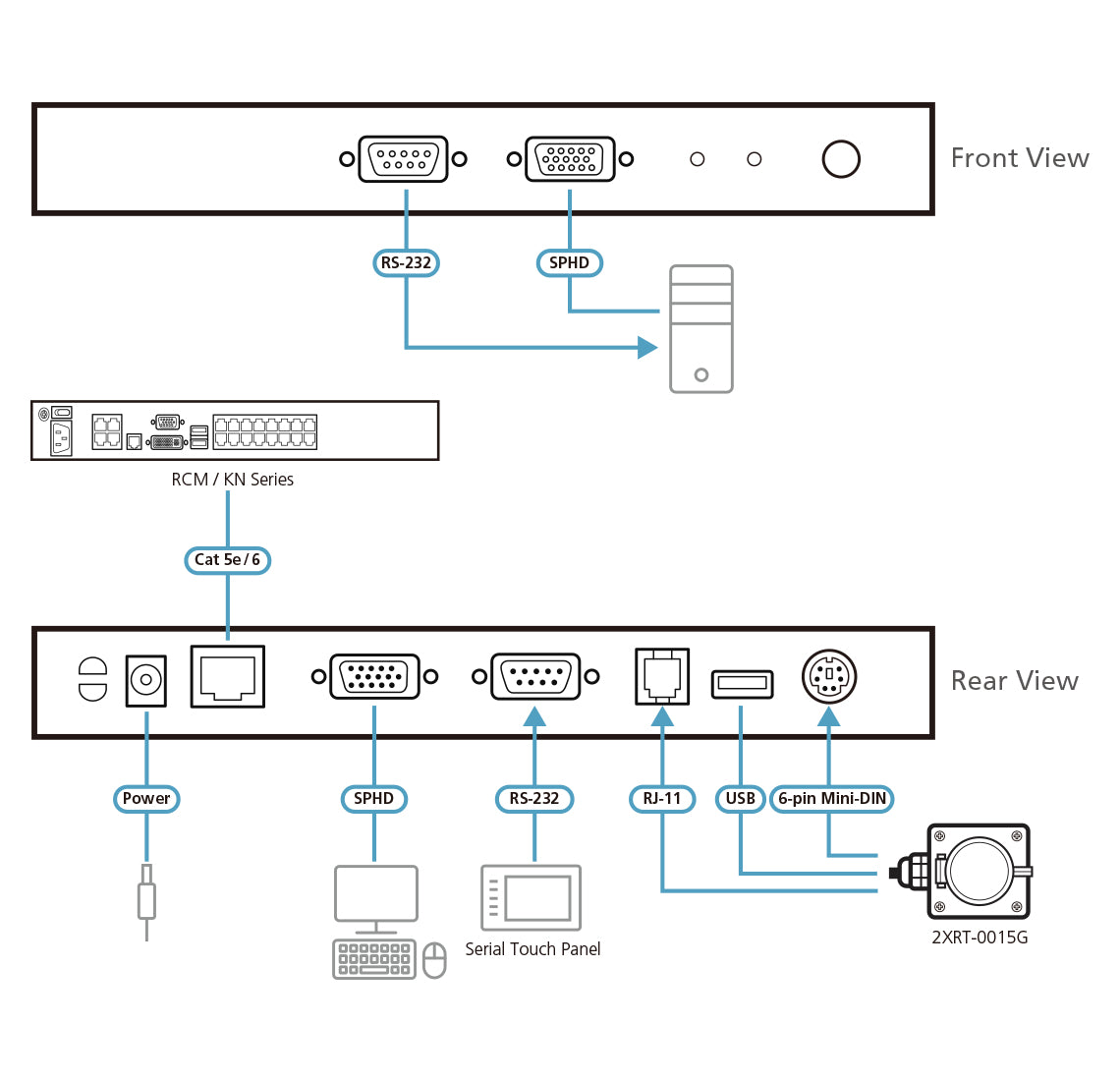

KA7174 KVM Adapter Module is designed to provide a convenient local console connection in a KVM over IP switch or matrix KVM installation. KA7174 allows a PS/2, USB, or RS-232 server to be connected to an ATEN KVM over IP switch via Cat 5e / 6 cable while providing an extra local console connection supporting USB or PS/2 keyboard and mouse, monitor, and / or RS-232 touch panel for convenient local operation. In addition, the KA7174 also features Privileged Console Control function with OSD tag notifications indicating denial of access to the local or remote users when configured as such.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 0 - 95%
- Maximum resolution: 1920 x 1200 pixels
- LED indicators: Yes
- Built-in display: No
- Housing material: Metal
- HD type: WUXGA
- Rack mounting: No
- Power consumption (typical): 1.75 W
- Push button: Yes
- Video bandwidth: 60 Hz
- DC-in jack: Yes
- Ethernet LAN: Yes
- Storage relative humidity (H-H): 0 - 95%
- Ethernet LAN (RJ-45) ports: Yes
- Serial ports quantity: 2
- Serial port type: DE-9 (DB-9)
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Power
- Input voltage
- 5 V
Weight & dimensions
- Depth
- 20.3 cm
- Height
- 2.5 cm
- Weight
- 0.49 kg
- Width
- 8.64 cm
Materials
Housing material: Metal
