Sold out
ATEN KA8278 KVM switch Rack mounting Black
Regular price
$2,224.87
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock

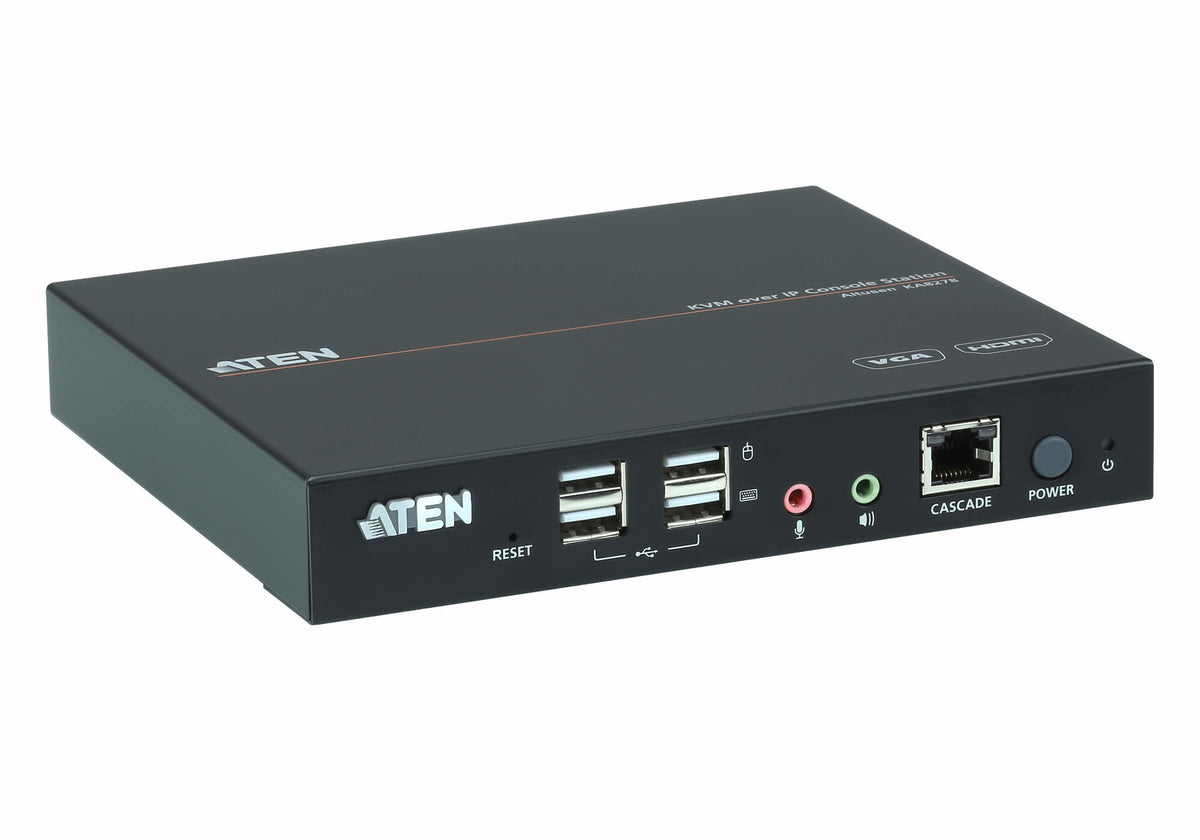

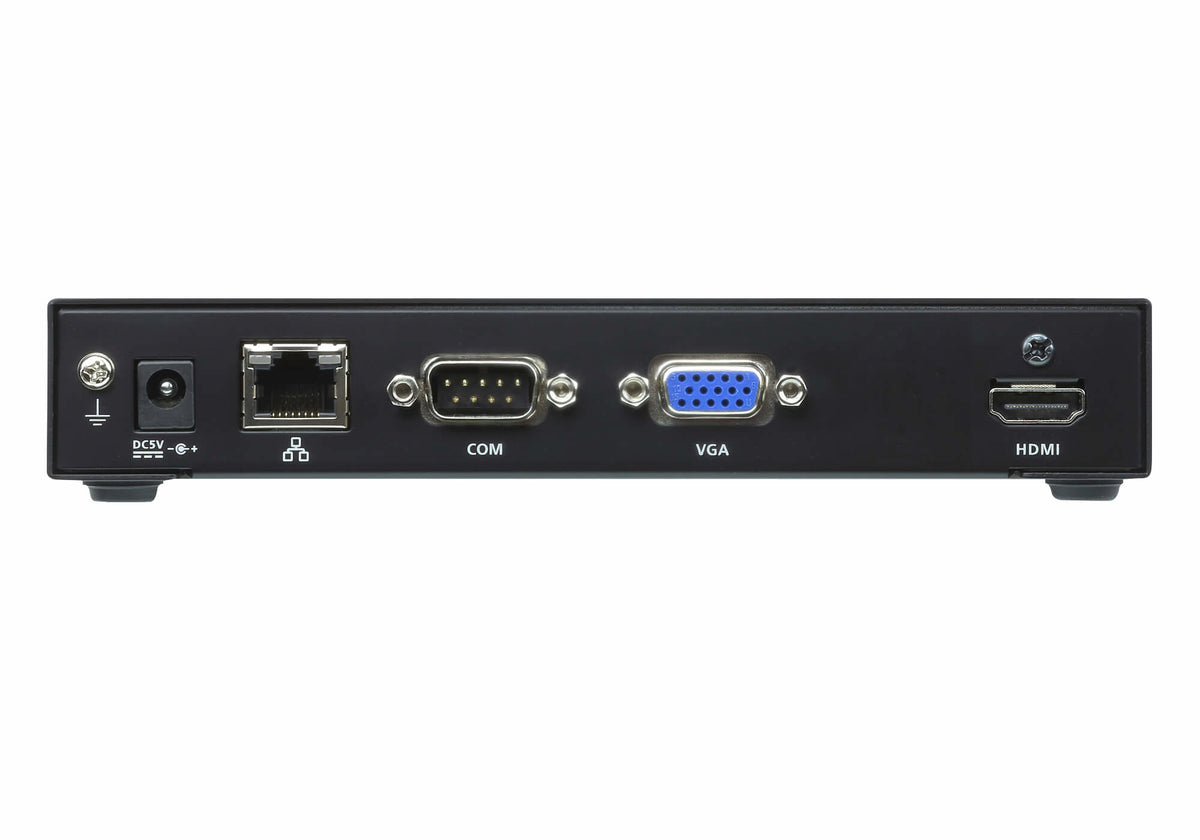

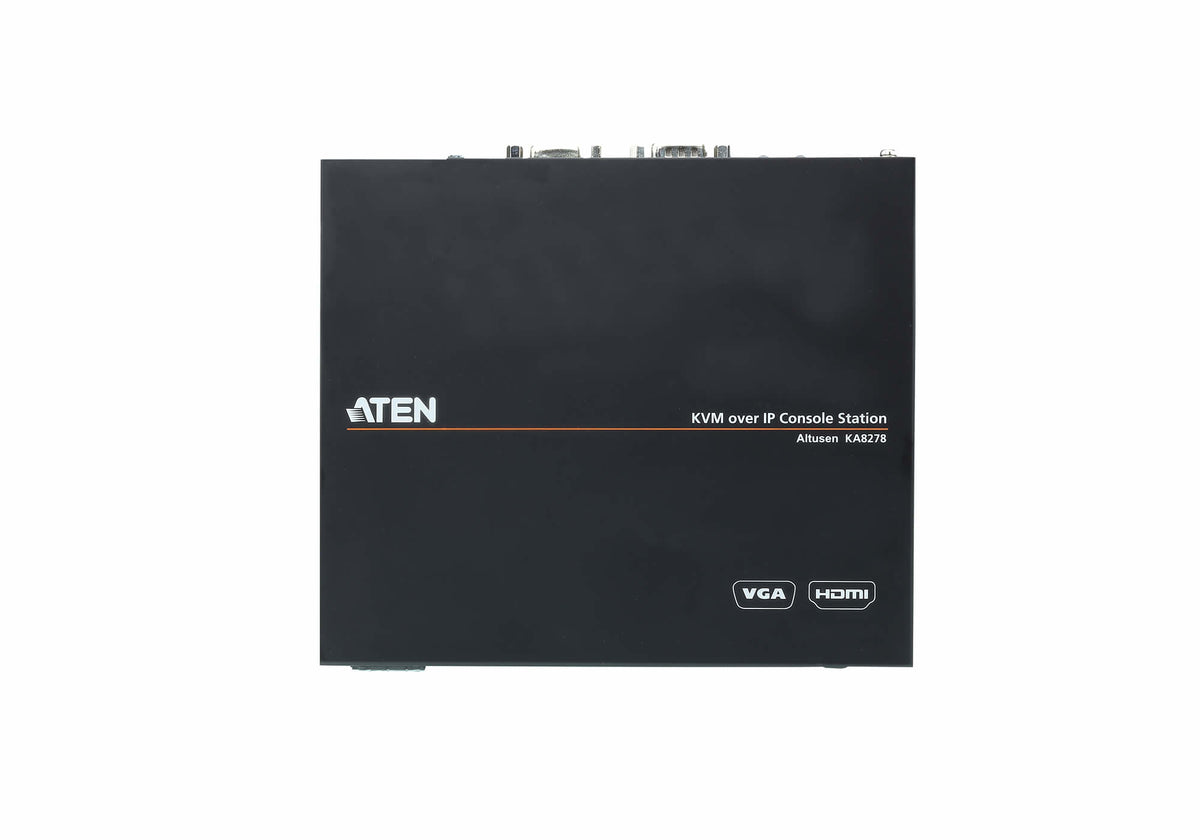

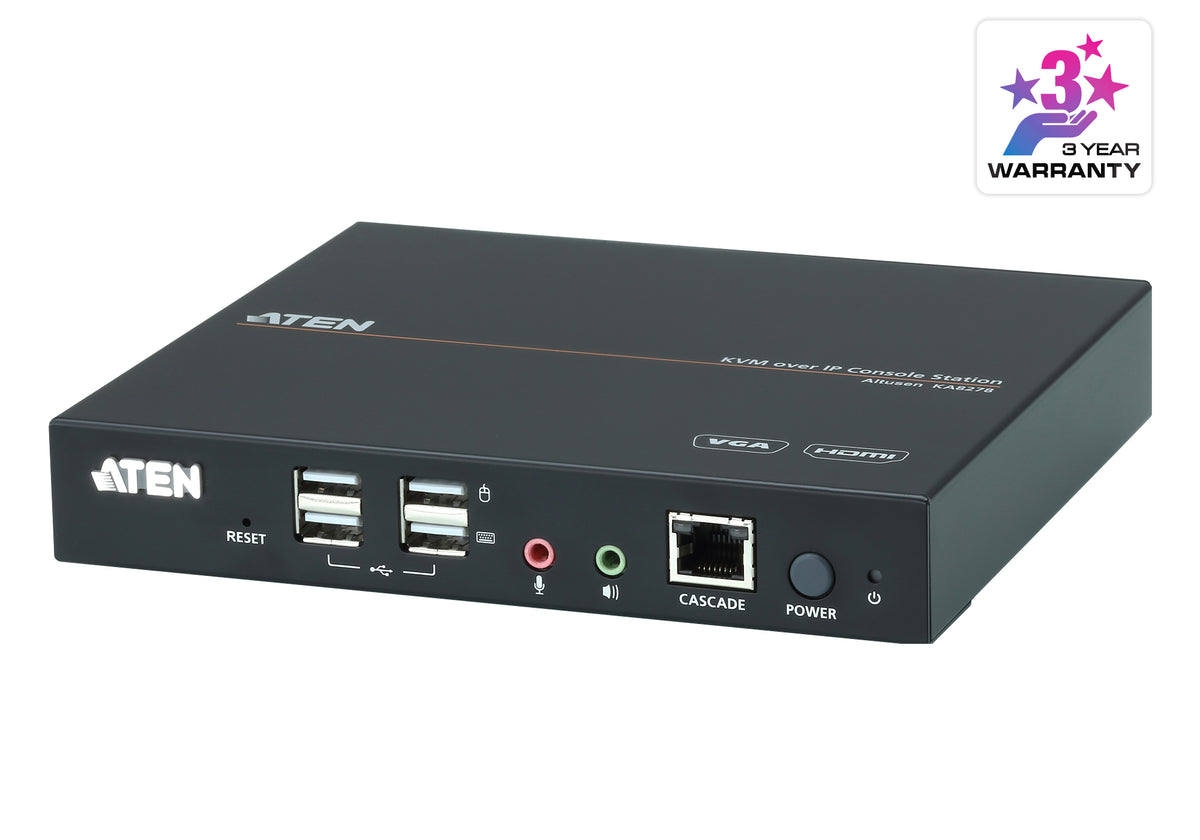

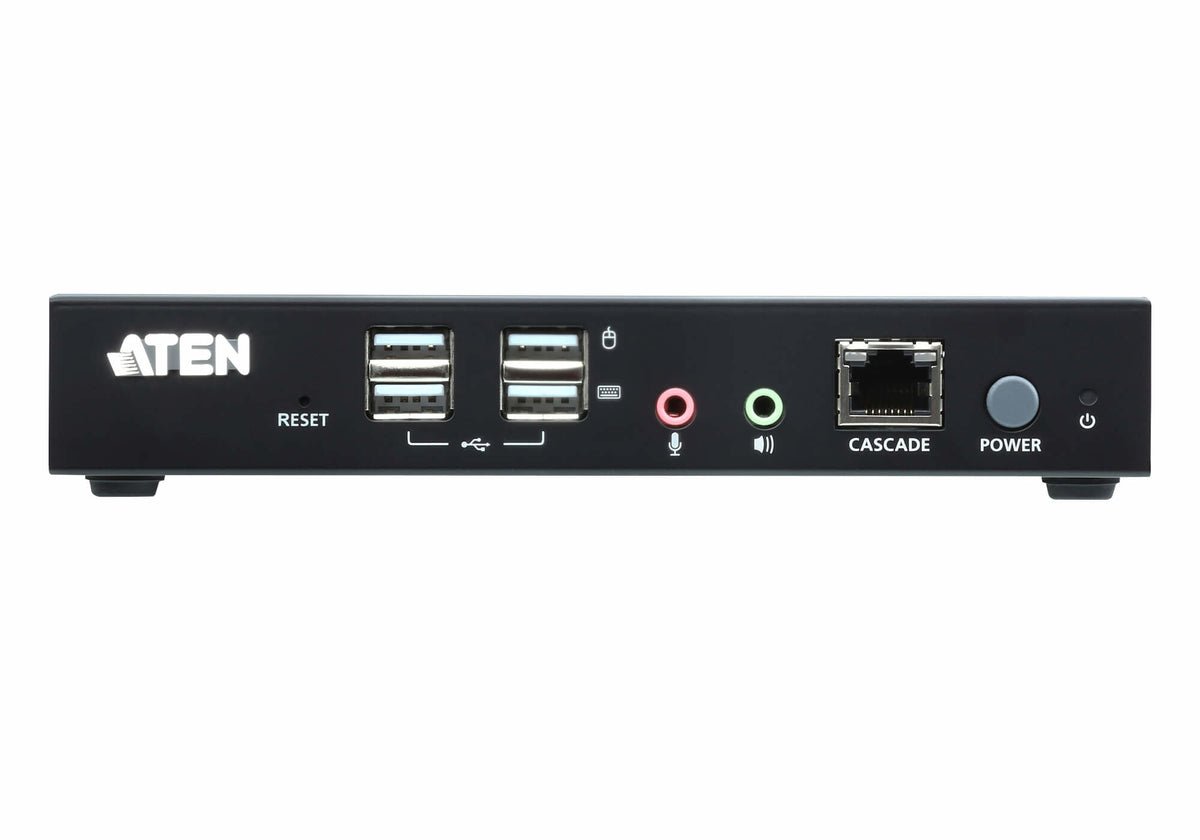

The KVM over IP Console Station KA8278 is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN’s KVM over IP switches* with impenetrable security against virus threats. It also supports various data encryption methods, ensuring impervious data protection. The KVM over IP Console Station can be deployed anywhere instant access is needed and stringent security required, ideal for applications such as studios, offices, data centers, broadcast stations, control rooms, or network operations centers (NOC).
The KA8278 supports USB mouse/keyboard and two USB ports for Virtual Media function, and supports 1 VGA plus 1 HDMI video outputs at resolutions up to 1920 x 1200 @ 60 Hz. The KA8278 also enables users to multitask across two displays with a single keyboard and mouse.
In addition, the KVM over IP Console Station provides Panel Array Mode™ function, enabling administrators to monitor the video output of up to 64 servers simultaneously. The feature makes it possible for previewing the content of all the ports at the same time, which is especially suitable for environments such as manufacturing and surveillance that often require monitoring of a much higher number of ports.
Among its enhanced functions, the KA8278 supports extended desktop by displaying remotely connected PCs on its dual screens, offering users a wider view during control. For easy collaboration between multiple KVM over IP Console Stations, the users can not only share screen contents from one console station to another, but also share the necessary contents to a big TV, for acknowledgement by all operators, during an urgent event. In addition, the KVM over IP Console Station supports Telnet / SSH for management of console devices to allow users to have flexible control of all connected devices. To ensure security, its lock screen password function can effectively prevent unauthorized users from accessing an unattended console station to keep any critical data protected.
The KVM over IP Console Station can be set on a desk, mounted on a wall or at the rear of a rack with its spacesaving 0U rack mount design. It is flexible and easy to install, and provides a GUI with multi-language interface for device management, user profile customization, as well as hassle-free configuration for large deployments..
The KA8278 supports USB mouse/keyboard and two USB ports for Virtual Media function, and supports 1 VGA plus 1 HDMI video outputs at resolutions up to 1920 x 1200 @ 60 Hz. The KA8278 also enables users to multitask across two displays with a single keyboard and mouse.
In addition, the KVM over IP Console Station provides Panel Array Mode™ function, enabling administrators to monitor the video output of up to 64 servers simultaneously. The feature makes it possible for previewing the content of all the ports at the same time, which is especially suitable for environments such as manufacturing and surveillance that often require monitoring of a much higher number of ports.
Among its enhanced functions, the KA8278 supports extended desktop by displaying remotely connected PCs on its dual screens, offering users a wider view during control. For easy collaboration between multiple KVM over IP Console Stations, the users can not only share screen contents from one console station to another, but also share the necessary contents to a big TV, for acknowledgement by all operators, during an urgent event. In addition, the KVM over IP Console Station supports Telnet / SSH for management of console devices to allow users to have flexible control of all connected devices. To ensure security, its lock screen password function can effectively prevent unauthorized users from accessing an unattended console station to keep any critical data protected.
The KVM over IP Console Station can be set on a desk, mounted on a wall or at the rear of a rack with its spacesaving 0U rack mount design. It is flexible and easy to install, and provides a GUI with multi-language interface for device management, user profile customization, as well as hassle-free configuration for large deployments..
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Keyboard port type: USB
- Mouse port type: USB
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 1920 x 1200 pixels
- Video port type: HDMI/VGA
- LED indicators: Power
- Built-in display: No
- Housing material: Metal
- HD type: Full HD+
- Rack mounting: Yes
- Power consumption (typical): 6.53 W
- Audio connections: Yes
- Power source: DC
- Compliance certificates: RoHS
- Manual: Yes
- Push button: Yes
- Headphone outputs: 1
- USB connector type: USB Type-A
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- Yes
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Packaging content
- AC adapter included
- Yes
- Cables included
- AC
Performance
- Video bandwidth
- 60 Hz
Ports & interfaces
- DC-in jack
- Yes
- HDMI ports quantity
- 1
- Number of microphone inputs
- 1
- Serial port type
- DE-9 (DB-9)
- VGA (D-Sub) ports quantity
- 1
Power
- Input voltage
- 5 V
Weight & dimensions
- Depth
- 17.42 cm
- Height
- 2.88 cm
- Weight
- 0.8 kg
- Width
- 15.54 cm
AC adapter included
Cables included: AC
Manual
Cables included: AC
Manual
Materials
Housing material: Metal
