ATEN VE816R AV extender AV receiver Black
Regular price
$1,658.99
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock

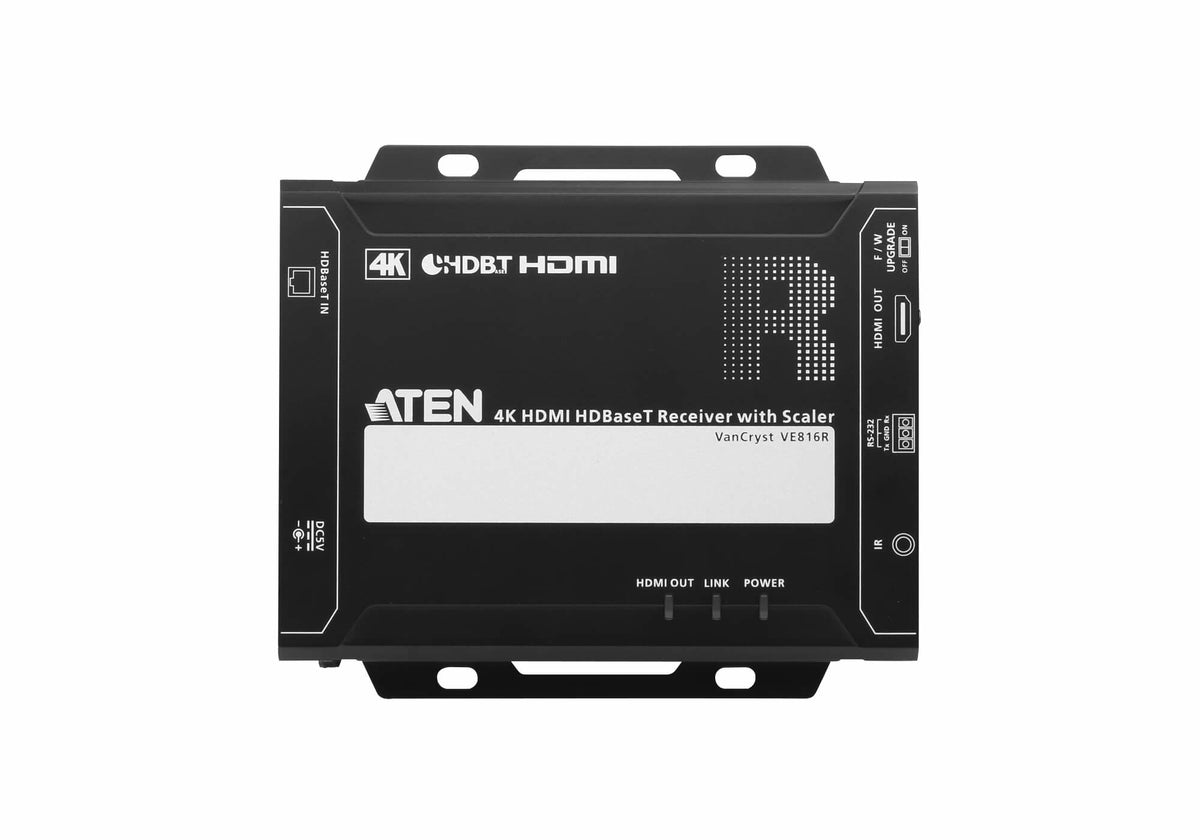

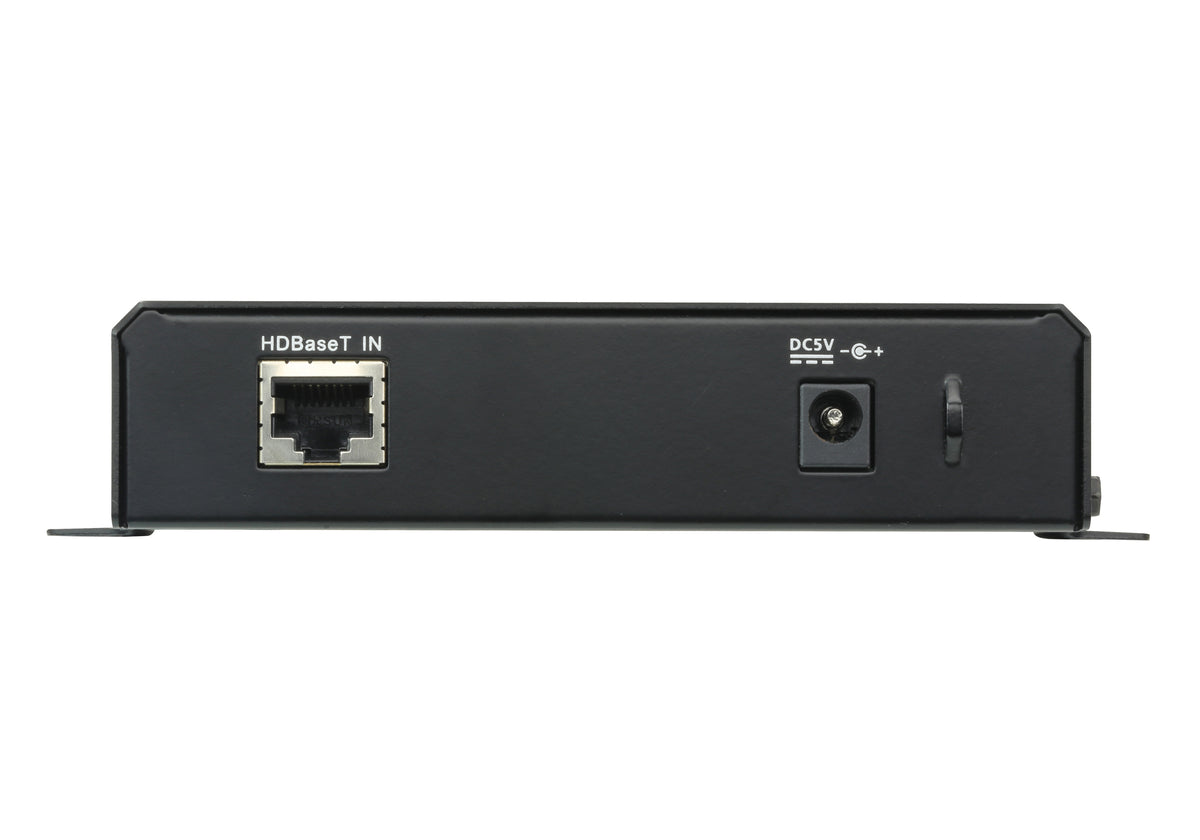

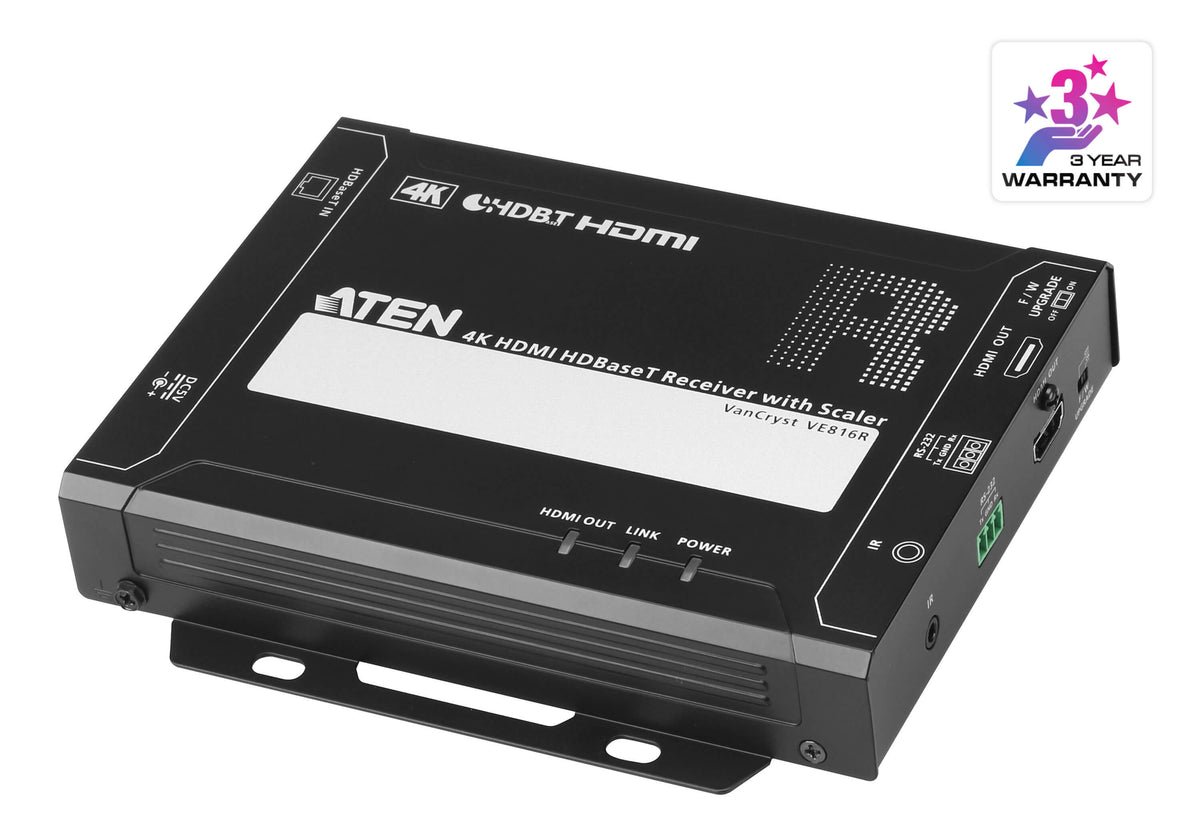

ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display.

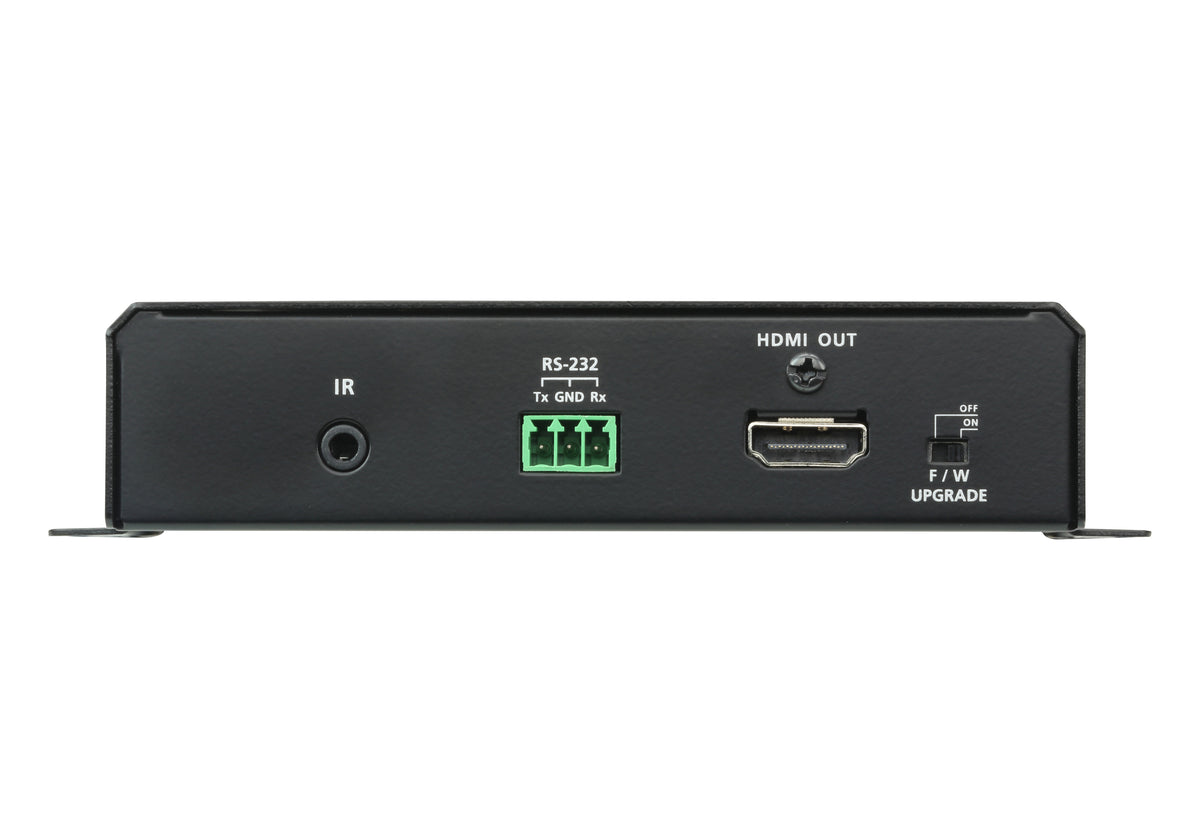

Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process.
When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN’s Seamless Switch ™ function, providing users the ultimate A/V experiences.
Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process.
When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN’s Seamless Switch ™ function, providing users the ultimate A/V experiences.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Type: AV receiver
- Maximum transfer distance: 150 m
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 4096 x 2160 pixels
- Cable types supported: Cat5e, Cat6
- Connectivity technology: Wired
- DC-in jack: Yes
- Material: Metal
- Number of HDMI outputs: 1
- LED indicators: Yes
- AC adapter included: Yes
- RJ-45 input ports: 1
- Supported graphics resolutions: 3840 x 2160, 4096 x 2160
- Compliance certificates: RoHS
- HDCP: Yes
- Supported video modes: 1080p
- Power consumption (typical): 9.09 W
- Impedance: 100 Ω
- External power adapter: Yes
Features
- 3D
- Yes
- Bandwidth
- 340 MHz
- Electrostatic Discharge (ESD) protection
- 15 kV
- Firmware upgradeable
- Yes
- HDBaseT certified
- Yes
- Plug and Play
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
Packaging content
- IR blaster included
- Yes
- IR receiver included
- Yes
- Manual
- Yes
Ports & interfaces
- Remote (IR) input
- 1
- Serial interface type
- RS-232
- Serial ports quantity
- 1
Power
- Operating voltage
- 5 V
Weight & dimensions
- Depth
- 16.6 cm
- Height
- 2.9 cm
- Weight
- 0.67 kg
- Width
- 12.49 cm
AC adapter included
IR blaster included
IR receiver included
Manual
IR blaster included
IR receiver included
Manual
Materials
Material: Metal
Compare With Similar Items
|
|
|
|
|
|
|
| Description | ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display. Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process. When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN’s Seamless Switch ™ function, providing users the ultimate A/V experiences. |

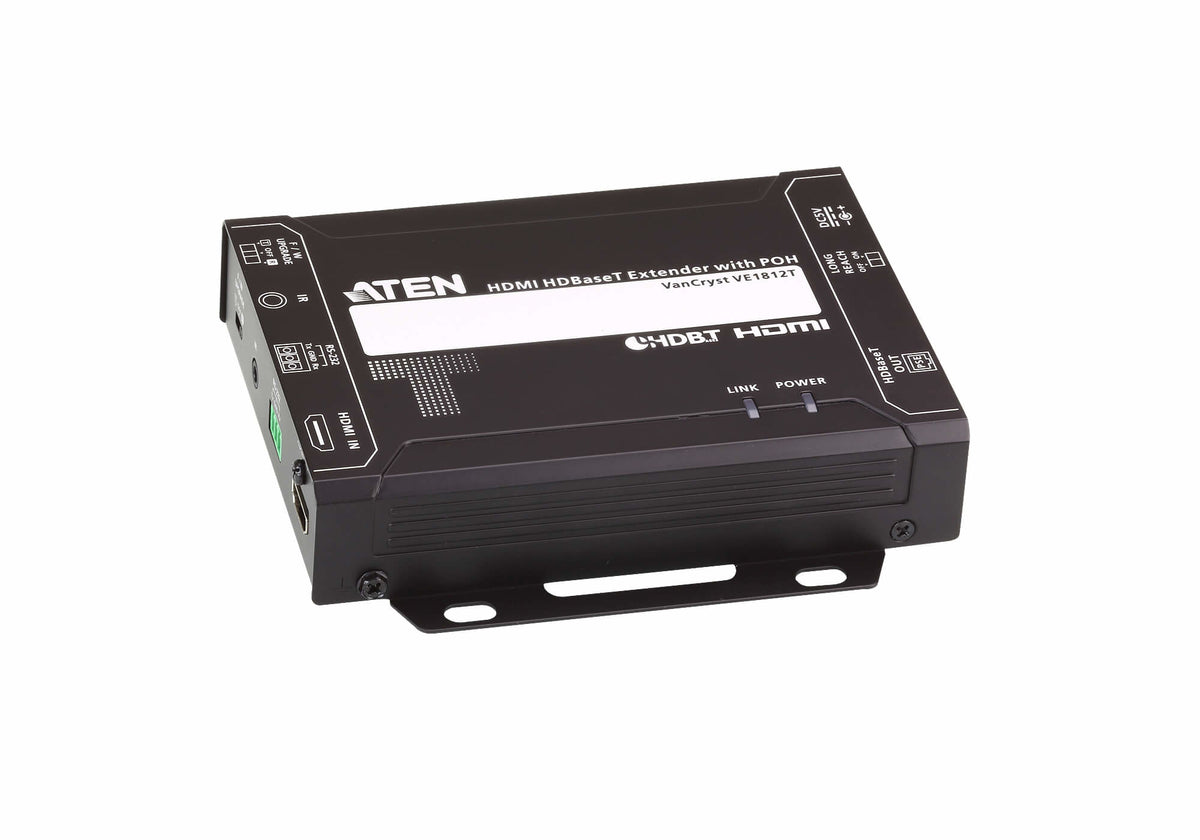

The VE1812T features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812T supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions. The VE1812T HDMI HDBaseT Transmitter with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812T can extend HDMI signal up to 150m @1080p. The VE1812T is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality. |
The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation. 1x VE901T DisplayPort HDBaseT-Lite Transmitter 1x VE901R DisplayPort HDBaseT-Lite Receiver 2x 0AD8-1F05-26M1 Power Adapters 1x User Instructions |

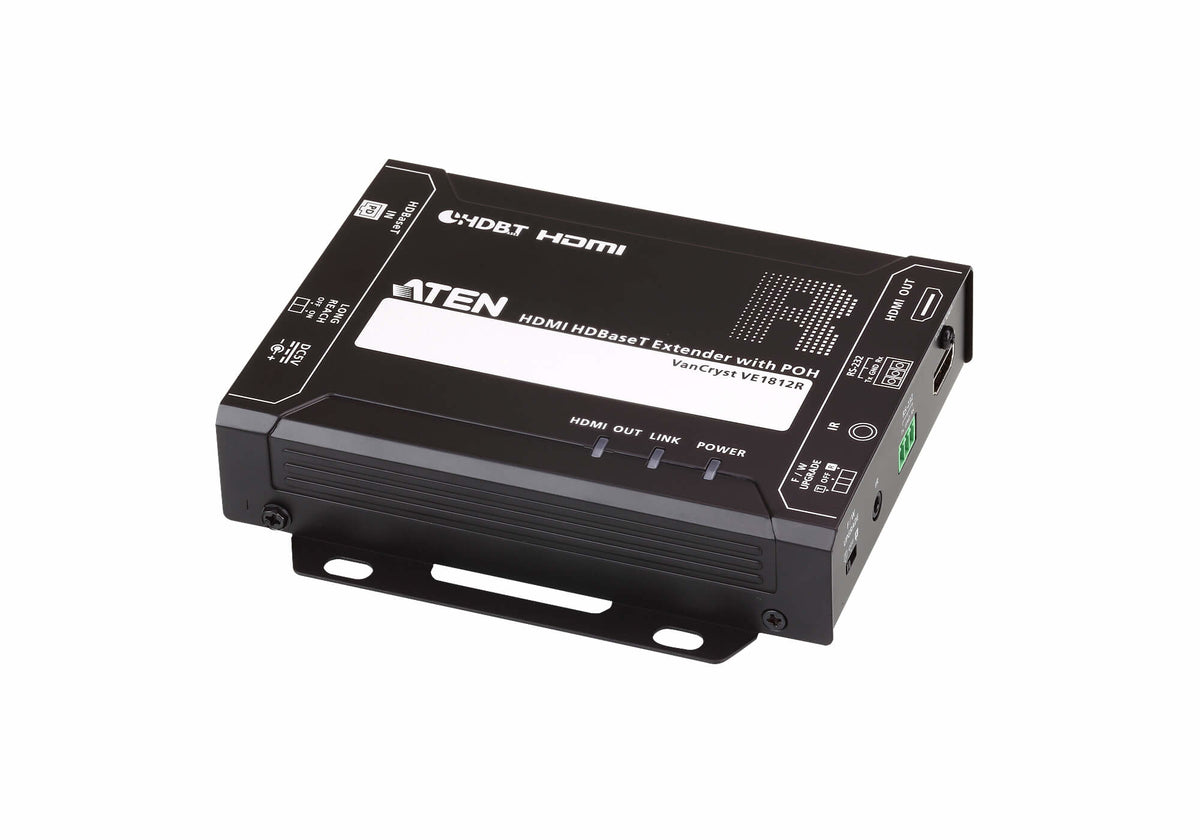

The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions. The VE1812R HDMI HDBaseT Receiver with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812R can extend HDMI signal up to 150m @1080p. The VE1812R is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality. |

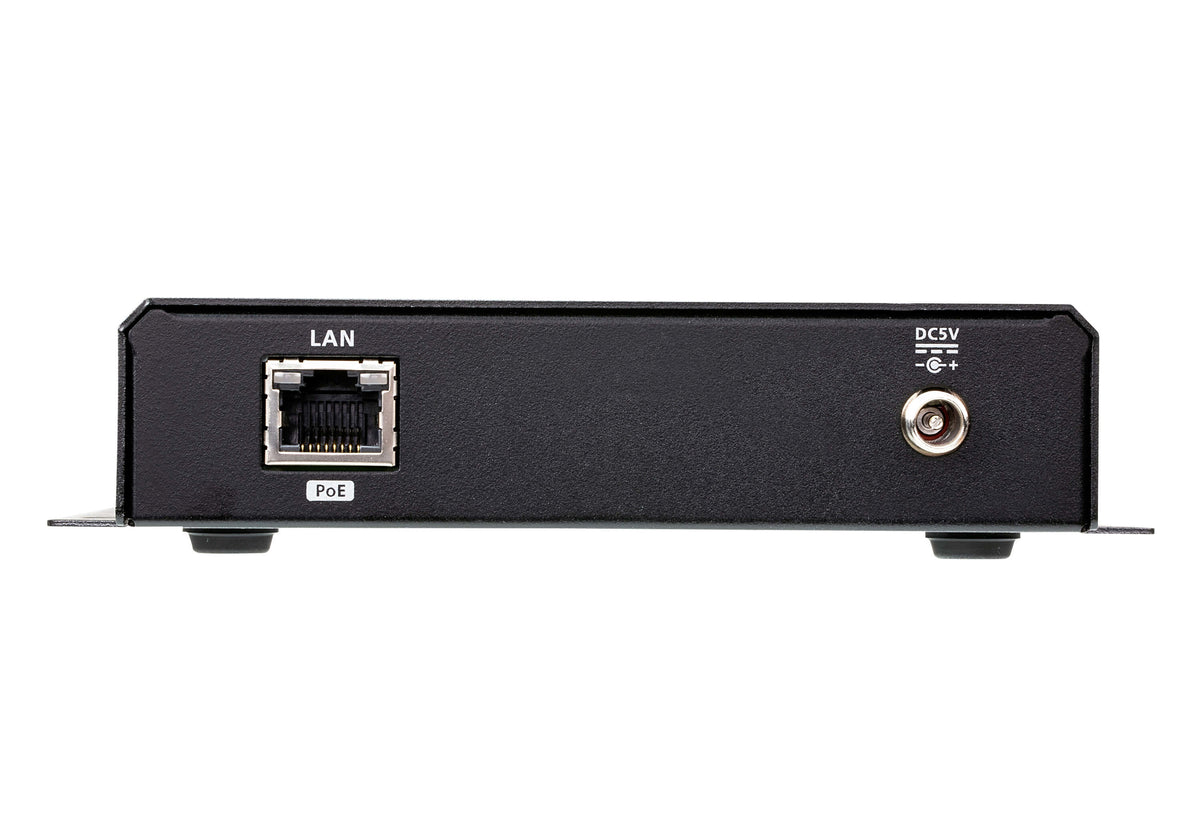

The ATEN VE8952T 4K HDMI over IP Transmitter with PoE delivers visually lossless 4K AV signals with low latency over long distance via a standard Gigabit network. It is an effective and easy-to-use solution that directly addresses the challenges system integrators encounter when deploying AV over IP. Limitless Scalability and Flexibility From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications. No Complicated IP Setup Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience. No Additional Server PCs or Software Required Effortlessly manage your AV over IP system by logging in to any transmitter from the intuitive web GUI with drag and drop operation. Go Further for Less with Daisy Chaining Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs. Locate Anywhere without the Need for Power Cabling With PoE support, you can easily place VE8952T units where they are needed the most without having to install additional power cabling and outlets. Flexible Control with Mobile App Manage and control any VE8952T with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations. Professional Audio/Video Networked AV VE8952T 4K HDMI over IP Transmitter with PoE VE8952T 4K HDMI over IP Transmitter with PoE-2 4K HDMI over IP Transmitter with PoE-2 4K HDMI over IP Transmitter with PoE-3 MSRP: Quote Upon Request Add to Quote Cart Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4 Daisy Chaining - Connects multiple displays through a single port Video Wall Support Add to Comparison Basket Government Video Product Innovation Award 2017 Red Dot Design Award 2018 Best Choice Award 2018 CRN 2018 Taiwan Excellence 2019 4K HDMI 3 Years Warranty Product_sBanner_VE89_Implementation ve89-series Overview Features Diagram Specifications Support and Downloads The ATEN VE8952T 4K HDMI over IP Transmitter with PoE delivers visually lossless 4K AV signals with low latency over long distance via a standard Gigabit network. It is an effective and easy-to-use solution that directly addresses the challenges system integrators encounter when deploying AV over IP. Limitless Scalability and Flexibility From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications. No Complicated IP Setup Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience. No Additional Server PCs or Software Required Effortlessly manage your AV over IP system by logging in to any transmitter from the intuitive web GUI with drag and drop operation. Go Further for Less with Daisy Chaining Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs. Locate Anywhere without the Need for Power Cabling With PoE support, you can easily place VE8952T units where they are needed the most without having to install additional power cabling and outlets. Flexible Control with Mobile App Manage and control any VE8952T with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations. *Note: For more information regarding installation and network switch requirements, please refer to the Implementation Guide : assets.aten.com/product/manual/VE89_Implementation_Guide.pdf Package Contents - 1x VE8952T 4K HDMI over IP Transmitter with PoE - 1x RS-232 Terminal Block - 1x Power Adapter - 4x Foot Pads - 1x User Instructions |
