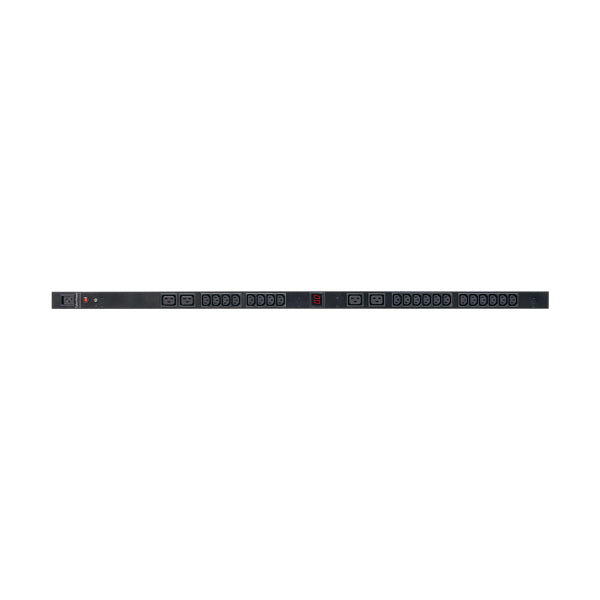

CyberPower PDU20MVHVIEC24F power distribution unit (PDU) 24 AC outlet(s) 0U Black
Regular price
$417.69
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
The CyberPower 24-outlet (24 Front) 0U vertical rack mount basic power distribution unit (PDU20MVHVIEC24F) provides 200/230V 20A output. It distributes power to 24 IEC-320 (4-C19 and 20-C13) receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Warranty period: 2 years
- AC outlets quantity: 24 AC outlet(s)
- PDU types: Metered
- Rack capacity: 0U
- AC outlet types: C13 coupler, C19 coupler
- Nominal input voltage: 200 - 240 V
- Operating temperature (T-T): 32 - 95 °F
- AC input frequency: 50 / 60 Hz
- Maximum current: 16 A
- Mounting: Vertical
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Power plug: C20 coupler
- Nominal output voltage: 200 - 240 V
- Certification: UL60950
- Compliance certificates: RoHS
- Type: Single-phase
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
Design
- Display
- LED
- Housing material
- Steel
Features
- Cable length
- 3.05 m
General
- Video/mp4
- https://www.youtube.com/embed/0-KjuwEz1oE|https://www.youtube.com/embed/J4nYZTMrfig
Operational conditions
- Storage temperature (T-T)
- -15 - 45 °C
Packaging content
- Packaging content
- PDU20MVHVIEC24F, User's Manual, Product Registration Card, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit
Packaging data
- Package depth
- 7.3 cm
- Package height
- 133.2 cm
- Package weight
- 5.42 kg
- Package width
- 15.4 cm
Power
- Circuit breaker
- Yes
- Power protection features
- Overload
- Surge protection
- Yes
Sustainability
- Sustainability compliance
- Yes
Weight & dimensions
- Depth
- 3.81 cm
- Dimensions (W x D x H) (imperial)
- 44.5 x 57.1 x 1219.2 mm (1.75 x 2.25 x 48")
- Height
- 121.92 cm
- Weight
- 2.63 kg
- Weight (imperial)
- 3.18 kg
- Width
- 4.45 cm
Materials
Housing material: Steel
