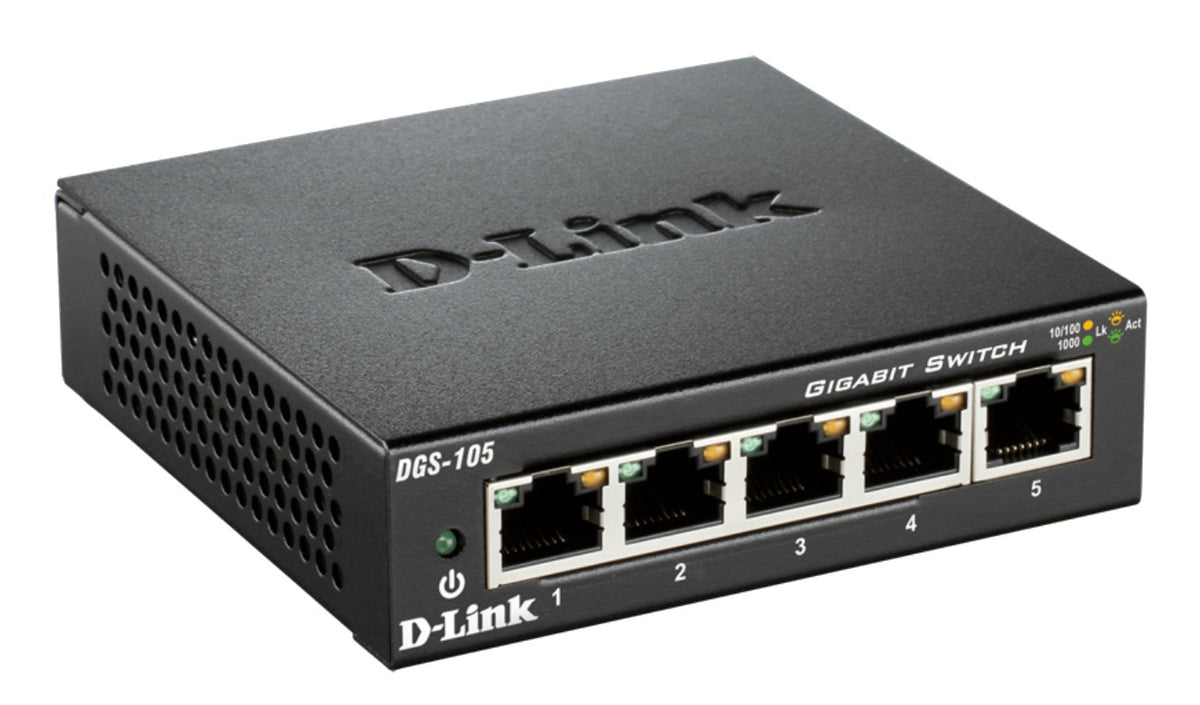

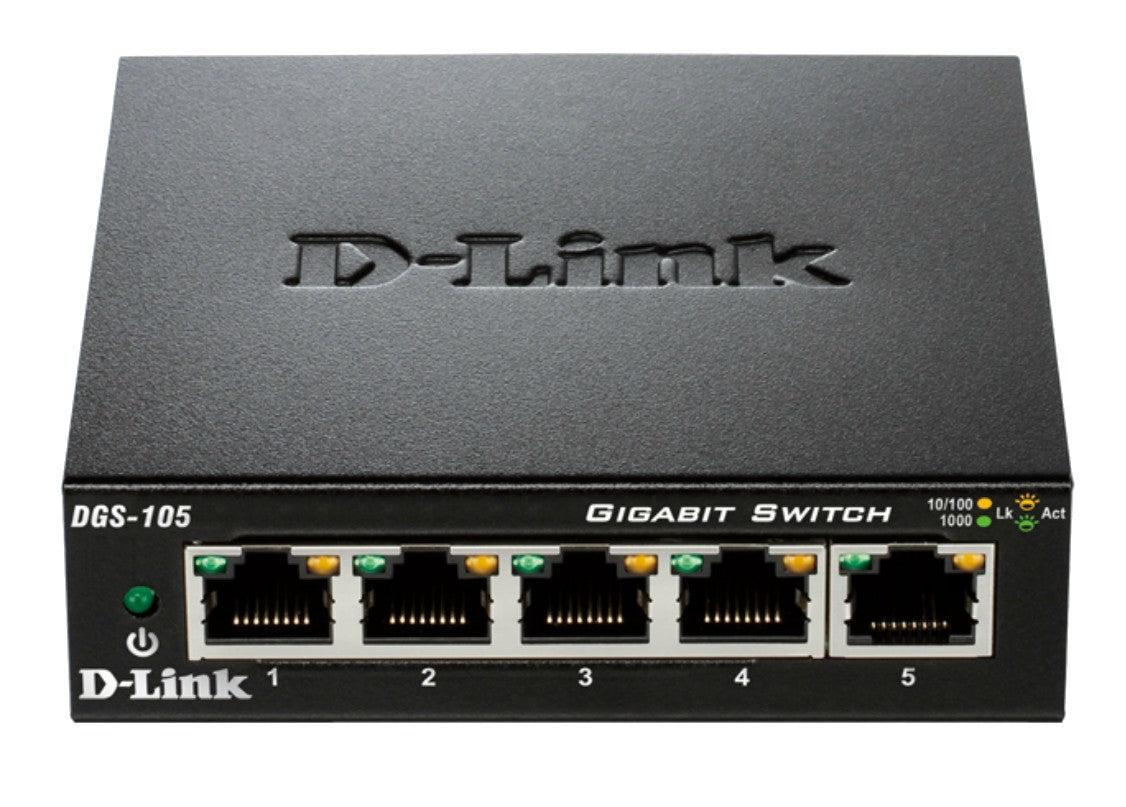

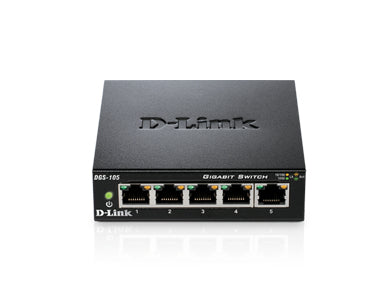

D-Link DGS-105 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop Black
Regular price
$61.67
Sale price
Regular price
Tax included.
Available in stock (28)
D-Link DGS-105. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Form factor: Desktop
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Unmanaged
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Switching capacity: 10 Gbit/s
- MAC address table: 2000 entries
- 10G support: Yes
- Storage relative humidity (H-H): 5 - 90%
- LED indicators: Link, Power
- Quality of Service (QoS) support: Yes
- Rack mounting: No
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2
- Packet buffer memory: 0.13MB
- Store-and-forward: Yes
- Auto MDI/MDI-X: Yes
Certificates
- Certification
- FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Data transmission
- Maximum data transfer rate
- 1 Gbit/s
- Supported data transfer rates
- 10/100/1000 Mbps
Design
- Form factor
- Desktop
- Housing material
- Metal
Logistics data
- Harmonized System (HS) code
- 85176990
Network
- Copper ethernet cabling technology
- 1000BASE-T, 100BASE-TX, 10BASE-T
- Full duplex
- Yes
Operational conditions
- Heat dissipation
- 9.548 BTU/h
- Storage temperature (T-T)
- -10 - 70 °C
Other features
- Connectivity technology
- Wired
- Data transfer rate
- 2000 Mbit/s
- Dimensions (WxDxH)
- 162 x 102 x 28 mm
Packaging data
- Included power plug types
- EU
Performance
- Mean time between failures (MTBF)
- 1479725 h
Ports & interfaces

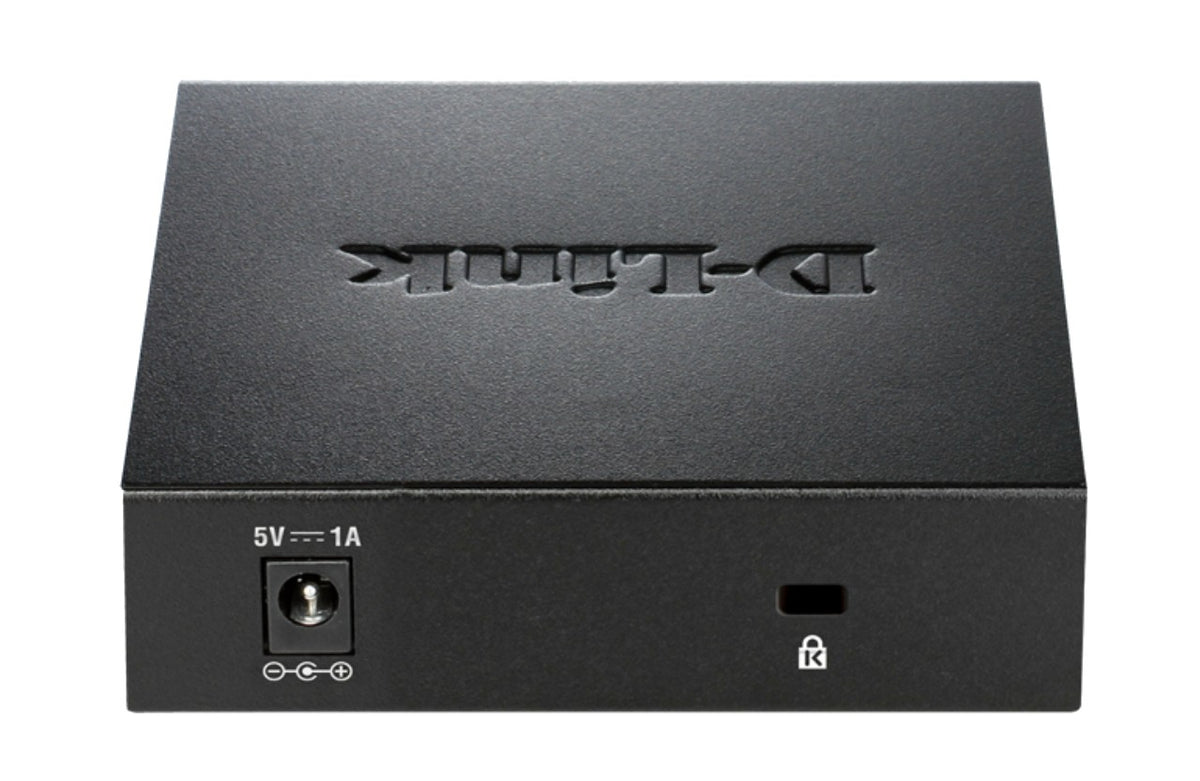

- Power connector
- DC-in jack
Power
- Input current
- 1 A
- Input voltage
- 5 V
- Power consumption (typical)
- 2.8 W
- Power source
- AC
Security
- MAC address filtering
- Yes
Technical details
- Master (outer) cases per pallet (air)
- 48 pc(s)
- Master (outer) cases per pallet (sea)
- 48 pc(s)
- Pallet gross length
- 110 cm
- Pallet gross weight (air)
- 398.9 kg
- Pallet gross weight (sea)
- 398.9 kg
- Pallet gross width
- 120 cm
- Pallet height (air)
- 196.7 cm
- Pallet height (sea)
- 196.7 cm
- Products per pallet (air)
- 480 pc(s)
- Products per pallet (sea)
- 480 pc(s)
- Products per shipping (inner) case
- 10 pc(s)
- Shipping (inner) case gross weight
- 7.79 kg
- Shipping (inner) case height
- 44.3 cm
- Shipping (inner) case length
- 37 cm
- Shipping (inner) case net weight
- 7.1 kg
- Shipping (inner) case width
- 26 cm
Weight & dimensions
- Depth
- 8.5 cm
- Height
- 2.24 cm
- Weight
- 0.19 kg
- Width
- 9.09 cm
Included power plug types: EU
Materials
Housing material: Metal
