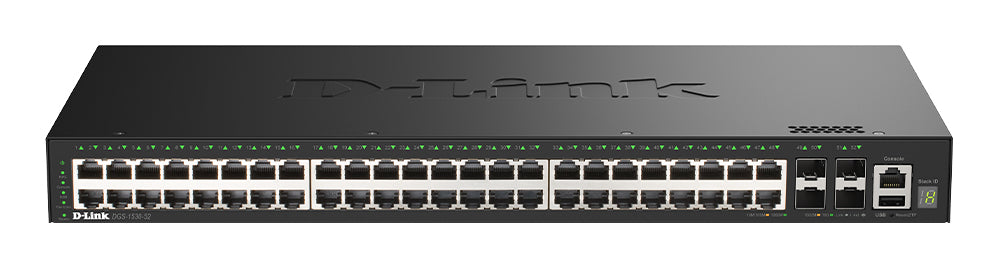

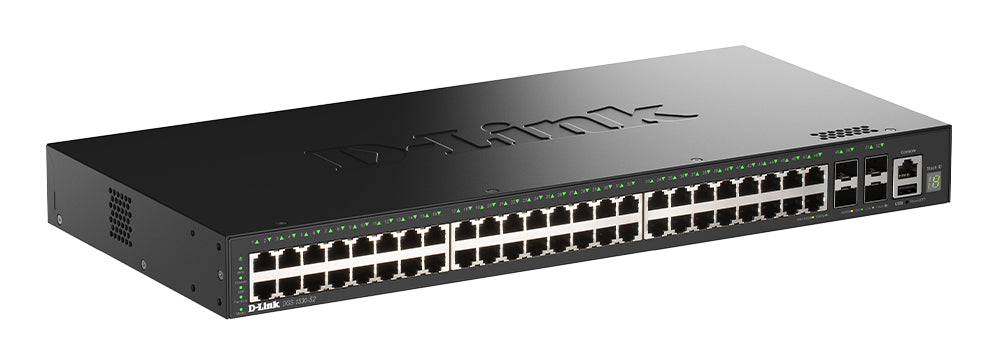

D-Link 52-Port Gigabit Stackable Smart Managed Switch with 4 x 10G SFP+ Ports
Regular price
$2,177.35
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
The DGS-1530 Series are part of the Layer 2 family of D-Link’s Stackable Smart Switch product line that provides wired Gigabit speeds for Metro Ethernet and campus networks. They feature a variety of ports, including 10/100/1000BASE-T RJ-45 ports, 1G SFP ports, and 10G SFP+ ports for increased network bandwidth. Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-1530 Series Stackable Smart Switch ideal for Metro Ethernet and campus applications.
Product Highlights
Comprehensive Security Solution Support for Access Control Lists (ACLs), multiple user authentication methods, and IP-MAC-Port Binding ensures a secure network environment
Superior Reliability
Per-port surge protection, Ethernet Ring Protection Switching (ERPS), and redundant power supply (RPS) features all help to maximize service availability
Scalability and High Availability
Physical stacking provides agile expansion and redundancy while reliability through fault tolerant topologies ensures rock-solid connectivity
Product Highlights
Comprehensive Security Solution Support for Access Control Lists (ACLs), multiple user authentication methods, and IP-MAC-Port Binding ensures a secure network environment
Superior Reliability
Per-port surge protection, Ethernet Ring Protection Switching (ERPS), and redundant power supply (RPS) features all help to maximize service availability
Scalability and High Availability
Physical stacking provides agile expansion and redundancy while reliability through fault tolerant topologies ensures rock-solid connectivity
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): -5 - 50 °C
- Operating relative humidity (H-H): 0 - 95%
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): No
- Switching capacity: 176 Gbit/s
- MAC address table: 16000 entries
- 10G support: Yes
- Storage relative humidity (H-H): 0 - 95%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2
- Forwarding rate: 130.95 Mpps
- AC input voltage: 100 - 240 V
Data transmission
- Packet buffer memory
- 1.5MB
- Store-and-forward
- Yes
Design
- Number of fans
- 2 fan(s)
- Stackable
- Yes
Management features
- ARP inspection
- Yes
- Configuring Location Settings (CLI)
- Yes
- Traffic classification
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Broadcast storm control
- Yes
- Ethernet LAN data rates
- 10,1000,100 Mbit/s
- Full duplex
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 4096
- Policy-based routing
- Yes
- Port mirroring
- Yes
- Spanning tree protocol
- Yes
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 150.38 BTU/h
Performance
- Mean time between failures (MTBF)
- 330520 h
- Noise level
- 54.7 dB
Ports & interfaces
- Console port
- RJ-45
- SFP+ module slots quantity
- 4
- USB 2.0 ports quantity
- 1
- USB Type-A ports quantity
- 1
Power
- AC input frequency
- 50/60 Hz
- Power consumption (max)
- 44.1 W
- Power source
- AC
Security
- Access Control List (ACL)
- Yes
- Access Control List (ACL) egress
- 1000
- Access Control List (ACL) ingress
- 2000
- Authentication type
- RADIUS, TACACS+
- IGMP snooping
- Yes
- Loop protection
- Yes
- MAC address filtering
- Yes
- Password protection
- Yes
- Security algorithms
- SNMP, SNMPv2, SNMPv3
- SSH/SSL support
- Yes
Weight & dimensions
- Depth
- 21 cm
- Height
- 4.4 cm
- Weight
- 3.2 kg
- Width
- 44 cm
Materials
