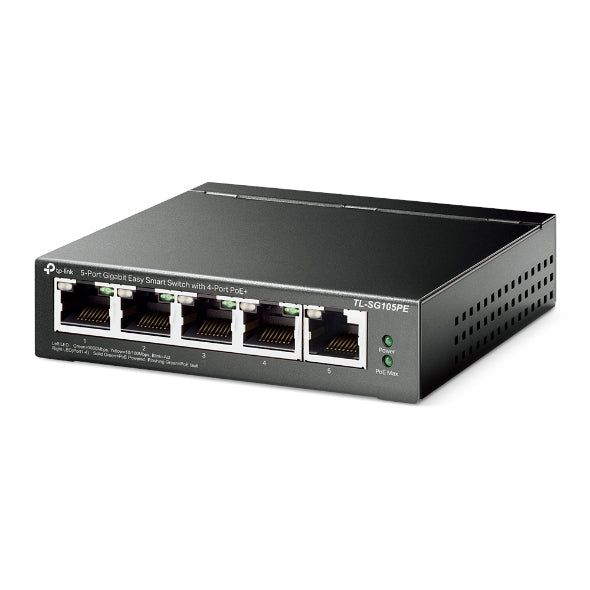

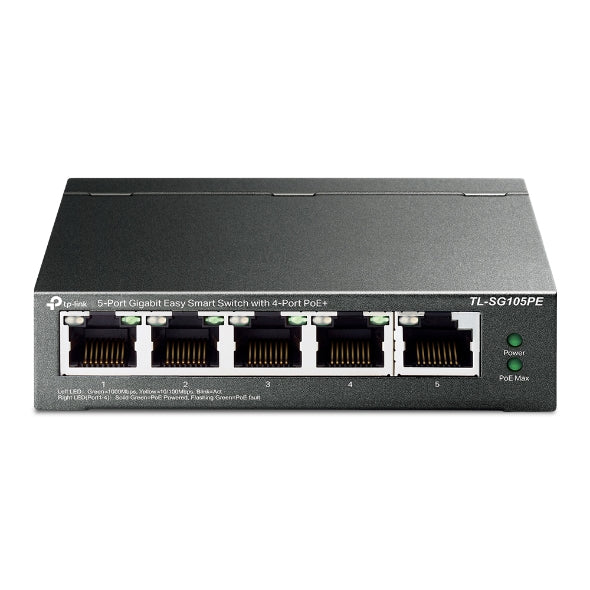

TP-Link 5-Port Gigabit Easy Smart PoE Switch with 4-Port PoE+
Regular price
$101.81
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (98)
The TL-SG105PE is an 5-port Gigabit Easy Smart Switch with 4 PoE+ ports, represents a powerful upgrade from an unmanaged switch. It is designed specially for small businesses that require simple network management and PoE function. The TL-SG105PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG105PE can improve security and meet more network segmentation requirements.

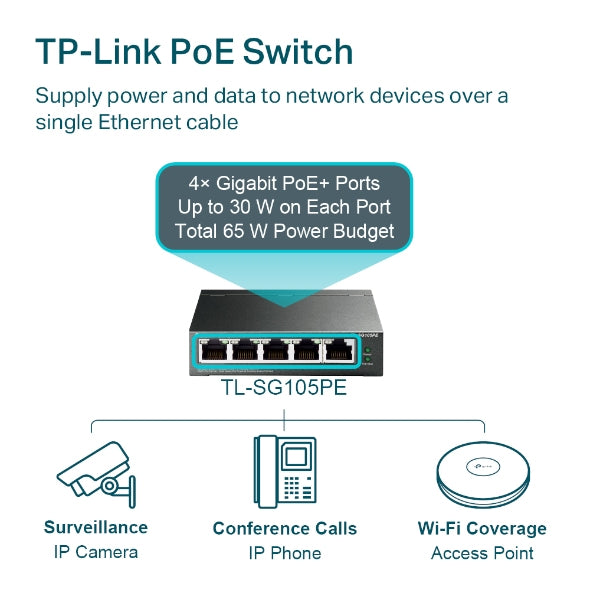

Power Over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Overload Arrangement
TL-SG105PE has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 65 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1>port 2>port 3>port 4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are consuming 15.4 W respectively. If an additional PoE device with 20 W is inserted to port 3, the system will cut off the power of port 4 to compensate for the overload.
Effective Management
TL-SG105PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS.
With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105PE can identify and even locate connection problems on your business network. Also, administrators can designate the priority of the traffic based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free.
Additionally, to improve security and network performance, TL-SG105PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
TL-SG105PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
Easy to Use
TL-SG105PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
Power Over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Overload Arrangement
TL-SG105PE has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 65 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1>port 2>port 3>port 4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are consuming 15.4 W respectively. If an additional PoE device with 20 W is inserted to port 3, the system will cut off the power of port 4 to compensate for the overload.
Effective Management
TL-SG105PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS.
With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105PE can identify and even locate connection problems on your business network. Also, administrators can designate the priority of the traffic based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free.
Additionally, to improve security and network performance, TL-SG105PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
TL-SG105PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
Easy to Use
TL-SG105PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power over Ethernet (PoE): Yes
- Switching capacity: 10 Gbit/s
- MAC address table: 2000 entries
- 10G support: No
- Storage relative humidity (H-H): 5 - 95%
- LED indicators: Activity, Link, PoE, Power, Speed, Status
- Quality of Service (QoS) support: Yes
- Rack mounting: No
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2
- Forwarding rate: 7.44 Mpps
- Jumbo frames: 16000
Certificates
- Certification
- FCC, CE, RoHS
Data transmission
- Number of queues
- 4
- Packet buffer memory
- 1MB
- Store-and-forward
- Yes
General
- Video/mp4
- https://youtu.be/kgSGpEgmcEk|https://youtu.be/lqmQsxHcQU0
Logistics data
- Harmonized System (HS) code
- 85176990
Management features
- Web-based management
- Yes
Network
- Auto-negotiation
- Yes
- Auto MDI/MDI-X
- Yes
- Broadcast storm control
- Yes
- Cable types supported
- Cat3, Cat4, Cat5, Cat5e, Cat6
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
- Link aggregation
- Yes
- Number of VLANs
- 4000
- Port mirroring
- Yes
- Rate limiting
- Yes
- Virtual LAN features
- Port-based VLAN, Tagged VLAN
- VLAN support
- Yes
Operational conditions
- Heat dissipation
- 256.3 BTU/h
- Storage temperature (T-T)
- -40 - 70 °C
Packaging content
- User guide
- Yes
Packaging data
- Package depth
- 19.6 cm
- Package height
- 12.1 cm
- Package weight
- 0.77 kg
- Package width
- 13.1 cm
Performance
- Fanless
- Yes
Ports & interfaces
- Gigabit Ethernet (copper) ports quantity
- 5
Power

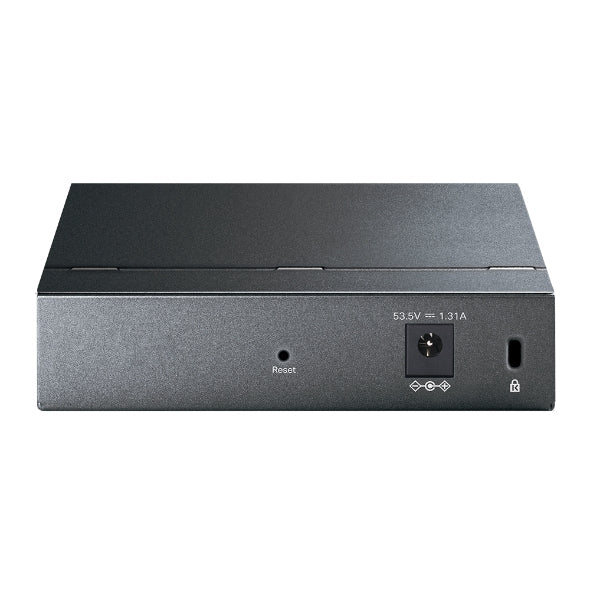

- Input current
- 1.31 A
- Input voltage
- 53.5 V
- Power consumption (max)
- 75.16 W
- Power source
- DC
- Power supply included
- Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port
- 30 W
- Power over Ethernet plus (PoE+) ports quantity
- 4
- Total Power over Ethernet (PoE) budget
- 65 W
Security
- IGMP snooping
- Yes
- Loop protection
- Yes
Weight & dimensions
- Depth
- 9.8 cm
- Height
- 2.5 cm
- Width
- 9.98 cm
Power supply included
Materials
