Sold out

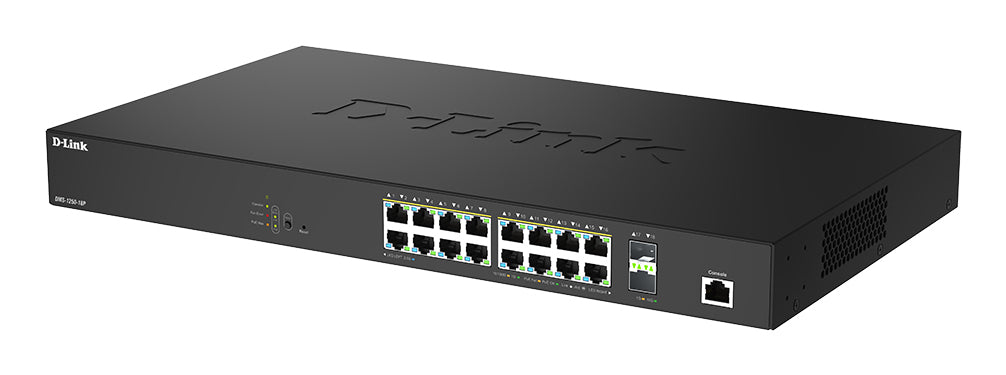

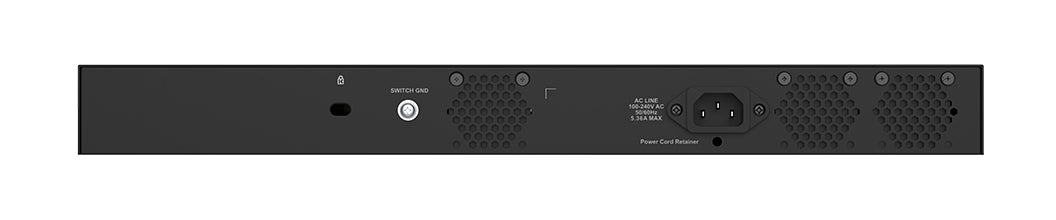

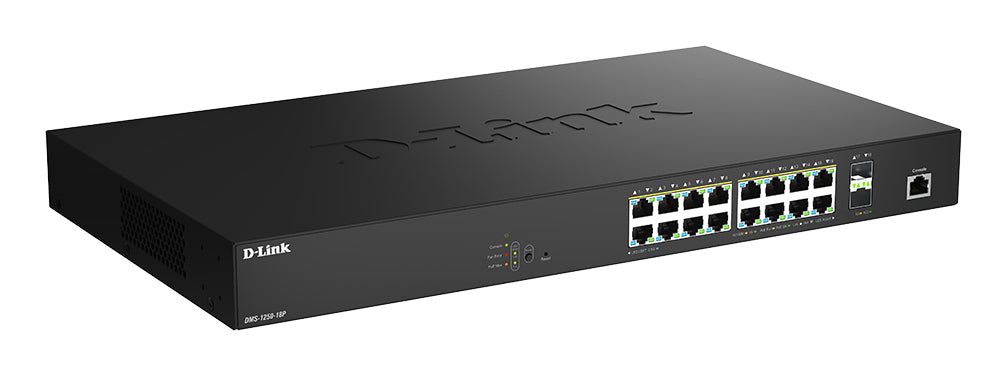

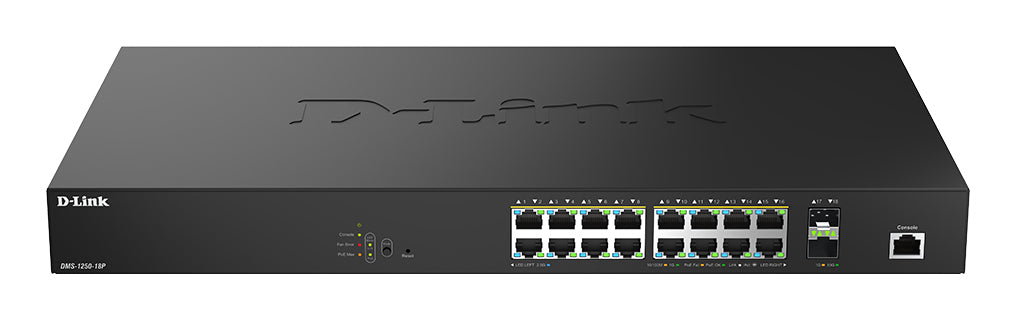

D-Link 18-Port 2.5G Multi-Gigabit PoE++ Smart Managed Switch with 2 x 10G SFP+ Ports
Regular price
$1,693.96
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
The DMS-1250 Series is D-Link’s newest family of Multi-Gigabit Ethernet smart switches. It provides multi-Gigabit connectivity, Power over Ethernet (PoE) capability, multiple management interfaces and advanced layer 2 features. The DMS-1250 Series provides a high-performace solution to expand your network and adapts to your business needs.
Highlights
Multi-Gigabit Ethernet Connection Delivers fast 2.5 Gbps performance using existing cabling, suitable for Wi-Fi 6 network deployments
10G Uplink Connections
Two 10-Gigabit Ethernet or SFP+ uplink ports allow for additional connections to a storage device or uplink network
Power over Ethernet
PoE+ (30W) or PoE++ (90W) options to simultaneously power multiple types of PoE devices with various power draw requirements
Highlights
Multi-Gigabit Ethernet Connection Delivers fast 2.5 Gbps performance using existing cabling, suitable for Wi-Fi 6 network deployments
10G Uplink Connections
Two 10-Gigabit Ethernet or SFP+ uplink ports allow for additional connections to a storage device or uplink network
Power over Ethernet
PoE+ (30W) or PoE++ (90W) options to simultaneously power multiple types of PoE devices with various power draw requirements
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Internal memory: 512MB
- Product colour: Black
- Switch type: Managed
- Operating temperature (T-T): -5 - 50 °C
- Operating relative humidity (H-H): 0 - 95%
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
- Power over Ethernet (PoE): Yes
- Switching capacity: 120 Gbit/s
- MAC address table: 16000 entries
- Storage relative humidity (H-H): 0 - 95%
- LED indicators: Yes
- Quality of Service (QoS) support: Yes
- Rack mounting: Yes
- Flow control support: Yes
- Jumbo frames support: Yes
- Switch layer: L2
- Forwarding rate: 89.29 Mpps
- Jumbo frames: 12000
Data transmission
- Packet buffer memory
- 12MB
- Store-and-forward
- Yes
Design
- Number of fans
- 3 fan(s)
- Stackable
- Yes
Management features
- ARP inspection
- Yes
- Configuring Location Settings (CLI)
- Yes
- Traffic classification
- Yes
- Web-based management
- Yes
Multicast features
- Multicast support
- Yes
Network
- Active link detection
- Yes
- Auto MDI/MDI-X
- Yes
- Broadcast storm control
- Yes
- Link aggregation
- Yes
- Number of VLANs
- 4096
- Port mirroring
- Yes
- Rate limiting
- Yes
- Spanning tree protocol
- Yes
- VLAN support
- Yes
Operational conditions
- Storage temperature (T-T)
- -20 - 70 °C
Performance
- Flash memory
- 32MB
Ports & interfaces
- Power connector
- AC-in jack
- SFP+ module slots quantity
- 2
Power
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (max)
- 443.84 W
- Power source
- AC
- Power supply included
- Yes
Power over Ethernet (PoE)
- Power over Ethernet (PoE) ports quantity
- 16
- Power over Ethernet (PoE) power per port
- 370 W
Security
- Access Control List (ACL)
- Yes
- DHCP features
- DHCP server, DHCP snooping
- IGMP snooping
- Yes
- Loop protection
- Yes
- MAC address filtering
- Yes
- Password protection
- Yes
Weight & dimensions
- Depth
- 25 cm
- Height
- 4.4 cm
- Weight
- 3.52 kg
- Width
- 44 cm
Power supply included
Materials
