j5create JCD543P USB-C® Triple Display Docking Station with 100W PD Adapter - UK, Silver and Black
Regular price
$190.62
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (143)

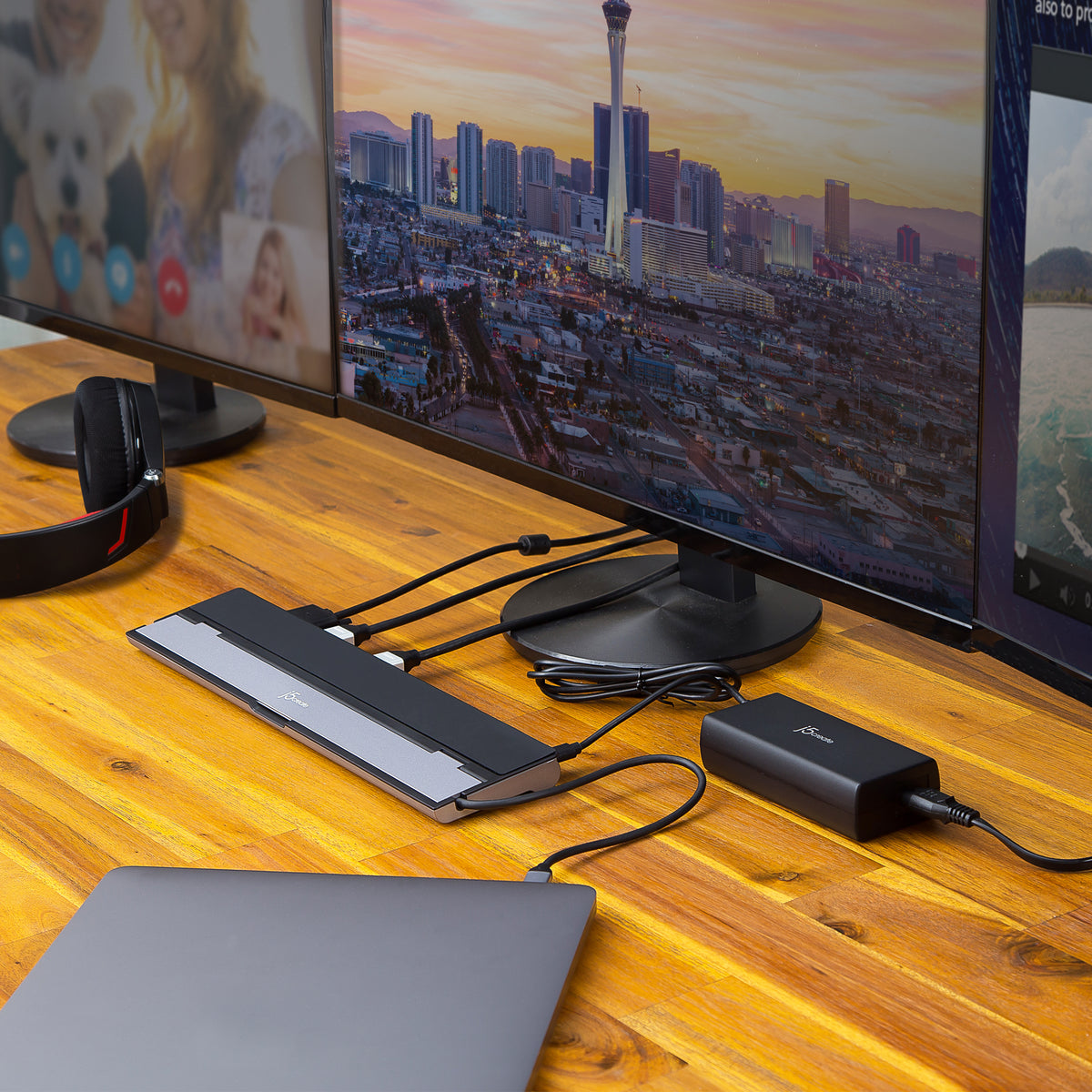

The j5create JCD543P triple display docking station provides extra connectivity for your computer, turning your Mac® or Windows® laptop into a full workstation with a DisplayPort™ output, two HDMI™ outputs and a VGA output, with resolution support up to 4K (3840 x 2160) on two displays and 1080p on the other one. You can also use your laptop screen for four displays in total, making it easy to access multiple applications at once. With 100W Power Delivery, three USB™ 3.0 ports, and a USB-C™ port, the docking station is perfect for your MacBook®, Dell® XPS™, or other USB-C™ laptop requiring additional ports.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black, Silver
- Warranty period: 2 years
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- Card reader integrated: Yes
- Windows operating systems supported: Yes
- Connectivity technology: Wired
- Ethernet LAN: Yes
- HDMI ports quantity: 2
- Mac operating systems supported: Yes
- Ethernet LAN (RJ-45) ports: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Operating relative humidity (H-H): 0 - 85%
- Microphone in: No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB Power Delivery (USB PD): Yes
- USB Power Delivery up to: 100 W
- Products per master (outer) case: 2 pc(s)
- Maximum digital resolution: 3840 x 2160 pixels
- Master (outer) case height: 12.3 cm
- Master (outer) case length: 39.8 cm
Logistics data
- Export Control Classification Number (ECCN)
- EAR99
- Master (outer) case gross weight
- 2 kg
- Master (outer) case width
- 15 cm
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 0 - 85%
- Storage temperature (T-T)
- -10 - 65 °C
Other features
- Cable length
- 0.45 m
- Cable type
- USB-C
- Compatible operating systems
- Microsoft® Windows® 10\nmacOS® 10.11 or later
- Maximum operating temperature
- 40 °C
- Minimum system requirements
- Intel® HD Graphics 505 / AMD Radeon™ R5\nAvailable USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0\nPlease refer to the manufacturer of your hardware for more information on your device\nExtended Monitor System Requirements: (Higher processor recommended for multiple displays)\nOne 2K (2048 x 1152 @ 60 Hz) full-screen video playback\nCPU: Intel® Core™ i5 Quad Core\nRAM: 4 GB memory or higher\nTwo 2K (2048 x 1152 @ 60 Hz) full-screen video playback\nCPU: Intel® Core™ i7 Quad Core\nRAM: 8 GB memory or higher
- Special features
- Simultaneous DisplayPort™, HDMI™ and VGA Output, 13 ports in one sleek design for all your needs
- USB ports quantity
- 6
Packaging content
- AC adapter included
- Yes
- Cables included
- USB Type-C
- Quick start guide
- Yes
Packaging data
- Package depth
- 35.8 cm
- Package height
- 6.35 cm
- Package weight
- 0.89 kg
- Package width
- 8.93 cm
- Quantity per pack
- 1 pc(s)
Performance
- Colour name
- Silver and Black
- Compatibility
- Macbook™ Pro 2016 & Newer\nSurface Pro™ 7\nSurface Go™\nSurfacebook™ 2
- Compatible memory cards
- MicroSD (TransFlash), SD
- Country of origin
- Taiwan
- Data transfer rate
- 5 Gbit/s
- Display modes
- Extended, Mirror
- HD type
- 4K Ultra HD
- Housing material
- Aluminium
- Maximum analog resolution
- 1920 x 1080 pixels
- Number of displays supported
- 3
Ports & interfaces
- Combo headphone/mic port
- Yes
- DisplayPorts quantity
- 1
- Headphone connectivity
- 3.5 mm
- Headphone outputs
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 2
- USB Power Delivery revision
- 3.0
- USB Type-C DisplayPort Alternate Mode
- Yes
- VGA (D-Sub) ports quantity
- 1
Power
- AC input voltage
- 110 - 220 V
- Input current
- 0.8 A
- Output current
- 4.75 A
- Output voltage
- 20 V
- Power connector
- USB Type-C
- Power consumption (typical)
- 4.5 W
- Power source type
- DC, USB
- Power supply
- 100 W
- USB cable length
- 0.45 m
Technical details
- Box contents

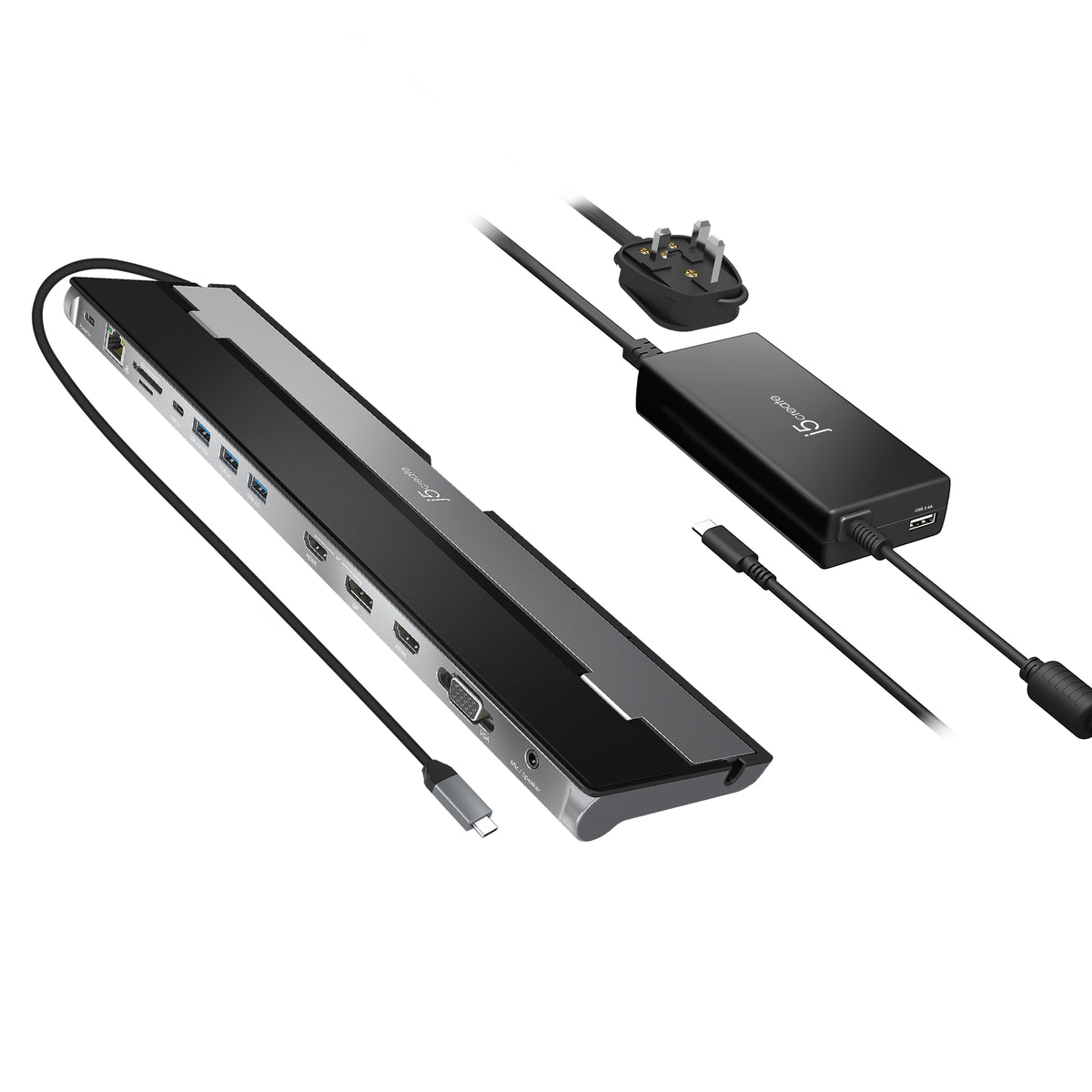

- 1 x JCD543P USB-C™ Triple Display Docking Station\n1 x JUP2290 100W USB-C™ Super Charger\n1 x Quick Installation Guide (QIG)
- Master (outer) case GTIN (EAN/UPC)
- 24712795083990
Weight & dimensions
- Depth
- 35 cm
- Height
- 2.34 cm
- Weight
- 0.3 kg
- Width
- 8.25 cm
AC adapter included
Cables included: USB Type-C
Quick start guide
Cables included: USB Type-C
Quick start guide
Materials
Housing material: Aluminium
