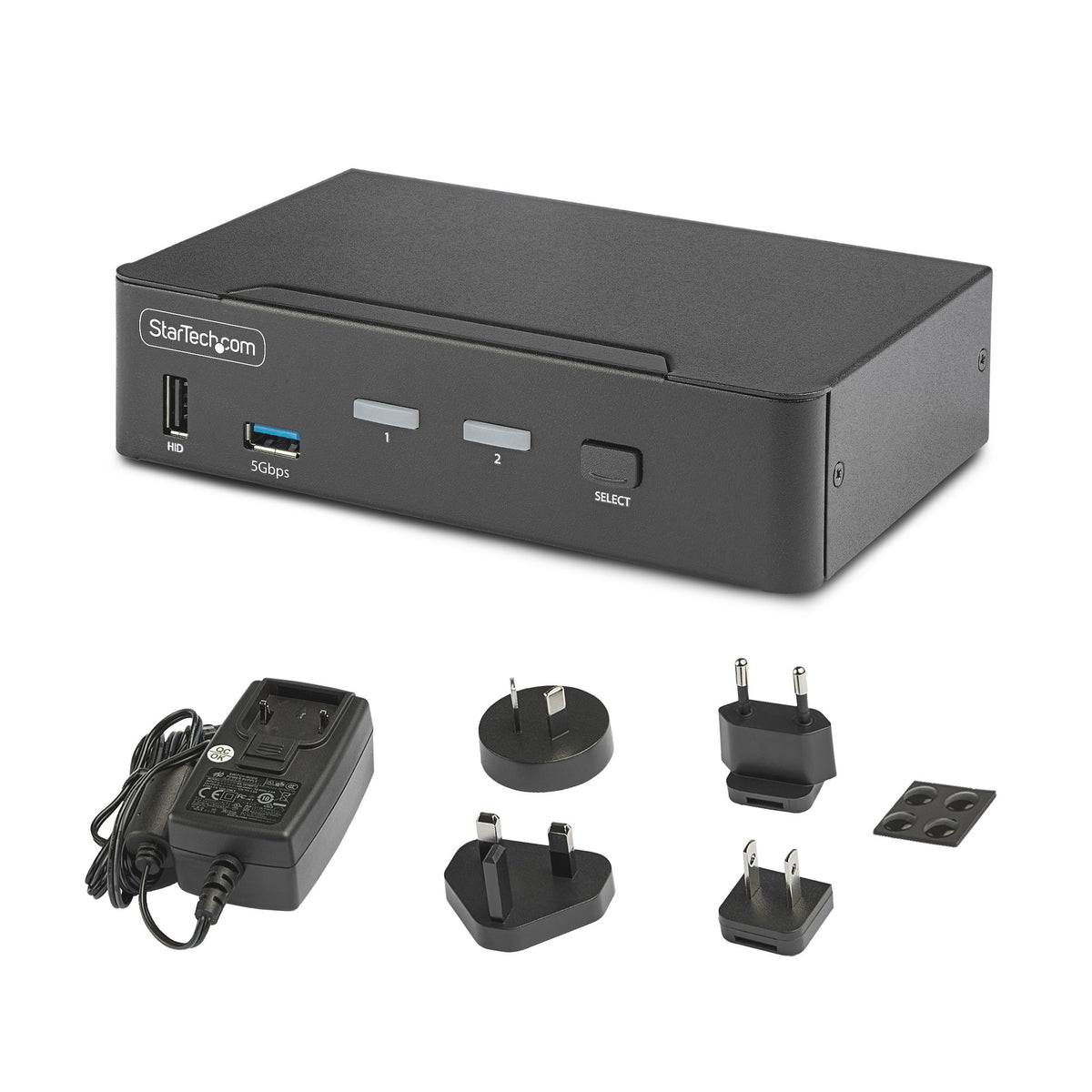

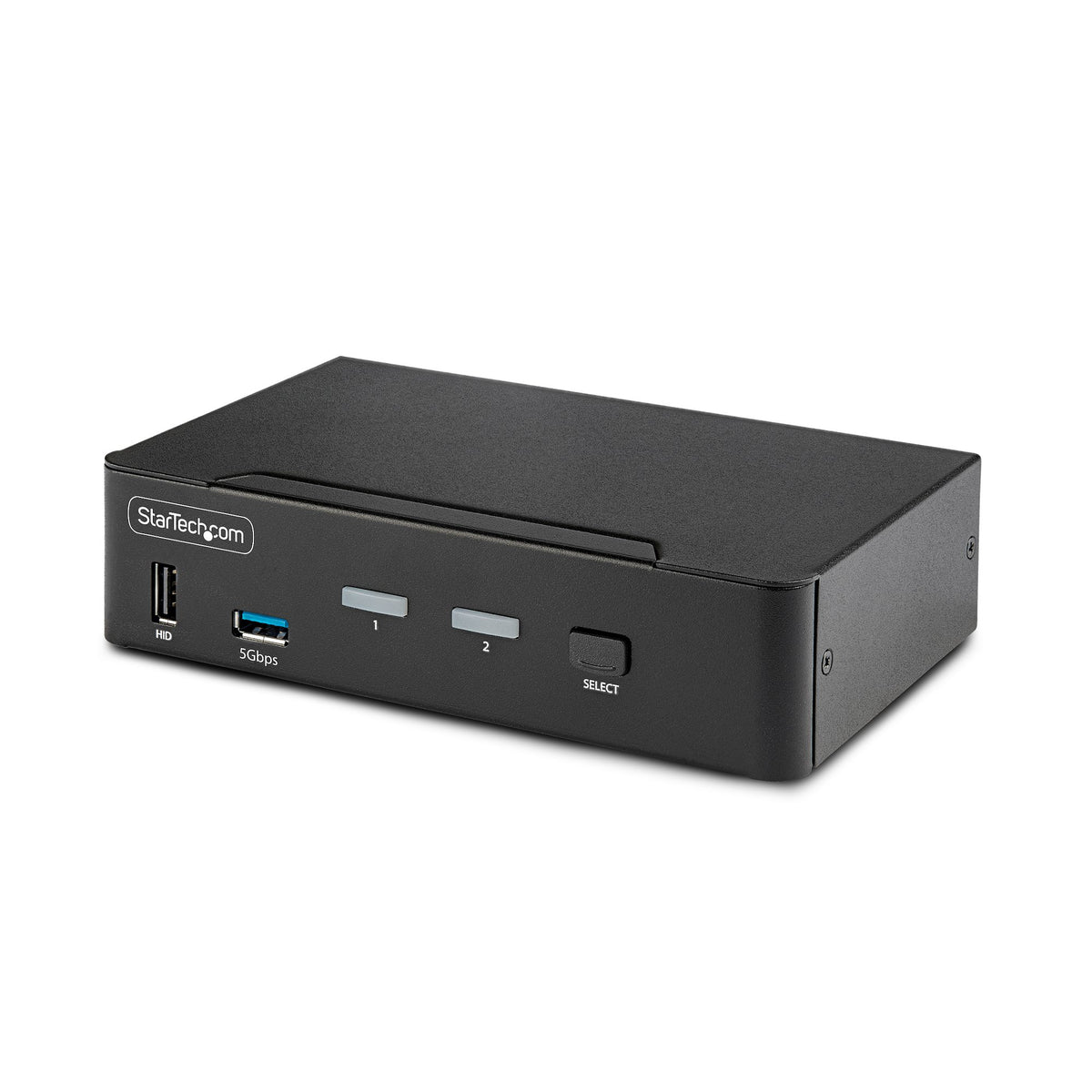

StarTech.com 2-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP 1.4, 2x USB 3.0 Ports, 4x USB 2.0 HID Ports, Push-Button & Hotkey Switching, TAA Compliant - OS Independent, Metal Housing
Regular price
$793.63
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Share a mouse, keyboard, USB 5Gbps Hub, and 8K 60Hz DisplayPort between two DisplayPort enabled computers
Share and switch between two USB-A and DisplayPort-enabled computers, using this DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices.
High-Resolution 8K 60Hz Video
This KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120x1440 at 60Hz. Ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Customizable Switching

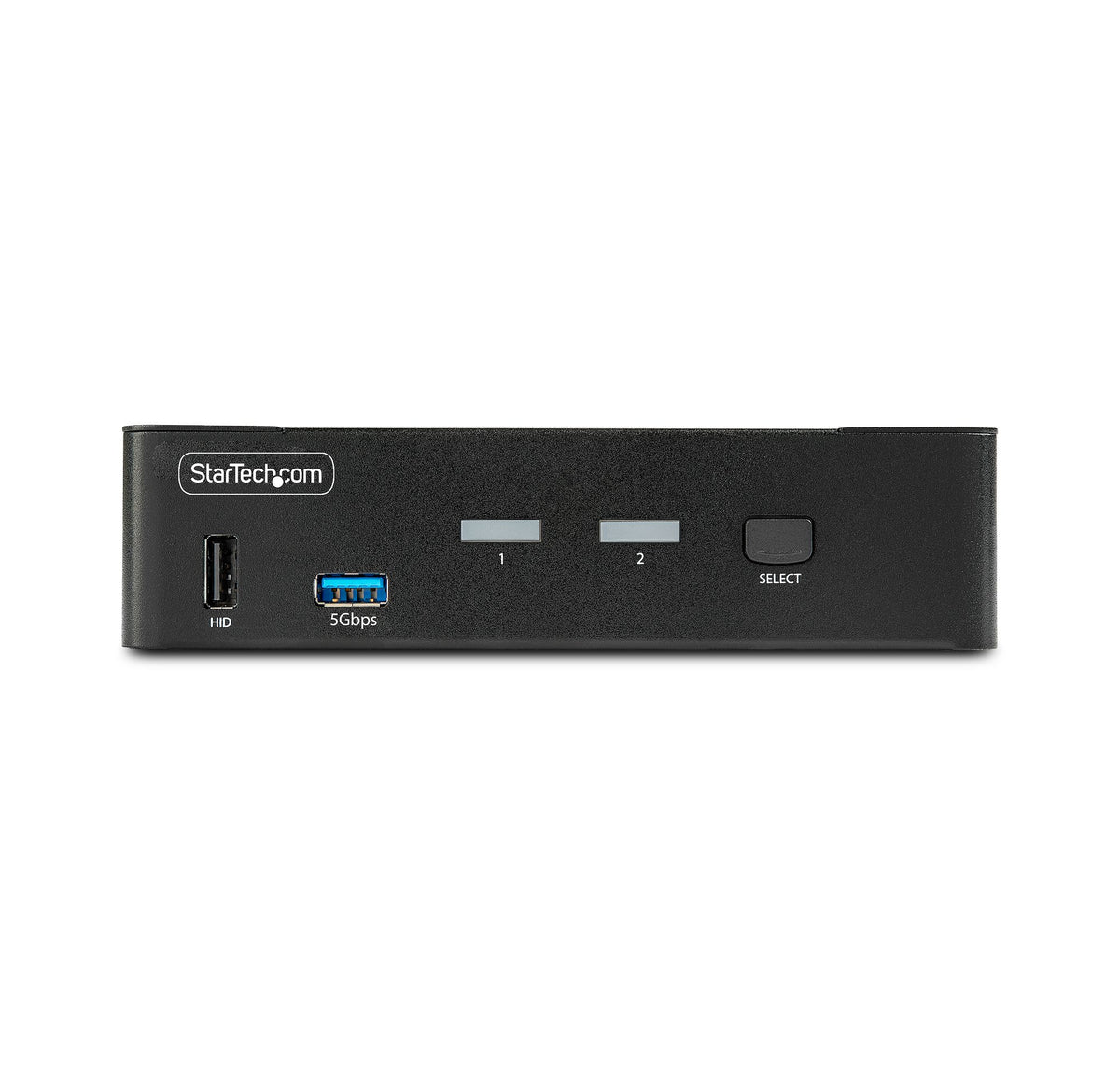

This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
Universal Compatibility
The TAA-Compliant KVM Switch offers universal compatibility, working with all operating systems, including Windows, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms, including Intel and AMD.
Reliable Performance
The durable metal housing helps prevent Electro-magnetic Interference (EMI). Overcurrent Protection (OCP) ensures peripherals don't overdraw power, reducing the occurrence of device dropouts or shutdowns.
Share and switch between two USB-A and DisplayPort-enabled computers, using this DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices.
High-Resolution 8K 60Hz Video
This KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120x1440 at 60Hz. Ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.
Customizable Switching
This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
Universal Compatibility
The TAA-Compliant KVM Switch offers universal compatibility, working with all operating systems, including Windows, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms, including Intel and AMD.
Reliable Performance
The durable metal housing helps prevent Electro-magnetic Interference (EMI). Overcurrent Protection (OCP) ensures peripherals don't overdraw power, reducing the occurrence of device dropouts or shutdowns.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Keyboard port type: USB
- Mouse port type: USB
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 80%
- Maximum resolution: 7680 x 4320 pixels
- Video port type: DisplayPort
- Number of computers controlled: 2
- LED indicators: Yes
- Built-in display: No
- Housing material: Steel

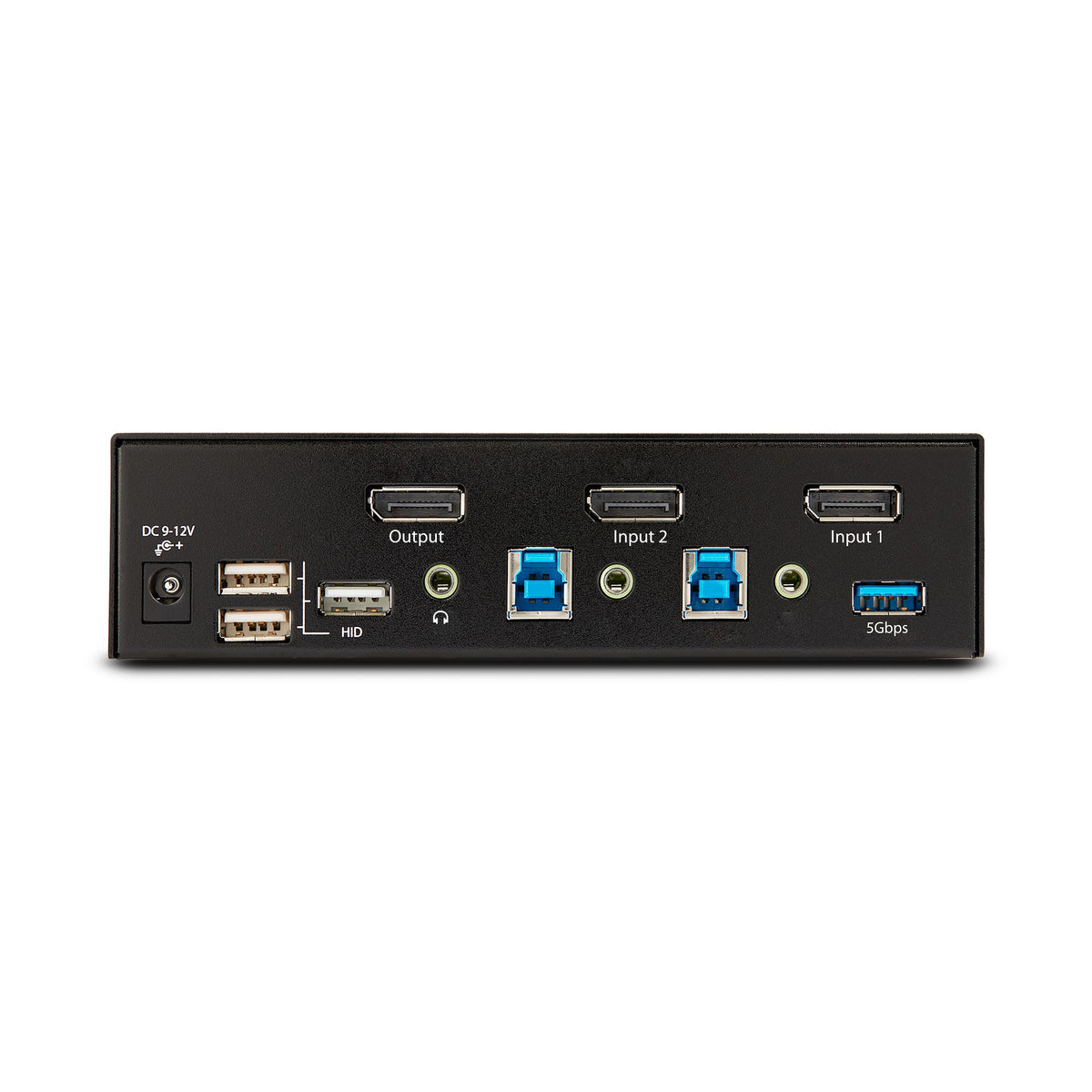

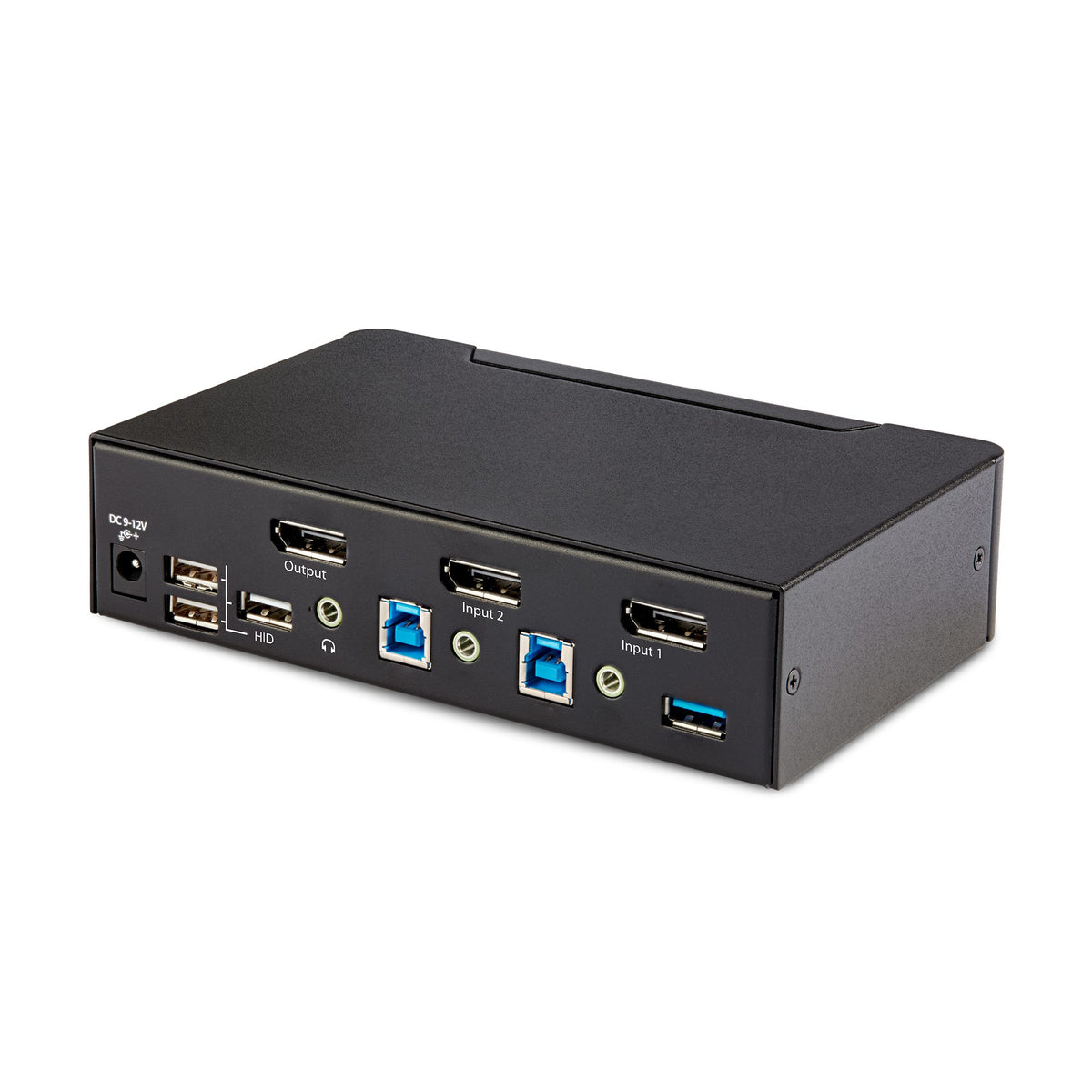

- Console ports: 3.5mm headphone, DisplayPort, USB A
- HD type: 8K Ultra HD
- Rack mounting: No
- Console USB ports quantity: 6
- Master (outer) case height: 30 cm
- Master (outer) case length: 25.7 cm
- Master (outer) case width: 39.7 cm
- Products per master (outer) case: 60 pc(s)
- Hot keys: Yes
Design
- Mean time between failures (MTBF)
- 130000 h
- Push button
- Yes
Display
- On Screen Display (OSD)
- No
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Other features
- IP control
- No
Packaging content
- Quick installation guide
- Yes
- Rubber feet
- Yes
Packaging data
- Package depth
- 24.2 cm
- Package height
- 9.3 cm
- Package weight
- 1 kg
- Package width
- 18.7 cm
Performance
- Chipset
- GL-3523
- Daisy chain
- No
- Data transfer rate (max)
- 5 Gbit/s
- HDCP
- Yes
- HDCP version
- 1.4/2.2
- High Dynamic Range (HDR) supported
- Yes
- Plug and Play
- Yes
- Scan interval
- 3,8,15,30 s
Ports & interfaces
- Audio connections
- Yes
- Console DisplayPorts ports quantity
- 1
- DC-in jack
- Yes
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.4
- Headphone outputs
- 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 2
Power
- Compatible power plug types
- EU, JP, UK, US
- Input current
- 1 A
- Input voltage
- 100 - 240 V
- Output current
- 3 A
- Output voltage
- 12 V
- Power consumption (typical)
- 36 W
- Power source
- DC
Sustainability
- Compliance certificates
- CE, RoHS, Trade Agreements Act (TAA)
- Sustainability compliance
- Yes
Weight & dimensions
- Depth
- 16 cm
- Height
- 4 cm
- Weight
- 0.6 kg
- Width
- 10 cm
Materials
Housing material: Steel
