StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to 2.5" SATA HDD/SSD/ODD Converter - TAA
Available in stock (36)
The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Red
- Internal: Yes
- Output interface: SATA
- Host interface: IDE
- Harmonized System (HS) code: 84733020
- Operating temperature (T-T): 5 - 50 °C
- Products per master (outer) case: 60 pc(s)
- Master (outer) case height: 32.6 cm
- Master (outer) case length: 39.6 cm
- Master (outer) case width: 51.2 cm
- Operating relative humidity (H-H): 15 - 90%
- Compliance certificates: RoHS

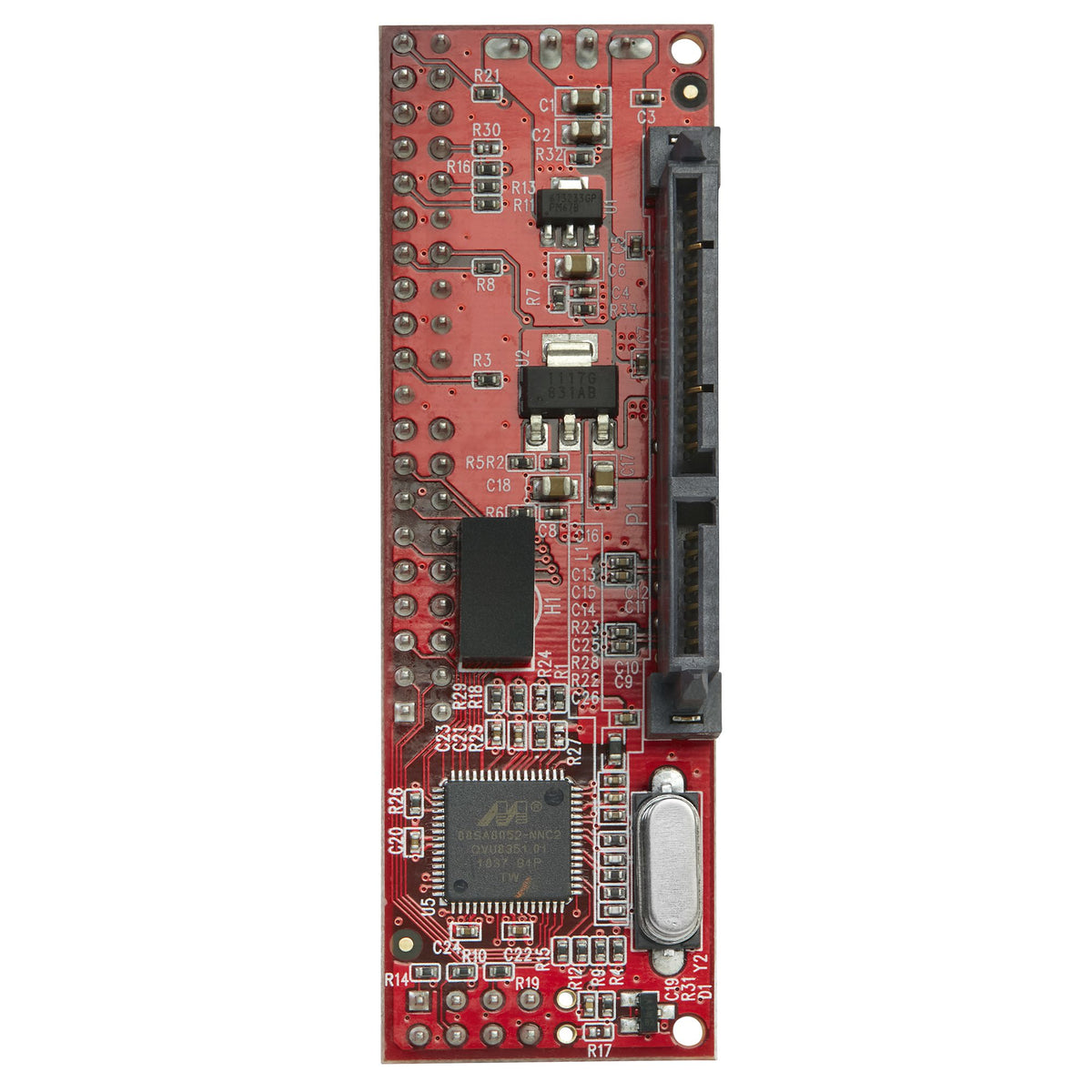

- Chipset: Marvell - 88SA8052
- Data transfer rate (max): 0.133 Gbit/s
- Certification: FCC, CE, TAA, REACH
- Manual: Yes
- Material: Plastic, Steel
- Connector(s): 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin)
- Logical block addressing (LBA) support: 48 bit
Operational conditions
- Storage temperature (T-T)
- -25 - 80 °C
Packaging data
- Package depth
- 17.4 cm
- Package height
- 3.4 cm
- Package weight
- 0.09 kg
- Package width
- 14.2 cm
Weight & dimensions
- Depth
- 7.55 cm
- Height
- 2.3 cm
- Weight
- 0.03 kg
- Width
- 2 cm
Materials
Material: Plastic, Steel
