StarTech.com Multi-Mode (MM) SC Fiber Media Converter for 10/100Mbps Networks, Standalone Ethernet to SC MM Fiber Media Converter, 1310nm, 2km - TAA
Regular price
$151.52
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Out of stock
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode SC fiber
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Product colour: Black
- Internal: No
- Fiber optic connector: SC
- Operating temperature (T-T): 0 - 50 °C
- Operating relative humidity (H-H): 10 - 90%
- Ethernet LAN (RJ-45) ports: Yes
- Connectivity technology: Wired
- Auto MDI/MDI-X: Yes
- Fiber mode structure: Multi-mode
- Fiber ports quantity: 1
- Duplex system: Full, Half
- Compliance certificates: RoHS
- Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
- LED indicators: Yes
- Maximum transfer distance: 2000 m
- Ethernet LAN data rates: 10,100 Mbit/s
- Wavelength: 1310 nm
- Certification: CE, FCC
- Manual: Yes
- Housing material: Plastic
Network
- Auto-negotiation
- Yes
- Flow control support
- Yes
- Jumbo frames
- 9000
- Jumbo frames support
- Yes
- Maximum data transfer rate
- 100 Mbit/s
Operational conditions
- Storage temperature (T-T)
- -10 - 70 °C
Packaging content

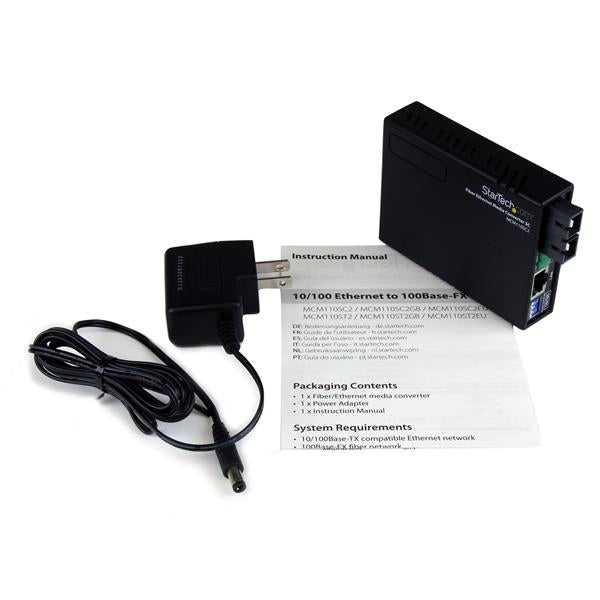

- AC adapter included
- Yes
Packaging data
- Package depth
- 14.8 cm
- Package height
- 14.5 cm
- Package weight
- 0.4 kg
- Package width
- 6.3 cm
Performance
- Mean time between failures (MTBF)
- 65000 h
- Wavelength-division multiplexing (WDM)
- No
Ports & interfaces

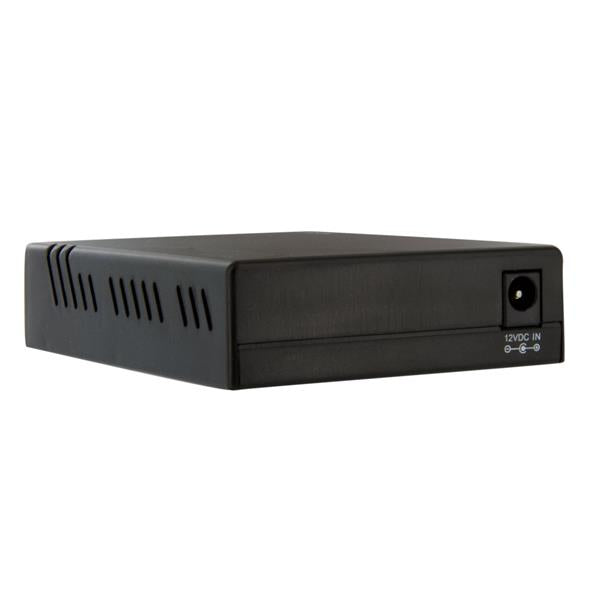

- DC-in jack
- Yes
Power
- Input voltage
- 115 V
- Output current
- 0.2 A
- Output voltage
- 12 V
- Power over Ethernet (PoE)
- No
- Power plug type
- Type M
Weight & dimensions
- Depth
- 9.5 cm
- Height
- 2 cm
- Weight
- 0.09 kg
- Width
- 7.5 cm
AC adapter included
Manual
Manual
Materials
Housing material: Plastic
