StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe x1 SATA III Adapter with Configurable Internal/External Connectivity
Regular price
$92.32
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Hurry up, only 6 items left in stock.

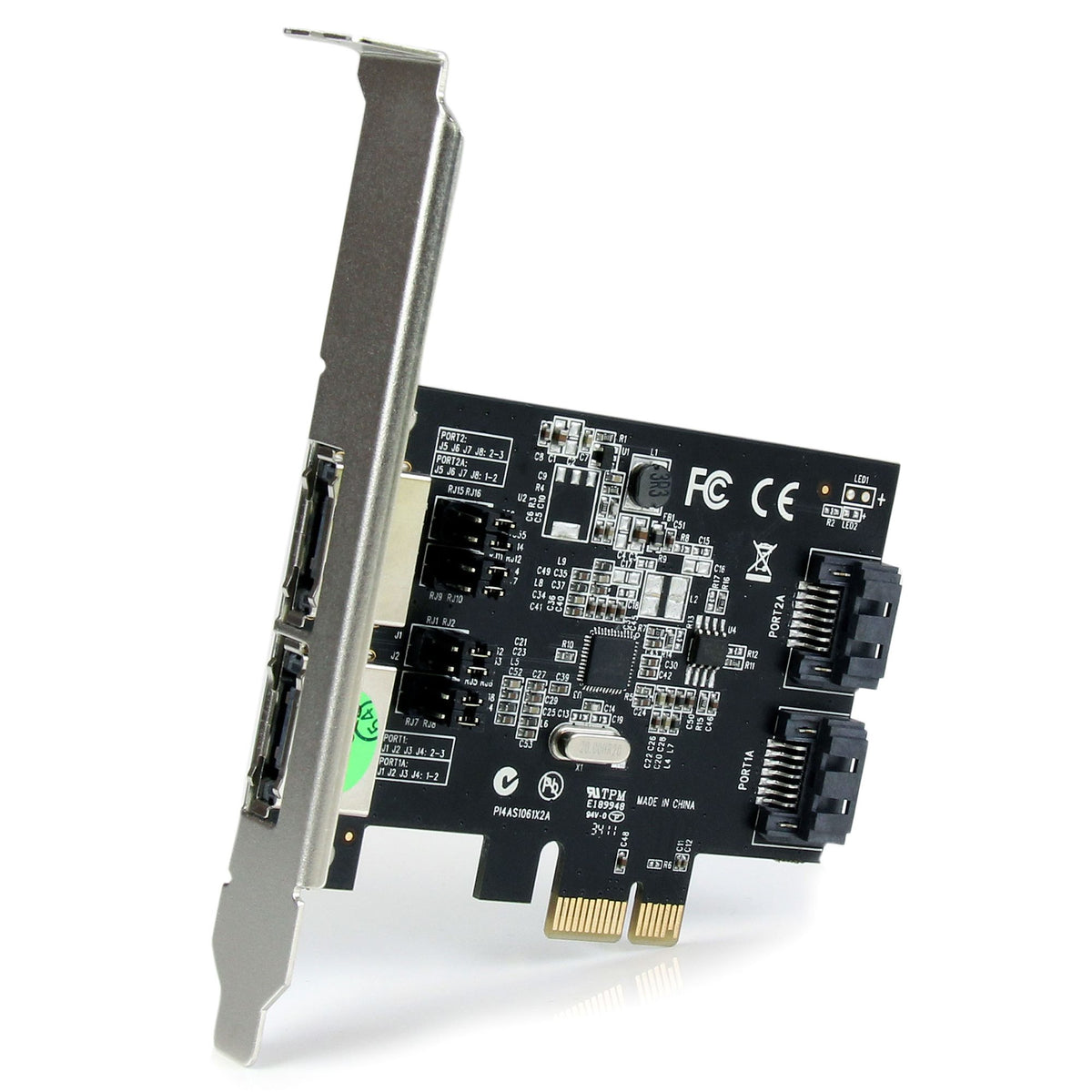

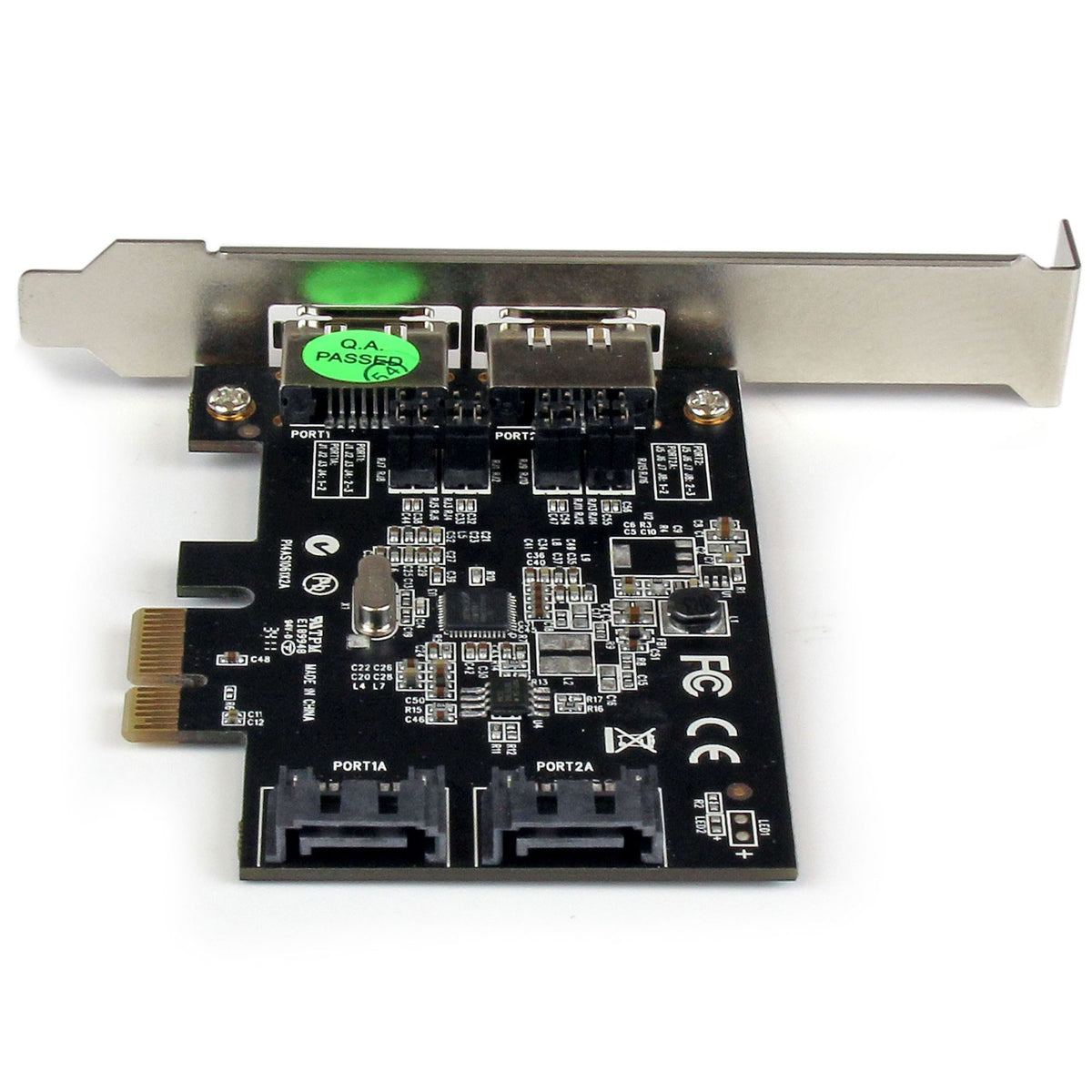

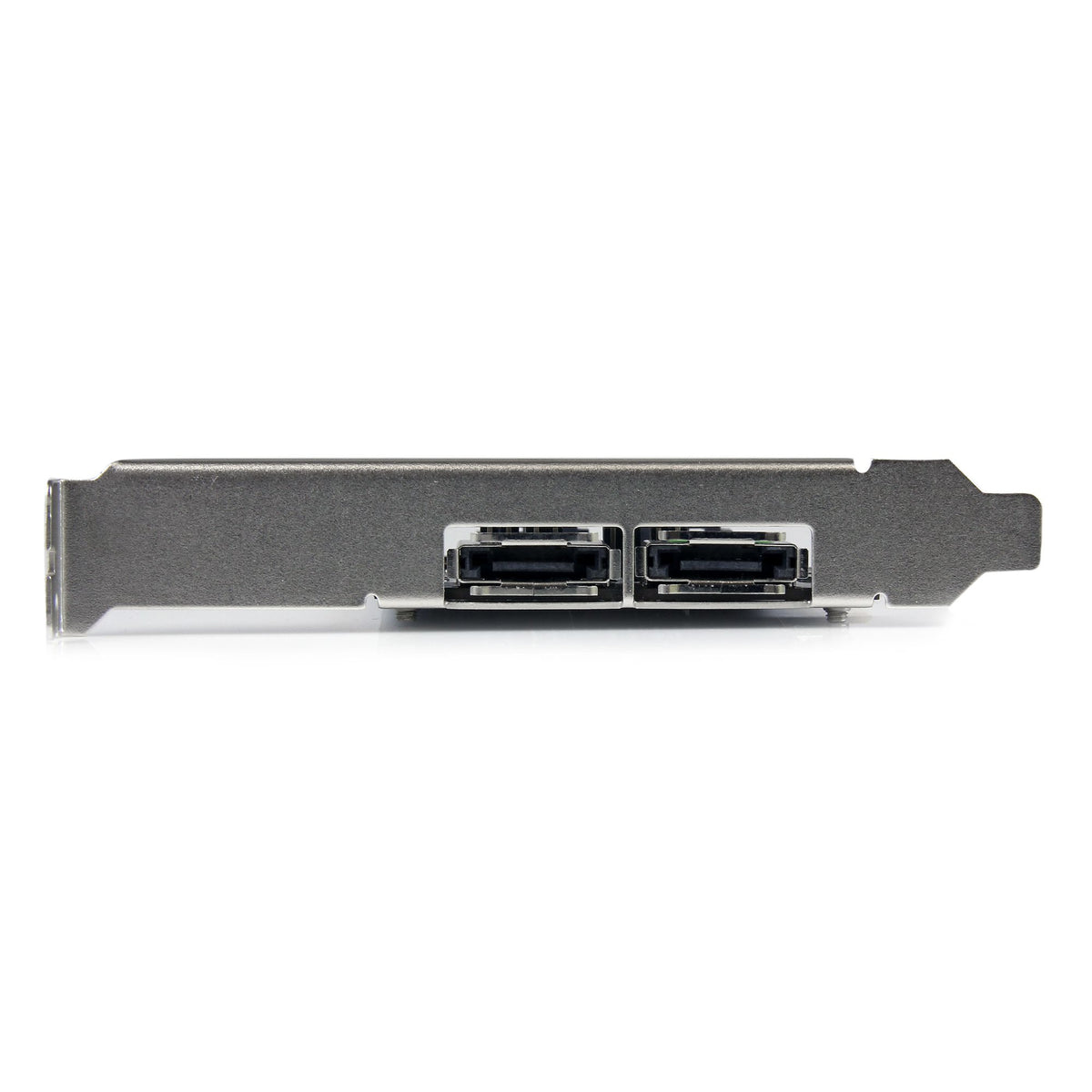

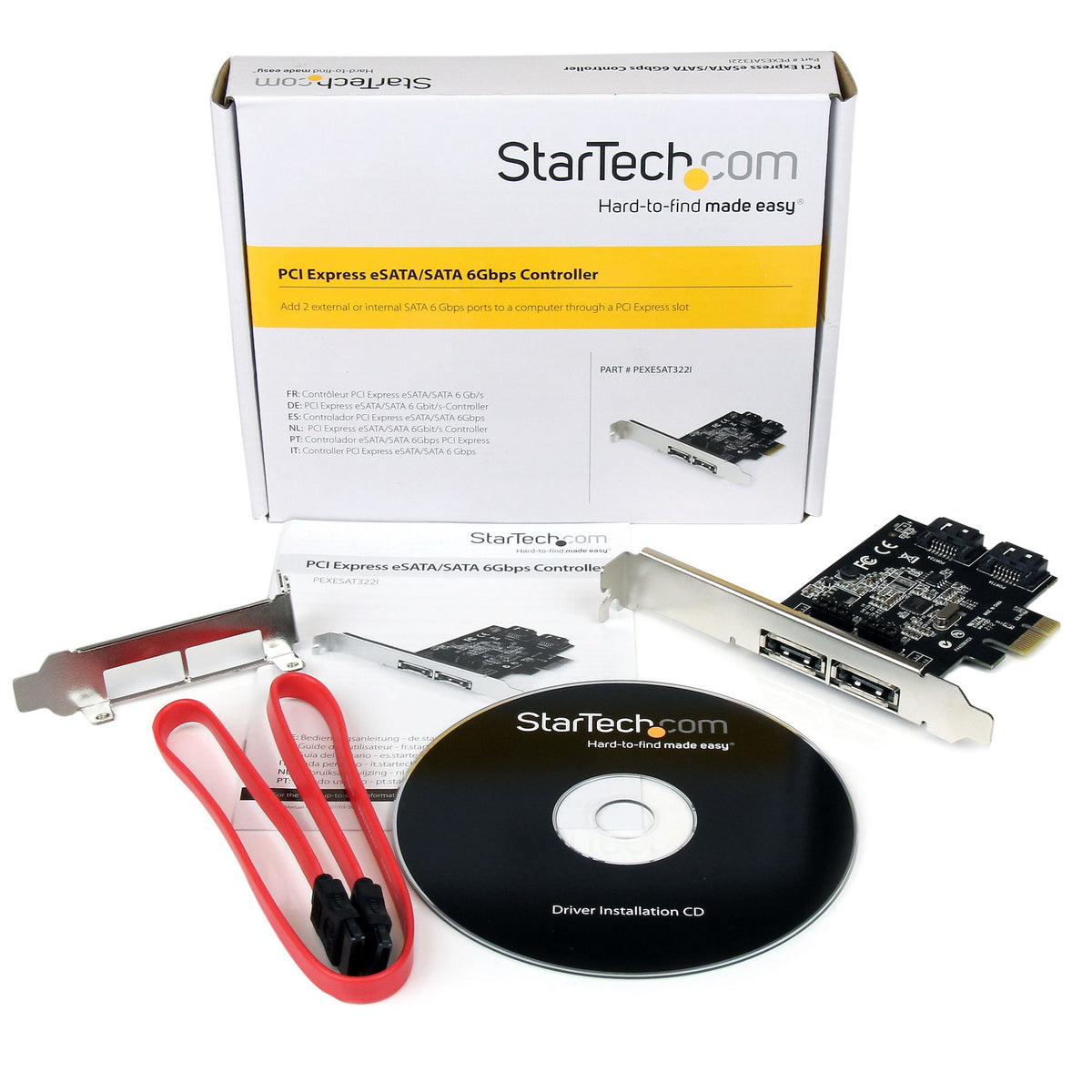

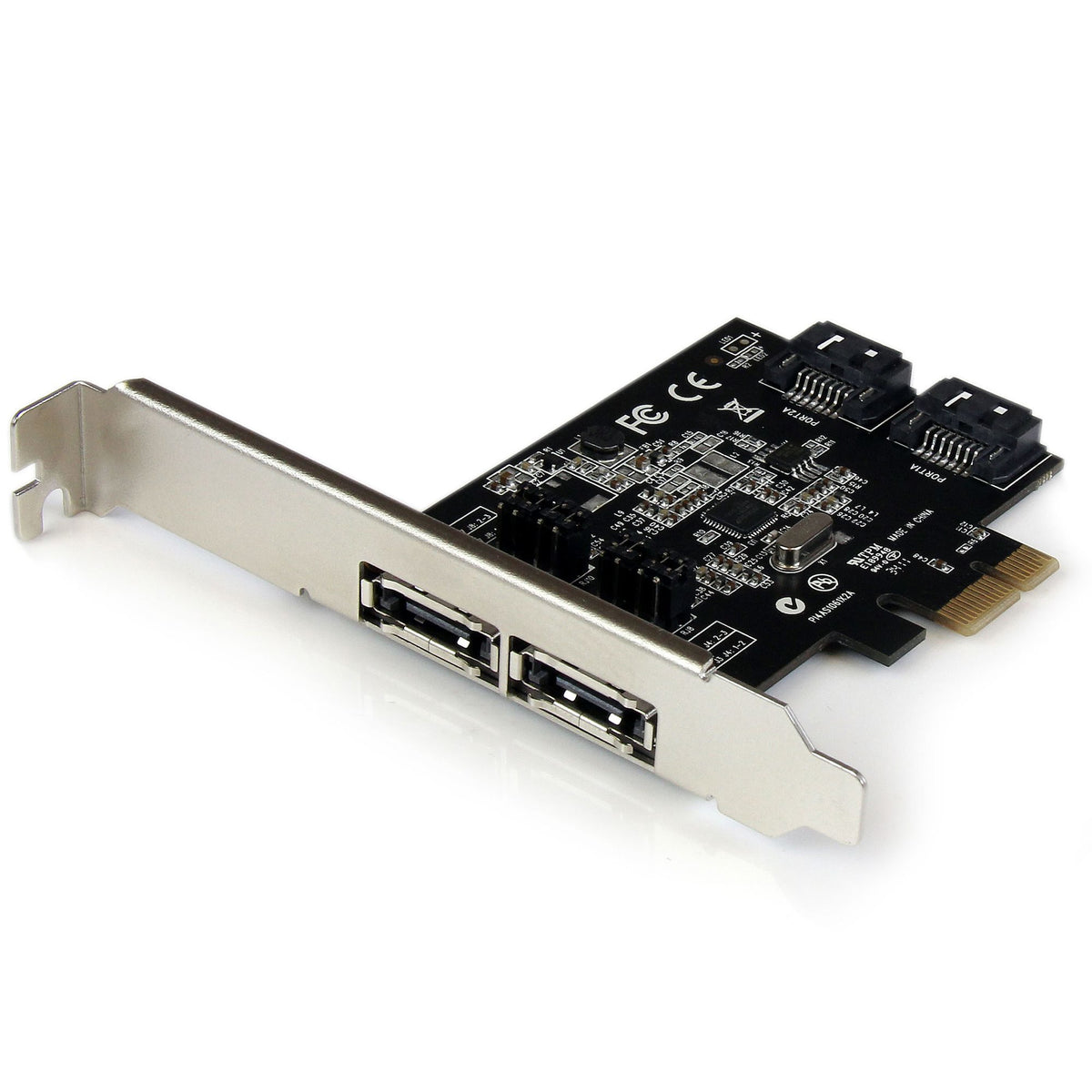

Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot
The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Key specifications
- Internal: Yes
- Output interface: SATA
- Host interface: PCIe
- Harmonized System (HS) code: 84733020
- Operating temperature (T-T): 0 - 50 °C
- Products per master (outer) case: 40 pc(s)
- Master (outer) case height: 32.5 cm
- Master (outer) case length: 37.9 cm
- Master (outer) case width: 45.1 cm
- Operating relative humidity (H-H): 5 - 85%
- Compliance certificates: RoHS
- Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
- Chipset: ASMedia - ASM1061
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Certification: CE, FCC, REACH
- Manual: Yes
- Internal SATA ports quantity: 2
- Quantity: 1
- Drivers included: Yes
- Cables included: SATA
Features
- Logical block addressing (LBA) support
- 48 bit
- Native Command Queuing (NCQ)
- Yes
Operational conditions
- Storage temperature (T-T)
- -20 - 60 °C
Packaging data
- Mounting brackets included
- Yes
- Package depth
- 14.8 cm
- Package height
- 3.6 cm
- Package weight
- 0.15 kg
- Package width
- 21.6 cm
Ports & interfaces
- eSATA ports quantity
- 2
- Port multiplier
- Yes
- SATA revision
- 3.0
Weight & dimensions
- Depth
- 12.1 cm
- Height
- 2 cm
- Weight
- 0.05 kg
- Width
- 9.2 cm
Cables included: SATA
Drivers included
Manual
Mounting brackets included
Drivers included
Manual
Mounting brackets included
Materials
